Munitions

M999 Barak Eitan

Also known as
  • XM1208
  • XM1208 C-DAEM
  • C-DAEM
  • Cannon-delivered Area Effects Munition

The M999 Barak Eitan is an Israeli 155 mm area-effects artillery projectile adopted by the U.S. Army under the XM1208 C-DAEM designation. The Army describes it as a 39-caliber projectile carrying nine M99 submunitions, while open-source remnant analysis in southern Lebanon tied the round to alleged Israeli use during the 2023-2024 Israel-Hezbollah fighting.

Role in Conflicts

Side
Israel

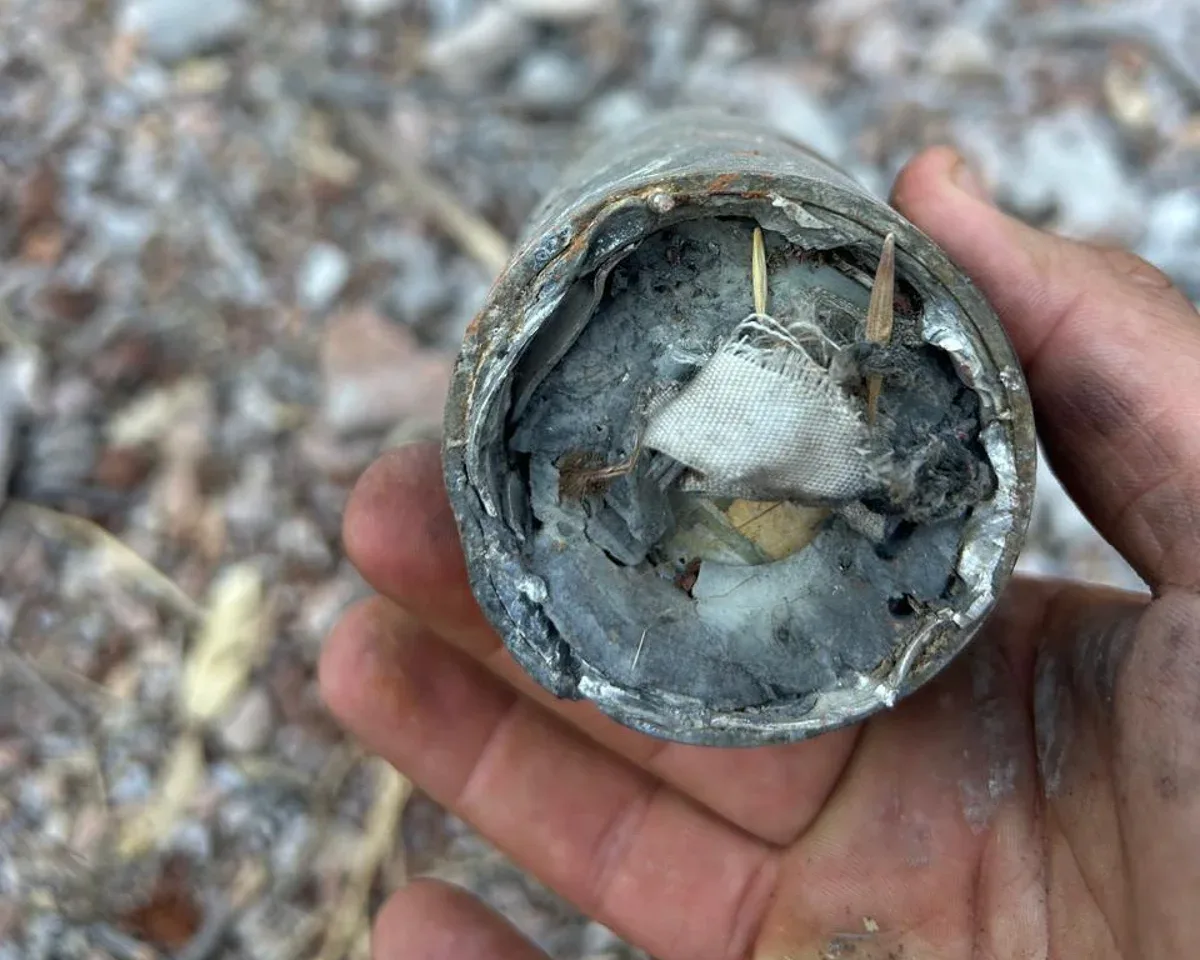

Photographs of remnants found south of the Litani River and reviewed by arms specialists indicate Israeli use of 155 mm M999 Barak Eitan projectiles during the 2023-2024 Israel-Hezbollah fighting; Israel did not confirm the specific munition use.

Profile / Specs

Profile

Origin
Israel
Type
155 mm cluster artillery projectile
Service note
Israeli-developed 155 mm cluster projectile documented from 2023-2024 Lebanon fighting through post-strike remnant analysis.
Designer
Israel Military Industries
Designed
2010s
Produced
Reported M999 production-marked examples from 2017-2019; Elbit later said IMI cluster-munition production, sales, and deliveries were discontinued; The Monitor reported a September 30, 2025 U.S. contract for Tomer to manufacture XM1208 projectiles.
Number built
Not publicly reported

Specifications

Caliber
155 mm (39 calibers)
Munition class
Area-effects cargo-carrying cluster artillery projectile
Submunitions
Nine M99 advanced submunitions
Fuze
M762/A1
Compatible launchers
M109A6/A7 and M777A2 howitzers
Maximum range
About 22.4 km in the U.S. XM1208/C-DAEM description
Guidance
Unguided projectile; submunitions expelled at a predetermined time in flight
Compatible Howitzers

The Army's XM1208/C-DAEM description names the howitzers it can be fired from.

Compatible itemItem typeCompatibility evidence
M109A6 Paladin, 155 mm tracked self-propelled howitzer, ArtilleryM109A6 Paladin155 mm self-propelled howitzer

The Army product page lists the M109A6/A7 family as a compatible launcher for XM1208.

Sources: C-DAEM XM1208 Product Page

M777, 155 mm towed howitzer, ArtilleryM777155 mm towed howitzer

The same Army page lists the M777A2 as a compatible launcher for XM1208.

Sources: C-DAEM XM1208 Product Page

Timeline

M999 Barak Eitan Key Events

  1. Production-marked examples appear

    The Monitor reports M999 examples manufactured in Israel with 2017-2019 production markings, placing the round in the late-2010s production window.

    Sources: Israel Cluster Munition Ban Policy

  2. Elbit says cluster-munition production is over

    The Monitor says an Elbit Systems vice president stated that the company would not continue IMI's prior cluster-munition activities after the takeover.

    Sources: Israel Cluster Munition Ban Policy

  3. U.S. contract reported for XM1208 production

    The Monitor reports that Tomer received a three-year U.S. Department of Defense contract to manufacture XM1208 155 mm cluster-munition artillery projectiles.

    Sources: Israel Cluster Munition Ban Policy, United States Cluster Munition Ban Policy

  4. Guardian investigation links remnants to the M999

    The Guardian published photo analysis of fragments in southern Lebanon and cited six arms specialists who identified the projectile as the M999 Barak Eitan.

    Sources: Israel Used Widely Banned Cluster Munitions in Lebanon, Photos of Remnants Suggest

Documented Context

The clearest open-source picture of this projectile comes from two angles: the U.S. Army's XM1208 description for technical fit, and later remnant analysis from southern Lebanon for battlefield context.

Army designation

XM1208/C-DAEM describes a 155 mm projectile with nine M99 submunitions, an M762/A1 fuze, and compatibility with M109A6/A7 and M777A2 howitzers.

Production context

The Monitor traces the M999 to IMI development, later Elbit discontinuation statements, and a 2025 U.S. contract for Tomer to manufacture XM1208 projectiles.

Lebanon evidence

Guardian and OSMP remnant analysis links photographed southern Lebanon debris to the M999 Barak Eitan, while noting Israel did not confirm the specific munition use.
