Bayraktar TB2

Also known as
  • Bayraktar-2
  • TB-2

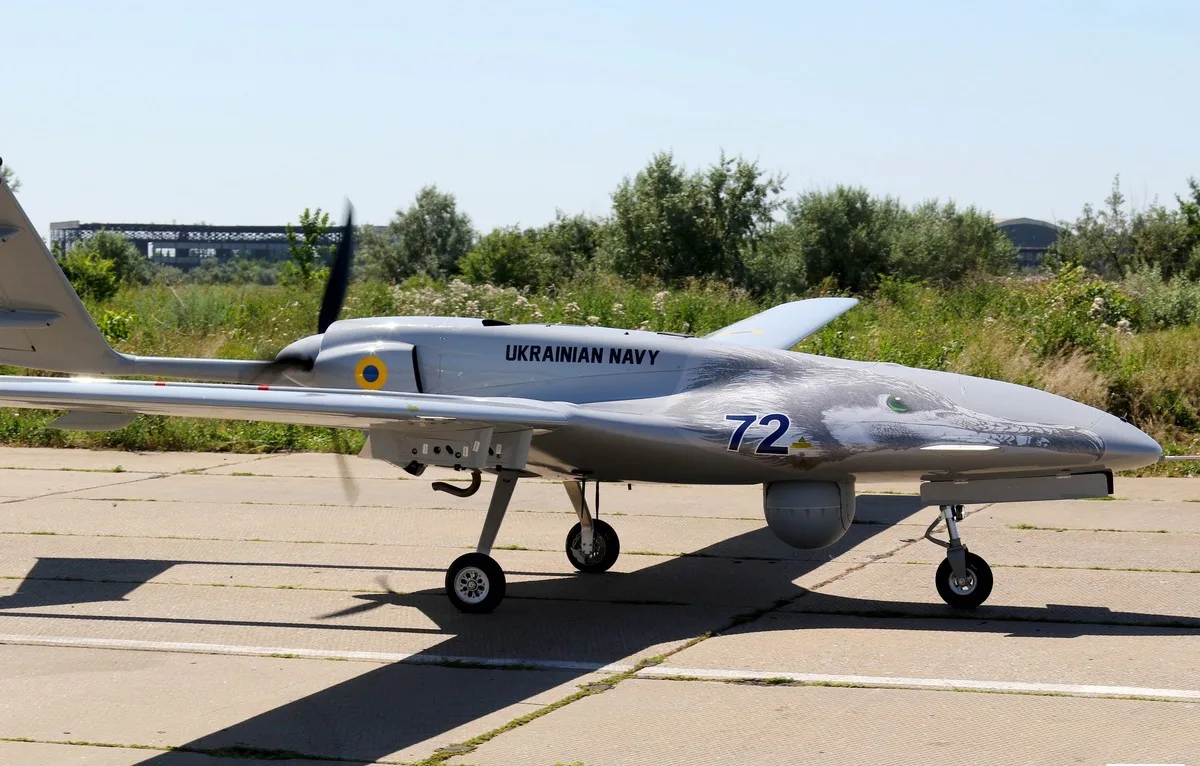

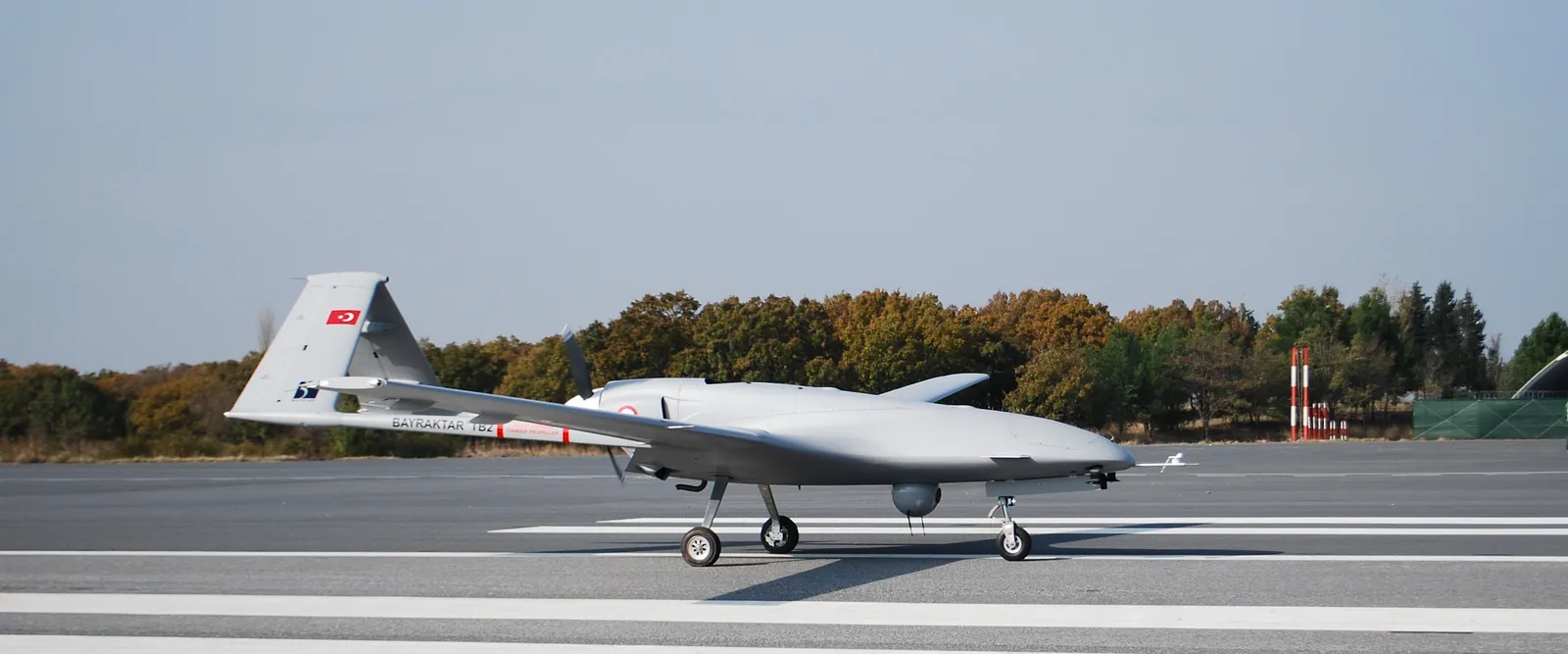

The Bayraktar TB2 is a Turkish MALE armed UAV built by Baykar for intelligence, surveillance, reconnaissance, and precision strike missions. Developed from 2012 and delivered to Turkish inventory in 2014, Baykar reports more than 1.25 million operational flight hours, and the aircraft became one of the most visible armed drones of the 2020s through documented use in Ukraine, Libya, Nagorno-Karabakh, the Sahel, Sudan, Somalia, and other conflicts.

Role in Conflicts

Profile / Specs

Profile

Origin
Turkey
Built by
Baykar
Type
Medium-altitude long-endurance UAV
Service note
Modern drone warfare
Designed
2012
Unit cost
Estimated flyaway cost: about US$8.94 million per system
Produced
2012-present
Number built
At least 500 air vehicles by 2023

Specifications

Crew
Uncrewed aircraft; operated from a ground control station
Dimensions

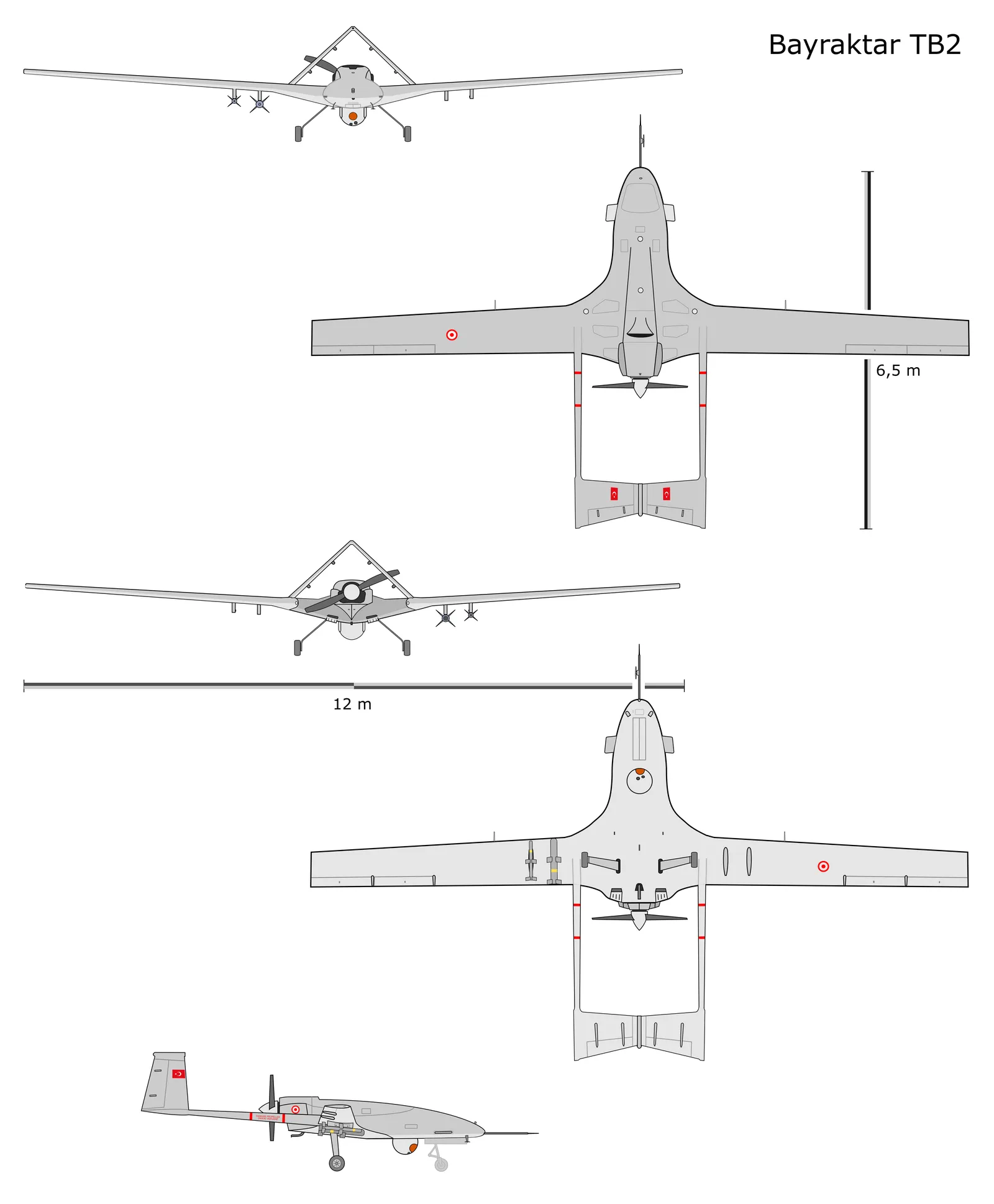

Length 6.5 m; wingspan 12 m; height 2.2 m
Weight
MTOW 700 kg; payload 150 kg
Performance
20+ hour endurance; 90-110 KTAS; service ceiling 22,000 ft; operational altitude 16,000 ft
Flight record
27 hours 3 minutes in a July 2019 Kuwait demonstration, according to Baykar
Communications
Line-of-sight and beyond-line-of-sight communications; TB2 uses triple bands for LOS control and video transmission
Control
Fully autonomous taxi, takeoff, cruise, landing, and parking; triple-redundant autopilot and sensor-fusion architecture
Powerplant
100 hp internal-combustion engine
Payloads
Simultaneous EO/IR/laser designator or surveillance-radar payload options; Baykar lists laser-guided, INS/GPS-guided, IR-guided munitions, and mini cruise missiles
Armament
Baykar lists MAM-L and MAM-C among the TB2's national munitions; Polish export material describes four underwing suspension points
Operational profile

Baykar presents the TB2 as a combat-capable MALE UAV with autonomous flight controls, redundant avionics, and a payload set built for surveillance, target designation, and precision strike.

Flight automation

Baykar lists autonomous taxi, takeoff, cruise, landing, and parking with a triple-redundant autopilot.

The automation package supports repeatable operations from ground-control stations.

Control link

The official specification lists LOS and BLOS communications, plus triple bands for LOS control and video transmission.

The aircraft is documented as a networked remotely operated platform, not a short-range quadcopter-style control problem.

Payload fit

Baykar lists EO/IR/laser-designator or surveillance-radar options, with laser-, INS/GPS-, and IR-guided munition classes.

The public configuration emphasizes ISR and strike flexibility rather than a single munition type.

Known smart munitions

Baykar names MAM-L and MAM-C, and Polish export material describes four underwing suspension points.

The aircraft's reconnaissance, target-designation, and precision-strike roles are tightly connected.

Variants

Sourced TB2-family rows below distinguish later SATCOM and turbo-AI development paths from the baseline aircraft.

VariantConfigurationDesignation notes
Bayraktar TB2SSATCOM-enabled development

Shephard describes the TB2S as a TB2 variant with a SATCOM radome and satellite-control path, while a defense-news roundup reported that Baykar's SATCOM-integrated TB2S, developed on the TB2 platform, had made its first flight.

Sources: Bayraktar TB2 - Shephard Defence Insight, SATCOM and Space Systems Update - TB2S

Bayraktar TB2T-AITurbo-engine and AI-computer development

Baykar describes TB2T-AI as a turbo-engine, AI-assisted development of the TB2 with new aerodynamic features, and later said the test aircraft reached 37,096 ft while breaking its own altitude record.

Sources: Bayraktar TB2T-AI UCAV Takes to the Skies, Bayraktar TB2T-AI altitude record

Carried Munitions

Baykar publicly lists the TB2 with the MAM-L and MAM-C smart micro munition family.

Carried itemItem typeCarriage evidence
MAM-L guided bomb, Laser-guided smart micro munition, MunitionsMAM-L guided bombLaser-guided smart micro munition

Baykar lists MAM-L among the TB2's national munitions, and its export material says the system can carry guided munitions on four suspension points under the wings.

Sources: Bayraktar TB2, Poland receives 1st batch of Turkish Bayraktar TB2 combat drones

MAM-C guided bomb, Laser-guided smart micro munition, MunitionsMAM-C guided bombLaser-guided smart micro munition

Baykar lists MAM-C among the TB2's national munitions and in its payload-systems catalog.

Sources: Bayraktar TB2, Payload Systems

Sensor Payloads

TB2 operations are tied to electro-optical and infrared targeting payloads used for surveillance, target designation, and strike support.

Carried itemItem typeCarriage evidence
EO/IR Pod, Electro-optical/infrared airborne sensor pod, Support EquipmentEO/IR PodElectro-optical/infrared targeting sensor pod

Baykar lists simultaneous EO/IR/laser-designator payload carriage among the TB2's payload options. Global Affairs Canada separately assessed credible evidence that Bayraktar TB2 UAVs equipped with Canadian sensors were used in Nagorno-Karabakh and discussed Turkish UAVs with Canadian sensors in Libya and Syria-related operations.

Sources: Bayraktar TB2, Final report: Review of export permits to Türkiye

Timeline

Bayraktar TB2 Key Events

  1. Development and production process begins

    Baykar's history page marks 2012 as the start of the Tactical UAV project's development and production process.

    Sources: Baykar history

  2. First autonomous flight test

    Baykar credits the TB2 with its first fully autonomous flight test in 2014.

    Sources: Baykar history

  3. First delivery to Turkish inventory

    Baykar says the first TB2 set was delivered in 2014, and later noted that the first operational airframe entered Turkish inventory that same year.

    Sources: Baykar history, First Bayraktar TB2 service retirement

  4. First fired-munitions demonstration

    Baykar's history page marks 2015 as the first demonstration of fired munitions from the TB2.

    Sources: Baykar history

  5. 500th air vehicle rolls off the line

    Baykar's history page says the 500th Bayraktar TB2 UCAV rolled off the production line in 2023.

    Sources: Baykar history

  6. Passes 1 million flight hours

    Baykar announced in December 2024 that the TB2 had surpassed 1 million flight hours, a major milestone for the platform.

    Sources: TB2 1 million flight hours

  7. TB2T-AI turbo development flies

    Baykar announced that the TB2T-AI, a turbo-engine and AI-computer development path for the TB2 family, had taken to the skies.

    Sources: Bayraktar TB2T-AI UCAV Takes to the Skies

  8. TB2 export contracts reach 35 countries

    Baykar said it had signed export contracts with 35 countries for the Bayraktar TB2 UCAV, reflecting the platform's unusually broad export footprint.

    Sources: Baykar anchors at the summit of Turkish exports
