Munitions

MAM-L guided bomb

Also known as
  • MAM-L
  • MAM L
  • Mini Akilli Muhimmat-L
  • Mini Akıllı Mühimmat MAM-L
  • MAM-L Smart Micro Munition
  • Roketsan MAM-L

The MAM-L is a Turkish laser-guided smart micro munition built by Roketsan for UAVs and light attack aircraft. Official Roketsan data lists a 22 kg, 160 mm weapon with laser guidance, alternative warheads, and a 15 km range, while conflict reporting documents MAM-L use from Bayraktar TB2-class armed drones in Syria, Libya, Nagorno-Karabakh, Ukraine, Somalia, and Tigray.

MAM-L guided bomb, Laser-guided smart micro munition, Munitions

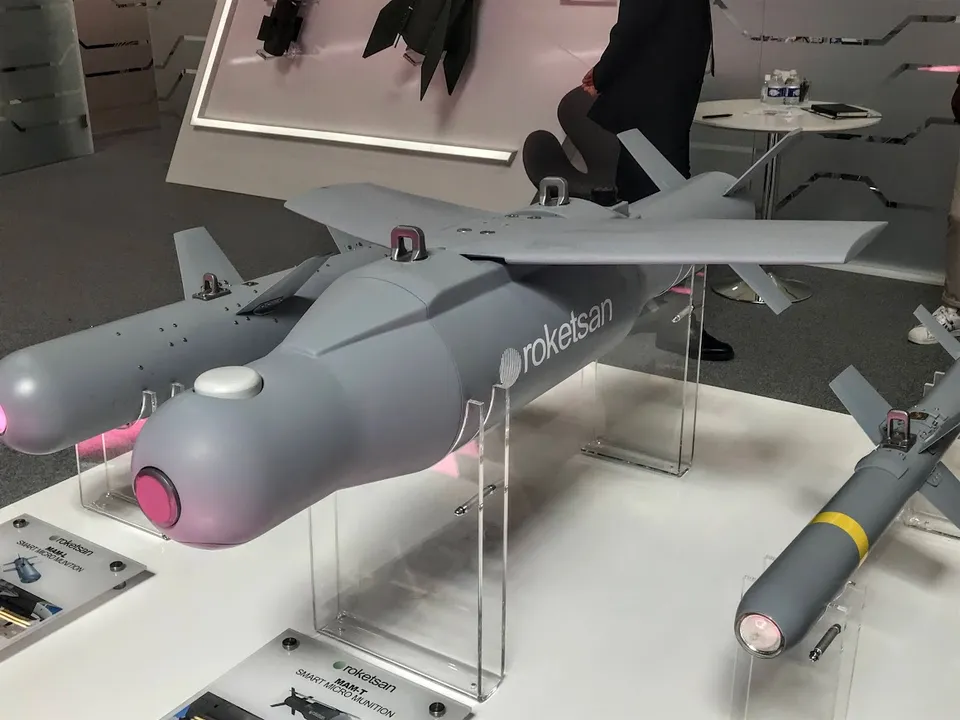

Image source: Roketsan MAM-L - IDET 2017

Role in Conflicts

2011 Syrian Civil War
Long-Range StrikeInterdiction
Side
Turkey

Used by Turkish TB2 and ANKA-S drones during Operation Spring Shield in Idlib; Jamestown reported that both UAV types carried Roketsan MAM-L and MAM-C smart munitions and that MAM-L was highlighted as the primary munition in the campaign.

Role details
Profile / Specs

Profile

Origin
Turkey
Built by
Roketsan
Type
Laser-guided smart micro munition
Service note
2010s-present
Designer
Roketsan
Produced
2010s-present

Specifications

Diameter
160 mm
Length
1 m
Weight
22 kg
Range
15 km
Guidance
Laser seeker
Warhead
Armor-piercing, high-explosive blast-fragmentation, or thermobaric
Fuze
Impact or proximity
Launch platforms
UAVs and light attack aircraft
Guidance And Target Set

Roketsan presents MAM-L as a low-weight air-to-ground munition for UAVs and light attack aircraft rather than a general-purpose bomb. The baseline model uses laser guidance, while the MAM-L IIR sheet describes an imaging-infrared seeker version with a longer published range and man-in-the-loop trajectory options.

Baseline seeker

Laser seeker on a 22 kg munition with a 15 km published range.

IIR variant

Imaging-infrared guidance, 25+ km published range, and 23 kg listed weight.

Target set

Roketsan lists armored vehicles, main battle tanks, personnel, radar antennas, and other ground targets across the baseline and IIR data.

Variants

MAM-L is the baseline laser-guided member of Roketsan's MAM smart micro munition family; later seeker variants add imaging-infrared or television guidance for different target-acquisition conditions.

VariantConfigurationDesignation notes
MAM-L IIRImaging-infrared seeker variant

Roketsan's MAM-L IIR sheet identifies an imaging infrared guided air-to-surface version with 25+ km range, 23 kg weight, trajectory-selection features, and UAV or fixed-wing integration.

Sources: MAM-L IIR technical sheet

MAM-L TVTelevision-seeker tested variant

Baykar's repost of Janes reporting says Akıncı firing trials used a MAM-L fitted with a television seeker for target-acquisition conditions such as cloud cover.

Sources: Baykar integrating more weapons on Akinci

MAM-C guided bomb, Laser-guided smart micro munition, MunitionsMAM-C guided bombLighter MAM family guided bomb

Baykar and Roketsan material group MAM-C with MAM-L as UAV-carried smart micro munitions, with MAM-C occupying the smaller 70 mm class.

Sources: Payload Systems, MAM-L Smart Micro Munition

Carrier UAVs

Official Baykar material places MAM-L on Turkish armed UAVs, while Roketsan frames the munition around UAV and light-attack aircraft missions.

CarrierCarrier typeCarriage evidence
Bayraktar TB2, Medium-altitude long-endurance UAV, Aircraft & UAVsBayraktar TB2Medium-altitude long-endurance UCAV

Baykar lists MAM-L among the TB2's national munitions and describes the aircraft as configured for precision strike with smart munition integrations.

Sources: Bayraktar TB2, MAM-L Smart Micro Munition

Bayraktar Akıncı, Unmanned combat aerial vehicle (UCAV), Aircraft & UAVsBayraktar AkıncıUnmanned combat aerial vehicle

Baykar lists MAM-L among Akıncı's national munitions and separately describes Akıncı firing trials with television-seeker MAM-L variants.

Sources: Bayraktar AKINCI, Baykar integrating more weapons on Akinci

Timeline

MAM-L guided bomb Key Events

  1. Turkish drones carry MAM-L in Idlib

    Jamestown reported that Turkish TB2 and ANKA-S drones carried Roketsan MAM-L and MAM-C smart munitions during Operation Spring Shield in Idlib.

    Sources: Turkey's Drone Blitz Over Idlib

  2. GNA drone campaign in western Libya

    GIS Reports described the Turkey-supported GNA offensive and its drone fleet using MAM-L precision munitions during the western Libya campaign.

    Sources: Libya: Turkey has become a game changer in the civil war

  3. Documented in Nagorno-Karabakh operations

    PISM and RUSI linked Azerbaijani TB2s carrying MAM-L-class smart munitions to reconnaissance and precision strikes during the 2020 Nagorno-Karabakh fighting.

    Sources: The Military Dimension of the Conflict over Nagorno-Karabakh, The Democratisation of Precision Strike in the 2020 Nagorno-Karabakh Conflict

  4. MAM-L remnants identified at Dedebit

    Human Rights Watch and U.N. investigators identified MAM-L remnants after the January 2022 Dedebit strike in Tigray.

    Sources: Ethiopia: Airstrike on Camp for Displaced Likely War Crime, Dedebit MAM-L remnant analysis

  5. Snake Island naval strike reporting

    U.S. Army OE Watch and Naval News cited reporting that Ukrainian TB2 strikes on Russian patrol and landing craft near Snake Island used Roketsan MAM-L smart munitions.

    Sources: Turkish-Made Bayraktar TB2 Drones Play Important Role in Ukraine, Russian Serna-class LCU becomes the new victim of TB2 Drone

  6. MAM-L fragments documented in Somalia

    Amnesty International identified MAM-L glide-bomb fragments from TB2 drone strikes during Somali security operations in Lower Shabelle.

    Sources: Somalia: Death of 23 civilians in military strikes with Turkish drones may amount to war crimes

  7. Akıncı test set includes MAM-L TV

    Baykar said Akıncı had tested MAM-L and MAM-L TV among a broader set of Turkish precision-guided munitions.

    Sources: Bayraktar AKINCI surpasses 100000 flight hours

Media

MAM-L guided bomb Videos

MAM-L guided bomb Images

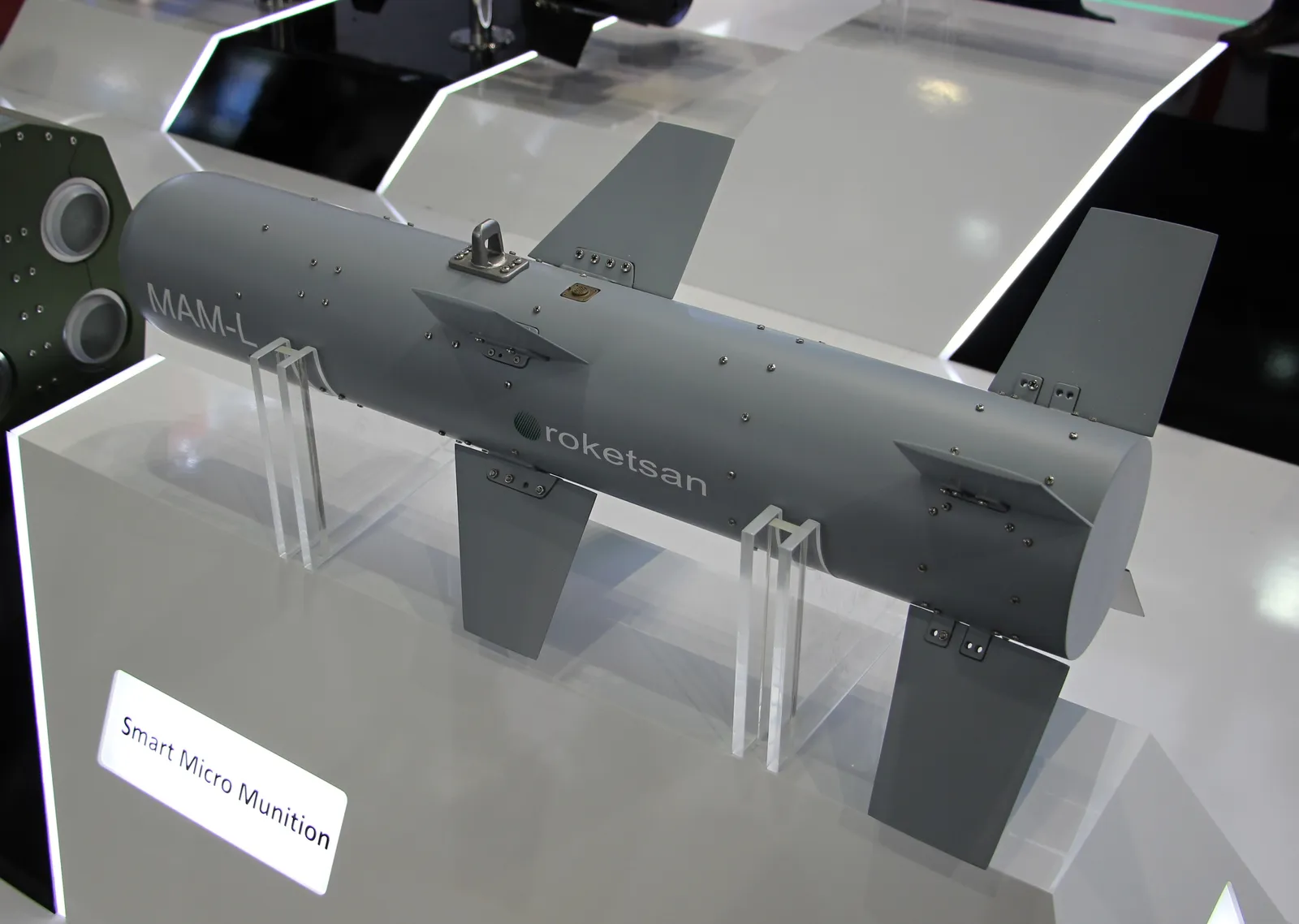

MAM-L guided bomb, Laser-guided smart micro munition, Munitions - view 1
Source: Roketsan MAM-L Mini Akilli Muhimmat, Teknofest 2019

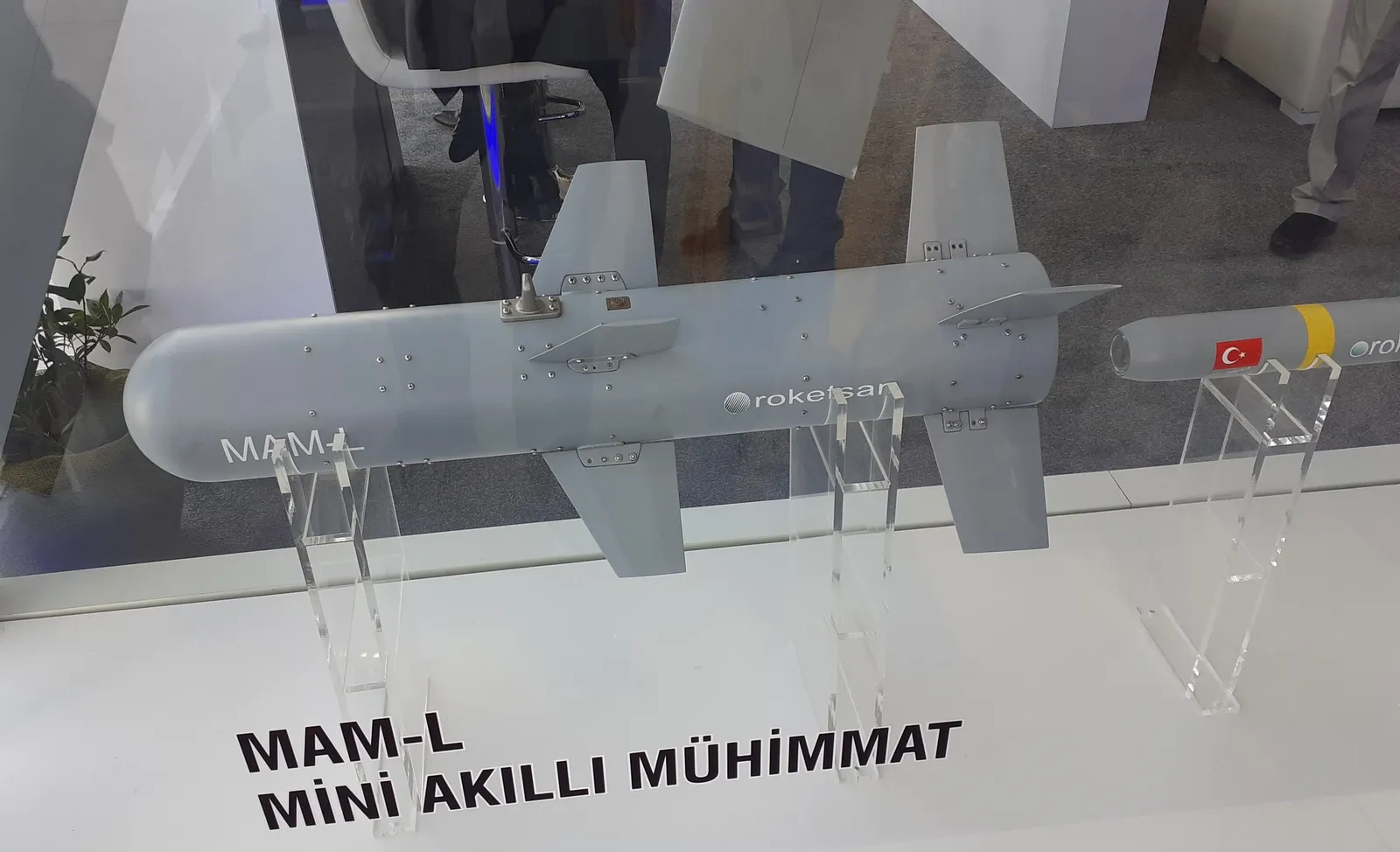

MAM-L guided bomb, Laser-guided smart micro munition, Munitions - view 2
Source: MAM-T Munition alongside MAM-L and MAM-C
