Support Equipment

ZIL-131

Also known as
  • ZiL-131
  • ZiL 131
  • ZIL-131N
  • Amur-531340

The ZIL-131 is a Soviet 6x6 general-purpose army truck produced by the Moscow Likhachev automobile plant and later associated production lines. It served as a cargo truck, tractor, tanker, communications vehicle, mine-laying chassis, gun-truck base, and launch-vehicle platform; visually documented losses in Georgia, Ukraine, and Nagorno-Karabakh make it a support-equipment entry with conflict-specific logistics and specialist-chassis context.

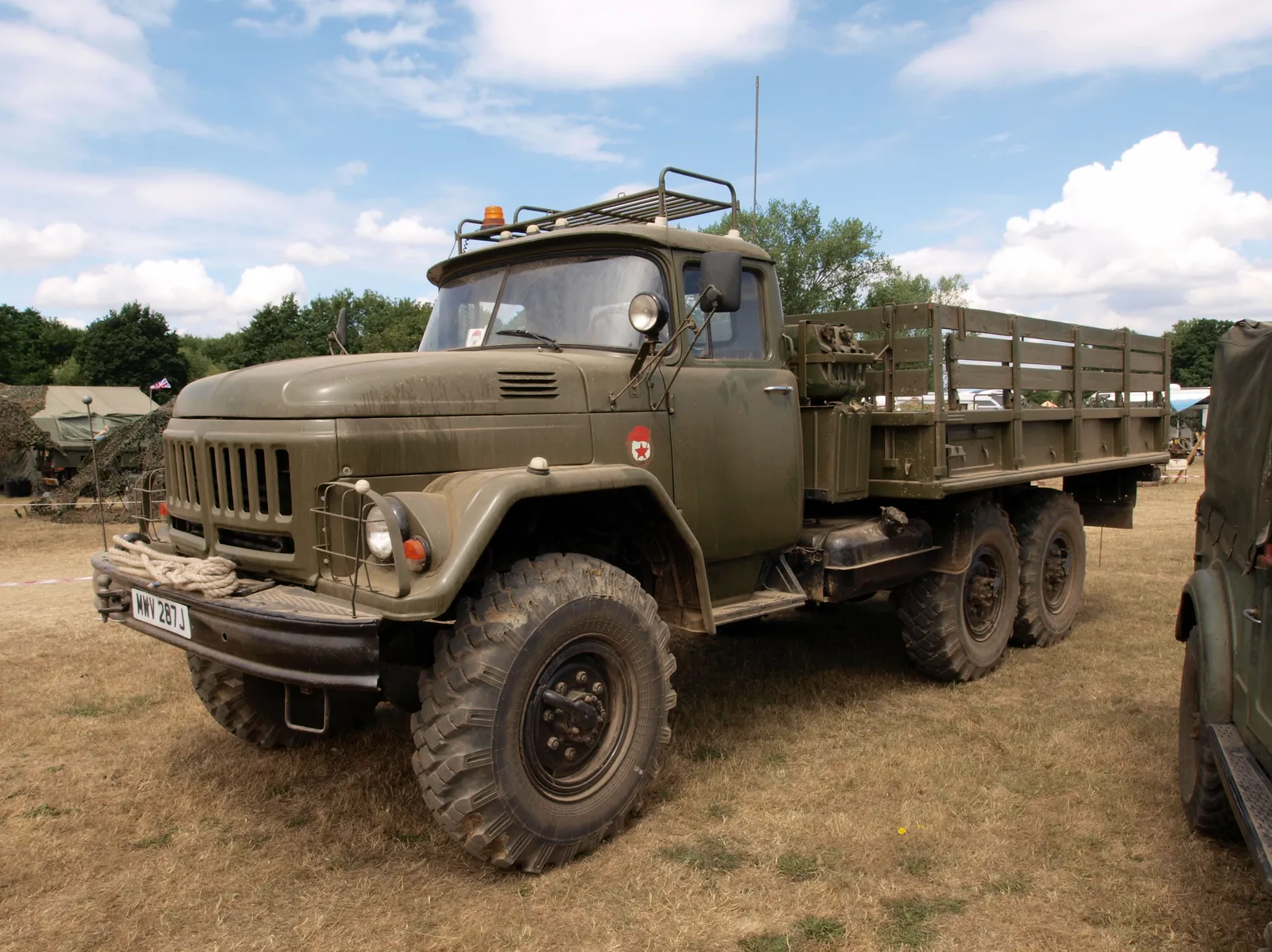

ZIL-131, 6x6 general-purpose army truck, Support Equipment
Image source: ZiL 131 picture1

Role in Conflicts

2008 Russo-Georgian War
Mobility & Logistics
Side
Russia and South Ossetian forces

Oryx visually documents Russian ZiL-131 truck losses during the 2008 Russo-Georgian War, placing the type in wartime Russian or Russian-aligned service during the five-day conflict.

Profile / Specs

Profile

Origin
Soviet Union
Type
6x6 general-purpose army truck
Service note
Cold War Soviet design with later Russian and post-Soviet production
Designer
Zavod imeni Likhacheva
Designed
1958 prototype shown; serial-production configuration entered production in 1967
Produced
1967-2006 family production across ZIL and UAMZ/AMUR lines
Number built
1,038,144 ZIL-131-family vehicles according to AMO ZIL's official history page

Specifications

Configuration
6x6 forward-control military truck family used as cargo, tractor, chassis, and special-equipment platform
Payload class
ODIN describes the ZIL-131 as a general-purpose 3.5-ton 6x6 army truck; AMO ZIL describes army-type seating and cargo-body arrangements
Body
Wooden army-type platform with folding rear board, folding side benches for 16 seats, removable center bench for 8 seats, bows, and canvas cover according to AMO ZIL
Engine
ZIL-130 V-8 gasoline engine rated at 150 hp in the 9P138 Grad-1 chassis description
Road speed
Up to 80 km/h in the 9P138 Grad-1 chassis description
Chassis mobility
Central tire-pressure regulation and up to 1.4 m fording without preparation are described for the ZIL-131-based 9P138 vehicle
Dimensions
Missilery lists the ZIL-131-based 9P138 transport dimensions as about 7.04 m long, 2.50 m wide, and 2.48 m high
Main variants
Cargo versions with and without winch, ZIL-131A, ZIL-131V tractor, and chassis for special equipment
Production scale
AMO ZIL reports 1,038,144 ZIL-131-family vehicles produced from 1967 through 2006
Variants

AMO ZIL's official vehicle-history page treats the ZIL-131 family as the 6x6 military branch of the ZIL-130/131 truck line and identifies cargo, winch, unshielded-electrical, tractor, and special-equipment chassis variants.

VariantConfigurationDesignation notes
ZIL-131AUnshielded-electrical-equipment variant

AMO ZIL lists the ZIL-131A among the main produced versions of the family.

Sources: AMO ZIL legendary vehicles

ZIL-131VTractor variant

AMO ZIL lists the ZIL-131V among the main produced variants of the family.

Sources: AMO ZIL legendary vehicles

ZIL-131 chassisSpecial-equipment chassis

AMO ZIL identifies chassis for mounting various special equipment as one of the main ZIL-131 family branches.

Sources: AMO ZIL legendary vehicles

ZIL-131NModernized family variant

AMO ZIL says ZIL-131N production began in 1987 and continued at associated UAMZ production after Moscow production was wound down.

Sources: AMO ZIL legendary vehicles

ZIL-131-Based Systems

The truck family was used as more than a cargo vehicle; the same high-mobility chassis supported specialist military bodies and weapon-system vehicles.

Compatible itemItem typeCompatibility evidence
9P138 Grad-1, 122 mm multiple rocket launcher, Artillery9P138 Grad-1122 mm multiple rocket launcher

Missilery identifies the 9P138 Grad-1 combat vehicle as built on the high-cross-country ZIL-131 automobile chassis.

Sources: 9K55 Grad-1 Multiple Launch Rocket System

ZU-23-2, Towed twin 23 mm anti-aircraft autocannon, Air DefenseZU-23-2Towed twin 23 mm anti-aircraft gun

A Ukrainian Ministry of Defense photograph documents a Ukrainian ZIL-131 carrying a ZU-23-2 anti-aircraft gun in a gun-truck configuration.

Sources: Ukrainian ZiL-131 with ZU-23-2 anti-aircraft gun

Timeline

ZIL-131 Key Events

  1. High-mobility truck prototype shown

    AMO ZIL says a new high-cross-country vehicle with the ZIL-131 index and a ZIL-130-style cab was demonstrated in 1958.

    Sources: AMO ZIL legendary vehicles

  2. Serial production begins

    The official AMO ZIL history page places ZIL-131 serial production at the Moscow Likhachev plant beginning in 1967.

    Sources: AMO ZIL legendary vehicles

  3. ZIL-131N modernization

    AMO ZIL identifies 1987 as the start of the modernized ZIL-131N variant.

    Sources: AMO ZIL legendary vehicles

  4. Family production total recorded

    AMO ZIL gives a 1967-2006 family total of 1,038,144 ZIL-131 vehicles, including 336,009 ZIL-131N vehicles.

    Sources: AMO ZIL legendary vehicles

Media

ZIL-131 Images

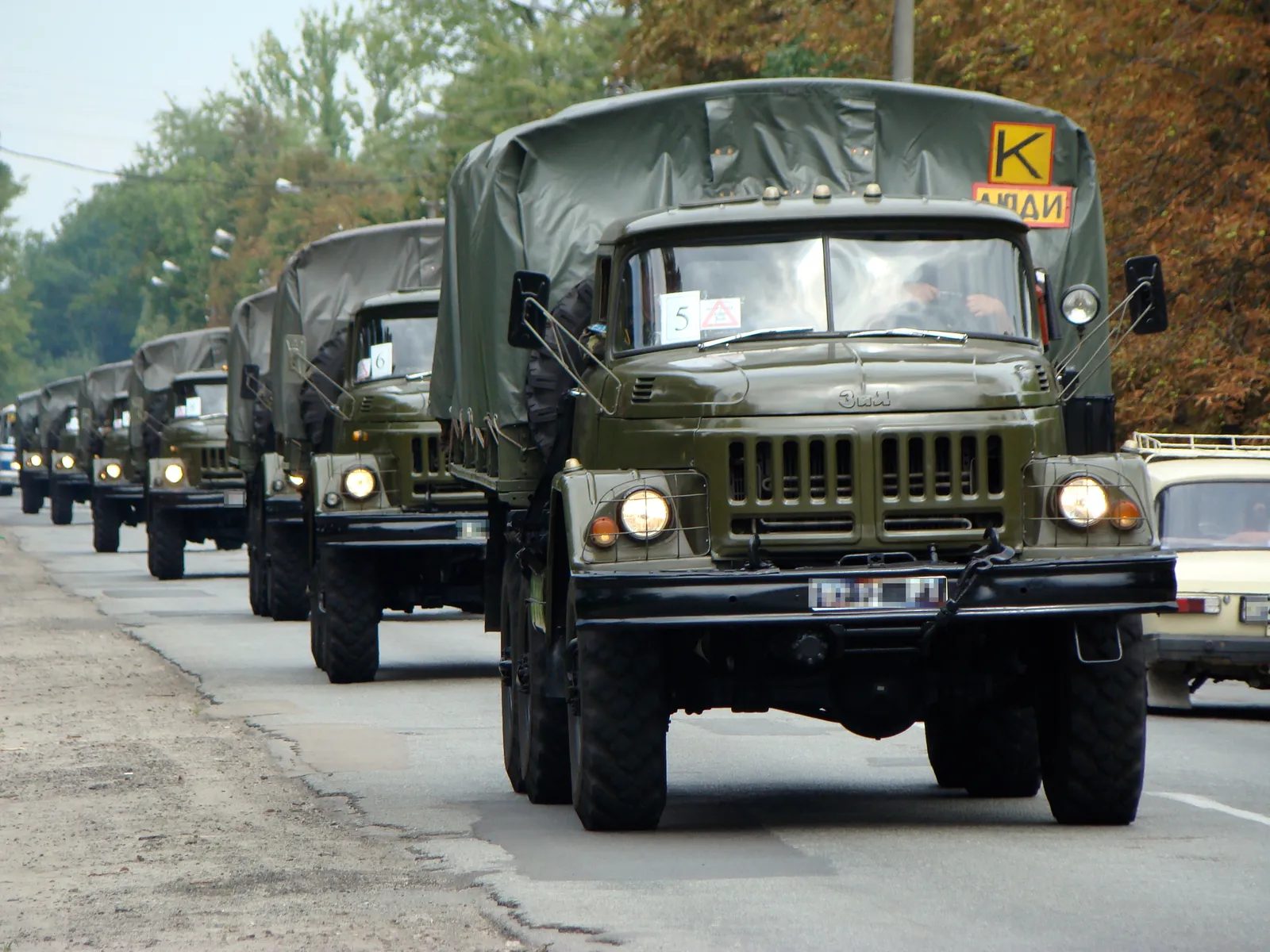

ZIL-131, 6x6 general-purpose army truck, Support Equipment - view 1
Source: ZiL-131 of the Ukrainian Army

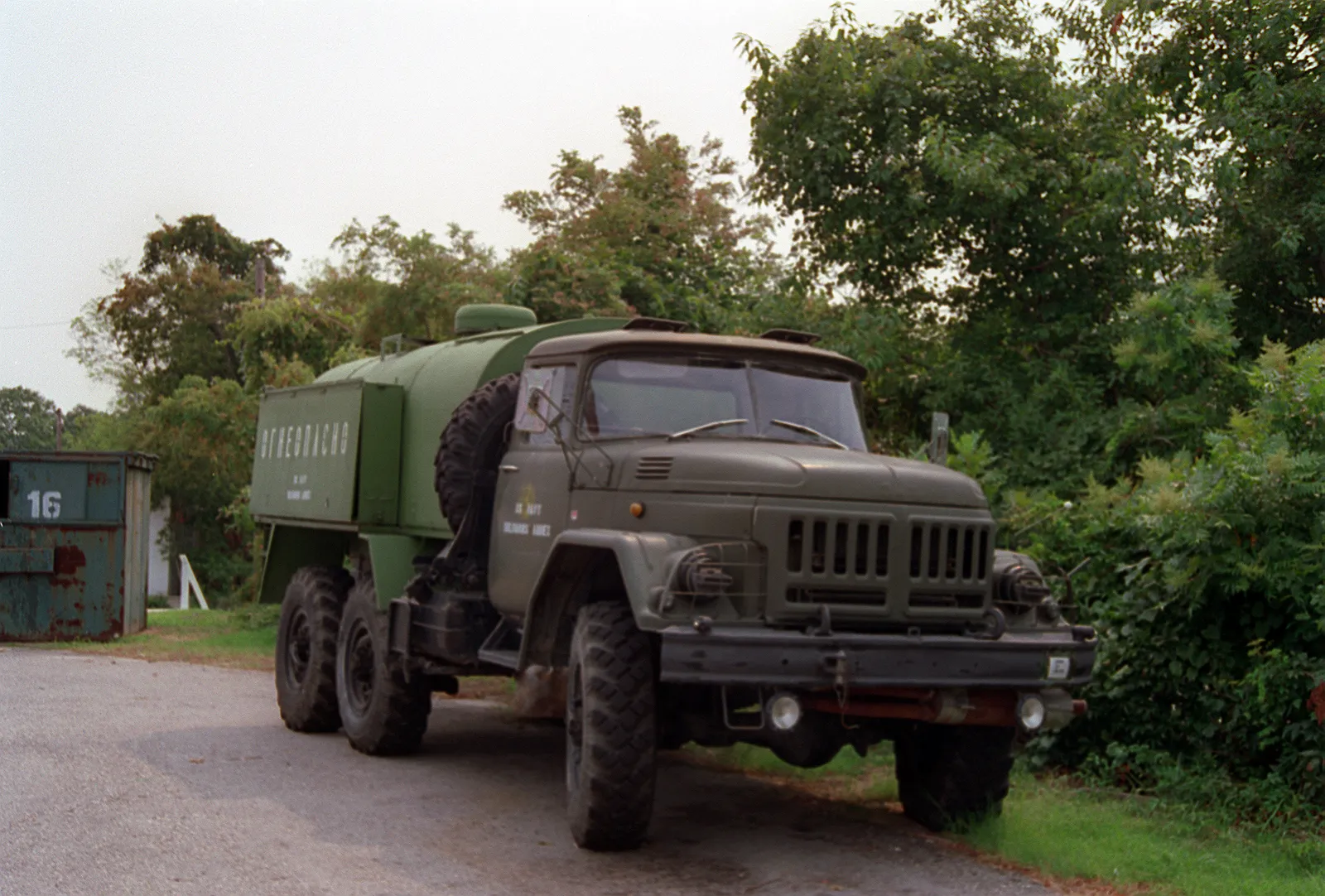

ZIL-131, 6x6 general-purpose army truck, Support Equipment - view 2
Source: ZIL-131 fuel truck

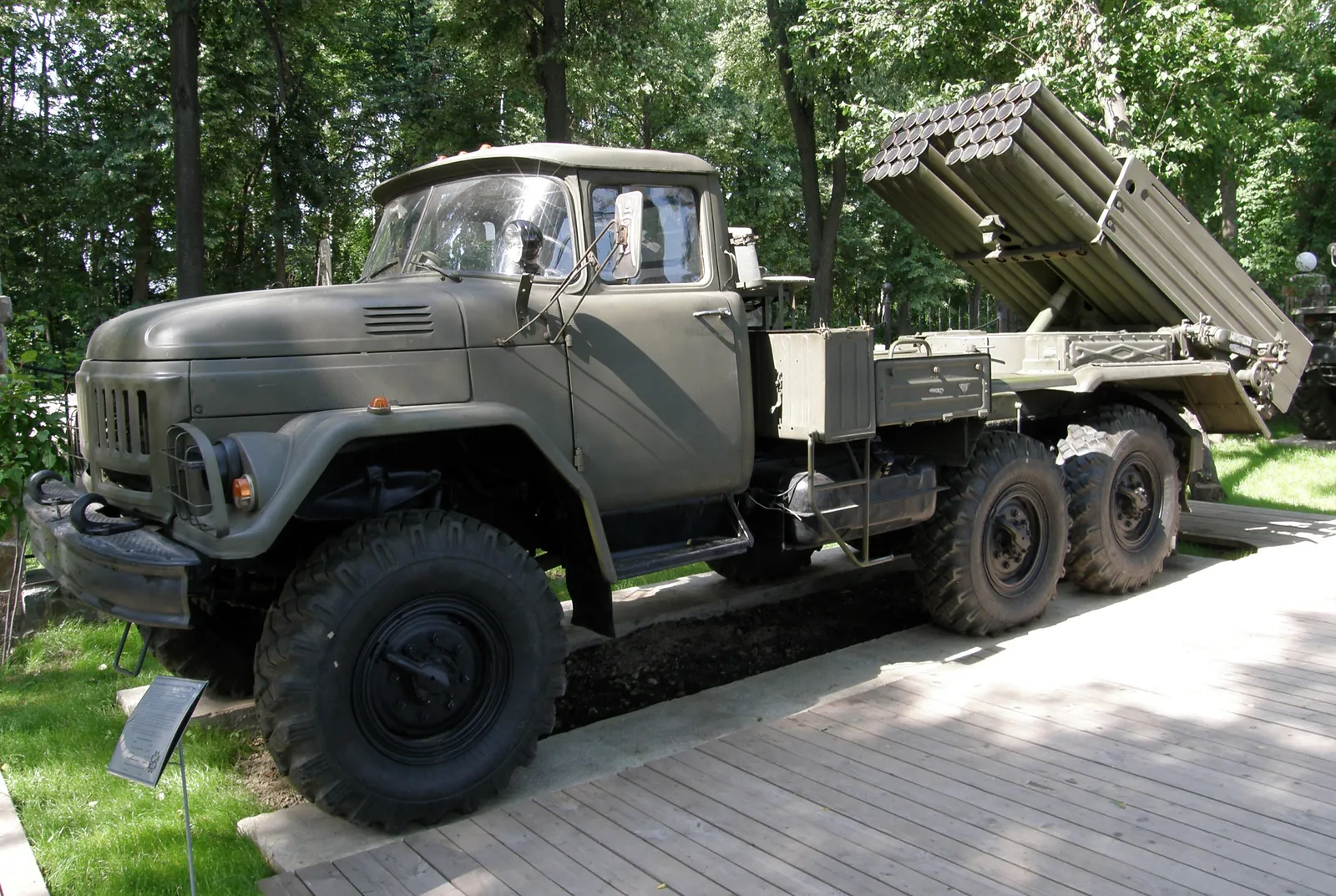

ZIL-131, 6x6 general-purpose army truck, Support Equipment - view 3
Source: 9P138 Grad-1 bases on ZiL-131

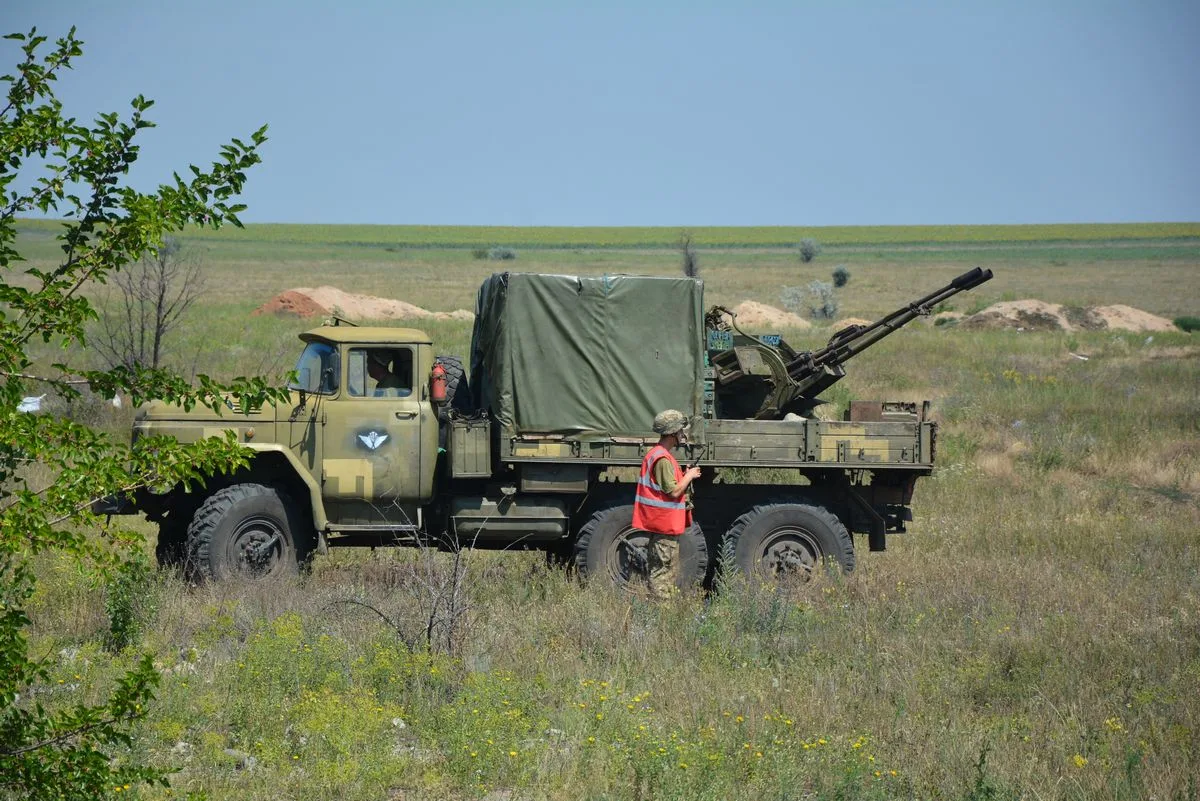

ZIL-131, 6x6 general-purpose army truck, Support Equipment - view 4
Source: Ukrainian ZiL-131 with ZU-23-2 anti-aircraft gun
Related Weapon Systems
M1083 6x6 medium tactical vehicle, 5-ton 6x6 medium tactical cargo truck, Support EquipmentSupport EquipmentM1083 6x6 medium tactical vehicle5-ton 6x6 medium tactical cargo truckThe M1083 6x6 medium tactical vehicle is the standard 5-ton cargo member of the U.S. Family of Medium Tactical Vehicles line. Army budget materials describe the M1083 as a cargo-and-soldier transport truck with hinged side rails and optional bench seats, Ukrainian reporting identifies an M1083A1P2 tractor supporting M777 howitzers in the 2014 Russia-Ukraine War, and Janes notes that the AN/TPQ-53 radar has also been mounted on the M1083 platform.
Military Truck, Military logistics truck and tactical wheeled vehicle, Support EquipmentSupport EquipmentMilitary TruckMilitary logistics truck and tactical wheeled vehicleMilitary trucks are wheeled logistics and tactical support vehicles used for cargo movement, convoy sustainment, heavy-equipment transport, fuel and water distribution, and as chassis for road-mobile weapon systems. The class spans generic cargo trucks through tactical wheeled vehicle families such as FMTV, and conflict evidence on this page is limited to directly sourced Ukraine transfers and Afghanistan convoy operations.

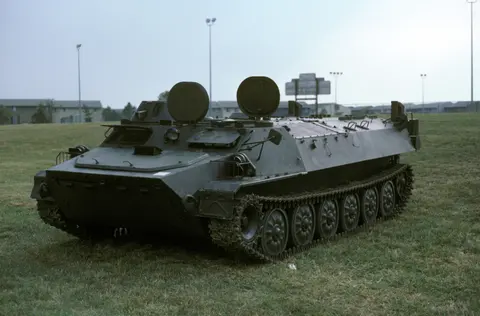

MT-LBu, Amphibious tracked armored carrier and specialist chassis, Armored VehiclesArmored VehiclesMT-LBuAmphibious tracked armored carrier and specialist chassisThe MT-LBu is a Soviet amphibious tracked armored carrier and specialist chassis derived from the MT-LB family. Its higher hull, longer seven-road-wheel chassis, and 300 hp YaMZ diesel engine gave armies more internal volume and payload margin for command posts, artillery fire-control vehicles, radar carriers, electronic-warfare systems, and later battlefield conversions in conflicts such as the 2014 Russia-Ukraine War.
GMZ-3, Tracked armored minelayer, Armored VehiclesArmored VehiclesGMZ-3Tracked armored minelayerThe GMZ-3 is a Soviet tracked armored minelayer built for engineer troops to emplace anti-tank minefields during maneuver or defensive preparation. Developed from the GMZ family and associated with Uraltransmash production, it carries a large mine load, uses a conveyor and plough assembly to lay mines on the surface or bury them, and has been documented in Ukrainian government-controlled areas as well as among Russian engineering vehicles lost or captured during the 2014 Russia-Ukraine War.

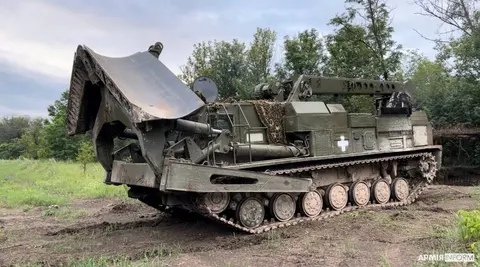

BAT-2, Tracked combat engineering route-clearance vehicle, Support EquipmentSupport EquipmentBAT-2Tracked combat engineering route-clearance vehicleThe BAT-2 is a Soviet tracked combat-engineering route-clearance vehicle built around a large adjustable dozer blade, rear crane, and winch for opening and restoring military roads. Ukrainian Army reporting documents BAT-2 crews clearing frontline routes under artillery fire in Donetsk Oblast, while Ukrainian and defense-media reporting documents Russian BAT-2 losses during the full-scale phase of the 2014 Russia-Ukraine War.
