Paveway IV guided bomb

Also known as
  • Paveway IV
  • Paveway 4
  • Paveway IV PGM
  • Paveway IV precision-guided bomb
  • UK Paveway IV

Paveway IV is a Raytheon UK 500-pound-class precision-guided bomb built around GPS-aided inertial navigation, laser guidance, and an electronic fuze. It became a core RAF air-to-ground weapon after entering UK service in 2008, moved from Harrier and Tornado carriage to Typhoon and F-35B integration, and is documented in RAF counter-ISIS strikes, UK-led Red Sea Crisis strikes on Houthi military sites, and Saudi-led coalition air operations in Yemen.

Paveway IV guided bomb, Dual-mode precision-guided bomb, Munitions
Image source: RAF Tornado GR4 Armed with Paveway IV Image

Role in Conflicts

Profile / Specs

Profile

Origin
United Kingdom
Built by
Raytheon UK
Type
Dual-mode precision-guided bomb
Service note
In UK service since 2008; documented in Middle East air campaigns during the 2010s and 2020s
Designer
Raytheon UK
Designed
2000s
Unit cost
Not listed in official open sources used for this entry
Produced
2000s-present
Number built
Not publicly confirmed

Specifications

Warhead
Enhanced Mk 82 500 lb-class warhead; later sources also describe an RWM Italia Mk 82-class warhead for Typhoon integration trials
Guidance
GPS-aided inertial navigation with laser guidance
Guidance hardware
GPS-aided inertial navigation, MEMS IMU, laser guidance, and anti-jam/anti-spoofing GPS features
Fuze
All-electronic, cockpit-programmable fuze with airburst, impact, and post-impact delay modes described in DE&S material
Navigation protection
Anti-spoofing and anti-jamming features
Service entry
Entered RAF service in November 2008 and was first introduced operationally in Afghanistan that year
Launch platforms
Harrier GR9, Tornado GR4, Typhoon FGR4, and F-35B are publicly documented in service, integration, or test-release contexts
Guidance And Fuzing

Paveway IV combines a 500 lb-class bomb body with a guidance and fuzing package designed for precision effects from fast jets. Raytheon and DE&S sources identify GPS-aided inertial navigation, laser guidance, anti-spoofing and anti-jamming features, cockpit-programmable fuzing, and airburst, impact, or post-impact delay modes.

Guidance modes

GPS-aided inertial navigation with laser guidance for terminal precision.

Fuzing

All-electronic and cockpit-programmable, with public DE&S material describing airburst, impact, and post-impact delay options.

Penetrator path

Dstl developed a Compact Penetrator warhead with the same fit, form, and function as baseline Paveway IV and later described the Tactical Penetrator as an operational RAF capability.

Variants

The public record mainly distinguishes Paveway IV by the baseline dual-mode 500 lb-class weapon and later hardened-target warhead work rather than by a long series of separate designations.

VariantConfigurationDesignation notes
Standard Paveway IV500 lb-class dual-mode precision-guided bomb

Raytheon describes the standard weapon around an enhanced Mk 82 500 lb-class warhead, GPS-aided inertial navigation, anti-spoofing and anti-jamming features, laser guidance, and an all-electronic fuze; DE&S described cockpit-selectable impact angle, attack direction, and fuzing modes.

Sources: Raytheon Paveway IV Tornado GR4 Integration Contract, DE&S Desider Paveway IV Service Entry

Paveway IV Compact Penetrator / Tactical PenetratorHardened-target warhead variant

Dstl described the Compact Penetrator as a Paveway IV warhead with the same fit, form, and function as the existing weapon but better hardened-structure penetration; later Dstl reporting described the Tactical Penetrator as an operational RAF capability.

Sources: Dstl Annual Report 2014/15, Dstl Annual Report 2019/20

Carrier Aircraft

Paveway IV is documented on RAF fast-jet platforms that carried the munition operationally or during integration and separation testing.

CarrierCarrier typeCarriage evidence
Panavia Tornado, Twin-engine variable-sweep wing multirole strike aircraft, Aircraft & UAVsPanavia TornadoStrike aircraft

DE&S reported that Paveway IV was integrated on Tornado GR4 after its Harrier GR9 introduction, and Raytheon's Tornado GR4 integration contract covered clearance work for the RAF Tornado force.

Sources: DE&S Desider Paveway IV Service Entry, Raytheon Paveway IV Tornado GR4 Integration Contract

Eurofighter Typhoon, Twin-engine multirole combat aircraft, Aircraft & UAVsEurofighter TyphoonMultirole combat aircraft

DE&S documented live Typhoon Paveway IV releases over Cape Wrath, UK MOD strike releases document RAF Typhoon FGR4 use in Iraq and Yemen, and RTX reported later Typhoon integration trials with Raytheon UK and RWM Italia.

Sources: DE&S Desider Typhoon Paveway IV Trials, RAF Air Strikes in Iraq and Syria 2024, Statement on Houthi Military Target Strikes, Raytheon UK Paveway IV Integration Trials

F-35B Lightning II, STOVL stealth multirole fighter, Aircraft & UAVsF-35B Lightning IISTOVL stealth multirole fighter

The F-35B Patuxent River test team released inert Paveway IV bombs from an F-35B internal weapons bay during 2015 separation testing.

Sources: F-35B First Release of UK Paveway IV

Legacy and current carriage

Open sources used here also show Harrier GR9 carriage in imagery, but this entry links only to existing public aircraft records with source-backed Paveway IV relationships.

Sources: Harrier GR9 with Paveway IV Image

Timeline

Paveway IV guided bomb Key Events

  1. RAF precision-strike service

    DE&S reported that Paveway IV entered service in November 2008 and was first introduced operationally in Afghanistan that year.

    Sources: DE&S Desider Paveway IV Service Entry

  2. UK replenishment and growth path

    The UK MOD awarded Raytheon UK a replenishment contract while Raytheon described planned SPEAR Capability 1 growth for warhead options, moving-target capability, and range.

    Sources: Raytheon UK Paveway IV Replenishment Contract

  3. F-35B separation trial

    An F-35B test aircraft released two inert 500 lb-class Paveway IV bombs over the Atlantic Test Ranges during UK weapons-separation testing.

    Sources: F-35B First Release of UK Paveway IV

  4. Typhoon live-release trials

    DE&S reported live Paveway IV drops from Typhoon over the Cape Wrath training area, including GPS and laser-guided profiles and impact or airburst fuzing settings.

    Sources: DE&S Desider Typhoon Paveway IV Trials

  5. Red Sea Crisis drone-site strikes

    GOV.UK reported that RAF Typhoons used Paveway IV bombs against drones and launchers at a former surface-to-air missile battery site northeast of Sanaa.

    Sources: Statement on Houthi Military Target Strikes 24 February

  6. Typhoon integration trials with RWM Italia warhead

    RTX said Raytheon UK, RWM Italia, and the RAF completed Paveway IV integration trials on Eurofighter Typhoon using a new Mk 82-class warhead supplied by RWM Italia.

    Sources: Raytheon UK Paveway IV Integration Trials

Media

Paveway IV guided bomb Videos

Paveway IV guided bomb Images

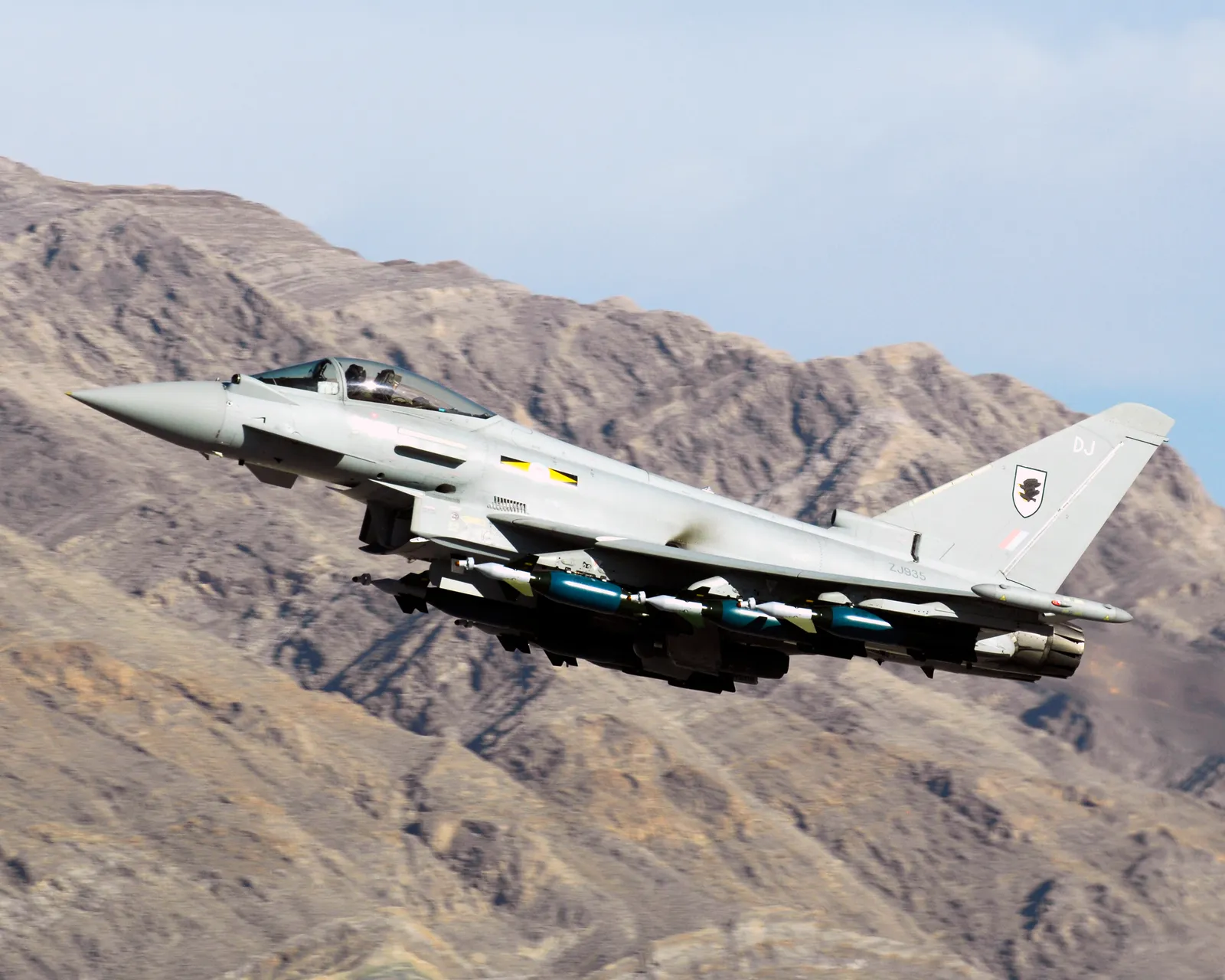

Paveway IV guided bomb, Dual-mode precision-guided bomb, Munitions - view 1
Source: Typhoon Armed with Paveway IV Image

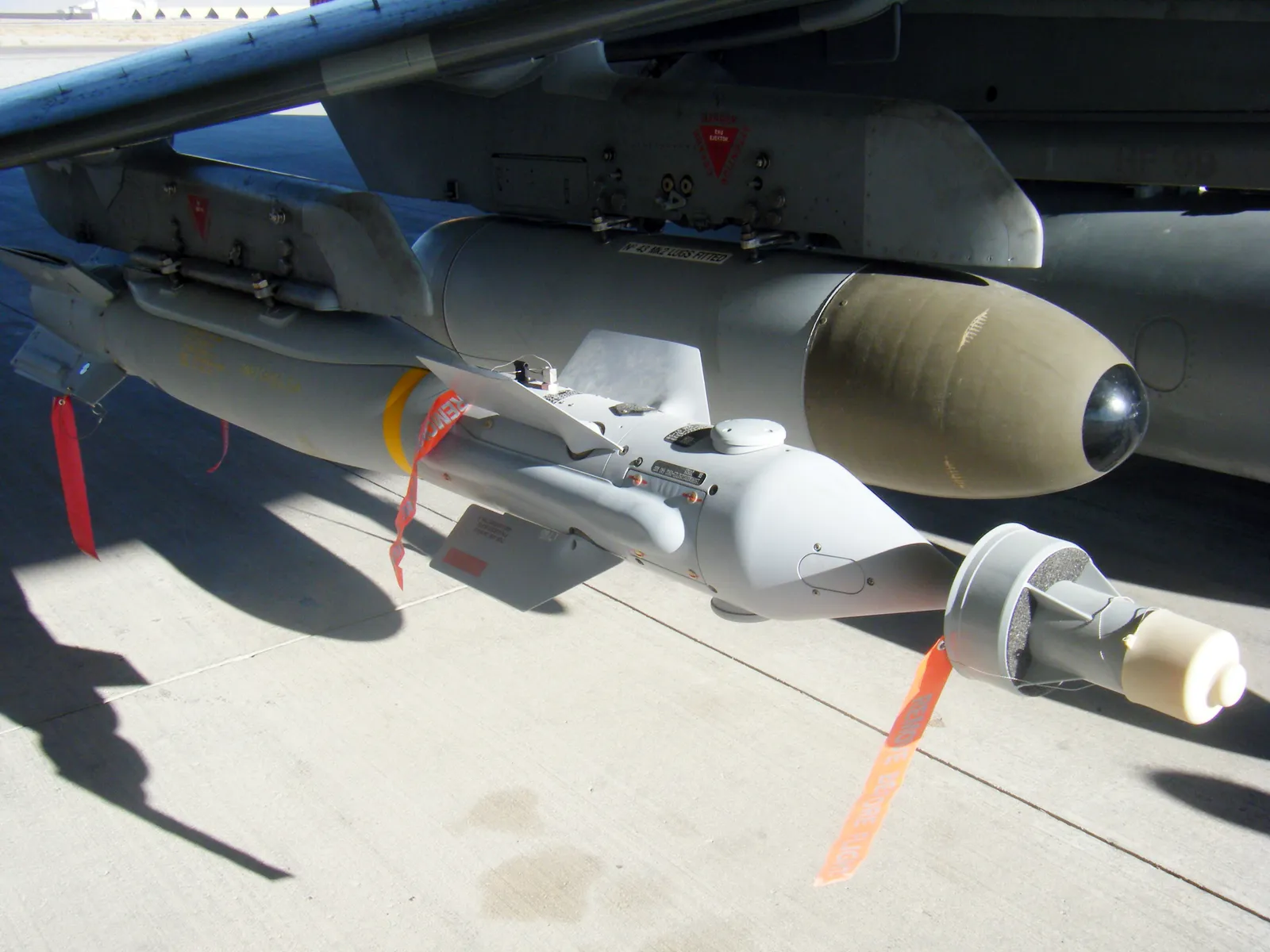

Paveway IV guided bomb, Dual-mode precision-guided bomb, Munitions - view 2
Source: Harrier GR9 with Paveway IV Image

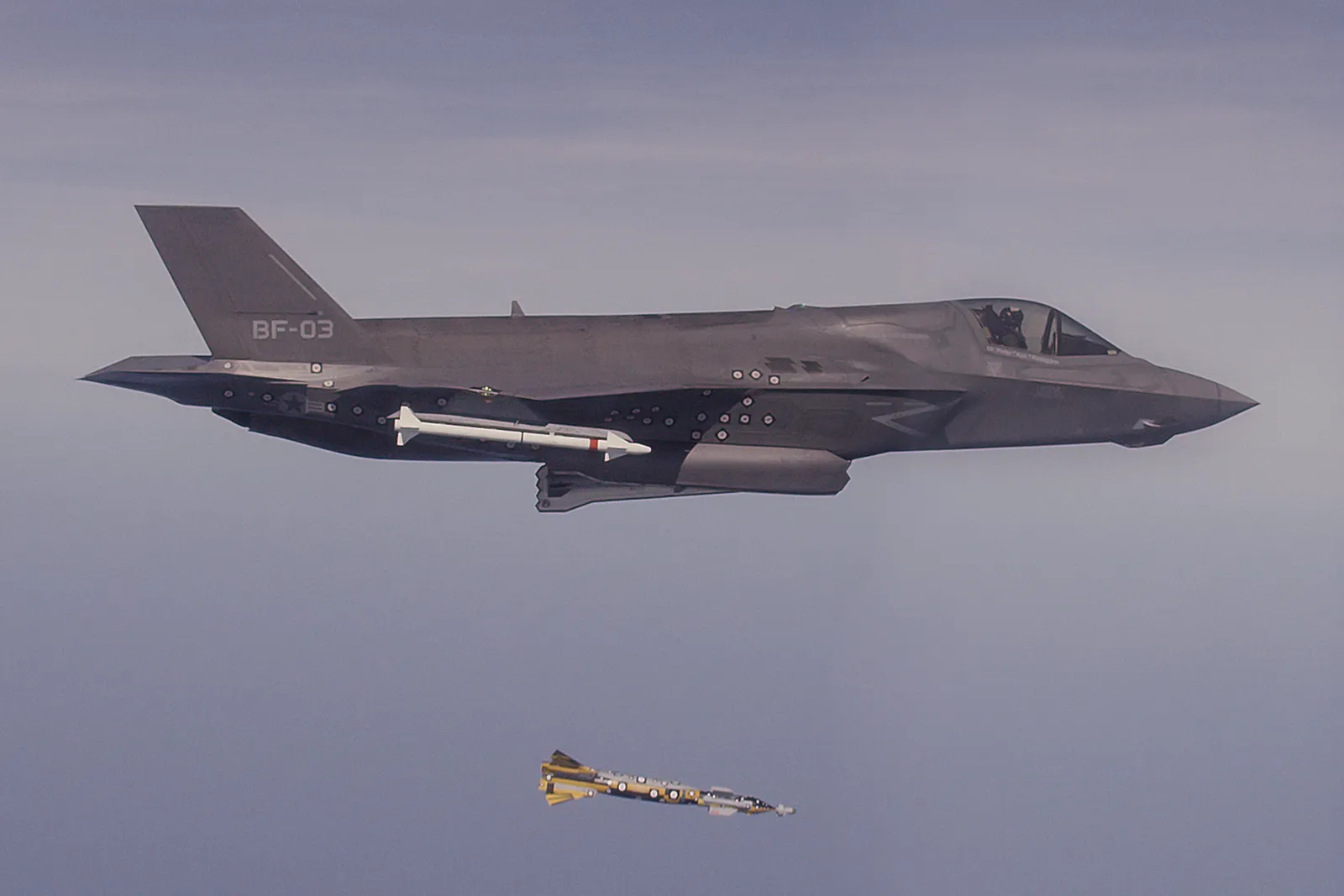

Paveway IV guided bomb, Dual-mode precision-guided bomb, Munitions - view 3
