Aircraft & UAVs

F-35B Lightning II

Also known as
  • F-35B
  • F35B
  • Lightning II STOVL
  • Joint Strike Fighter STOVL
  • JSF STOVL

The F-35B Lightning II is the short takeoff and vertical landing variant of the Joint Strike Fighter, pairing stealth sensors and internal weapons carriage with a lift-fan propulsion system for amphibious ships and austere sites. Marine and allied F-35Bs have been documented in Afghanistan combat strikes, anti-Daesh missions from HMS Queen Elizabeth, and U.S. 5th Fleet flight operations during the 2026 phase of the 2020 United States-Iran Conflict.

F-35B Lightning II, STOVL stealth multirole fighter, Aircraft & UAVs
Image source: USS Tripoli Conducts Flight Ops

Role in Conflicts

Profile / Specs

Profile

Origin
United States
Type
STOVL stealth multirole fighter
Service note
2010s-present
Designer
Lockheed Martin, with Northrop Grumman and BAE Systems as major program partners
Designed
Joint Strike Fighter program selection in 2001; F-35B developed for STOVL operations
Produced
2000s-present
Developed from
Lockheed Martin X-35

Specifications

Crew
1
Length
51.2 ft (15.6 m)
Wingspan
35 ft (10.7 m)
Wing area
460 sq ft (42.7 sq m)
Empty weight
32,300 lb (14,651 kg)
Maximum gross weight
60,000 lb class (27,216 kg)
Maximum speed
Mach 1.6 (approximately 1,200 mph)
Combat radius
>450 nautical miles (833 km)
Maximum range
>900 nautical miles (1,667 km)
Internal fuel capacity
13,100-13,500 lb (5,942-6,123 kg)
Maximum G-rating
7.0
Propulsion
Pratt & Whitney F135-PW-600 with shaft-driven lift fan
Weapons payload
Internal and external carriage, mission-dependent
Maximum thrust
38,000 lb (afterburner)
Vertical lift thrust
40,500 lb
STOVL Design Context

The F-35B's distinguishing feature is a short takeoff and vertical landing propulsion arrangement rather than a separate combat role. The lift system lets the aircraft work from amphibious assault ships and shorter expeditionary runways, while internal weapons carriage, sensors, and networked mission systems keep it within the broader F-35 multirole fighter family.

Lift architecture

A Pratt & Whitney F135 engine drives a Rolls-Royce lift fan, with vectored rear thrust and lateral control nozzles providing vertical-flight control.

Shipboard role

Marine Corps testing aboard USS Wasp validated day and night shipboard takeoffs, landings, weapons loading, maintenance support, and detachment logistics before IOC.

Family distinction

Compared with the F-35A and F-35C, the F-35B trades some internal fuel and structure for the STOVL lift system used by Marine Corps, UK, and Italian operators.

Variants

The F-35B is the STOVL branch of the F-35 family, distinct from the conventional-runway F-35A and the carrier-catapult F-35C.

VariantConfigurationDesignation notes
F-35 Lightning II, Fifth-generation stealth multirole fighter, Aircraft & UAVsF-35 Lightning IIJoint Strike Fighter family page

The broader family page covers F-35A, F-35B, F-35C, and national subvariants across documented conflicts.

Sources: The ABCs of F-35

F-35A Lightning II, Conventional takeoff and landing stealth multirole fighter, Aircraft & UAVsF-35A Lightning IIConventional takeoff and landing variant

The F-35A is the runway-based conventional variant, while the F-35B uses a STOVL propulsion arrangement for short takeoff and vertical landing operations.

Sources: The ABCs of F-35

F-35C Lightning II, Carrier-based stealth multirole fighter, Aircraft & UAVsF-35C Lightning IICarrier catapult and arrested-recovery variant

The F-35C is optimized for catapult launches and arrested landings aboard aircraft carriers, while the F-35B is the amphibious-ship and austere-basing STOVL model.

Sources: The ABCs of F-35

Firing Weapons

Marine Corps reporting documents the F-35B firing a live AIM-9X Sidewinder during a defensive combat air patrol rehearsal.

AmmunitionAmmunition typeFiring evidence
AIM-9X Sidewinder missile, Short-range air-to-air missile, MunitionsAIM-9X Sidewinder missileShort-range air-to-air missile

The Marine Corps report says the F-35B carried and employed a live AIM-9X Sidewinder during a combat air patrol rehearsal, marking the first operational F-35B live-fire of the missile in the Indo-Pacific region.

Sources: Marine Corps F-35B Lightning II completes simulated defensive combat air patrol with live AIM-9X missile

Carried Munitions

Marine Corps reporting documents the F-35B carrying ordnance during the same defensive combat air patrol rehearsal.

Carried itemItem typeCarriage evidence
Mk 82 fitted with a Paveway- or Lizard-series guidance kit, 500-pound guided-bomb configuration, MunitionsMk 82 fitted with a Paveway- or Lizard-series guidance kitLaser-guided bomb

The Marine Corps report identifies GBU-12 Paveway II laser-guided bombs among the ordnance loaded onto the F-35B.

Sources: Marine Corps F-35B Lightning II completes simulated defensive combat air patrol with live AIM-9X missile

GBU-32 1,000-pound Joint Direct Attack Munition, 1,000-pound GPS/INS-guided bomb kit, MunitionsGBU-32 1,000-pound Joint Direct Attack MunitionJDAM-guided bomb

The Marine Corps report identifies GBU-32 Joint Direct Attack Munitions among the ordnance loaded onto the F-35B.

Sources: Marine Corps F-35B Lightning II completes simulated defensive combat air patrol with live AIM-9X missile

AIM-120C-5 AMRAAM air-to-air missile, Beyond-visual-range air-to-air missile, MunitionsAIM-120C-5 AMRAAM air-to-air missileMedium-range air-to-air missile

NAVAIR's photo release says BF-2 flew with an AIM-120 in the starboard weapon bay during the first asymmetric weapons load test for the F-35B.

Sources: Photo Release: First asymmetric weapons load test for F-35B

Compatible Missiles

The RAF reported Meteor test flights on a U.S. Marine Corps F-35B during UK integration work.

Compatible itemItem typeCompatibility evidence
Meteor, Beyond-visual-range air-to-air missile, MunitionsMeteorLong-range air-to-air missile

The RAF said a U.S. Marine Corps F-35B conducted the first test flights of a Meteor missile and used the inert round to gather environmental data for UK weapons integration.

Sources: Meteor's first flight on an F-35B

Timeline

F-35B Lightning II Key Events

  1. X-35B Demonstrates Vertical Takeoff

    Lockheed Martin's X-35B demonstrator achieved vertical takeoff to sustained altitude using a shaft-driven lift-fan propulsion arrangement developed for the STOVL Joint Strike Fighter requirement.

    Sources: JSF X-35B Achieves Vertical Takeoff to Sustained Altitude

  2. F-35B First Flight

    BF-1 made the production-representative F-35B's first flight from Lockheed Martin's Fort Worth facility using conventional takeoff and landing for the initial test sortie.

    Sources: F-35B STOVL Stealth Fighter Achieves Successful First Flight

  3. STOVL Thrust Margin Validated

    Hover-pit testing measured 41,100 lb of vertical thrust against a 40,550 lb requirement and validated software, controls, thermal management, and STOVL hardware before airborne STOVL testing.

    Sources: Lockheed Martin F-35B Exceeds STOVL Thrust Requirement

  4. First Vertical Landing

    The F-35B completed its first vertical landing at Naval Air Station Patuxent River after hovering during the test event.

    Sources: F-35B Joint Strike Fighter Makes First Vertical Landing

  5. First USS Wasp Ship Trials

    Two F-35B test aircraft completed initial ship trials aboard USS Wasp, including 72 vertical landings and takeoffs.

    Sources: F-35B Conducts First Night Time Vertical Landing

  6. First Night STOVL Test Mission

    A Marine Corps test pilot completed the F-35B's first nighttime short-takeoff-and-vertical-landing test mission.

    Sources: F-35B Conducts First Night Time Vertical Landing

  7. Operational Test Aboard USS Wasp Concludes

    Marine Corps operational testing aboard USS Wasp completed with more than 100 F-35B takeoffs and landings, shipboard maintenance checks, weapons loading, and logistics-footprint work.

    Sources: Marine Corps proves F-35B's capability at sea

  8. Marine Corps Declares IOC

    The U.S. Marine Corps declared F-35B initial operational capability with 10 aircraft ready for worldwide deployment.

    Sources: U.S. Marines Corps declares the F-35B operational

  9. First Combat Strikes

    Marine Corps F-35Bs from USS Essex conducted combat strikes in Afghanistan in support of Operation Freedom's Sentinel.

    Sources: Marine Corps F-35B Conducts Combat Strikes in Afghanistan

  10. HMS Queen Elizabeth Combat Missions

    UK and U.S. F-35B aircraft from HMS Queen Elizabeth flew combat missions against Daesh during Operation Shader and Operation Inherent Resolve.

    Sources: Stealth jets fight Daesh in first combat missions from HMS Queen Elizabeth

  11. USS Tripoli Flight Operations

    CENTCOM imagery documented a VMFA-121 F-35B taking off from USS Tripoli in the U.S. 5th Fleet area during the 2026 Middle East deployment.

    Sources: USS Tripoli Conducts Flight Ops

Media

F-35B Lightning II Images

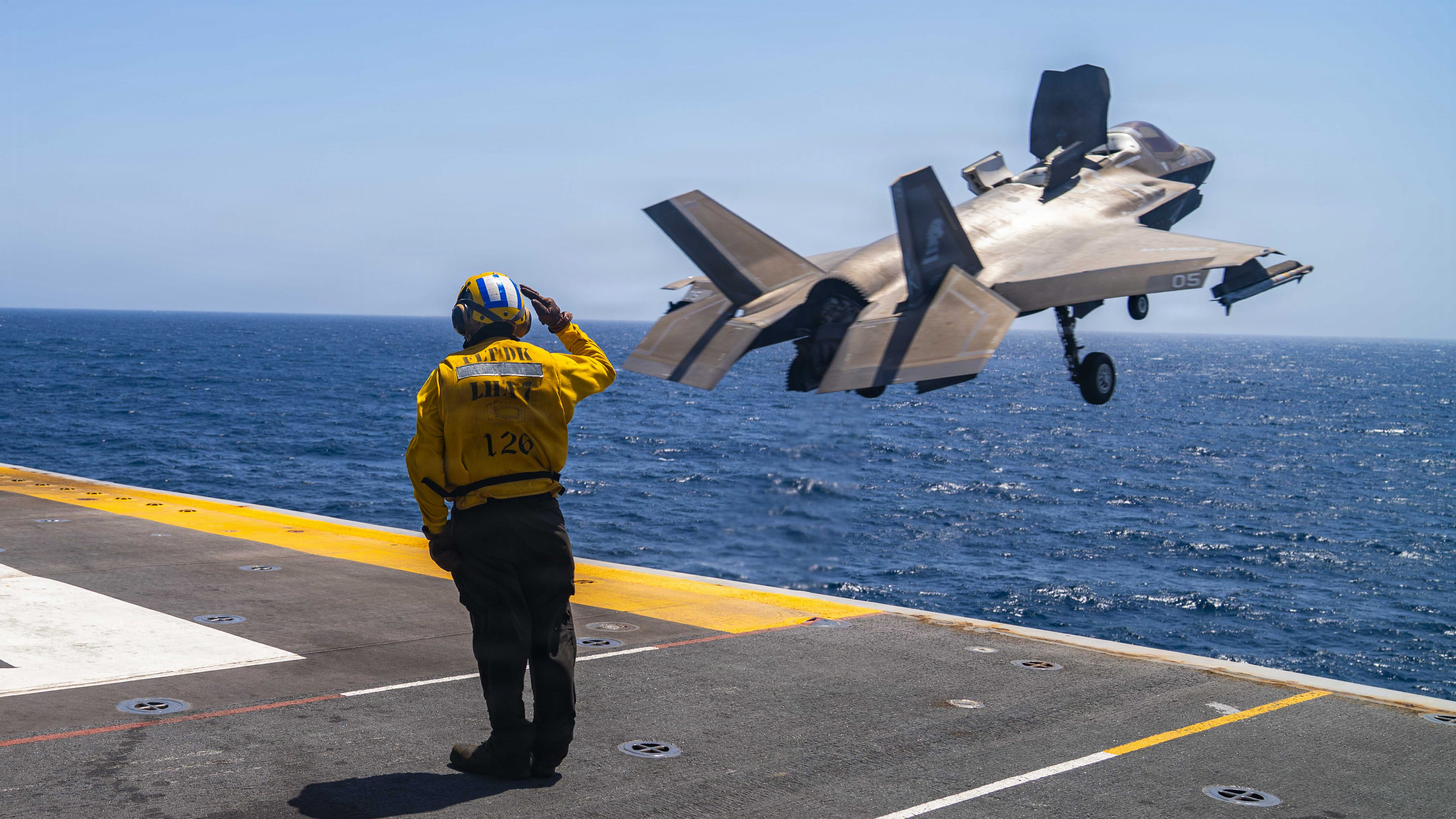

F-35B Lightning II, STOVL stealth multirole fighter, Aircraft & UAVs - view 1
Source: USS Tripoli Conducts Flight Ops

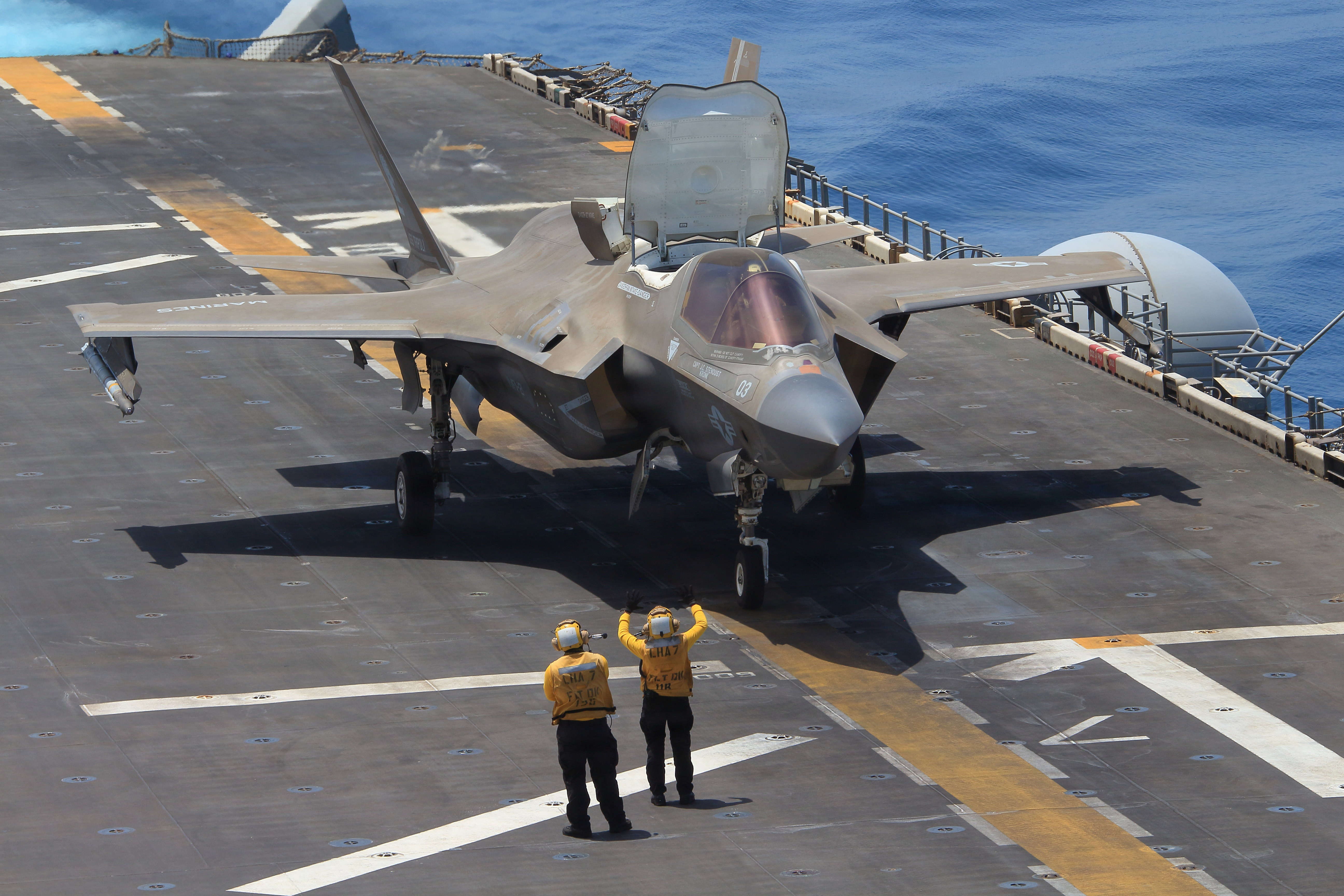

F-35B Lightning II, STOVL stealth multirole fighter, Aircraft & UAVs - view 2
