M901A1 Improved TOW Vehicle

Also known as
  • M901
  • M901 ITV
  • M901A1 ITV
  • M901 Improved TOW Vehicle
  • Improved TOW Vehicle
  • ITV

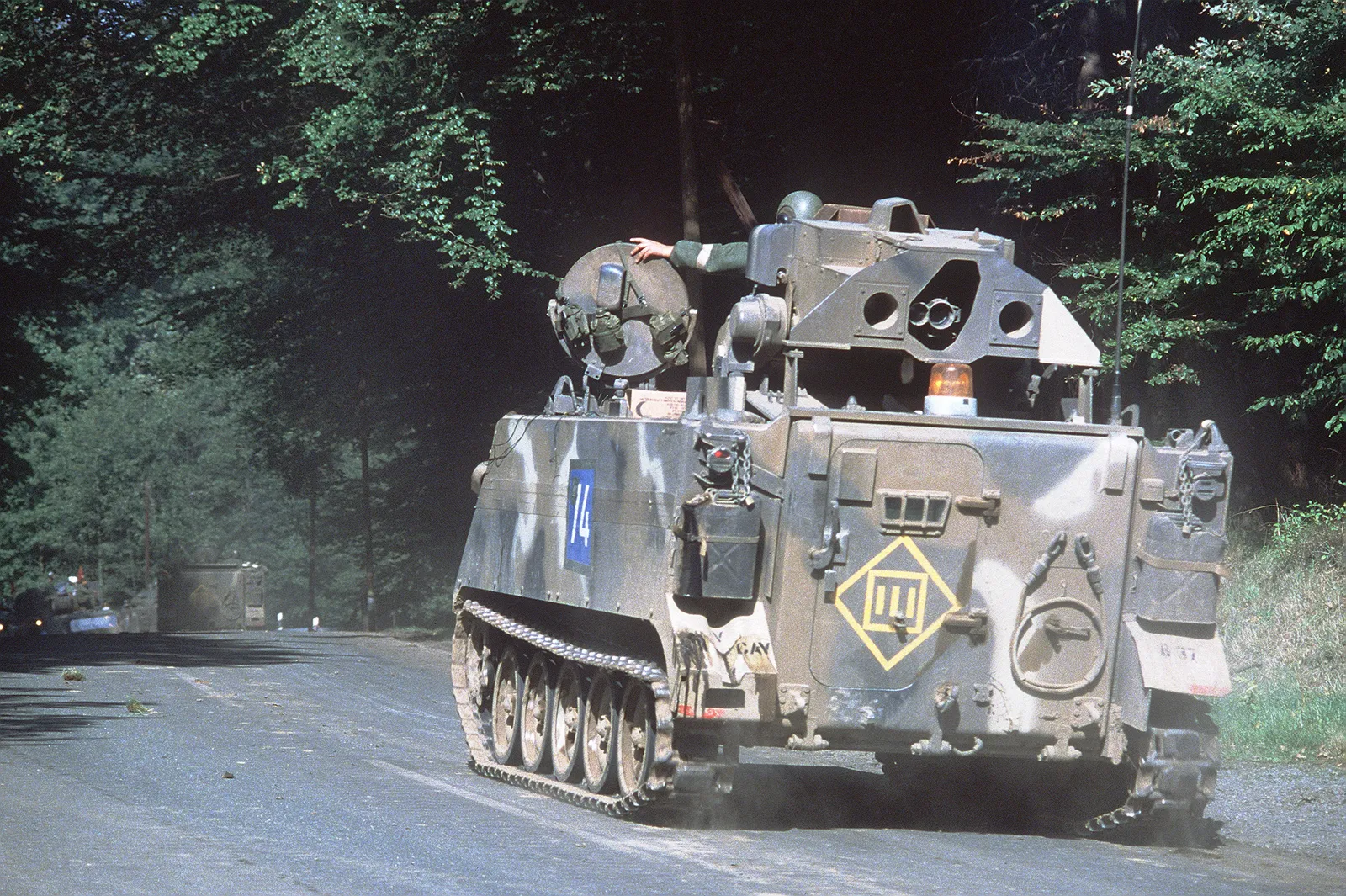

The M901A1 Improved TOW Vehicle is a U.S. tracked anti-armor carrier built around an M113-family chassis, an M27 cupola, and a raised twin TOW launcher. United Defense, LP built the vehicle for Army service beginning in the late 1970s, and the M901A1 configuration added TOW 2 compatibility while retaining internal missile stowage and armored reload protection. U.S. Army Redstone history documents M901 ITVs in Operation Desert Storm, where they were credited with confirmed kills during the 1991 ground campaign.

M901A1 Improved TOW Vehicle, Tracked TOW missile carrier vehicle, Armored Vehicles
Image source: File:M901 Improved TOW vehicle.jpg

Role in Conflicts

Profile / Specs

Profile

Origin
United States
Type
Tracked TOW missile carrier vehicle
Service note
Late Cold War
Designed
1976-1978
Produced
1978-1990s; export production continued after U.S. Army production ended
Number built
More than 5,500 M901-family systems

Specifications

Crew
4
Base chassis
M113A1/M113A2-family armored personnel carrier chassis
Launcher
M27 'Hammerhead' armored twin TOW launcher with M220A2 TOW 2 fit in M901A1 configuration
Missile load
2 ready missiles plus 10 stowed internally
Aiming equipment
Day sight/tracker and AN/TAS-4A gunner's night sight
Weight
About 13 tons
Mobility
40 mph road speed; 300-mile cruise range; amphibious in calm water
Protection
Aluminum armor against small arms fire and artillery fragments
Variants

M901-family designations mainly separate the original M220A1 TOW fit from the M901A1 TOW 2 launcher upgrade and the later M901A3 automotive upgrade path. This record covers the M901A1 configuration.

VariantConfigurationDesignation notes
M901Original ITV configuration

Army field-manual material identifies the M901 as the version using the M220A1 TOW launcher before the M901A1 TOW 2 upgrade.

Sources: FM 23-34 Chapter 4 M901-Series ITV

M901A3RISE/M113A3 automotive upgrade

Vehicle references describe the M901A3 as retaining the TOW 2 launcher fit while incorporating M113A3/RISE automotive improvements.

Sources: Improved TOW Vehicle M901A1 | AFV Database, M901 ITV | WeaponSystems.net

Launched Missiles

The M901A1 Improved TOW Vehicle is a tracked carrier built to fire TOW-family missiles from an elevated twin launcher.

Launched itemItem typeLaunch evidence
BGM-71 TOW, Heavy anti-tank guided missile, Infantry WeaponsBGM-71 TOWHeavy anti-tank guided missile

Army budget documentation names the M901A1 Improved TOW Vehicle as a TOW carrier and launch platform, while field-manual material ties the M901A1 fit to the M220A2 TOW 2 launcher.

Sources: Army Procurement: Missiles, FM 23-34 Chapter 4 M901-Series ITV

Base Chassis

The vehicle is part of the M113 armored carrier family, with its internal layout adapted for missile stowage and launcher operation.

Compatible itemItem typeCompatibility evidence
M113, Armored personnel carrier, Armored VehiclesM113Tracked armored carrier family

Army Guide and AFV Database both describe the M901/M901A1 ITV as an M113-family conversion carrying a raised hammerhead TOW launcher and modified internal missile stowage.

Sources: M901 Improved TOW Vehicle | Army Guide, Improved TOW Vehicle M901A1 | AFV Database

Launcher, Chassis, And Missile Fit

The M901A1 is best read as an M113-family tracked carrier adapted around a raised twin TOW launcher, not as a separate missile design. The ITV conversion placed a hammerhead launcher assembly on the commander's M27 cupola, while the M901A1 designation marks the TOW 2-compatible launcher and sighting upgrade path.

Chassis

M113-family tracked carrier; M901 vehicles used M113A1/M113A2-family hulls, while the later M901A3 path followed M113A3/RISE automotive improvements.

Launcher

M901A1 vehicles used the M220A2 TOW 2 launcher fit with associated sighting and guidance equipment mounted in the raised ITV launcher assembly.

Missiles

The M901A1 configuration is documented with TOW 2-series missile compatibility, supporting its relationship to the BGM-71 TOW missile family.

Sources: FM 23-34 Chapter 4 M901-Series ITV; FM 3-22.34 TOW Weapon System; Improved TOW Vehicle M901A1 | AFV Database; M901 ITV | WeaponSystems.net.

Timeline

M901A1 Improved TOW Vehicle Key Events

  1. Improved TOW Vehicle enters production service

    Army Guide and collection material place M901 production and service entry in the late 1970s as U.S. mechanized infantry and cavalry units received a protected tracked TOW carrier.

    Sources: M901 Improved TOW Vehicle | Army Guide, M901A1 Improved TOW Vehicle | The Littlefield Collection

  2. M901A1 TOW 2 configuration appears

    AFV Database describes the M901A1 designation as the ITV modification for TOW 2-series missiles, paired with an AN/TAS-4A gunner's night-sight upgrade.

    Sources: Improved TOW Vehicle M901A1 | AFV Database

  3. Desert Storm readiness and combat assessment

    U.S. Army Redstone history records MICOM work to raise M901 ITV readiness during Operation Desert Storm and an initial assessment crediting ITVs with at least 14 confirmed kills during the ground campaign.

    Sources: TOW | Redstone Arsenal Historical Information

  4. U.S. service gives way to Bradley TOW carriers

    The Littlefield Collection notes that the M2/M3 Bradley's integral TOW launcher made the M901 series redundant in U.S. service, leading to retirement from U.S. units in the mid-1990s.

    Sources: M901A1 Improved TOW Vehicle | The Littlefield Collection

Media

M901A1 Improved TOW Vehicle Videos

M901A1 Improved TOW Vehicle Images

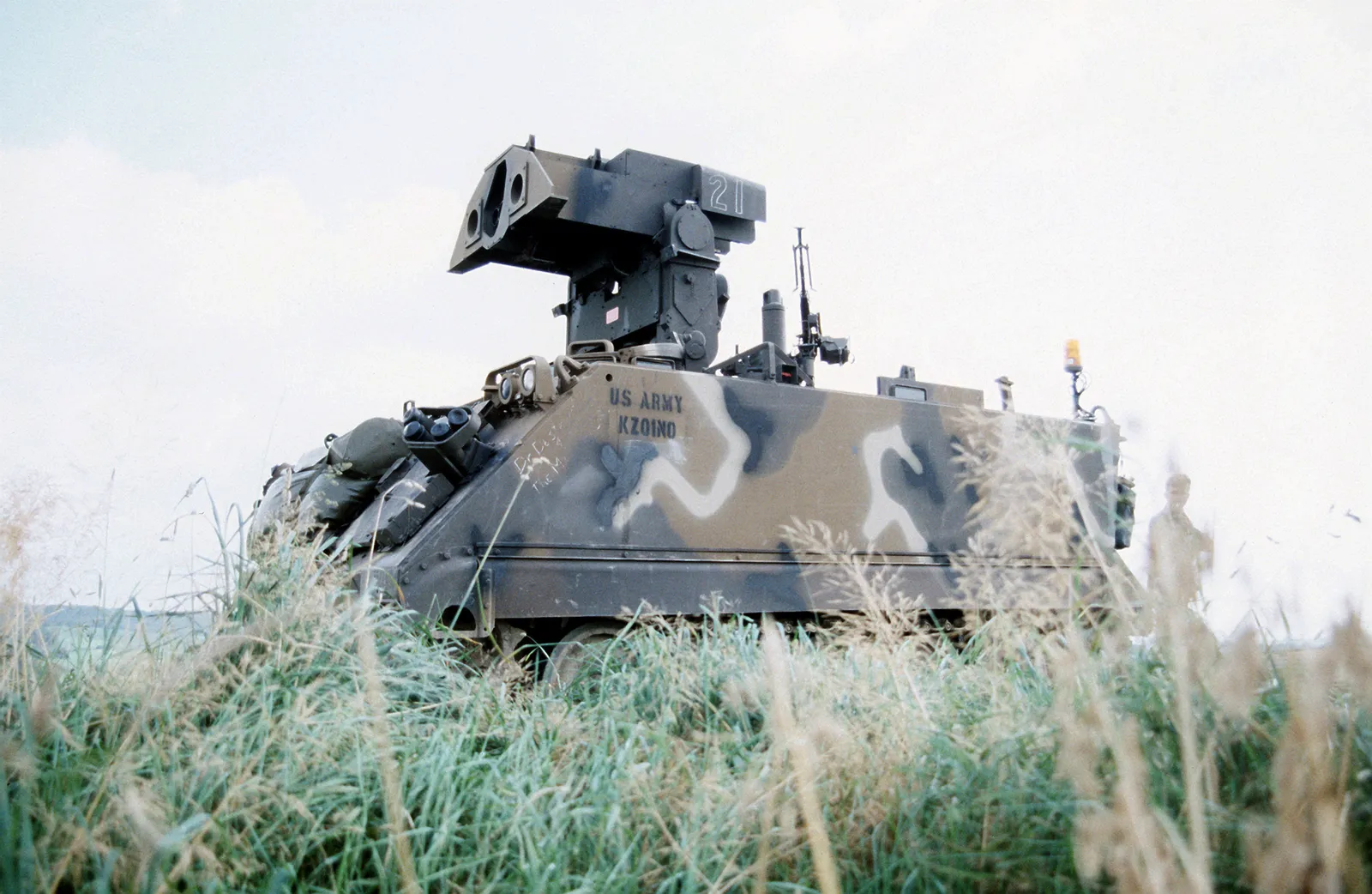

M901A1 Improved TOW Vehicle, Tracked TOW missile carrier vehicle, Armored Vehicles - view 1
Source: File:M901 TOW missile vehicle (1985).JPEG

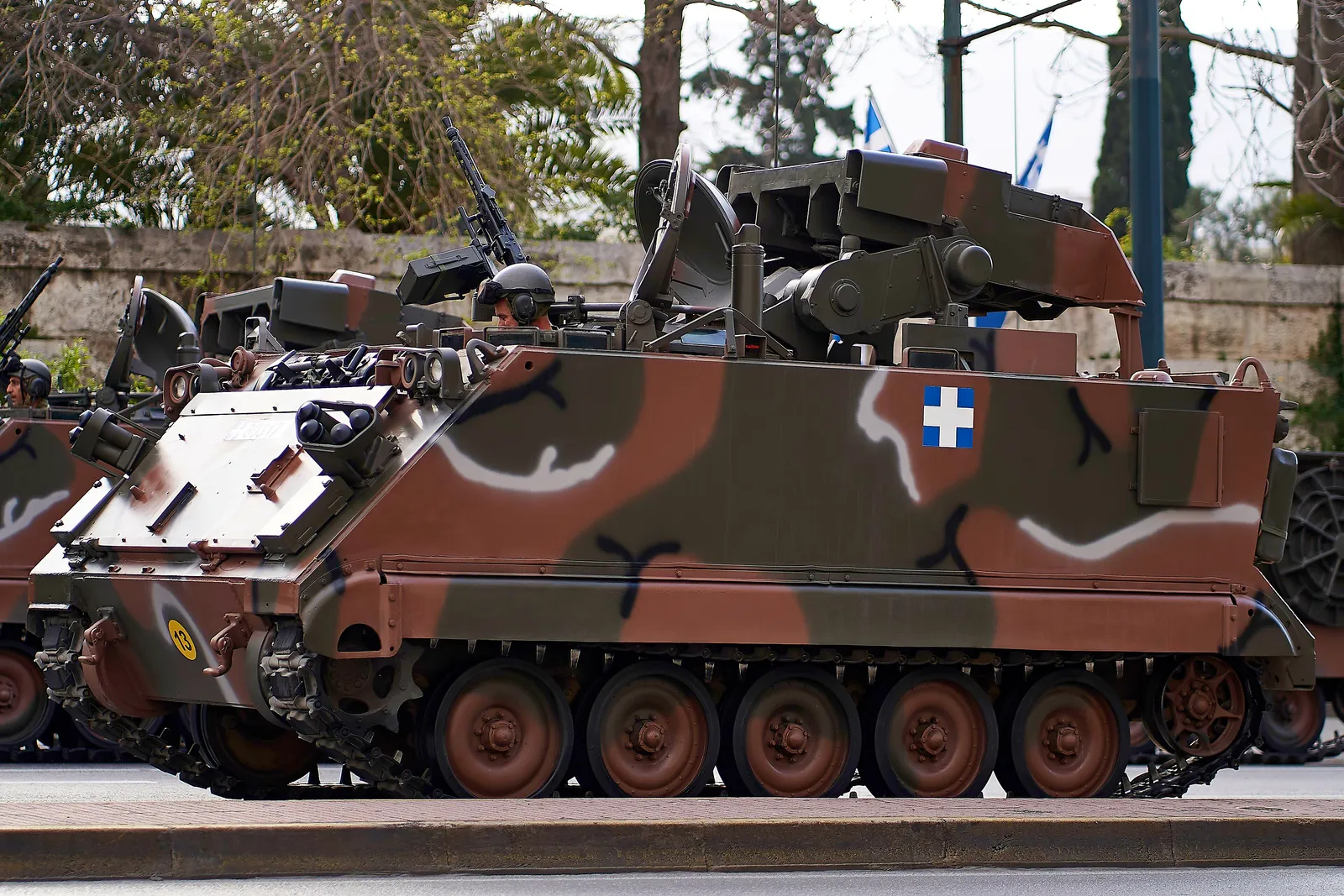

M901A1 Improved TOW Vehicle, Tracked TOW missile carrier vehicle, Armored Vehicles - view 2
