Armored Vehicles

OT-90

Also known as
  • OT-90 APC
  • BVP-1 with OT-64 turret
  • Havel's Tiger
  • Havluv tygr
  • OT-90 AMB-S

The OT-90 is a Czechoslovak tracked armored personnel carrier converted from BVP-1 infantry fighting vehicle hulls after the 1990 CFE arms-control limits. It replaced the BMP-1/BVP-1 gun turret with an OT-64 SKOT-derived machine-gun turret, producing a lighter-armed troop carrier later documented with Ukrainian forces during the full-scale phase of the Russia-Ukraine War.

OT-90, Tracked armored personnel carrier, Armored Vehicles
Image source: Wikimedia Commons OT-90 at PanzerMuseum East

Role in Conflicts

Profile / Specs

Profile

Origin
Czechoslovakia
Type
Tracked armored personnel carrier
Service note
Late Cold War conversion; documented Ukrainian service in the 2022 phase of the Russia-Ukraine War
Designer
Czechoslovak defense industry
Designed
Around 1990 conversion program
Unit cost
Not publicly disclosed
Produced
1990-1991 conversions
Number built
About 620 converted armored vehicles reported across OT-90 and related tracked variants
Developed from
BMP-1 / BVP-1

Specifications

Crew
3
Troop capacity
6 to 8 troops reported for the base APC
Armament
OT-64A/SKOT-style turret with 14.5 mm KPVT and 7.62 mm SGMT/PKT machine guns, replacing the BVP-1 73 mm gun turret
Combat weight
12,400 kg
Dimensions
6.735 m long, 2.94 m wide, 2.105 m high
Armor
6-19 mm reported armor range
Engine
UTD-20 liquid-cooled diesel, 220 kW at 2,600 rpm
Road speed
65 km/h
Road range
745 km
Amphibious speed
At least 7 km/h forward in water
Protection notes
Light tracked armored hull; the Ukrainian example reported by Defense Express carried added side grilles and an improvised rear anti-drone cover
Variants

The OT-90 family centers on Czechoslovak BVP-1 hull conversions, with armed APC, medical, command, maintenance, observation, and other support-vehicle derivatives reported in open sources.

VariantConfigurationDesignation notes
OT-90 AMB-SArmored ambulance

Czech Army source describes an amphibious tracked medical vehicle based on the OT-90, with the turret removed and the troop area rebuilt for stretchers, seats, and medical equipment.

Sources: Czech Army OT-90 AMB-S

OT-90M1Modernized prototype

Valka lists OT-90M1 as a 1992 modernized prototype based on the OT-90 family.

Sources: Valka OT-90 Profile

OT-90M2Modernized prototype

Valka lists OT-90M2 as a 1993 modernized prototype based on the OT-90 family.

Sources: Valka OT-90 Profile

Timeline

OT-90 Key Events

  1. CFE conversion pressure

    Valka links the OT-90 conversion program to the Treaty on Conventional Armed Forces in Europe and Czechoslovak limits on infantry fighting vehicles.

    Sources: Valka OT-90 Profile

  2. OT-90 conversion run

    Valka identifies Vojensky opravarsky podnik 026 Sternberk as the producer during the 1990-1991 OT-90 conversion period and reports 620 vehicles produced.

    Sources: Valka OT-90 Profile

  3. OT-90 identified in Ukrainian service

    Defense Express reported an OT-90 in Ukrainian military use during the full-scale phase of the Russia-Ukraine War.

    Sources: Defense Express OT-90 Ukraine report

Media

OT-90 Videos

OT-90 Images

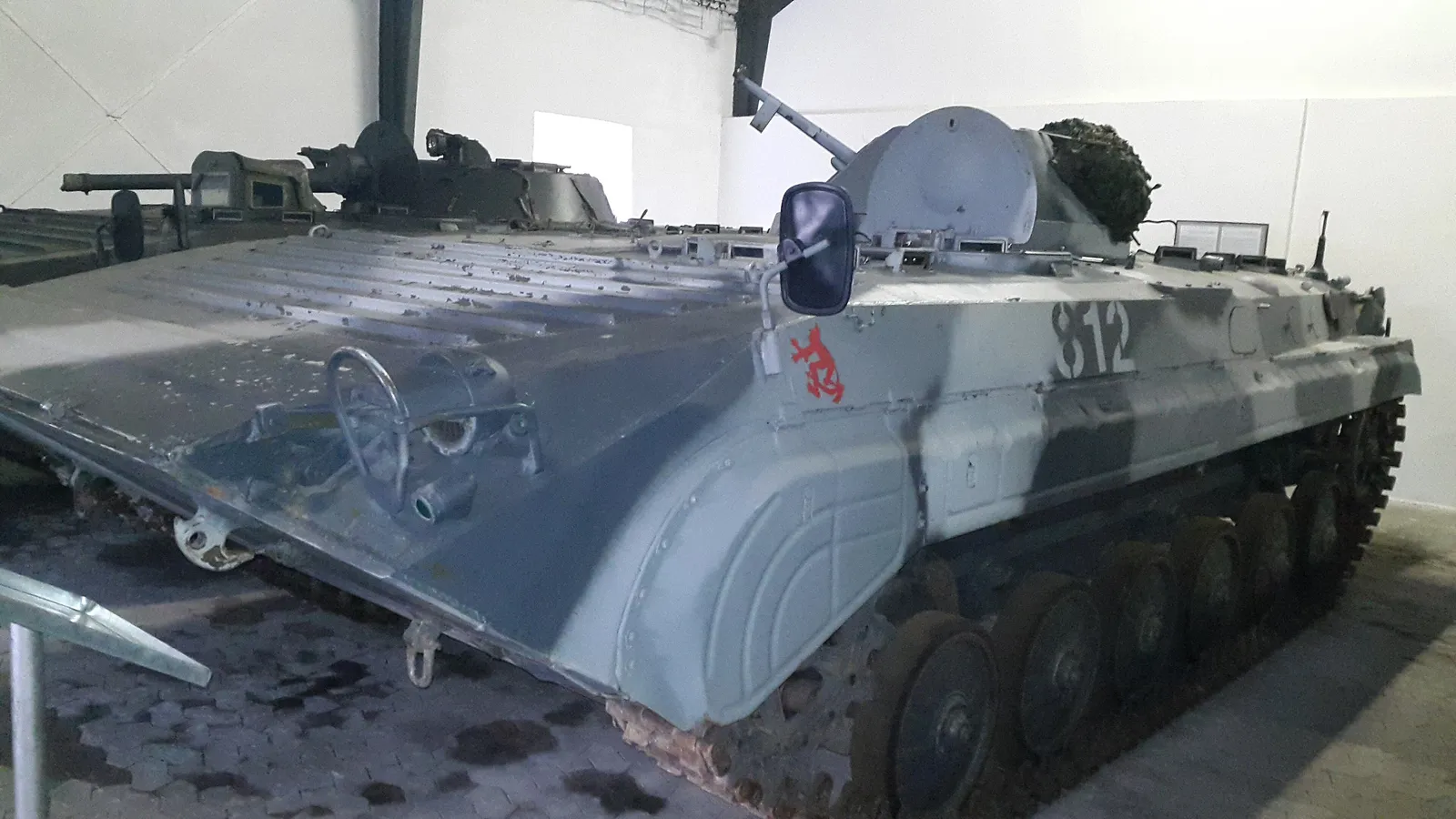

OT-90, Tracked armored personnel carrier, Armored Vehicles - view 1
Source: Wikimedia Commons OT-90 pic2 image

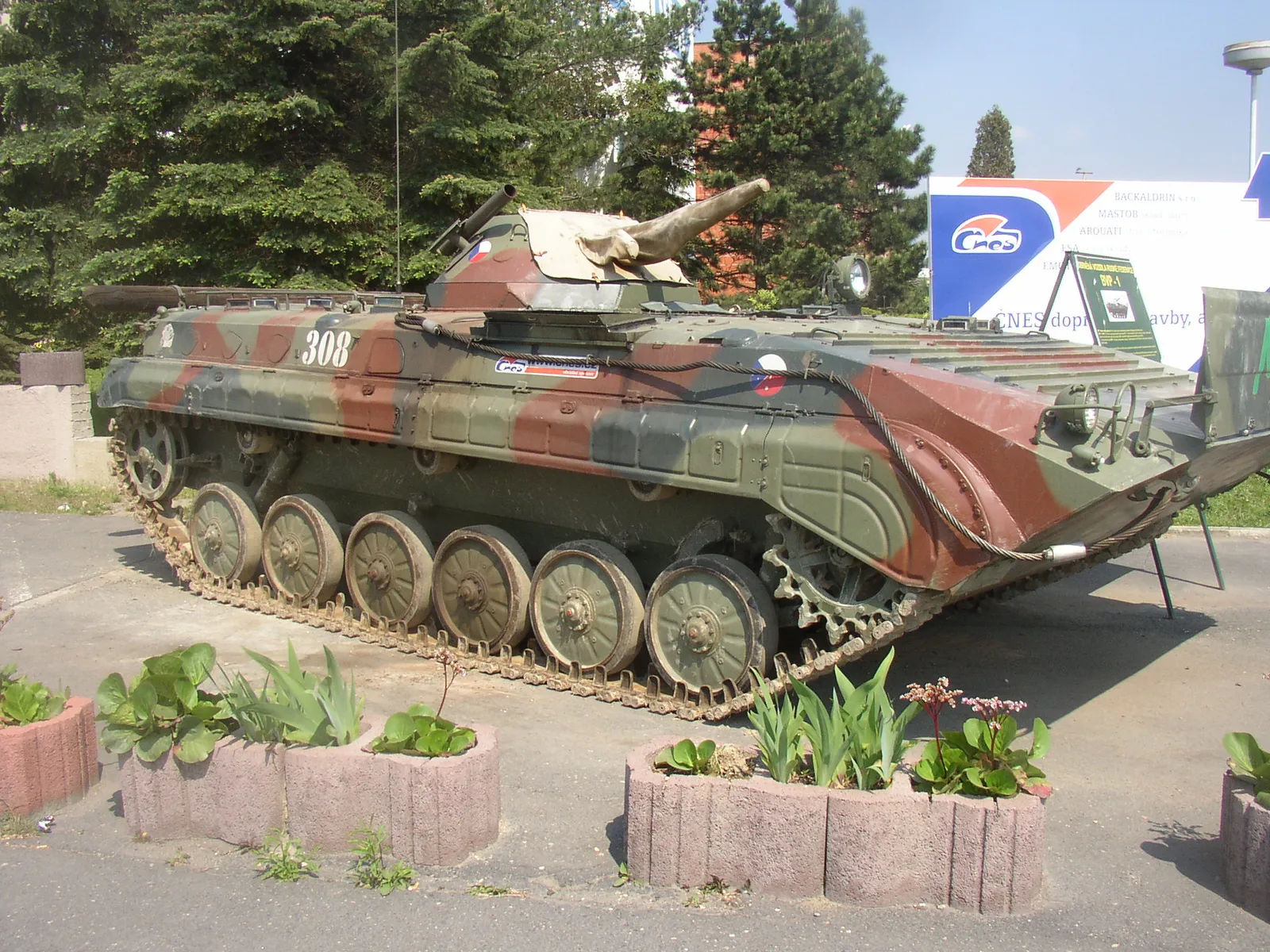

OT-90, Tracked armored personnel carrier, Armored Vehicles - view 2
Source: Wikimedia Commons OT-90 Kladno image

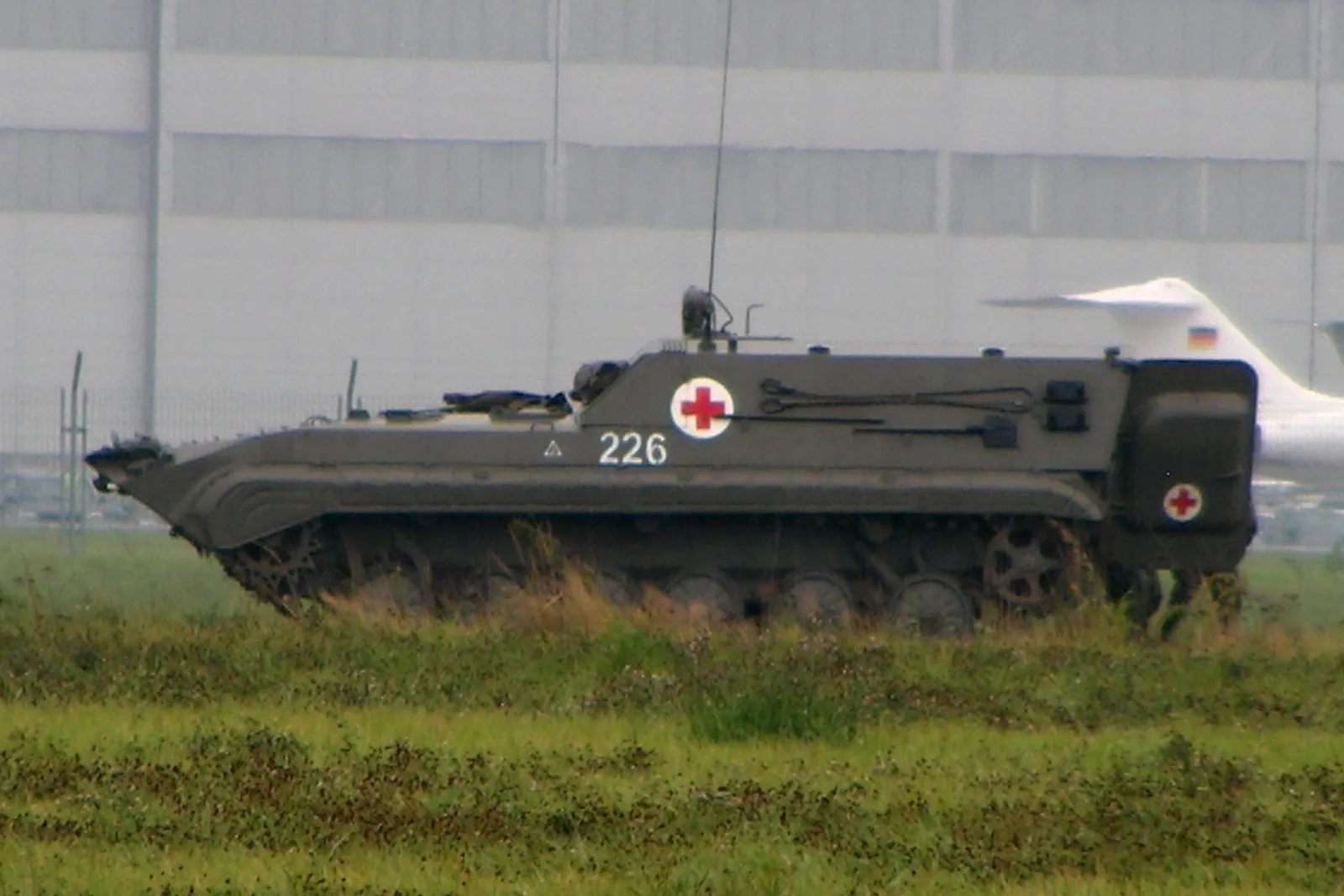

OT-90, Tracked armored personnel carrier, Armored Vehicles - view 3
Source: Wikimedia Commons OT-90 AMB-S image
