Munitions

GBU-27 Paveway III

Also known as
  • GBU-27
  • GBU-27/B
  • GBU-27A/B
  • GBU-27B/B
  • EGBU-27
  • Guided Bomb Unit-27

The GBU-27 Paveway III is a U.S. 2,000-pound hard-target laser-guided bomb derived from the GBU-24 family and repackaged for internal carriage by the F-117A Nighthawk. GAO and GulfLINK records describe a BLU-109-based penetrator for hard targets, while Air Force reporting documents enhanced EGBU-27 use by F-117s in the opening phase of the 2003 Iraq War.

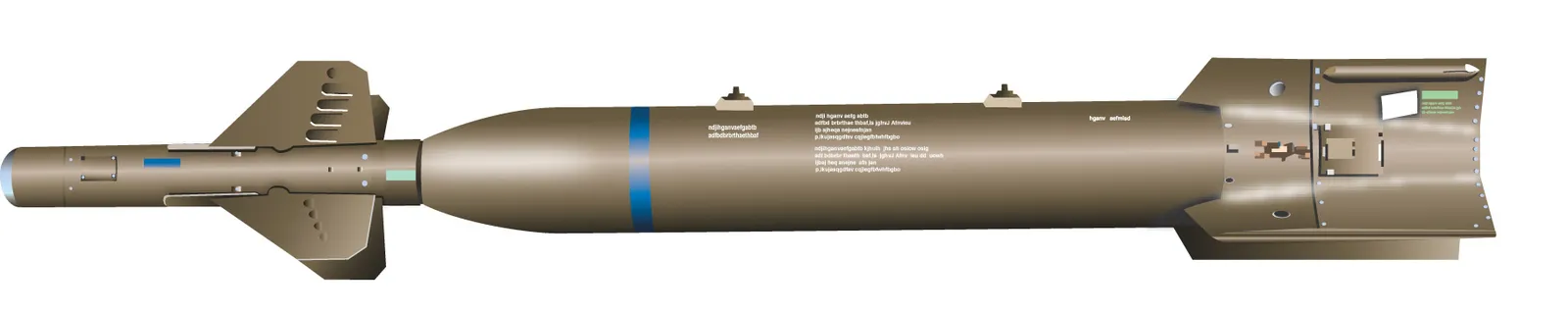

GBU-27 Paveway III, 2,000-pound hard-target laser-guided bomb, Munitions
Image source: GBU-27 - U.S. Air Force

Role in Conflicts

1999 Kosovo War / Operation Allied Force
Long-Range Strike
Side
NATO

The Defense Department's Operation Allied Force after-action report says most direct-attack weapons in the campaign were laser-guided bombs and lists the GBU-27 among the laser-guided bomb types used, while not identifying exact targets or quantities.

Profile / Specs

Profile

Origin
United States
Built by
Raytheon
Type
2,000-pound hard-target laser-guided bomb
Service note
Entered service in 1987; documented in combat from Operation Desert Storm through Operation Iraqi Freedom
Designed
1987
Unit cost
$55,000 (production unit cost, 1995 GAO report)
Produced
1987-present
Number built
3,213 listed in 1995 GAO inventory reporting

Specifications

Guidance
Semi-active laser guidance; EGBU-27 adds GPS/INS-aided guidance
Warhead
BLU-109/B or BLU-116/B penetrating warhead
Weight
About 2,170 pounds
Length
13 ft 10 in
Wingspan
5 ft 5 in
Diameter
2 ft 4 in
Range
More than 11 miles
Platform
F-117A Nighthawk internal carriage
Carriage
Two GBU-27s in the F-117's two weapons bays
Variants

GBU-27 designations sit inside the 2,000-pound Paveway III family but use a compact F-117-compatible configuration.

VariantConfigurationDesignation notes
GBU-27/BBaseline F-117 Paveway III configuration

The baseline configuration adapts the 2,000-pound Paveway III family for F-117 carriage with a compact airfoil group and penetrating warhead.

Sources: Raytheon Paveway III - Designation-Systems.Net, Guided Bomb Unit-27 Smart Weapons

GBU-27A/BEnhanced guided bomb unit

Air Force Test Center history records completion of F-117 flight-test evaluation for the GBU-27A/B enhanced guided bomb unit in 2000.

Sources: F-117 Combined Task Force Testing

GBU-27B/BBLU-116 penetrator configuration

Designation-Systems lists the GBU-27B/B as an enhanced GBU-27 configuration using a BLU-116/B advanced unitary penetrator warhead.

Sources: Raytheon Paveway III - Designation-Systems.Net

EGBU-27GPS/INS-aided enhanced GBU-27

Air Force reporting describes the EGBU-27 as an enhanced GBU-27 with satellite guidance added to the laser guidance system.

Sources: Stealth Fighters Use New Munitions To Hit Baghdad, Raytheon Paveway III - Designation-Systems.Net

GBU-24 Paveway III, 2,000-pound-class laser-guided bomb, MunitionsGBU-24 Paveway IIIParent 2,000-pound Paveway III family

The GBU-27 is described as a GBU-24-derived configuration modified for F-117 carriage.

Sources: Raytheon Paveway III - Designation-Systems.Net, Guided Bomb Unit-27 Smart Weapons

GBU-28 Paveway III, 5,000-pound laser-guided penetrator bomb, MunitionsGBU-28 Paveway IIIAdjacent hard-target Paveway III weapon

The larger GBU-28 was a separate Paveway III hard-target weapon developed after BLU-109-class effects were judged insufficient for the deepest hardened Iraqi bunkers.

Sources: Raytheon Paveway III - Designation-Systems.Net

Warhead Compatibility
Carried itemItem typeCarriage evidence
BLU-109 penetrator warhead, 2,000-pound hard-target penetrator warhead, MunitionsBLU-109 penetrator warhead2,000-pound hard-target penetrator warhead

FY19 Air Force procurement material identifies the GBU-27 as one of the weapon systems that uses the BLU-109 warhead.

Sources: Air Force Ammunition Procurement FY19

F-117 Carriage Configuration

The GBU-27 was configured around F-117 internal carriage, adapting the 2,000-pound Paveway III family into a compact hard-target weapon that could fit the Nighthawk weapons bays.

Carrier aircraft

F-117A Nighthawk internal weapons bays.

Family link

GBU-24-derived Paveway III configuration with compact airfoil and suspension changes.

Enhanced guidance

EGBU-27 added satellite guidance to supplement laser guidance when weather or obscuration limited laser tracking.

Timeline

GBU-27 Paveway III Key Events

  1. GBU-27 enters Air Force service

    GAO and Paveway-family references list 1987 as the GBU-27 first capability or service-entry point.

    Sources: GBU-27 - GAO Weapons Acquisition Report, Raytheon Paveway III - Designation-Systems.Net

  2. Operation Desert Storm combat use

    GAO records GBU-27 use in Operation Desert Storm by F-117 aircraft against hard targets.

    Sources: GBU-27 - GAO Weapons Acquisition Report

  3. Enhanced GBU-27A/B flight-test evaluation

    Air Force Test Center history says the F-117 Combined Task Force completed flight-test evaluation of the GBU-27A/B enhanced guided bomb unit.

    Sources: F-117 Combined Task Force Testing

  4. EGBU-27 first operational use

    Air Force reporting says the enhanced GBU-27 was used operationally for the first time against strategic Baghdad targets on the opening night of Operation Iraqi Freedom.

    Sources: Stealth Fighters Use New Munitions To Hit Baghdad

Media

GBU-27 Paveway III Images

GBU-27 Paveway III, 2,000-pound hard-target laser-guided bomb, Munitions - view 1
Source: GBU-27 xxl - Wikimedia Commons
