F1 hand grenade

Also known as
  • F-1 grenade
  • limonka
  • F1 grenade
  • F-1 hand grenade

The Soviet F1 hand grenade is a defensive anti-personnel fragmentation grenade with a cast-iron body, 60 grams of TNT, and a 3.2-to-4.2-second UZRGM fuze delay. U.S. Army reference data treats the F1 as a widely copied threat grenade, and 2014 Russia-Ukraine War reporting documents it as a larger hand-grenade payload for Mavic-type drop drones.

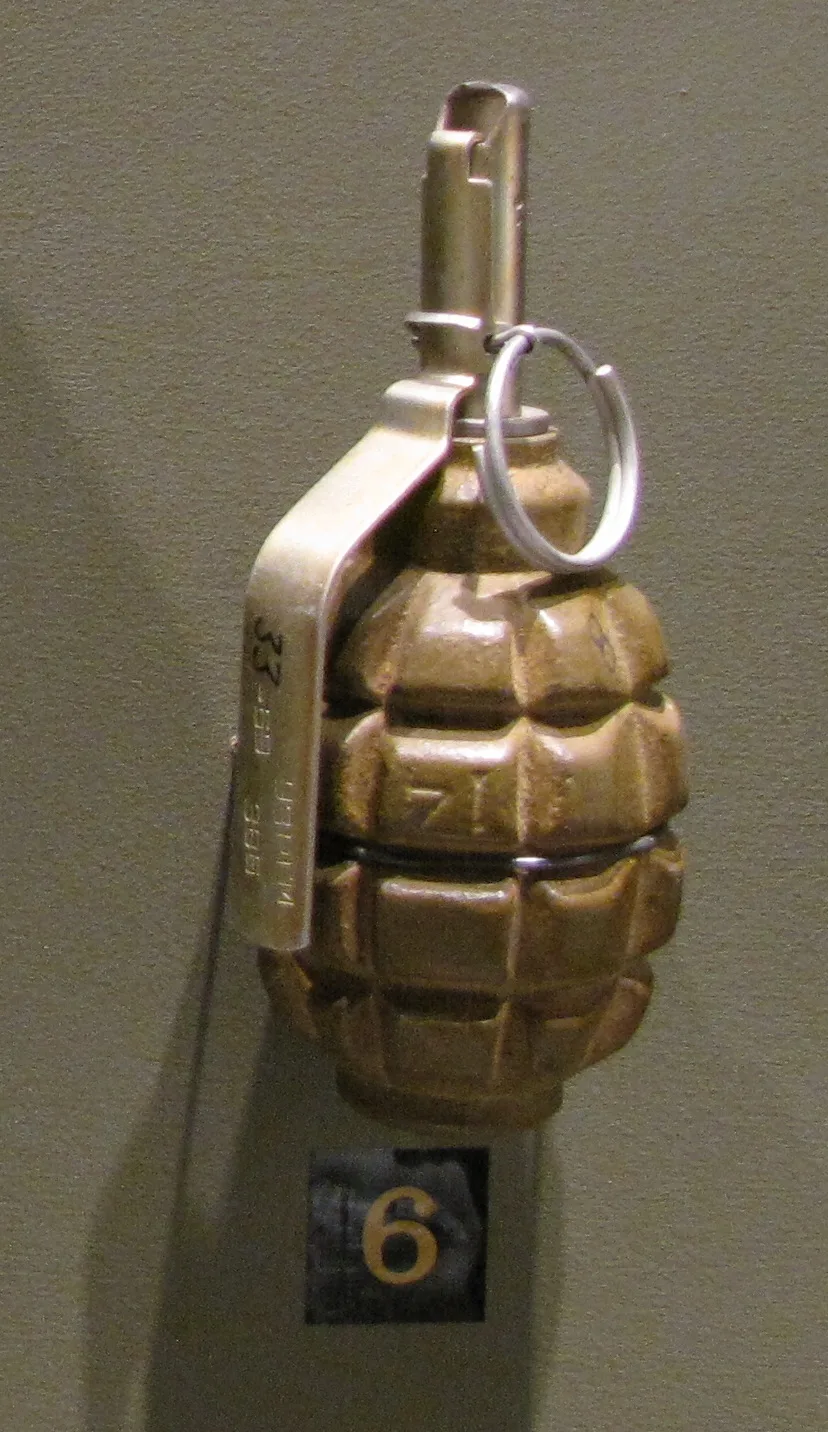

F1 hand grenade, Defensive anti-personnel fragmentation hand grenade, Infantry Weapons

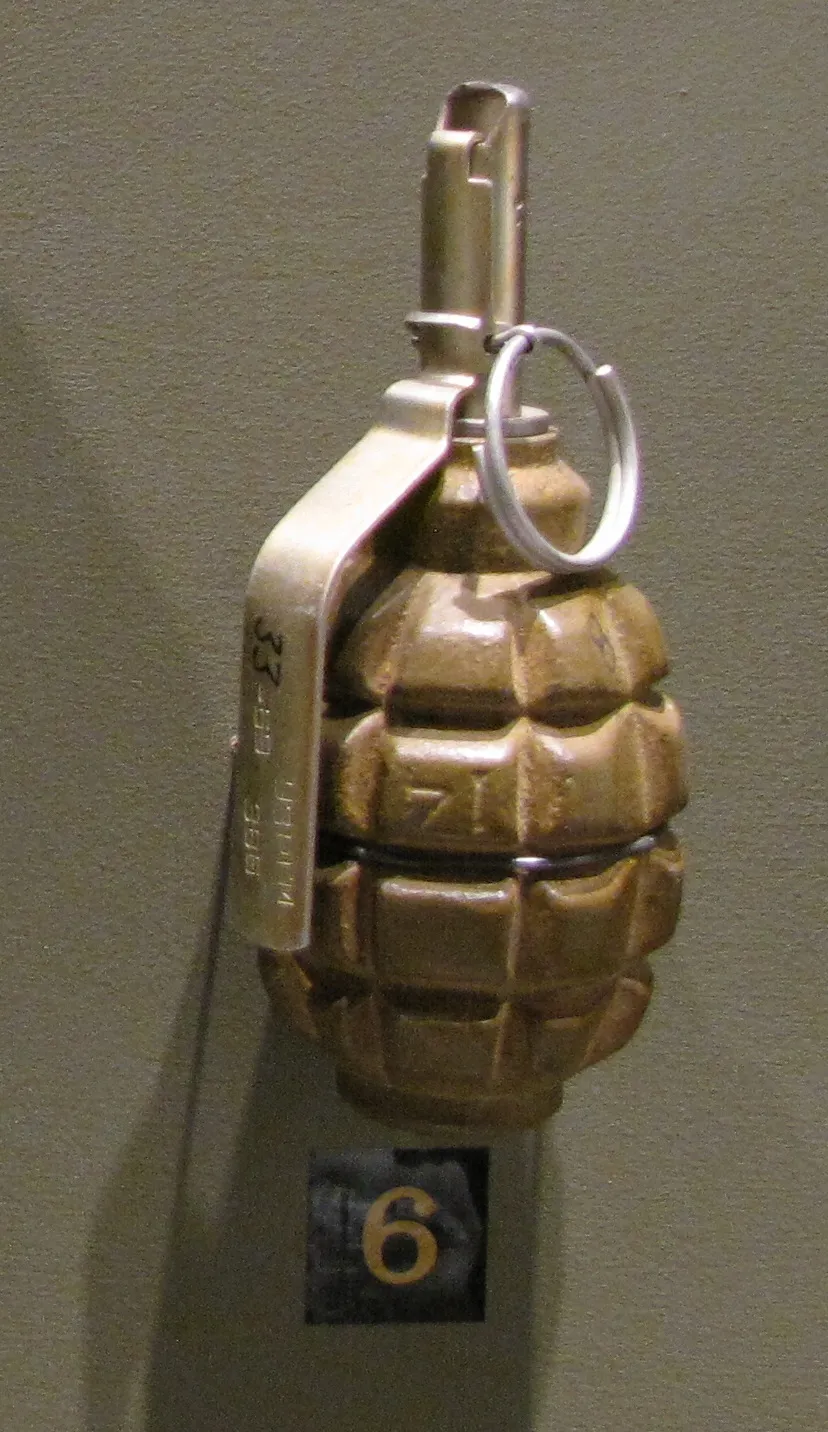

Image source: File:Soviet F1 hand grenade.jpg

Role in Conflicts

Profile / Specs

Profile

Origin
Soviet Union
Built by
Soviet
Type
Defensive anti-personnel fragmentation hand grenade
Service note
World War II-era Soviet defensive grenade still appearing in 2014 Russia-Ukraine War drone-drop reporting

Specifications

Weight
600 g
Body material
Cast iron
Fill
60 g TNT
Diameter
55 mm
Fuze type
Striker release, UZRGM
Fuze delay
3.2 to 4.2 seconds
Range thrown
30 m
Lethal radius
20 to 30 m
Role
Defensive anti-personnel fragmentation grenade
Variants

F1-family rows below cover documented copies and current analogs rather than a single Soviet production block.

VariantConfigurationDesignation notes
Type 1Chinese copy

The U.S. Army grenade manual notes that the F1 was copied or produced by numerous Warsaw Pact and former Soviet client states, including China as the Type 1.

Sources: FM 3-23.30 Grenades and Pyrotechnic Signals

Ukrainian F-1 analogDomestic defensive fragmentation grenade

Ukraine's Ministry of Defence said in September 2024 that it had codified and adopted a Ukrainian-made defensive anti-personnel fragmentation grenade as an analog of the Soviet F-1.

Sources: The Ministry of Defence has codified Ukrainian-made hand grenades

Carrier UAVs

2014 Russia-Ukraine War reporting identifies Mavic-type quadcopters as drop drones that can carry larger fragmentation hand grenades such as the F1.

CarrierCarrier typeCarriage evidence
DJI Mavic series, Commercial quadcopter UAV, Aircraft & UAVsDJI Mavic seriesCommercial multirotor UAV

CTC West Point describes Mavic-type drones in Ukraine carrying one larger grenade such as the F1, and DroneXL reported a Ukrainian DJI Mavic 3 dropping an F1 hand grenade on Russian troops.

Sources: Moving Targets: Implications of the Russo-Ukrainian War for Drone Terrorism, Mavic 3 drops grenade with deadly accuracy

Timeline

F1 hand grenade Key Events

  1. Soviet F1 in service

    Military Factory and U.S. Army reference data place the F1 in the Soviet defensive fragmentation hand-grenade family that remained in wide service and copy production.

    Sources: F1 (Hand Grenade - Soviet) - Military Factory, FM 3-23.30 Grenades and Pyrotechnic Signals

  2. Ukrainian Mavic F1 drop reported

    DroneXL reported an OSINT-documented Ukrainian DJI Mavic 3 dropping an F1 hand grenade on Russian troops near Novohryhorivka in Mykolaiv Oblast.

    Sources: Mavic 3 drops grenade with deadly accuracy

  3. Ukraine codifies domestic analog

    Ukraine's Ministry of Defence announced codification and adoption of a Ukrainian-made anti-personnel fragmentation defensive grenade analogous to the Soviet F-1.

    Sources: The Ministry of Defence has codified Ukrainian-made hand grenades

Media

F1 hand grenade Images

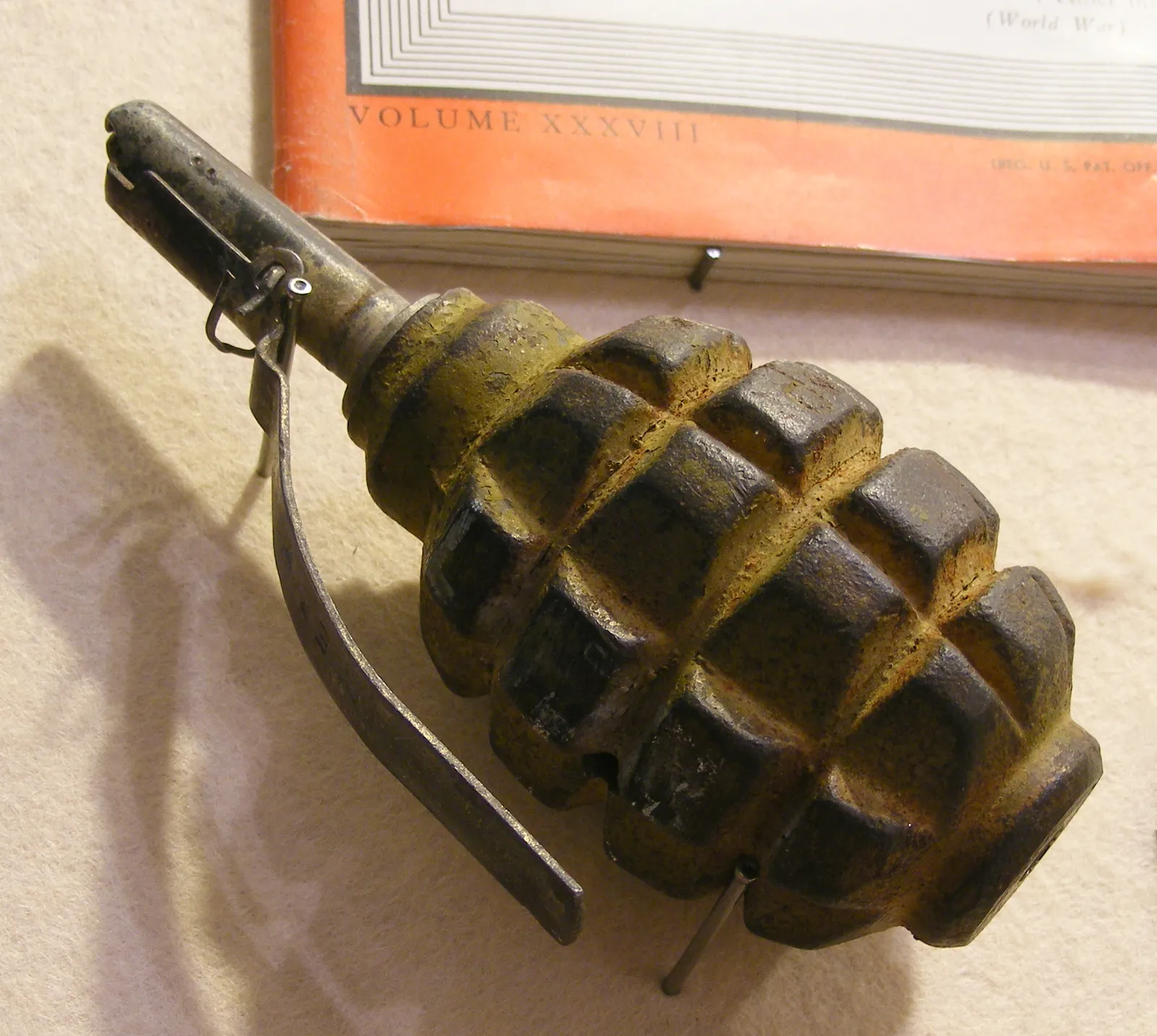

F1 hand grenade, Defensive anti-personnel fragmentation hand grenade, Infantry Weapons - view 1
Source: File:F1 grenade Soviet RCR Museum.jpg
