Armored Vehicles

ERC 90 Sagaie

Also known as
  • Panhard ERC-90
  • ERC-90 Sagaie
  • ERC 90 F4 Sagaie
  • Engin à Roues Canon de 90 mm

The ERC 90 Sagaie is a French Panhard 6x6 armored reconnaissance and fire-support vehicle built around a 90 mm gun. Arquus traces the design to 1975 and French Army adoption to 1981; later sources place the type with French forces in Desert Storm and Operation Serval, and in Boko Haram heavy-weapon reporting where evidence is strongest for captured possession.

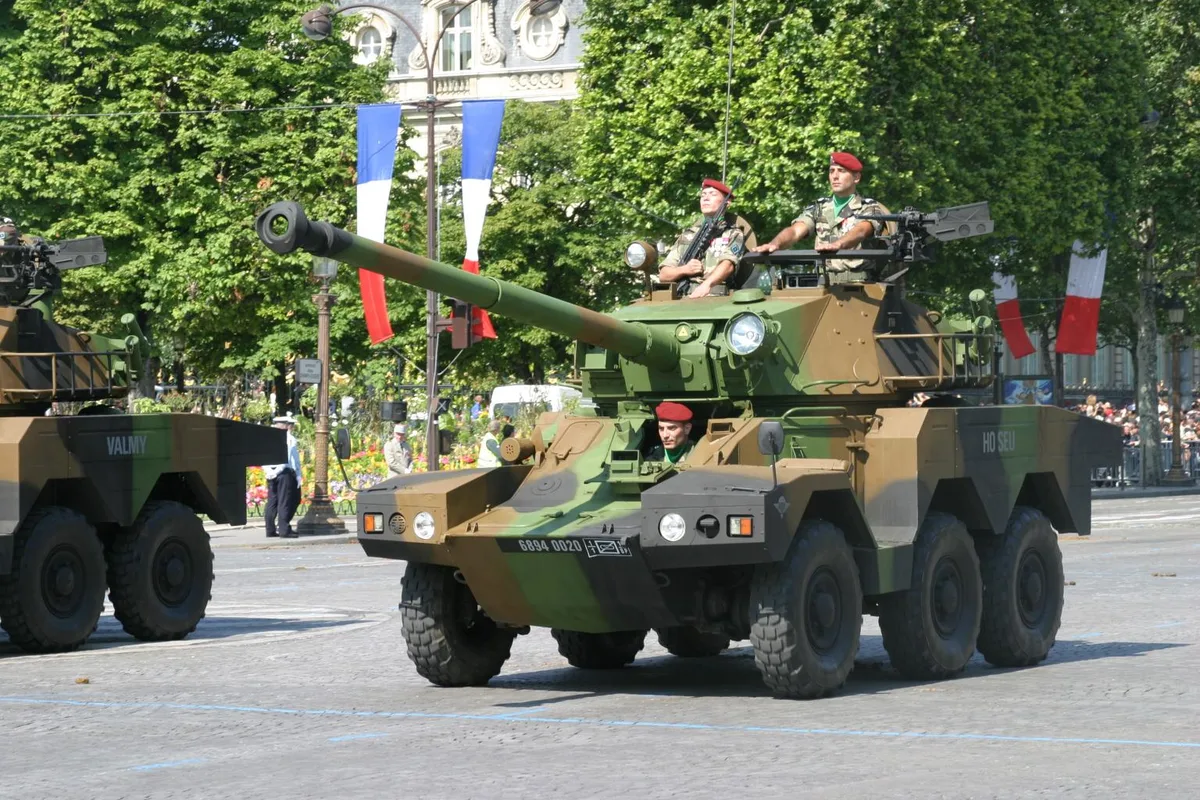

ERC 90 Sagaie, 6x6 armored reconnaissance and fire-support vehicle, Armored Vehicles
Image source: ERC-90 Sagaie 008 FR.JPG

Role in Conflicts

Profile / Specs

Profile

Origin
France
Built by
Panhard
Type
6x6 armored reconnaissance and fire-support vehicle
Service note
Designed in the mid-1970s and fielded from the early 1980s
Designer
Panhard
Designed
1975
Produced
First ERC production vehicles completed in 1979; French ERC 90 Sagaie deliveries ran from 1984 to 1990
Number built
192-193 ERC 90 Sagaie vehicles delivered to the French Army by 1990; specialist sources report 411 ERC-family vehicles overall
Developed from
Panhard AML and Panhard VCR automotive lineage

Specifications

Crew
3
Armament
90 mm F4 gun, coaxial 7.62 mm machine gun, roof-mounted 7.62 mm machine gun, and smoke grenade dischargers
Ammunition
20 rounds for the 90 mm gun carried in the turret
Weight
About 8.3 tonnes
Dimensions
About 7.6-7.7 m long, 2.5 m wide, and 2.25-2.3 m high
Powerplant
Original Sagaie used a Peugeot V-6 petrol engine; later upgrade references use a 170 hp MTU diesel with Renk automatic transmission
Mobility
6x6 wheeled chassis; sources give about 95 km/h road speed and roughly 700-800 km range depending on variant or upgrade state
Air transport
Reported air-transportable by Transall C-160 and Hercules C-130 aircraft
Water mobility
Amphibious capability was configuration-dependent: sources describe amphibious kits/options, waterjet versions, and later upgraded vehicles that were not amphibious
Protection
All-welded steel hull with smoke dischargers and NBC protection
Operational concept
Light wheeled armor optimized for rapid movement and expeditionary deployment rather than heavy protection
Variants

ERC 90 family names mainly distinguish turret, gun, powertrain, and export or upgrade configurations rather than separate unrelated vehicles.

VariantConfigurationDesignation notes
ERC 90 F4 SagaieFrench Army and export Sagaie fire-support variant

Fitted with the GIAT TS 90 turret and 90 mm F4 gun; Army Guide lists 20 turret-carried 90 mm rounds.

Sources: ERC Sagaie, Reconnaissance Vehicle

ERC 90 F4 Sagaie 2Larger twin-engine Sagaie 2 variant

Announced at Satory in 1985 with a longer, wider hull and twin Peugeot XD 3T turbo-diesel engines; Army Guide identifies Gabon as the known customer.

Sources: ERC Sagaie, Reconnaissance Vehicle

ERC 90 F1 LynxLynx turret and F1 gun variant

Fitted with a Hispano-Suiza Lynx 90 turret and 90 mm F1 gun; Army Technology and Army Guide distinguish it from Sagaie by turret and gun fit.

Sources: ERC Sagaie, Reconnaissance Vehicle, ERC 90 Wheeled Armoured Vehicles

ERC 90 CMICMI CSE-90 turret fit

Army Technology describes ERC 90 CMI as fitted with a two-person CMI CSE-90 turret mounting a 90 mm gun.

Sources: ERC 90 Wheeled Armoured Vehicles

ERC 90 NGNew-generation export and upgrade configuration

Unveiled in June 2008 with a new powertrain, improved protection, and selectable turret options including TS-90, HS-90, CSE-90, or 40 mm CTAI.

Sources: ERC 90 Wheeled Armoured Vehicles

Air Transport

The ERC 90 Sagaie was designed as a light wheeled vehicle that could move by air when operational planners needed rapid deployment.

Compatible itemItem typeCompatibility evidence
C-130 Hercules, Tactical airlift transport aircraft, Aircraft & UAVsC-130 HerculesTactical transport aircraft

RAND's study of French operations in Mali describes French light wheeled armored vehicles, including the ERC 90 class, as transportable by C-130 and C-160 aircraft; the catalog currently has a public C-130 record but no C-160 Transall record.

Sources: France's War in Mali: Lessons for an Expeditionary Army

Ammunition Fired

The ERC 90 F4 Sagaie's TS 90 turret fired a family of 90 mm fixed ammunition types rather than one single projectile.

AmmunitionAmmunition typeFiring evidence
90 mm canister projectile, 90 mm canister anti-personnel projectile, Munitions90 mm canister projectile90 mm anti-personnel projectile

Jane's table for the GIAT TS 90 turret lists canister ammunition among the 90 mm rounds fired by the ERC 90 F4 Sagaie.

Sources: Jane's Light Tanks and Armoured Cars ERC 90 F4 Sagaie table

90 mm HE projectile, 90 mm high-explosive fin-stabilized projectile, Munitions90 mm HE projectile90 mm high-explosive projectile

Jane's table for the GIAT TS 90 turret lists HE ammunition among the 90 mm rounds fired by the ERC 90 F4 Sagaie.

Sources: Jane's Light Tanks and Armoured Cars ERC 90 F4 Sagaie table

90 mm HEAT projectile, 90 mm high-explosive anti-tank projectile, Munitions90 mm HEAT projectile90 mm anti-armor projectile

Jane's table for the GIAT TS 90 turret lists HEAT ammunition among the 90 mm rounds fired by the ERC 90 F4 Sagaie.

Sources: Jane's Light Tanks and Armoured Cars ERC 90 F4 Sagaie table

90 mm smoke projectile, 90 mm white phosphorus smoke projectile, Munitions90 mm smoke projectile90 mm smoke projectile

Jane's table for the GIAT TS 90 turret lists smoke ammunition among the 90 mm rounds fired by the ERC 90 F4 Sagaie.

Sources: Jane's Light Tanks and Armoured Cars ERC 90 F4 Sagaie table

Timeline

ERC 90 Sagaie Key Events

  1. ERC program begins

    Arquus traces the ERC family back to Panhard's 1975 design effort.

    Sources: Presentation of the ERC 90 Sagaie at Satory

  2. ERC range shown at Satory

    Army Guide reports the ERC armored-car range was first shown at the Satory Exhibition of Military Equipment in 1977.

    Sources: ERC Sagaie, Reconnaissance Vehicle

  3. First production vehicles completed

    Army Guide says ERC production began after the 1977 showing and that first production vehicles were completed in 1979.

    Sources: ERC Sagaie, Reconnaissance Vehicle

  4. French acceptance

    Army Guide and Army Technology report French Army evaluation from 1978 to 1980 and acceptance in December 1980, before later trials.

    Sources: ERC Sagaie, Reconnaissance Vehicle, ERC 90 Wheeled Armoured Vehicles

  5. French Army adoption

    Arquus says the French Army adopted the ERC-90 Sagaie in September 1981.

    Sources: Presentation of the ERC 90 Sagaie at Satory

  6. French Army deliveries begin

    Army Guide and Army Technology place the first French Army Sagaie deliveries or service entry in 1984.

    Sources: ERC Sagaie, Reconnaissance Vehicle, ERC 90 Wheeled Armoured Vehicles

  7. French deliveries completed

    Army Guide says final French Army deliveries were completed in 1990; Army Technology gives 193 Sagaie vehicles delivered by 1990.

    Sources: ERC Sagaie, Reconnaissance Vehicle, ERC 90 Wheeled Armoured Vehicles

  8. Desert Storm ground offensive

    Arquus identifies ERC-90 Sagaie vehicles among the French armored vehicles used in the coalition ground offensive toward As-Salman.

    Sources: Ground Phase of the Desert Storm Offensive

  9. Operation Serval deployment

    French Army authors described ERC 90 platoons and squadrons entering Mali with the early Operation Serval ground buildup.

    Sources: Operation Serval: Another Beau Geste of France in Sub-Saharan Africa?

  10. French inventory falls to zero

    Opex360, citing French defense key figures, reported that the ERC-90 Sagaie disappeared from the French Army inventory after 40 remained on July 1, 2020 and nine were ceded to Chad.

    Sources: Le blindé à roues ERC-90 Sagaie ne fait officiellement plus partie de l'inventaire de l'armée de Terre

  11. Transfer to Chad

    France reported the transfer of nine ERC 90 Sagaie vehicles and related training to Chad.

    Sources: Report to Parliament - France's Arms Exports

Light Cavalry Employment

The Sagaie's combat value came from combining a 90 mm gun with a light wheeled chassis that could move quickly across long expeditionary distances.

Serval role

French Army authors identify ERC 90 platoons and squadrons in the early Mali buildup, including vehicles flown from Chad and a squadron driven from Abidjan to Bamako.

Mobility tradeoff

RAND describes French light wheeled armor as favoring rapid movement and expeditionary flexibility over heavy protection, with the ERC 90 providing 90 mm firepower in that force mix.

Media

ERC 90 Sagaie Videos

ERC 90 Sagaie Images

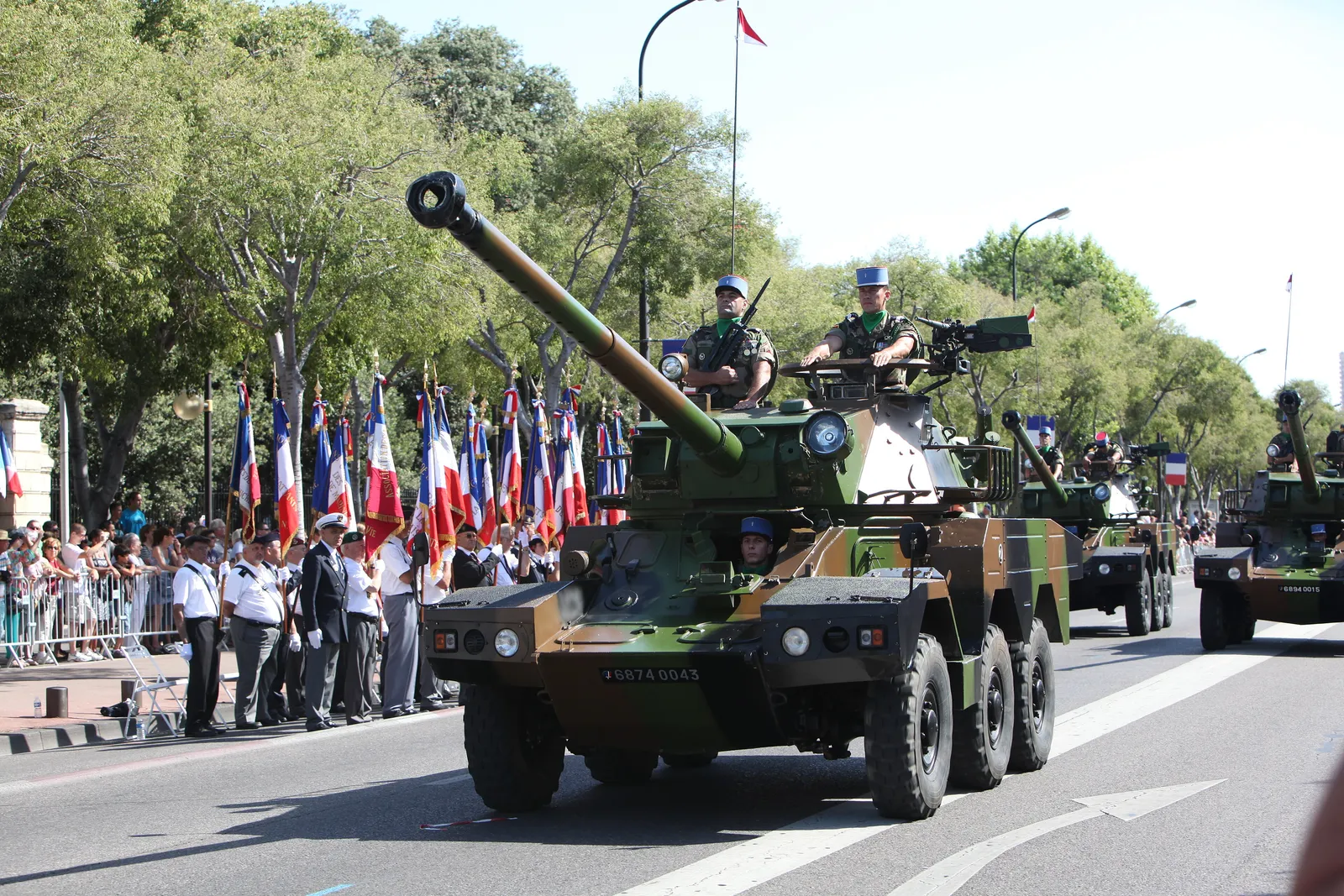

ERC 90 Sagaie, 6x6 armored reconnaissance and fire-support vehicle, Armored Vehicles - view 1
Source: ERC-90 Sagaie img 2316.jpg

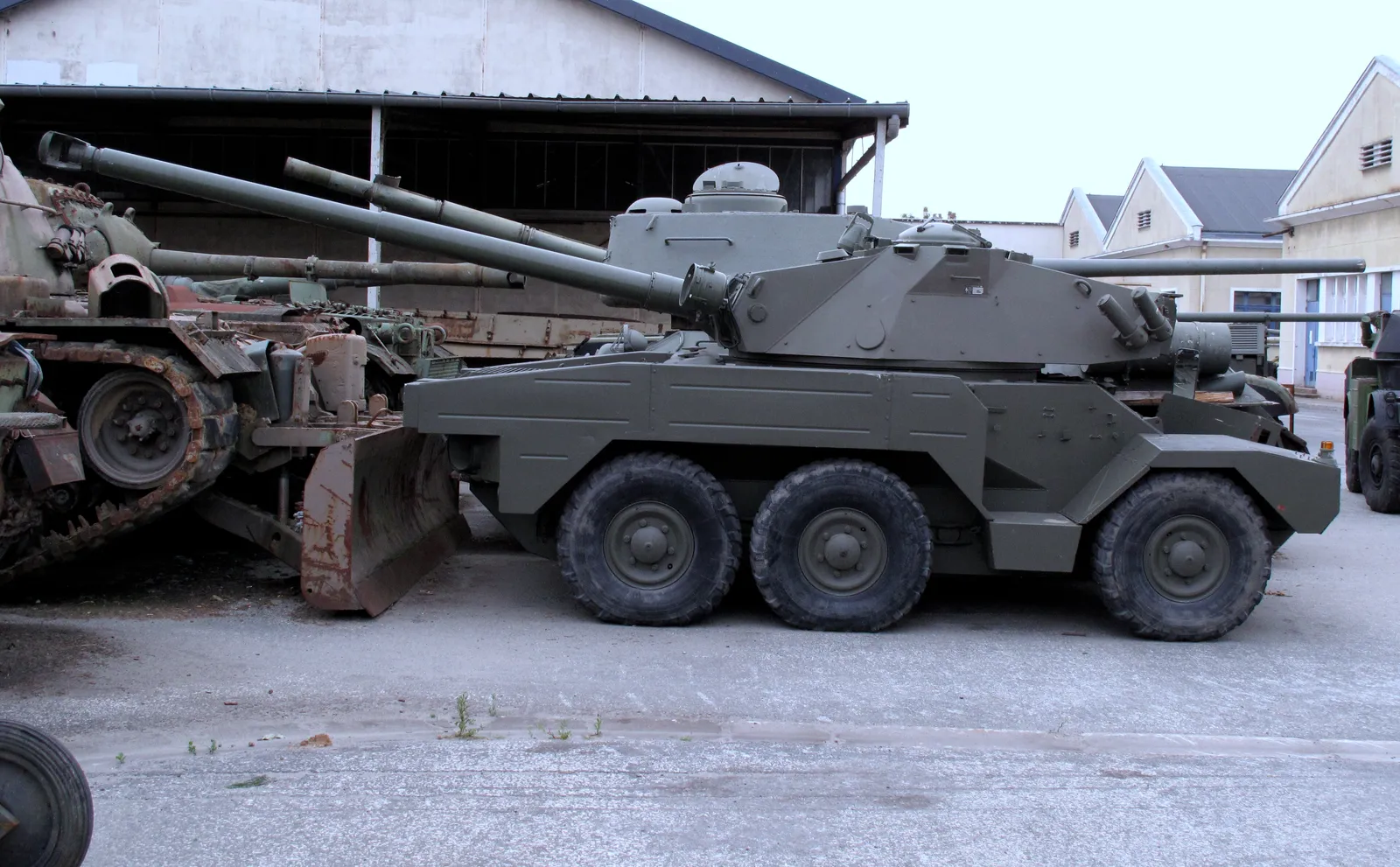

ERC 90 Sagaie, 6x6 armored reconnaissance and fire-support vehicle, Armored Vehicles - view 2
Source: ERC 90 Sagaie-1RCA-IMG 5580.jpg

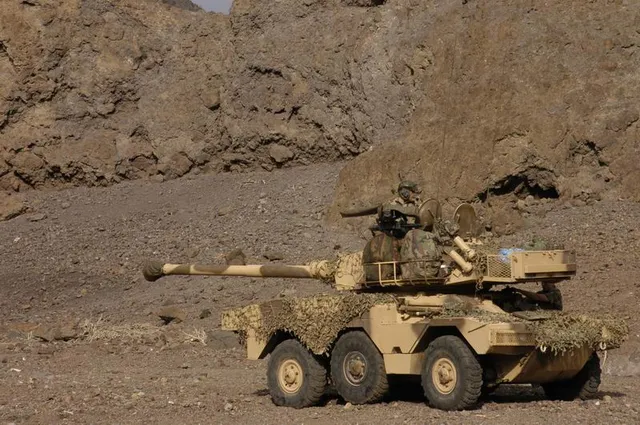

ERC 90 Sagaie, 6x6 armored reconnaissance and fire-support vehicle, Armored Vehicles - view 3
Source: ERC 90 ER.JPG
Related Weapon Systems

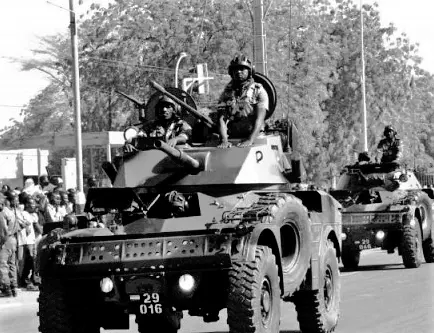

Panhard AML 60 Serval, Wheeled reconnaissance armored car, Armored VehiclesArmored VehiclesPanhard AML 60 ServalWheeled reconnaissance armored carThe Panhard AML 60 Serval is a French AML-family 4x4 reconnaissance armored car that pairs the AML chassis with a Hispano-Suiza HE 60-20 Serval turret, a 60 mm breech-loaded mortar, and either M693 or HS.820/KAD 20 mm cannon armament. Boko Haram Insurgency sourcing is strongest for Serval seizure or recovery listings and broader Nigerian AML-60 deployments, so the conflict record separates Serval-specific capture evidence from less specific AML-60 field-use reporting.

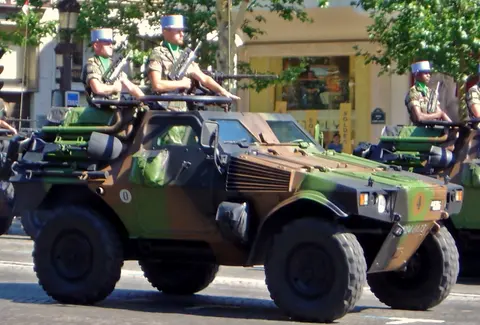

Panhard VBL M11 light armored vehicle, 4x4 light armored reconnaissance and liaison vehicle, Armored VehiclesArmored VehiclesPanhard VBL M11 light armored vehicle4x4 light armored reconnaissance and liaison vehicleThe Panhard VBL M11 is a French 4x4 light armored vehicle family developed for reconnaissance, liaison, infiltration, and protected movement with a compact amphibious baseline hull. The catalog record distinguishes normal French operational use, including Operation Serval in Mali, from Lake Chad basin evidence where sources document VBL M11/Panhard VBL materiel captured by, in service with, or recovered from Boko Haram and ISWAP rather than proving sustained insurgent operation.
