Profile
- Origin
- France
- Type
- 90 mm high-explosive anti-tank projectile
- Service note
- Cold War-present
- Produced
- Cold War-present
Munitions
90 mm HEAT projectile
Also known as
- French projectile, 90-mm, HEAT-T, OCC 90 62
- OCC 90 62
- OCC 90-62
- OCC 90 F1
- OCC 90 F2
- 90mm F1 HEAT-T M630
- 90mm F1 HEAT-TP-T M653
- 90 mm F1 HEAT-T
- 90 mm CN90F1 HEAT projectile
- French 90 mm HEAT-T projectile
The 90 mm HEAT projectile is a French high-explosive anti-tank tracer round family associated with GIAT 90 mm light vehicle guns, especially the CN90F1 / DEFA D921 on AML-90-family turrets. Public ammunition references identify OCC 90-62 and related OCC 90 F1/F2 listings, while Nexter/MECAR documentation ties the later M630 service and M653 training-practice rounds specifically to CN 90 F1 guns.
Profile / Specs
Specifications
- Caliber
- 90 mm
- Ammunition class
- High-explosive anti-tank projectile family
- French designation
- OCC 90 62
- Later catalog designations
- OCC 90-62, OCC 90 F1, OCC 90 F2, and 90mm F1 HEAT-T M630
- Training round
- 90mm F1 HEAT-TP-T M653
- Gun fit
- M630/M653 are documented for current in-service CN 90 F1 (DEFA) guns; Jane's places OCC 90-62 in a wider French 90 mm vehicle-gun ammunition table with different cartridge cases by platform group
- Gun family aliases
- CN90F1 / 90 mm F1 / DEFA D921
- CN90F1 gun characteristics
- Army Guide lists the gun as a 90 mm light gun with 33-caliber barrel, 4,125 mm length, 390 kg weight, and 750 m/s muzzle velocity
- OCC 90 62 N.E.W.
- 670.00 g
- OCC 90-62 complete round in Jane's
- 7.1 kg
- OCC 90-62 projectile and filling in Jane's
- 3.6 kg projectile with 0.67 kg filling
- OCC 90-62 muzzle velocity in Jane's
- 750 m/s
- OCC 90-62 penetration in Jane's
- 320 mm RHA at 0 degrees; 120 mm RHA at 65 degrees
- M630 nominal round mass
- 8.4 kg
- M653 nominal round mass
- 7.8 kg
- Nexter catalog performance
- M630 and M653 list 750 m/s muzzle velocity and 800 m effective range; M630 lists 250 mm RHA penetration at 0 degrees
Variants
Public sources expose the same French 90 mm HEAT family through legacy OCC designations and later Nexter/MECAR catalog labels, so the row names below separate sourced identities from broader family context.
| Variant | Configuration | Designation notes |
|---|---|---|
| OCC 90 62 | French HEAT-T projectile designation | The JMU projectile guide lists the French 90 mm HEAT-T OCC 90 62 projectile and gives a 670 g net explosive weight. Sources: JMU projectile guide |
| OCC 90-62 | Nexter Munitions HEAT-FS designation | Forecast International lists OCC 90-62 as a 90 mm high-explosive anti-tank fin-stabilized round under Nexter Munitions. |
| OCC 90 F1 | Nexter Munitions HEAT-T designation | Forecast International lists OCC 90 F1 as a 90 mm high-explosive anti-tank tracer designation in the Nexter Munitions line. |
| OCC 90 F2 | Nexter Munitions HEAT-T designation | Forecast International lists OCC 90 F2 as a second 90 mm high-explosive anti-tank tracer designation in the same Nexter Munitions group. |
| 90mm F1 HEAT-T M630 | MECAR service HEAT-T round | The Nexter 2016 catalog describes M630 as a fixed 90 mm HEAT-T round for current in-service CN 90 F1 (DEFA) guns. Sources: Nexter 2016 catalog excerpt |
| 90mm F1 HEAT-TP-T M653 | MECAR training-practice round | The Nexter catalog describes M653 as a fixed 90 mm HEAT-TP-T training-practice round designed to match the ballistics of the in-service M630 HEAT-T round. Sources: Nexter 2016 catalog excerpt |
Firing Weapons
Source references for the AML-90's gun family identify this projectile class as HEAT ammunition fired by the 90 mm vehicle gun.
| Firing weapon | Weapon type | Firing evidence |
|---|---|---|

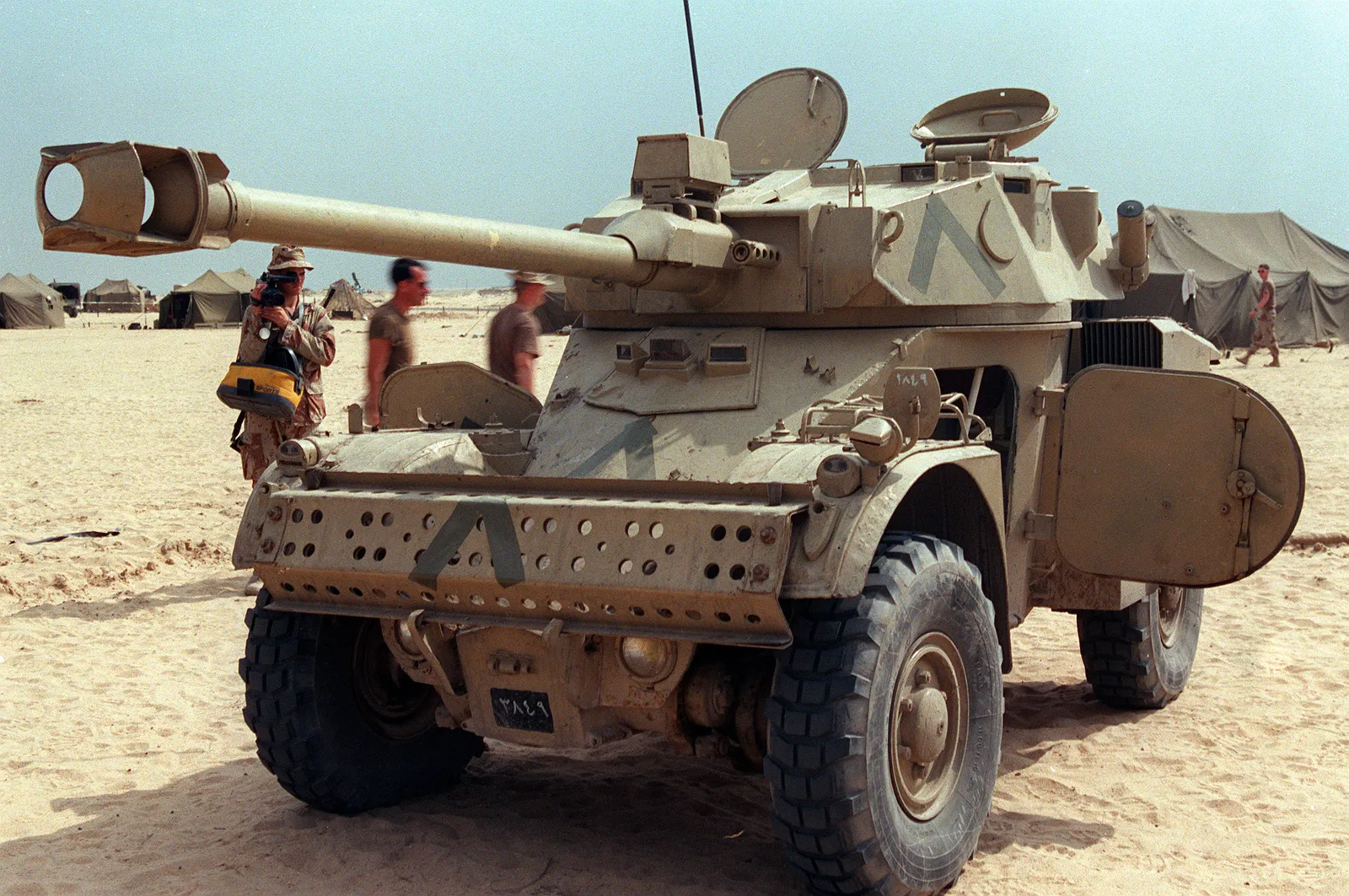

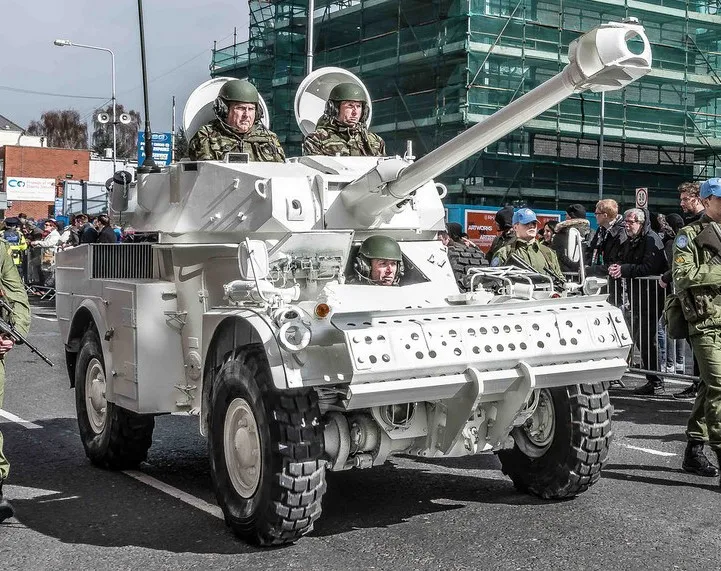

 | Armored car with 90 mm gun | Army Guide says the AML-90's GIAT 90 mm F1 gun fires HEAT projectiles, and Military Periscope likewise says the CN-90-F1 tank gun fires a HEAT projectile. Sources: Army Guide AML 90 modernization, Military Periscope 90-mm CN-90-F1 overview |
 | BTR-60 fire-support conversion with AML-90 turret | Oryx documents BTR-60s with AML-90 turrets in Yemen's pre-war vehicle inventory, and Army Guide documents HEAT projectiles for the AML-90's 90 mm F1 gun; this is a compatibility relationship, not proof that the projectile was fired in Yemen. Sources: Handbook Of Pre-War Yemeni Fighting Vehicles, Army Guide AML 90 modernization |
 | Improvised tracked vehicle with AML-90 turret | Oryx documents an M113 with AML-90 turret in Yemen's pre-war vehicle inventory, and Army Guide documents HEAT projectiles for the AML-90's 90 mm F1 gun; this is a compatibility relationship, not proof that the projectile was fired in Yemen. Sources: Handbook Of Pre-War Yemeni Fighting Vehicles, Army Guide AML 90 modernization |
Documented 90 mm Designations
Public references use several labels for the French 90 mm HEAT family, so this page keeps the record broad while separating the best documented designation paths.
| Designation | What the source says | Context | Source |
|---|---|---|---|

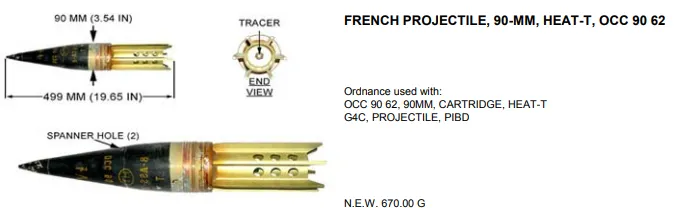

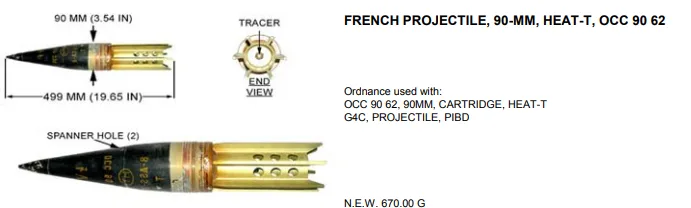

| French projectile, 90-mm, HEAT-T, OCC 90 62 | Identified as a French 90 mm HEAT-T projectile with N.E.W. 670.00 g. | Direct public identification of the French 90 mm shaped-charge projectile. | JMU projectile guide |
| OCC 90-62 | Jane's records a 7.1 kg complete round, 3.6 kg projectile, 0.67 kg filling, 750 m/s muzzle velocity, and 320 mm RHA penetration at 0 degrees. | Earlier published reference for the French HEAT round in the wider 90 mm light-gun ammunition table. | Jane's AFV Retrofit Systems 1993-94 |
| OCC 90 F1 / OCC 90 F2 | Forecast International lists both as 90 mm high-explosive anti-tank tracer rounds under Nexter Munitions. | Related French HEAT-T designations exposed in the same source lane. | Forecast International Tank Gun Ammunition |
| 90mm F1 HEAT-T M630 | Nexter catalog lists it as a fixed HEAT-T round for current in-service CN 90 F1 (DEFA) guns. | In-service round in later Nexter/MECAR documentation. | Nexter 2016 catalog excerpt |
| 90mm F1 HEAT-TP-T M653 | Nexter catalog lists it as the matching training-practice round for the same gun family. | Ballistically paired practice round. | Nexter 2016 catalog excerpt |
Use Boundary
AML-90-family vehicles and turret conversions have documented conflict histories, but the consulted sources do not directly identify firing, transfer, or recovery of this exact 90 mm HEAT projectile in a named conflict.
Timeline
90 mm HEAT projectile Key Events
Jane's documents OCC 90-62
Jane's lists OCC 90-62 as a HEAT-T round in the French 90 mm ammunition family.
Sources: Jane's AFV Retrofit Systems 1993-94
Nexter catalogs M630 and M653
Nexter's catalog lists the 90mm F1 HEAT-T M630 round and the HEAT-TP-T M653 training round for the CN 90 F1 gun family.
Sources: Nexter 2016 catalog excerpt
