3BK19 high-explosive anti-tank round

Also known as
  • 3BK19 HEAT-FS-T
  • 3BK19 Podstup-2
  • 3БК19
  • 3VBK14
  • 3ВБК14
  • Подступ-2
  • 3V38
  • 3В38

The 3BK19 is a Soviet-developed 120 mm HEAT-FS-T projectile for Nona-family gun-mortars, carried as the projectile in the 3VBK14 semi-fixed round. Open technical references describe a direct-fire anti-armor role at short range, while GRAU-index material and Nona-family ammunition tables distinguish the projectile, fuze, charge, and complete-round designations.

3BK19 high-explosive anti-tank round, 120 mm HEAT-FS-T projectile, Munitions

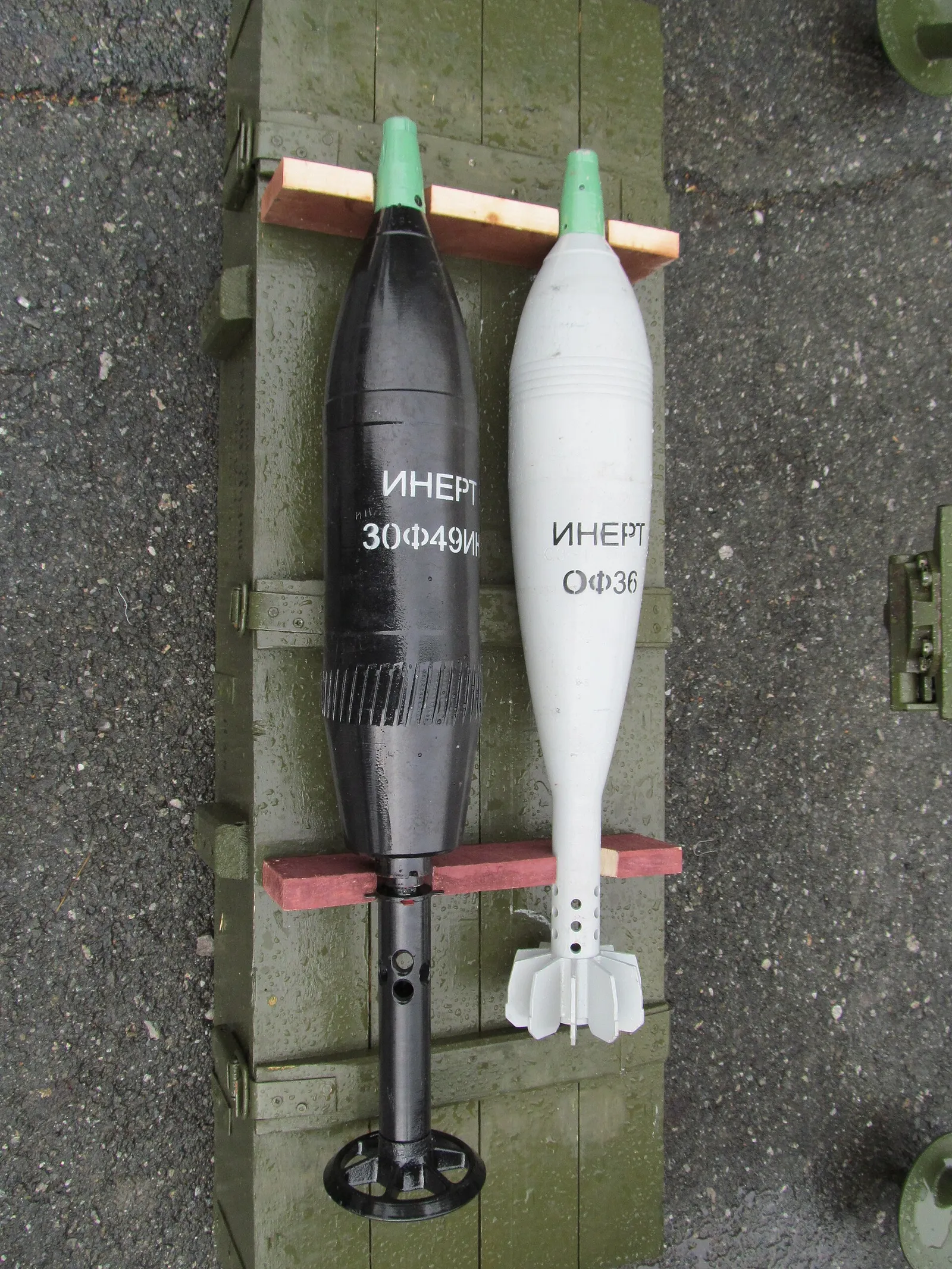

Image source: File:120 mm 3OF49 and 3OF36 high explosive rounds.JPG
Profile / Specs

Specifications

Caliber
120 mm
Projectile type
High-explosive anti-tank, fin-stabilized, tracer projectile
Complete round
3VBK14 semi-fixed round
Round weight
13.1 kg
Range
0.04-1.0 km; direct-shot range 590 m
Penetration
600 mm of homogeneous armor
Fuze
3V38 PIBD piezoelectric-based fuze
Propelling charge
4-Z-15 charge assembly
Projectile length
665 mm
Unfired length
960 mm
Direct-Fire Role

The 3BK19/3VBK14 load is documented as a direct-fire anti-armor round inside the broader 120 mm Nona-family ammunition set. That makes it different from the high-explosive and smoke mortar bombs that give the same gun-mortars their indirect-fire role.

Projectile

3BK19 is the HEAT-FS-T projectile; Fenix identifies it as a steel-bodied fin-stabilized tracer projectile.

Complete round

3VBK14 is the semi-fixed round built around the 3BK19 projectile, 3V38 fuze, and 4-Z-15 propelling charge assembly.

Engagement envelope

Specialist references describe the anti-armor use as direct fire at short range, with penetration figures around 600 mm of homogeneous armor.

Sources: 3BK19 - METIS; 3VBK14 - METIS; VPK 2S9 Nona-S article; Desantura Nona-S ammunition table; 2S23 Nona-SVK - Tank Encyclopedia; 2S23 Nona-SVK - Weaponsystems.net.

Firing Weapons

Open references link the 3BK19 projectile and 3VBK14 complete round to Nona-family 120 mm gun-mortars and describe the ammunition as a direct-fire anti-armor load rather than an indirect-fire mortar bomb.

Firing weaponWeapon typeFiring evidence
2S9 Nona, Air-droppable 120 mm self-propelled mortar, Artillery2S9 Nona120 mm self-propelled mortar

VPK says the 2S9 uses cumulative 3BK19 rounds against armored targets in direct fire.

Sources: VPK 2S9 Nona-S article

2S23 Nona-SVK, 120 mm wheeled self-propelled gun-mortar, Artillery2S23 Nona-SVK120 mm self-propelled gun-mortar

Tank Encyclopedia says the 2S23 Nona-SVK uses the 3BK19 HEAT round for engaging armored vehicles in direct fire, and Weaponsystems.net separately describes the 2S23's dedicated anti-tank HEAT round as effective to 1 km.

Sources: 2S23 Nona-SVK - Tank Encyclopedia, 2S23 Nona-SVK - Weaponsystems.net

2S31 Vena, 120 mm tracked self-propelled gun-mortar, Artillery2S31 Vena120 mm self-propelled gun-mortar

Russian 2S31 Vena reference material lists 3VBK14 among the Vena's applied rounds, with 600 mm penetration and a 1 km maximum range in the cumulative-round row.

Sources: 2S31 Vena ammunition table

Round Composition

Fenix Insight treats 3BK19 as the projectile component of the 3VBK14 semi-fixed round, and an archived GRAU-index table also lists 3ВБК14 with 3БК19 for Nona. The complete assembly includes a 3V38 PIBD piezoelectric-based fuze and a 4-Z-15 propelling-charge assembly.

DesignationWhat it isReader takeaway
3BK19 / 3БК19HEAT-FS-T projectileThe direct-fire anti-armor projectile itself.
3VBK14 / 3ВБК14Semi-fixed roundThe assembled 120 mm Nona-family load that contains the projectile.
3V38 / 3В38PIBD fuzeThe fuze used in the round's complete assembly.
4-Z-15 / 4-З-15Charge assemblyThe propelling-charge assembly named with the complete 3VBK14 round.

Sources: 3BK19 - METIS, 3VBK14 - METIS, and SALIS3 GRAU index tables.
