BP-540 HEAT projectile

Also known as
  • BP-540
  • БП-540
  • Russian 152mm BP-540 projectile
  • BP-540 HEAT-FS
  • BP-540 HEAT-SS

BP-540 is a Soviet 152 mm spin-stabilized HEAT projectile for direct-fire anti-armor work from legacy gun-howitzers. Public references tie it to the D-1, D-20, and 2S3 Akatsiya ammunition families, and conflict-specific open sources identify it among 152 mm projectiles present or fired during the 2014 Russia-Ukraine War.

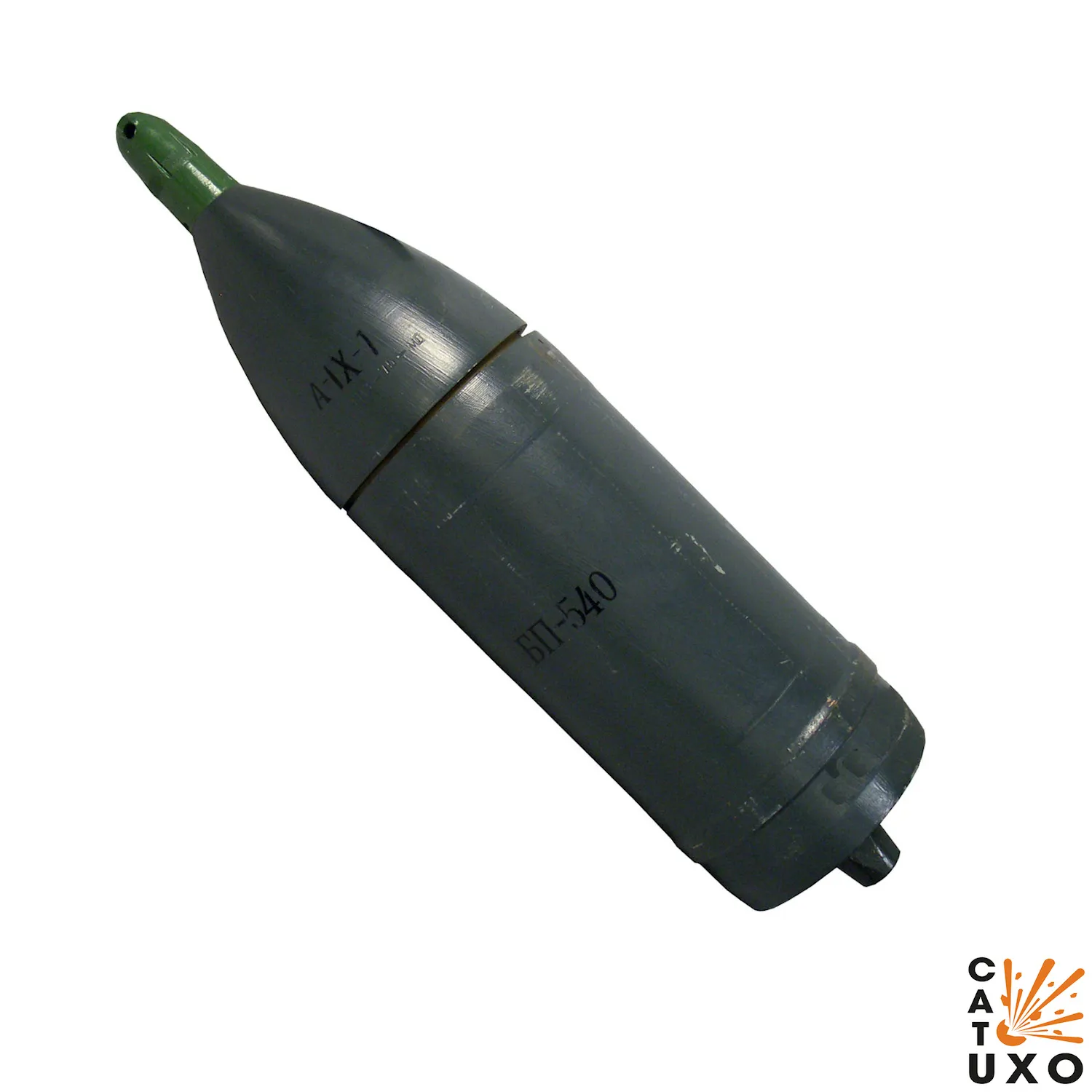

BP-540 HEAT projectile, 152 mm HEAT-T / HEAT-FS projectile, Munitions
Image source: BP-540 152mm Russian HEAT-T Projectile - Inert Products LLC

Role in Conflicts

Profile / Specs

Profile

Origin
Soviet Union
Type
152 mm HEAT-T / HEAT-FS projectile
Service note
Soviet-era ammunition
Produced
Soviet-era production

Specifications

Caliber
152 mm
Projectile class
High-explosive anti-tank tracer projectile
D-20 / 2S3 projectile weight
27.0 kg
D-1 projectile weight
27.44 kg
D-20 / 2S3 muzzle velocity
655 m/s
D-1 muzzle velocity
560 m/s
D-20 direct-fire range
1,000 m
D-1 listed range
3,000 m
Platform fit
D-1, D-20, and 2S3 ammunition references
Stabilization
Spin-stabilized
Fired By

Public ammunition references list BP-540 as a direct-fire HEAT projectile for several Soviet 152 mm gun-howitzer families.

Firing weaponWeapon typeFiring evidence
152 mm D-1 gun-howitzer, Towed 152 mm howitzer, Artillery152 mm D-1 gun-howitzerTowed 152 mm gun-howitzer

The D-1 ammunition table lists BP-540 as a 152 mm HEAT projectile and notes a special charge for that projectile.

Sources: 152 mm howitzer M1943 (D-1)

D-20, 152 mm towed gun-howitzer, ArtilleryD-20Towed 152 mm gun-howitzer

The D-20 ammunition table lists BP-540 as a 152 mm HEAT round with a 27 kg projectile weight and a 1,000 m direct-fire range.

Sources: D-20 / M-55 152-mm Towed Gun-Howitzer

2S3 Akatsiya, 152 mm tracked self-propelled howitzer, Artillery2S3 AkatsiyaSelf-propelled 152 mm gun-howitzer

FAS lists BP-540 in the 2S3 ammunition table, while Army Recognition describes BP-540 HEAT-FS / HEAT-SS among projectile types fired by the 2S3 Akatsiya.

Sources: 2S3 M-1973 Akatsiya (Acacia) 152-mm Self-Propelled Gun-Howitzer, Analysis: Russian and Ukrainian Artillery Vehicles and Weapons in Ukraine Conflict

Attribution limit

The conflict-specific sources support BP-540 presence or firing in the 2014 Russia-Ukraine War, but they do not identify a recovered lot, exact gun crew, or firing unit for the projectile.

Sources: BP-540 152mm Russian HEAT-T Projectile - Inert Products LLC, Analysis: Russian and Ukrainian Artillery Vehicles and Weapons in Ukraine Conflict

Compatibility And Sourcing Limits

BP-540 is best documented as a compatibility item across Soviet 152 mm gun-howitzer families, with conflict evidence that is direct but not unit-specific.

ScopeWhat the source supportsLimit
CompatibilityD-1, D-20, and 2S3 references list BP-540 in 152 mm ammunition context.Open tables do not prove every operator kept BP-540 in active stocks.
Conflict usePublic Ukraine-war sources identify BP-540 as used or fired in the conflict.Available open sources do not tie the projectile to a named firing unit, recovered lot, or single side.
MediaThe exact projectile image is credited through the Inert Products/CAT-UXO provenance chain.No additional exact-projectile public-domain gallery image was found during this pass.
Timeline

BP-540 HEAT projectile Key Events

  1. Documented in the 2014 Russia-Ukraine War source record

    Inert Products describes BP-540 as used in the 2022 Ukraine-Russia conflict, and Army Recognition lists BP-540 HEAT-FS / HEAT-SS among projectile types fired by 2S3 Akatsiya artillery in its Ukraine-conflict artillery survey.

    Sources: BP-540 152mm Russian HEAT-T Projectile - Inert Products LLC, Analysis: Russian and Ukrainian Artillery Vehicles and Weapons in Ukraine Conflict
