Munitions

OCC 105 F3 HEAT-FS

Also known as
  • OCC 105 F3
  • OCC 105 F3 HEAT
  • 105x527R OCC 105 F3
  • 105×527R OCC 105 F3
  • Obus charge creuse OCC 105 F3

OCC 105 F3 is a French 105×527R fin-stabilized HEAT round for the AMX-10RC and AMX-10RCR GIAT 105-F2 gun. Jane's lists the round with a 13.85 kg cartridge, 5.65 kg projectile, 0.92 kg explosive fill, and 1,120 m/s muzzle velocity, while 2025 Getty imagery documents OCC 105 F3 ammunition with Ukrainian AMX-10 RC crews in Donetsk Oblast.

OCC 105 F3 HEAT-FS, 105×527R HEAT-FS round, Munitions

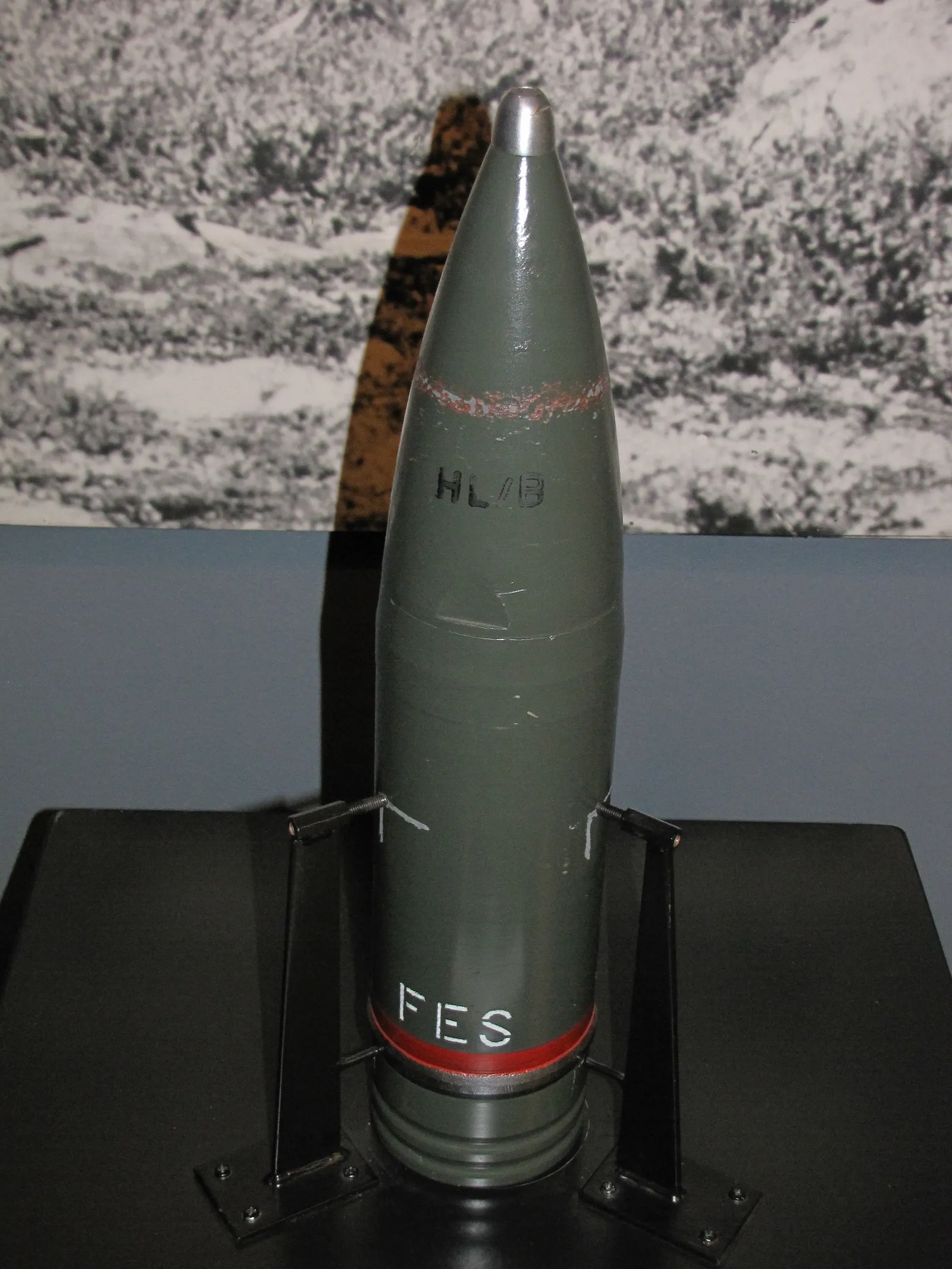

Image source: File:105 mm hollow charge shell.JPG

Role in Conflicts

Profile / Specs

Profile

Origin
France
Type
105×527R HEAT-FS round
Service note
Late Cold War French ammunition

Specifications

Caliber
105×527R
Round type
Fin-stabilized HEAT with tracer
Cartridge weight
13.85 kg
Projectile weight
5.65 kg
Explosive fill
0.92 kg
Cartridge length
838 mm
Muzzle velocity
1,120 m/s
Penetration
350 mm of armor at 0°; 150 mm at 60°
Effective anti-tank range
1,250 m
Gun fit
AMX-10RC / AMX-10RCR GIAT 105-F2 rifled gun
Variants

OCC 105 F3 belongs to the AMX-10RC's proprietary 105×527R ammunition family for the GIAT 105-F2 gun.

VariantConfigurationDesignation notes
OFL 105 F3 APFSDS, 105×527R APFSDS round, MunitionsOFL 105 F3 APFSDSArmor-piercing fin-stabilized discarding-sabot family member

The French TTA 207 manual lists OFL 105 F3 as the fleche round for the AMX10 RCR 105-F2 gun.

Sources: French Army TTA 207 AMX10 RCR

OE 105 F3 high-explosive round, 105×527R high-explosive round, MunitionsOE 105 F3 high-explosive roundHigh-explosive family member

Jane's lists OE 105 F3 as the HE round in the AMX-10RC ammunition table, and TTA 207 also names it as an explosive munition for the 105-F2 gun.

Sources: Janes Light Tanks and Armoured Cars, French Army TTA 207 AMX10 RCR

BSCC 105 F3 target practice round, 105×527R target practice round, MunitionsBSCC 105 F3 target practice roundTraining version of the HEAT round

Jane's describes BSCC 105 F3 as the training version of the HEAT round with the same 1,120 m/s muzzle velocity.

Sources: Janes Light Tanks and Armoured Cars

OFUM 105 F3Smoke family member

Jane's and the French TTA 207 manual list OFUM 105 F3 as the smoke round in the same AMX-10RC/RCR ammunition set.

Sources: Janes Light Tanks and Armoured Cars, French Army TTA 207 AMX10 RCR

Firing Weapon

French Army and Jane's references identify OCC 105 F3 as one of the 105×527R rounds fired by the AMX-10RC and AMX-10RCR GIAT 105-F2 gun.

Firing weaponWeapon typeFiring evidence
AMX-10RC, Wheeled armored reconnaissance and fire-support vehicle, Armored VehiclesAMX-10RCWheeled armored reconnaissance vehicle

Jane's describes the AMX-10RC 105 mm gun firing HEAT, HE, and practice ammunition and lists OCC 105 F3 in that ammunition table; the French TTA 207 manual names OCC 105 F3 for the AMX10 RCR's GIAT 105-F2 gun.

Sources: Janes Light Tanks and Armoured Cars, French Army TTA 207 AMX10 RCR

AMX-10RC Ammunition Set

OCC 105 F3 is the shaped-charge member of the AMX-10RC/RCR 105×527R ammunition family. Jane's gives the early AMX-10RC set as HEAT, HE, smoke, and practice rounds, while the later French TTA 207 manual also lists the OFL 105 F3 fleche round for the AMX10 RCR 105-F2 gun.

DesignationDocumented roleCatalog link
OCC 105 F3Fin-stabilized HEAT round with tracerCurrent page
OFL 105 F3Fleche / APFSDS roundOFL 105 F3 APFSDS, 105×527R APFSDS round, MunitionsOFL 105 F3 APFSDS
OE 105 F3High-explosive roundOE 105 F3 high-explosive round, 105×527R high-explosive round, MunitionsOE 105 F3 high-explosive round
BSCC 105 F3Target-practice version of the HEAT roundBSCC 105 F3 target practice round, 105×527R target practice round, MunitionsBSCC 105 F3 target practice round
OFUM 105 F3Smoke roundNo catalog record

Sources: Janes Light Tanks and Armoured Cars; French Army TTA 207 AMX10 RCR.

Timeline

OCC 105 F3 HEAT-FS Key Events

  1. French firing-safety manual update

    The amended TTA 207 manual listed OCC 105 F3 as the charge-creuse munition for the AMX10 RCR GIAT 105-F2 gun.

  2. Documented with Ukrainian AMX-10 RC crews

    Getty Images photographed OCC 105 F3 HEAT-FS ammunition inside an AMX-10 RC at Ukrainian military positions in the Pokrovsk direction of Donetsk Oblast.

Media

OCC 105 F3 HEAT-FS Images

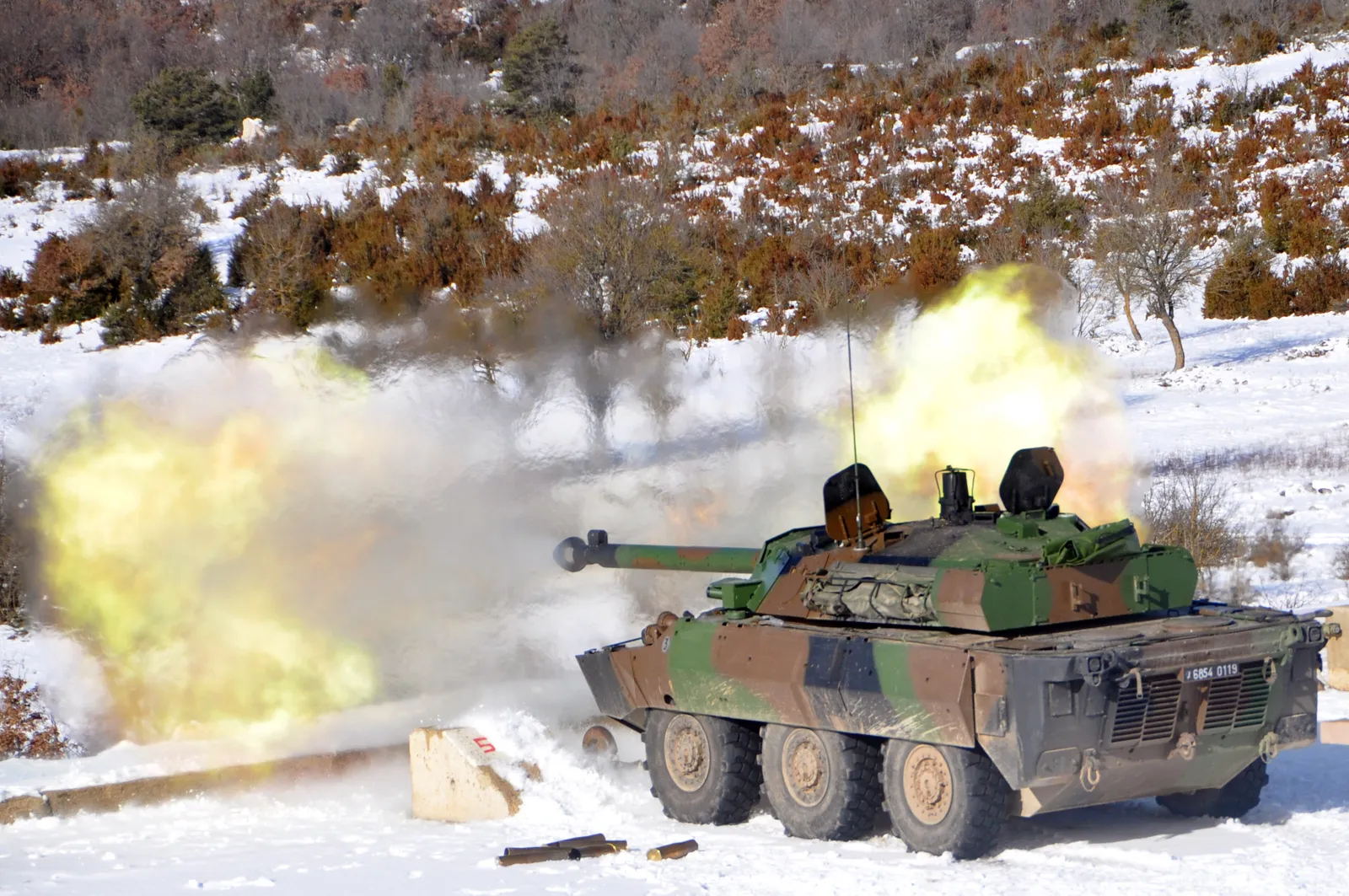

OCC 105 F3 HEAT-FS, 105×527R HEAT-FS round, Munitions - view 1
Source: File:Tir en neige d'AMX-10 RC.jpg
Related Weapon Systems
90 mm HE projectile, 90 mm high-explosive fin-stabilized projectile, MunitionsMunitions90 mm HE projectile90 mm high-explosive fin-stabilized projectileThe 90 mm HE projectile is the French OE 90 F1 high-explosive, fin-stabilized cartridge for the CN90F1 / 90 mm F1 vehicle-gun lineage. Forecast International lists OE 90 F1 under Nexter Munitions and the related Luchaire line, while ordnance references identify the full French cartridge label and explosive weight. The record remains relationship-only because the consulted sources support ammunition identity and firing-gun compatibility, not exact-round use in a named conflict.
20mm GIAT M693 autocannon, French 20 mm autocannon chambered for 20x139mm NATO rounds, Infantry WeaponsInfantry Weapons20mm GIAT M693 autocannonFrench 20 mm autocannon chambered for 20x139mm NATO roundsThe GIAT M693 is a French 20 mm autocannon family developed for armored-vehicle, anti-aircraft, and naval mount applications. Specialist references trace the gun to the earlier M621 mechanism but a larger 20x139 mm NATO cartridge, dual-belt feed, and about 900 rounds per minute. The catalog keeps it as a relationship-only component page because public sources most clearly document the M693 through host platforms and derivatives: AMX-10P vehicles, naval 20F2 mounts, Narwhal 20B turrets, and the South African GI2 production variant.
