OFL 105 F3 APFSDS

OFL 105 F3 is a French 105×527R APFSDS round associated with GIAT Industries / Nexter Munitions and the AMX-10RC's 105 mm F2 gun. French reference material describes it as entering service in 1987 with a monobloc tungsten-alloy penetrator, about 12.8 kg complete mass, 3.8 kg projectile mass without sabot, and 1,400 m/s muzzle velocity.

OFL 105 F3 APFSDS, 105×527R APFSDS round, Munitions

Image source: File:120mm Fin Stabilised Discarding Sabot - Tracer FSDS-T (left) & 105mm Armour Piercing Fin Stabilised Discarding Sabot - Tracer APFSDS-T.JPG

Profile

Origin: France
Built by: GIAT Industries
Type: 105×527R APFSDS round
Service note: Late Cold War French APFSDS ammunition

ammunition anti-tank france 105 mmtungsten

Specifications

Caliber: 105×527R
Complete mass: 12.8 kg
Projectile mass: 3.8 kg without sabot
Muzzle velocity: 1,400 m/s
Penetrator: Monobloc tungsten alloy
Gun fit: AMX-10RC 105 mm F2 / CN-105-F2 MECA gun
Penetration: 365 mm of steel at 60° at point-blank range; NATO single heavy target at 1,200 m and triple heavy target at 2,200 m

Service And Conflict Use

Service History

In service: APFSDS ammunition for the AMX-10RC F2 gun; entered service in 1987.

Firing Weapon

French references identify OFL 105 F3 as a 105×527R APFSDS round fired by the AMX-10RC's 105 mm F2 gun.

Firing weapon

Weapon type

Firing evidence

Wheeled armored reconnaissance vehicle

The French TTA 207 manual names OFL 105 F3 among the 105 mm fin-stabilized ammunition types for the AMX10 RCR's 105-F2 gun.

Sources: TTA 207 AMX10 RCR

OFL 105 F3 APFSDS Images

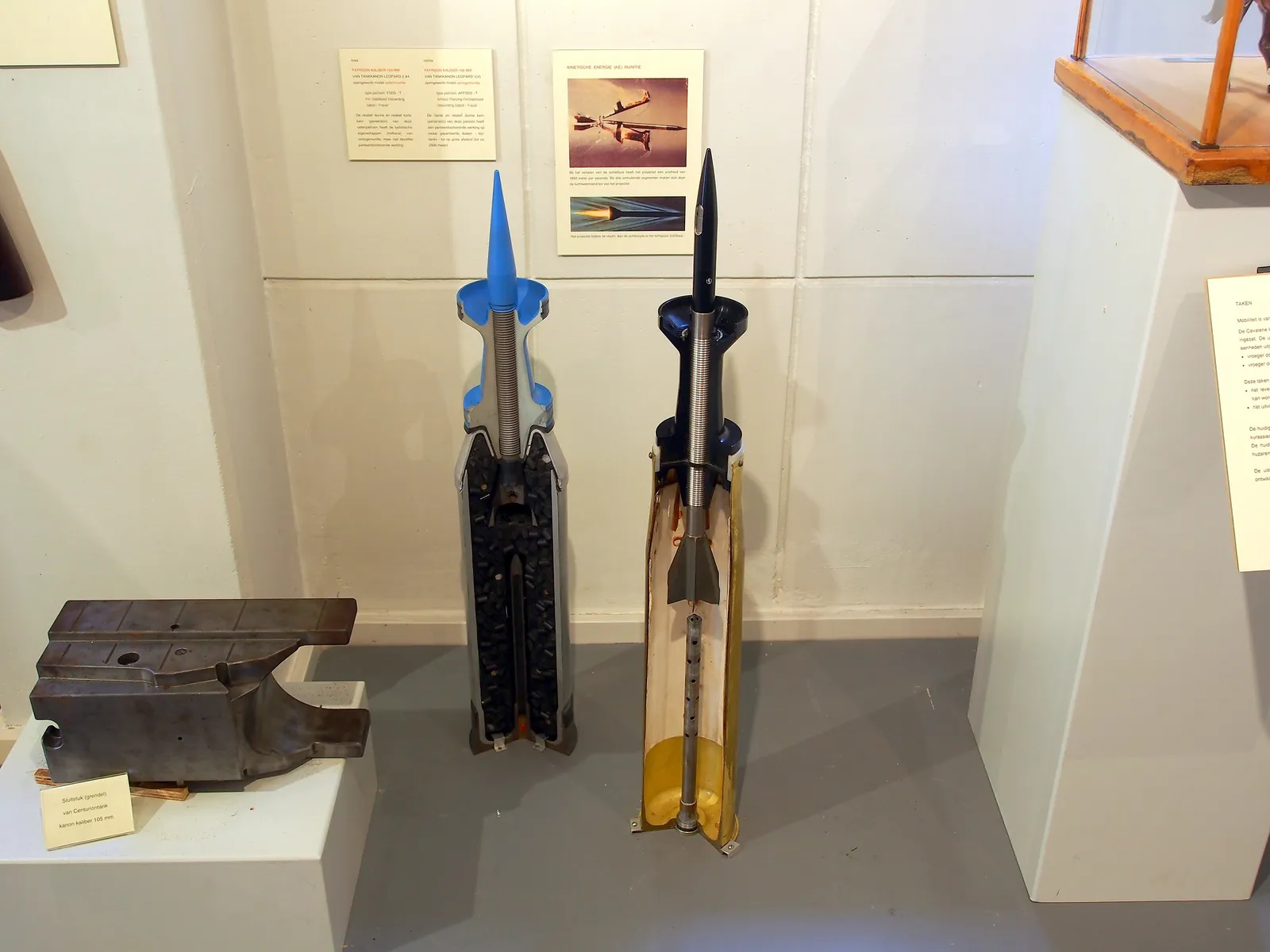

OFL 105 F3 APFSDS, 105×527R APFSDS round, Munitions - view 1 — Source: File:120mm Fin Stabilised Discarding Sabot - Tracer FSDS-T (left) & 105mm Armour Piercing Fin Stabilised Discarding Sabot - Tracer APFSDS-T.JPG

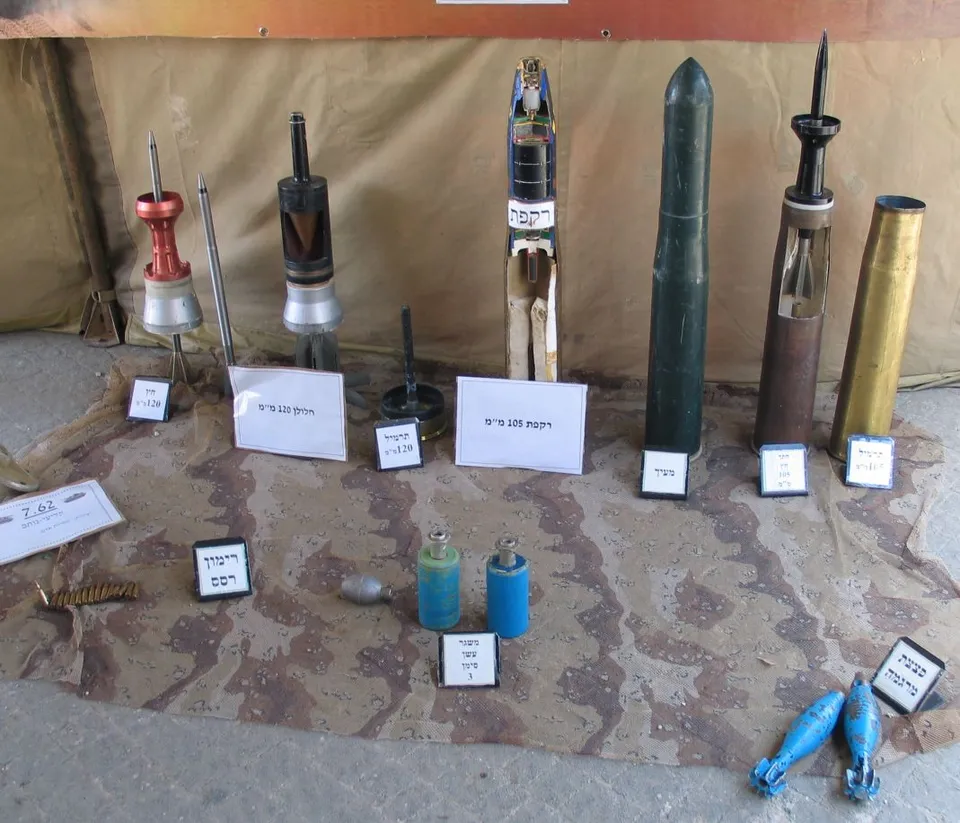

OFL 105 F3 APFSDS, 105×527R APFSDS round, Munitions - view 2 — Source: File:Ammunition-latrun-exhibition-2.jpg
