Berman/IPIS and later Lithuanian Annual Strategic Review reporting list AML 60 Serval among materiel in service with, recovered from, or seized by Boko Haram and ISWAP since 2015; separate 2021 reporting documents Nigerian Panhard AML-60 vehicles in Operation Tura Takai Bango, attrition lists that include AML-60 vehicles, and at least one AML-60 reported lost during the Dikwa attack.
Armored Vehicles
Panhard AML 60 Serval
Also known as
- AML 60-20 Serval
- AML-60-20 Serval
- Panhard AML-60-20 Serval
- AML HE 60-20 Serval
- AML 60/20 Serval
- Automitrailleuse Legere AML 60 Serval

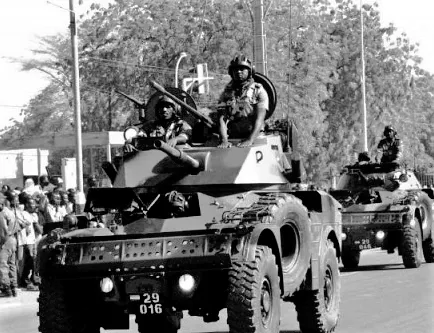

The Panhard AML 60 Serval is a French AML-family 4x4 reconnaissance armored car that pairs the AML chassis with a Hispano-Suiza HE 60-20 Serval turret, a 60 mm breech-loaded mortar, and either M693 or HS.820/KAD 20 mm cannon armament. Boko Haram Insurgency sourcing is strongest for Serval seizure or recovery listings and broader Nigerian AML-60 deployments, so the conflict record separates Serval-specific capture evidence from less specific AML-60 field-use reporting.
Role in Conflicts
Profile / Specs
Profile
- Origin
- France
- Built by
- Panhard
- Type
- Wheeled reconnaissance armored car
- Service note
- Cold War design with post-2015 2009 Boko Haram Insurgency documentation
- Designer
- Panhard
- Designed
- AML family developed 1956-1960; Serval variant followed later in the AML-60 family
- Produced
- AML family production 1960-1987
- Number built
- More than 5,300 AML-family vehicles including AML-90 and other variants, according to WeaponSystems.net
- Developed from
- Panhard AML-60
Specifications
- Crew
- 3: commander, driver, and gunner
- Turret
- Hispano-Suiza HE 60-20 Serval turret, distinct from the earlier HE 60-20 turret
- Armament
- 60 mm HB 60 or HB 60 LP breech-loaded mortar, 20 mm M693 dual-feed or HS.820/Oerlikon KAD-B16 cannon, and optional coaxial 7.62 mm machine gun
- Mortar range
- Army Guide lists about 2,600 m for the HB 60 with M72 bomb and 5,000 m for the HB 60 LP long mortar with LP bomb
- 20 mm ammunition
- Army Guide lists 300 HE and 37 AP ready rounds for the M693 option, or 300 ready rounds for the HS.820/KAD-B16 option
- Chassis
- 4x4 wheeled AML chassis
- Engine
- Panhard Model 4 HD air-cooled petrol engine, 90 hp
- Mobility
- About 90 km/h road speed and 600 km road range for AML-60 family vehicles
- Combat weight
- About 4.8 t combat load for AML-60 family vehicles
- Protection
- Welded steel armor, about 8-12 mm on AML-60 family vehicles
- Fire control
- Serval sources describe increased fire-control equipment over earlier AML-60 variants, with sighting and observation periscopes plus optional night periscope
Serval Turret Context
The Serval designation matters because it separates this vehicle from earlier AML-60 turret fits. WeaponSystems.net and Army Guide describe the Serval as the higher-firepower AML-60 branch, retaining the 60 mm mortar role while adding a larger Hispano-Suiza turret, longer-range mortar options, and M693 or HS.820/KAD-B16 20 mm cannon armament.
Family branch
AML-60 mortar-armed reconnaissance car, not the AML-90 gun variant.
Serval distinction
HE 60-20 Serval turret with improved fire-control context and either M693 or HS.820/KAD-B16 20 mm cannon options.
Conflict caveat
Boko Haram Insurgency sourcing directly identifies AML 60 Serval in seizure/recovery listings; separate Nigerian-side reports usually identify AML-60 vehicles without proving each was a Serval turret.
Sources: AML-60; Army Guide AML; The Management of Lethal Materiel in Conflict Settings; The Protracted Survival of Boko Haram From a Revolutionary Warfare Perspective; Nigerian Army Launches Dry Season Offensive With New Combat Equipment.
Variants
The Serval sits inside the AML-60 branch rather than the AML-90 gun branch: sources distinguish the HE 60-7, HE 60-12, and earlier HE 60-20 turrets from the HE 60-20 Serval turret, which used a Hispano-Suiza Serval installation with longer-range 60 mm mortar options and M693 or HS.820/KAD-B16 20 mm cannon armament.
| Variant | Configuration | Designation notes |
|---|---|---|
| AML 60-7 | Early AML-60 mortar turret | WeaponSystems.net and Army Guide describe the HE 60-7 as the first production AML-60 turret, with a 60 mm breech-loaded mortar and twin machine guns. Sources: AML-60, Army Guide AML, Presentation of the Panhard AML light armored car |
| AML 60-12 | 60 mm mortar and 12.7 mm machine-gun turret | Army Guide describes the HE 60-12 as closely related to the HE 60-7 but with a 12.7 mm machine gun and 60 mm HB 60 mortar. Sources: AML-60, Army Guide AML |
| AML 60-20 | 60 mm mortar and 20 mm autocannon turret | WeaponSystems.net and Army Guide distinguish the HE 60-20 from the Serval: the non-Serval 60-20 uses a 20 mm M621 cannon with the 60 mm mortar. Sources: AML-60, Army Guide AML |
| Eland 60 | South African AML 60-7 derivative | WeaponSystems.net identifies Eland 60 as the South African production model of the AML 60-7, with later marks receiving local changes. Sources: AML-60 |
 | AML family 90 mm gun variant | Army Guide treats AML-60 and AML-90 as part of the same AML 60/90 family, but the AML-90 uses a 90 mm gun turret rather than the AML-60 mortar armament. Sources: Army Guide AML |
Serval Turret Armament
Army Guide identifies the Serval turret as a 60 mm mortar and 20 mm cannon installation rather than the earlier AML-60 machine-gun turret family.
| Carried item | Item type | Carriage evidence |
|---|---|---|
 | 20 mm cannon option | Army Guide lists the French M693 dual-feed cannon as one of the HE 60-20 Serval turret's 20 mm cannon options. Sources: Army Guide AML |
 | 20 mm cannon option | Army Guide lists the HS.820/Oerlikon KAD-B16 as the alternate 20 mm cannon option for the Serval turret. Sources: Army Guide AML |
 | 60 mm gun-mortar class | Army Guide describes the Serval turret's main weapon as a 60 mm breech-loaded mortar, with HB 60 and HB 60 LP long-mortar options. Sources: Army Guide AML |
Timeline
Panhard AML 60 Serval Key Events
AML family development period
WeaponSystems.net places AML-family development in 1956-1960 and identifies Panhard as the French developer.
Sources: AML-60
AML-family production run
WeaponSystems.net lists AML-family production from 1960 to 1987 and says more than 5,300 vehicles were produced across AML-90 and other variants.
Sources: AML-60
Boko Haram and ISWAP seizure reporting begins
Berman/IPIS lists AML 60 Serval among materiel in service with, or recovered from, Boko Haram factions; the Lithuanian Annual Strategic Review later lists AML 60 Serval among heavy weapon systems seized by Boko Haram and ISWAP since 2015.
Sources: The Management of Lethal Materiel in Conflict Settings, The Protracted Survival of Boko Haram From a Revolutionary Warfare Perspective
Nigerian AML-60 vehicles reported in Operation Tura Takai Bango
HumAngle reported Nigerian Army use of Panhard AML-60 armored cars during a northeast dry-season counter-insurgency offensive against Boko Haram and ISWAP.
Sources: Nigerian Army Launches Dry Season Offensive With New Combat Equipment
AML-60 reported lost during the Dikwa attack
Sahara Reporters reported that Boko Haram-released photographs after the Dikwa attack showed a Panhard AML-60 among Nigerian Army vehicles and weapons lost to the attackers.
Sources: Boko Haram Releases Photos Of Nigerian Army's Gun Trucks Police Van Stolen In Dikwa
