Oryx lists the Panhard M3 VTT among pre-war Yemeni Army armored personnel carriers visible in the conflict-era inventory record; this row keeps the side as government-aligned inventory context and does not claim a specific engagement or later operator.
Role detailsArmored Vehicles
Panhard M3 armored personnel carrier
Also known as
- Panhard M3 VTT
- M3 VTT
- M3 armored personnel carrier
- Panhard M3 APC
- Vehicule de Transport de Troupes
- Panhard M3
The Panhard M3 is a French 4x4 amphibious armored personnel carrier developed as an export troop carrier around the Panhard AML armored-car family. The design shared most AML automotive components but moved the powerpack behind the driver to free a rear troop compartment for two crew and up to ten infantry. In 2014 Yemen Civil War sourcing it appears as a legacy Yemeni Army M3 VTT inventory type rather than a newly supplied or incident-specific system, so the conflict row stays limited to protected troop-movement context where serviceable vehicles remained available.
Role in Conflicts
Yemen Inventory Context
The Yemen row is limited to an inventory-level claim: Oryx identifies the M3 VTT among pre-war Yemeni Army armored personnel carriers visible in the fighting-vehicle record. The same source lane also documents related Yemeni armored-vehicle records in this catalog, including the AML-90 armored car, BTR-60 with AML-90 turret, and M113 with AML-90 turret.
Profile / Specs
Profile
- Origin
- France
- Built by
- Panhard
- Type
- 4x4 amphibious armored personnel carrier
- Service note
- Introduced in 1971; legacy export APC still documented in Yemeni inventories during the 2014 Yemen Civil War
- Designer
- Panhard
- Designed
- 1967-1971
- Unit cost
- About USD 166,000 in 1986 reporting
- Produced
- 1971-1986
- Number built
- Roughly 1,180 M3 vehicles; some sources give near-1,200 family totals when Buffalo-related production is included
- Developed from
- Panhard AML armored-car family
Specifications
- Crew and passengers
- Crew of 2 with space for up to 10 troops
- Weight
- About 6,100 kg
- Dimensions
- 4.45 m long, 2.4 m wide, 2.48 m high
- Armament
- Typically a 7.62 mm or 12.7 mm machine gun; some users fitted heavier weapons or turrets
- Engine
- Panhard 4HD four-cylinder petrol engine, 90 hp
- Mobility
- 4x4 wheeled; 90 km/h road speed, 600 km road range, amphibious at about 4 km/h
- Payload
- Up to 10 troops or about 1,360 kg of cargo
- Layout
- Driver at the front, Panhard 4HD engine behind the driver, and rear troop compartment with side and rear access
- Armor
- All-welded steel armor commonly cited as 8-12 mm, protecting against small-arms fire and shell fragments
- Fuel
- 165-liter fuel capacity
- Obstacle crossing
- About 0.30 m vertical step, 0.80 m trench, 60 percent gradient, and 30 percent side slope
AML-Derived Layout
The M3 was designed around export customers already familiar with the Panhard AML armored-car family. Arquus, Army Guide, and Weaponsystems.net describe about 95 percent automotive commonality with AML vehicles, while the M3 layout moved the engine behind the driver to free the rear hull for a troop compartment.
Family commonality
About 95 percent AML automotive component commonality helped operators maintain the APC alongside Panhard armored cars.
Troop access

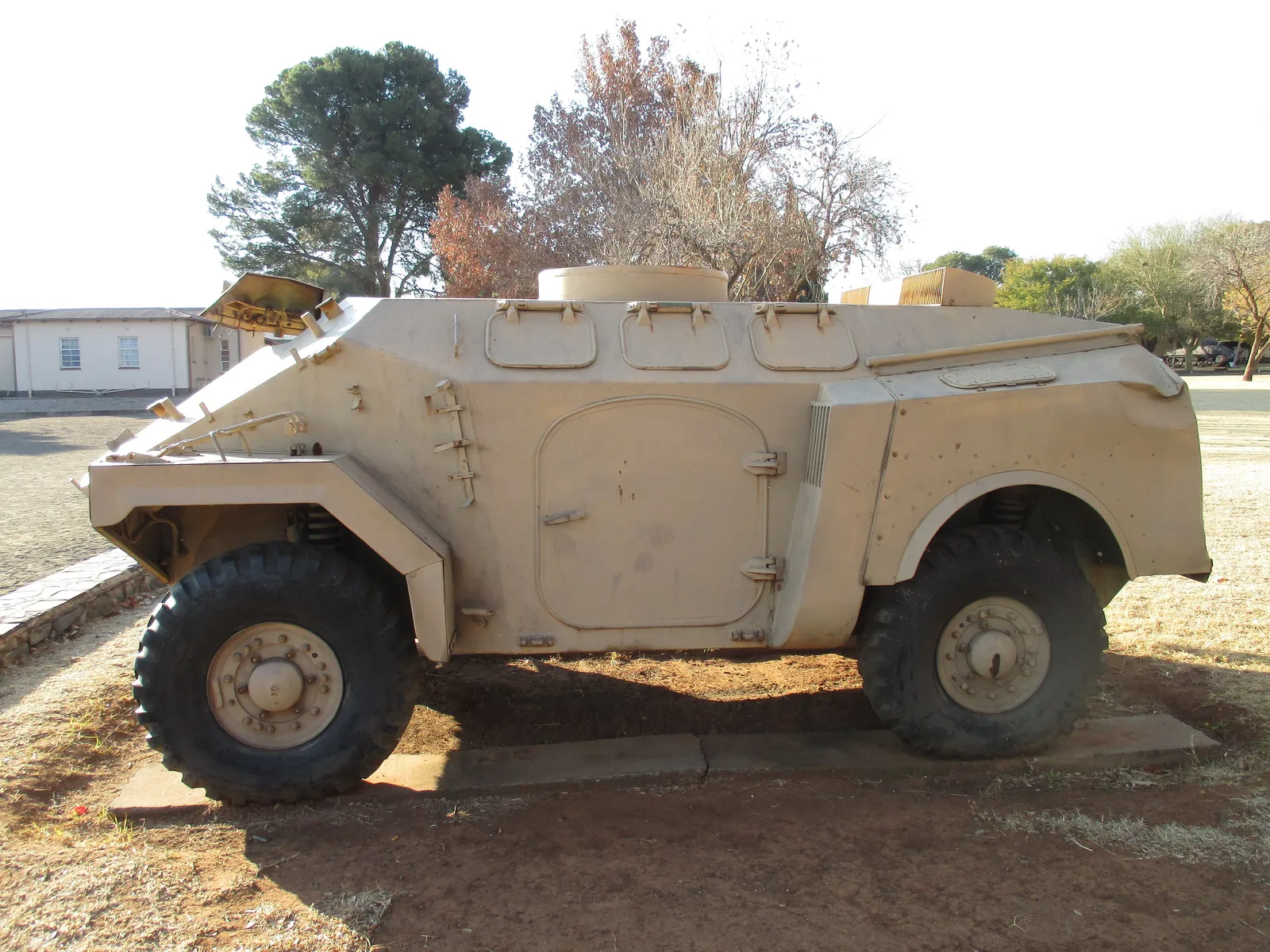

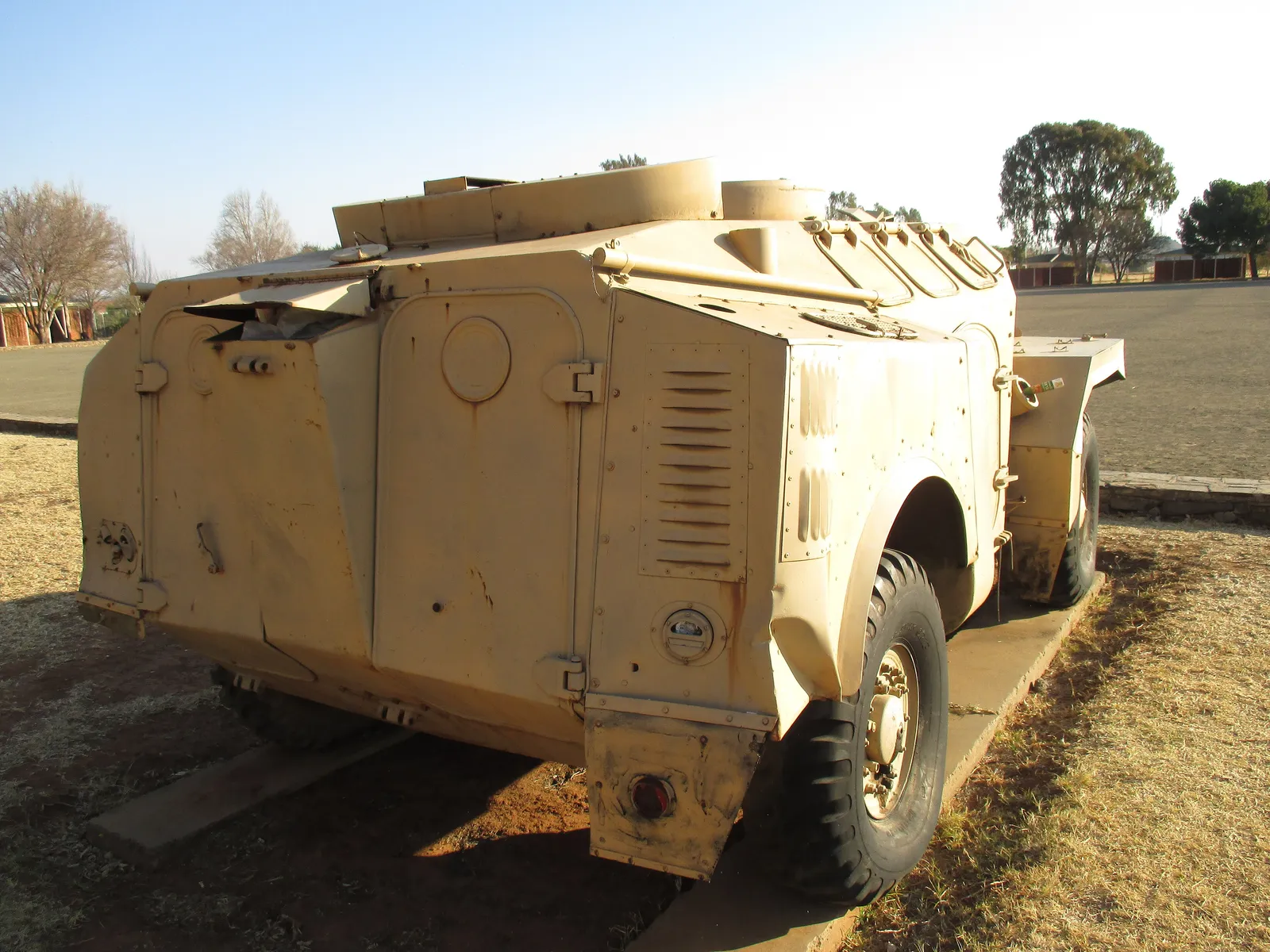

Side doors, twin rear doors, side hatches, and roof hatches gave the rear compartment multiple access and observation points.
Related catalog pages
AML-90 armored car and Panhard AML 60 Serval cover adjacent Panhard AML-family vehicles already represented in the catalog.
Variants
The M3 family used a common 4x4 hull for personnel transport, command, repair, engineer, ambulance, radar, air-defense, internal-security, and anti-tank missile configurations.
| Variant | Configuration | Designation notes |
|---|---|---|
| M3 VTT | Personnel carrier | Baseline troop-carrier version with two crew and up to ten infantry; customer armament commonly used 7.62 mm or 12.7 mm machine guns on roof or turret mounts. Sources: M3 Wheeled Armoured Personnel Carrier, M3 and Buffalo, Panhard M3 Weaponsystems.net |
| M3 VDA | Air-defense vehicle | Modified M3 chassis with a twin 20 mm cannon turret and optional RA 20 radar; Army Guide dates the prototype to December 1973 and production to April 1975. |
| M3 VPC | Command post | Command variant with added communications equipment, extra batteries, map tables, and normally a 7.62 mm machine gun on an STB mount. Sources: M3 Wheeled Armoured Personnel Carrier, M3 and Buffalo, Panhard M3 Weaponsystems.net |
| M3 VTS | Armored ambulance | Unarmed medical variant configured for stretcher and seated casualties with a larger rear door and medical equipment. |
| M3 VAT | Repair vehicle | Maintenance variant with mechanic crew, generator, tow bars, cables, cutting equipment, workbench, vice, and tools. Sources: M3 Wheeled Armoured Personnel Carrier, Panhard M3 Weaponsystems.net |
| M3 VLA | Engineer vehicle | Engineer version with a removable hydraulically operated front dozer blade and pioneer equipment. Sources: M3 Wheeled Armoured Personnel Carrier, Panhard M3 Weaponsystems.net |
| M3 VSB | Radar carrier | Radar or electronic-equipment carrier able to mount systems such as RASIT battlefield-surveillance radar or RA-20S air-surveillance radar. Sources: M3 Wheeled Armoured Personnel Carrier, M3 |
| M3 Internal Security Vehicle | Public-order variant | Internal-security configuration used obstacle-clearing and public-order equipment rather than the standard troop-carrier fit. Sources: M3 Wheeled Armoured Personnel Carrier, Arquus Panhard M3 Police |
| M3 HOT / VCRHT | Anti-tank missile configuration | Arquus describes an M3-family HOT configuration with a UTM 800 turret, four ready HOT missiles, and additional missiles carried in the hull. Sources: Arquus Panhard M3 HOT |
Timeline
Panhard M3 armored personnel carrier Key Events
Export APC design begins
Forecast International dates M3 design conception to 1967 as Panhard adapted the AML automotive base into a private-venture 4x4 troop carrier.
Sources: M3 and Buffalo
First prototype completed
Forecast International gives August 1969 for the first M3 prototype, and Arquus also identifies 1969 as the prototype year.
Sources: M3 and Buffalo, Arquus Panhard M3 HOT
M3 production starts
Forecast International dates production start to April 1971 after development testing; Army Guide describes the production hull as redesigned with troop-compartment hatches on each side.
Sources: M3 and Buffalo, M3 Wheeled Armoured Personnel Carrier
M3 VDA prototype completed
Army Guide states that the M3/VDA anti-aircraft prototype was completed in December 1973 before production began in April 1975.
Sources: M3 Wheeled Armoured Personnel Carrier
Buffalo successor unveiled
Forecast International says Panhard unveiled the Buffalo in June 1985 as a successor development to the M3 family.
Sources: M3 and Buffalo
M3 production ends
Arquus gives 1971-1986 as the M3 production period, and Forecast International says Panhard terminated the M3 program in favor of Buffalo in March 1986.
Sources: Arquus Panhard M3 HOT, M3 and Buffalo
Media
Panhard M3 armored personnel carrier Images
Related Weapon Systems
Sources
Handbook Of Pre-War Yemeni Fighting VehiclesPublisher: Oryx | Note: Supports 2014 Yemen Civil War direct conflict-use context: fielded by the Yemeni Army before the Houthi takeover and listed as available to Yemeni battlefield parties, including the Panhard M3 VTT. | Accessed: 2026-07-03M3Publisher: The World Wars.net | Note: Supports background on the M3 as a Panhard APC, commonality with the AML family, troop capacity, armament options, variants, and recent service in Yemen. | Accessed: 2026-07-03M3 Wheeled Armoured Personnel CarrierPublisher: Army Guide | Note: Supports manufacturer, layout, troop capacity, armament options, amphibious capability, dimensions, weight, speed, range, engine output, and production background. | Accessed: 2026-07-03M3 and BuffaloPublisher: Forecast International | Note: Supports production-period and production-total background for the Panhard M3 family. | Accessed: 2026-07-03Panhard M3 Weaponsystems.netPublisher: WeaponSystems.net | Note: Supports AML-derived design background, 95 percent automotive commonality, armament options, protection, mobility, variants, and general specifications. | Accessed: 2026-07-03Arquus Panhard M3 HOTPublisher: Arquus | Note: Official Arquus heritage page supporting M3 AML mechanical commonality, Panhard 4HD engine, 1969 prototype, 1971-1986 production period, principal Gulf buyers, and HOT anti-tank configuration. | Accessed: 2026-07-03Arquus Panhard M3 PolicePublisher: Arquus | Note: Official Arquus heritage page supporting M3 family production near 1,200 vehicles, export context, and internal-security variant background. | Accessed: 2026-07-03PanhardM3.pngPublisher: Wikimedia Commons | Note: Supports image provenance and licensing for the primary Panhard M3 gallery image. | Accessed: 2026-07-03PanhardM3old.JPGPublisher: Wikimedia Commons | Note: Supports image provenance and licensing for a Panhard M3 prototype gallery view. | Accessed: 2026-07-03PanhardM3second.JPGPublisher: Wikimedia Commons | Note: Supports image provenance and licensing for a second Panhard M3 prototype gallery view. | Accessed: 2026-07-03PanhardM3Front.JPGPublisher: Wikimedia Commons | Note: Supports image provenance and licensing for a front-view Panhard M3 gallery image. | Accessed: 2026-07-03PanhardM3rear.JPGPublisher: Wikimedia Commons | Note: Supports image provenance and licensing for a rear-view Panhard M3 gallery image. | Accessed: 2026-07-03PanhardM3int.JPGPublisher: Wikimedia Commons | Note: Supports image provenance and licensing for an interior Panhard M3 gallery image. | Accessed: 2026-07-03UAE Army Panhard M3 at IDEX 2023.jpgPublisher: Wikimedia Commons | Note: Supports image provenance and licensing for a modern UAE Panhard M3 display gallery image. | Accessed: 2026-07-03
