Aircraft & UAVs

EC-130J Commando Solo

Also known as
  • EC-130J
  • Commando Solo
  • Commando Solo III
  • EC-130J Commando Solo III

The EC-130J Commando Solo is a Lockheed Martin C-130J-derived U.S. Air Force special-mission aircraft that broadcasts information operations and psychological operations messages across AM, FM, HF, TV, and military communications bands. The 193rd Special Operations Wing operates the aircraft, which adds enhanced navigation, self-protection, air refueling, digital message playback, and live-broadcast capability to the Hercules airframe.

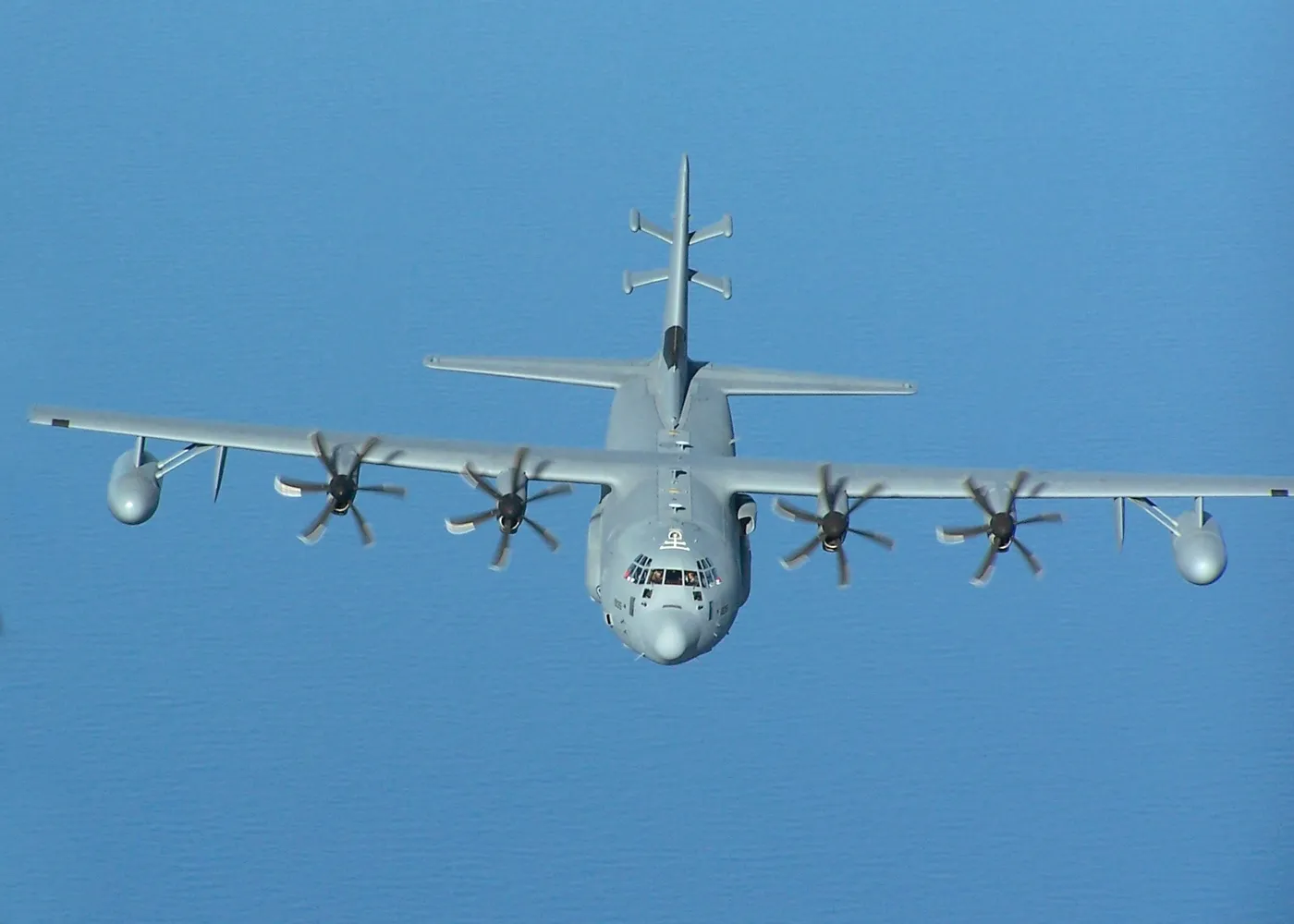

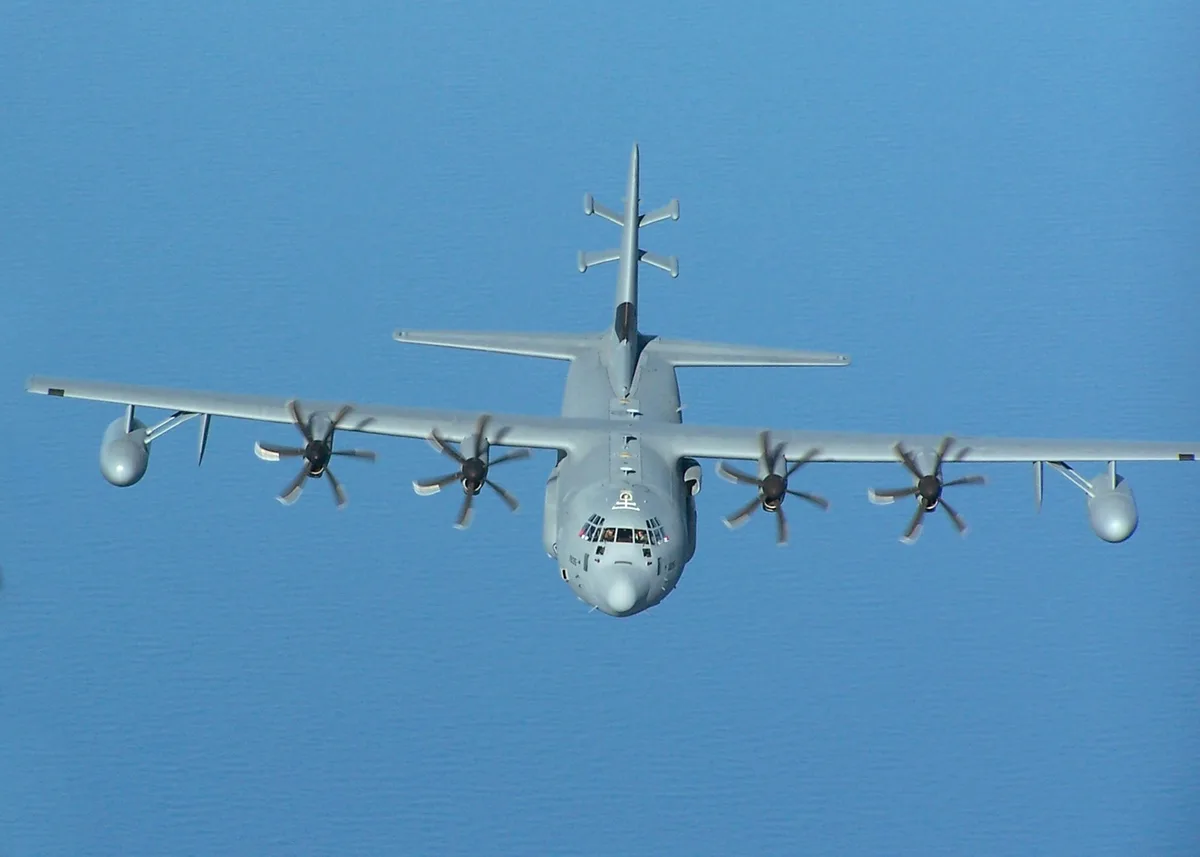

EC-130J Commando Solo, Airborne information operations and psychological operations aircraft, Aircraft & UAVs
Image source: Wikimedia Commons EC-130J Commando Solo.JPG

Role in Conflicts

Broadcast Mission

The EC-130J was built around airborne information operations: digital and analog radio and television broadcasts from a modified C-130J platform, normally flown to maximize signal propagation while reducing exposure in sensitive or hostile airspace.

Mission crew

Two pilots, flight systems and mission systems officers, two loadmasters, and five electronic communications systems operators.

Broadcast load

Up to 14 simultaneous broadcasts, using common or independent messages across multiple channels.

Live and recorded media

The mission system could play digital media, accept legacy media formats, and conduct live broadcasts.

Profile / Specs

Profile

Origin
United States
Type
Airborne information operations and psychological operations aircraft
Service note
2003-present
Unit cost
$110 million
Produced
2003-2006 EC-130J Commando Solo III conversion
Developed from
C-130J Super Hercules

Specifications

Primary function
Psychological operations and information operations
Secondary function
Electronic warfare
Broadcast bands
AM, FM, HF, TV, and military communications bands
Broadcast capacity
Up to 14 simultaneous broadcasts with the same or independent messages
Crew
Pilot, copilot, flight systems officer, mission systems officer, two loadmasters, and five electronic communications systems operators
Range
2,300 nautical miles unrefueled
Ceiling
28,000 feet (8,534 meters)
Speed
335 mph
Maximum takeoff weight
164,000 pounds (74,390 kilograms)
Inventory
Three Commando Solo aircraft listed by the Air Force in March 2021
Variants

The EC-130J family split the 193rd Special Operations Wing fleet between dedicated Commando Solo broadcast aircraft and Super J airframes.

VariantConfigurationDesignation notes
EC-130J Super JSOF mobility and psychological-operations configuration

Air & Space Forces identifies four Super J aircraft that added secondary low-cost electronic attack and special-operations mobility roles alongside psychological operations.

Sources: EC-130J Commando Solo/Super J | Air & Space Forces Magazine

Carried Payloads

The Multi-Mission Payload-Heavy upgrade paired the EC-130J with podded and roll-on mission payloads for broadcast and electronic-attack work.

Carried itemItem typeCarriage evidence
Communication EA Surveillance and Reconnaissance (CEASAR) pod, Airborne electronic attack and reconnaissance pod, Electronic WarfareCommunication EA Surveillance and Reconnaissance (CEASAR) podElectronic attack and reconnaissance pod

MMP-H added an external podded CEASAR payload, and the 2019 Air National Guard modernization book tied six CEASAR pods to three Commando Solo aircraft.

Sources: The Commando Solo bows out | Aerospace Global News, EC-130J Commando Solo/Super J | Air & Space Forces Magazine, 2019 ANG Mod Book

Long Range Broadcast System (LRBS) pod, External broadcast pod used for psychological operations and electronic attack support, Support EquipmentLong Range Broadcast System (LRBS) podBroadcast pod

Air & Space Forces describes LRBS as an external podded MMP-H payload, and the 2020 Air National Guard modernization book listed LRBS pods as an EC-130J requirement.

Sources: 2020 ANG Mod Book, EC-130J Commando Solo/Super J | Air & Space Forces Magazine

Self-Protection Systems

Self-protection equipment was part of the EC-130J modification package for politically sensitive and hostile operating areas.

Carried itemItem typeCarriage evidence
Large Aircraft Infrared Countermeasures (LAIRCM), Infrared countermeasure defensive suite, Support EquipmentLarge Aircraft Infrared Countermeasures (LAIRCM)Infrared countermeasure suite

Air & Space Forces says the EC-130J carried LAIRCM as enhanced self-protection against MANPADS threats.

Sources: EC-130J Commando Solo/Super J | Air & Space Forces Magazine

MMP-H Modernization

The Multi-Mission Payload-Heavy program moved Commando Solo toward a software-defined broadcast and electronic-attack architecture. Air Force and Air & Space Forces sources describe a mix of roll-on internal equipment, external CEASAR and LRBS pods, wider AM/FM/TV/cellular broadcast formats, and future electronic-attack growth.

Timeline

EC-130J Commando Solo Key Events

  1. Origin in EC-121 Coronet Solo

    The airborne information-operations mission traces back to the 193rd Tactical Electronic Warfare Group's first EC-121 Coronet Solo aircraft.

    Sources: EC-130J Commando Solo (U.S. Air Force)

  2. First EC-130J Commando Solo III flight

    The first flight of the EC-130J Commando Solo III marked the unit's transition from EC-130E aircraft to the J-model Hercules platform.

    Sources: EC-130J Commando Solo (U.S. Air Force)

  3. Initial operating capability

    The Air Force fact sheet lists 2004 as the EC-130J's initial operating capability.

    Sources: EC-130J Commando Solo (U.S. Air Force)

  4. Multi-Mission Payload-Heavy upgrades begin

    The program began upgrades that added software-defined radio architecture for more flexible broadcast formats and electronic-attack options.

    Sources: EC-130J Commando Solo (U.S. Air Force), EC-130J Commando Solo/Super J | Air & Space Forces Magazine

Media

EC-130J Commando Solo Images

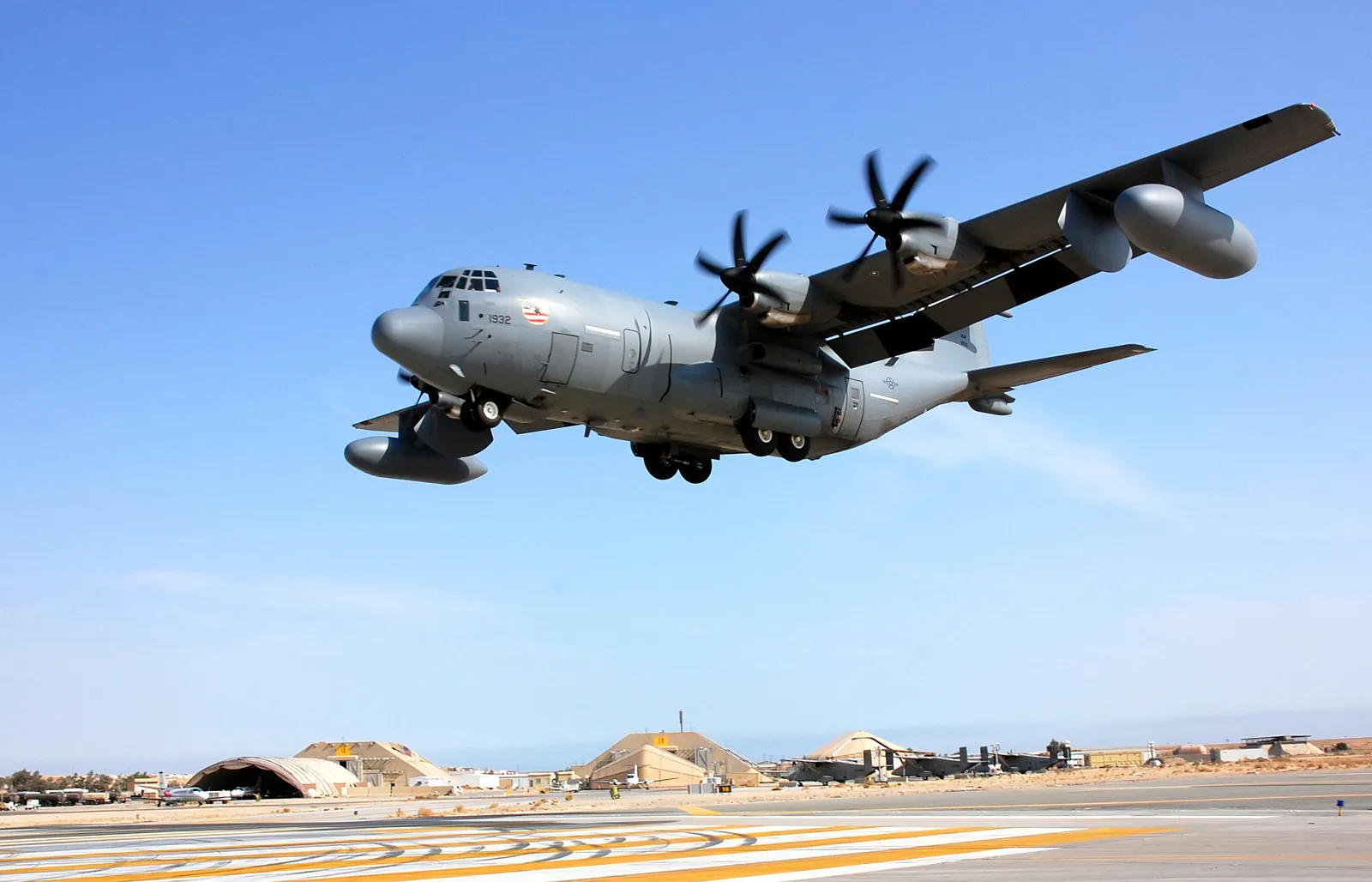

EC-130J Commando Solo, Airborne information operations and psychological operations aircraft, Aircraft & UAVs - view 1
Source: Wikimedia Commons 193d Special Operations Squadron EC-130J in SW Asia

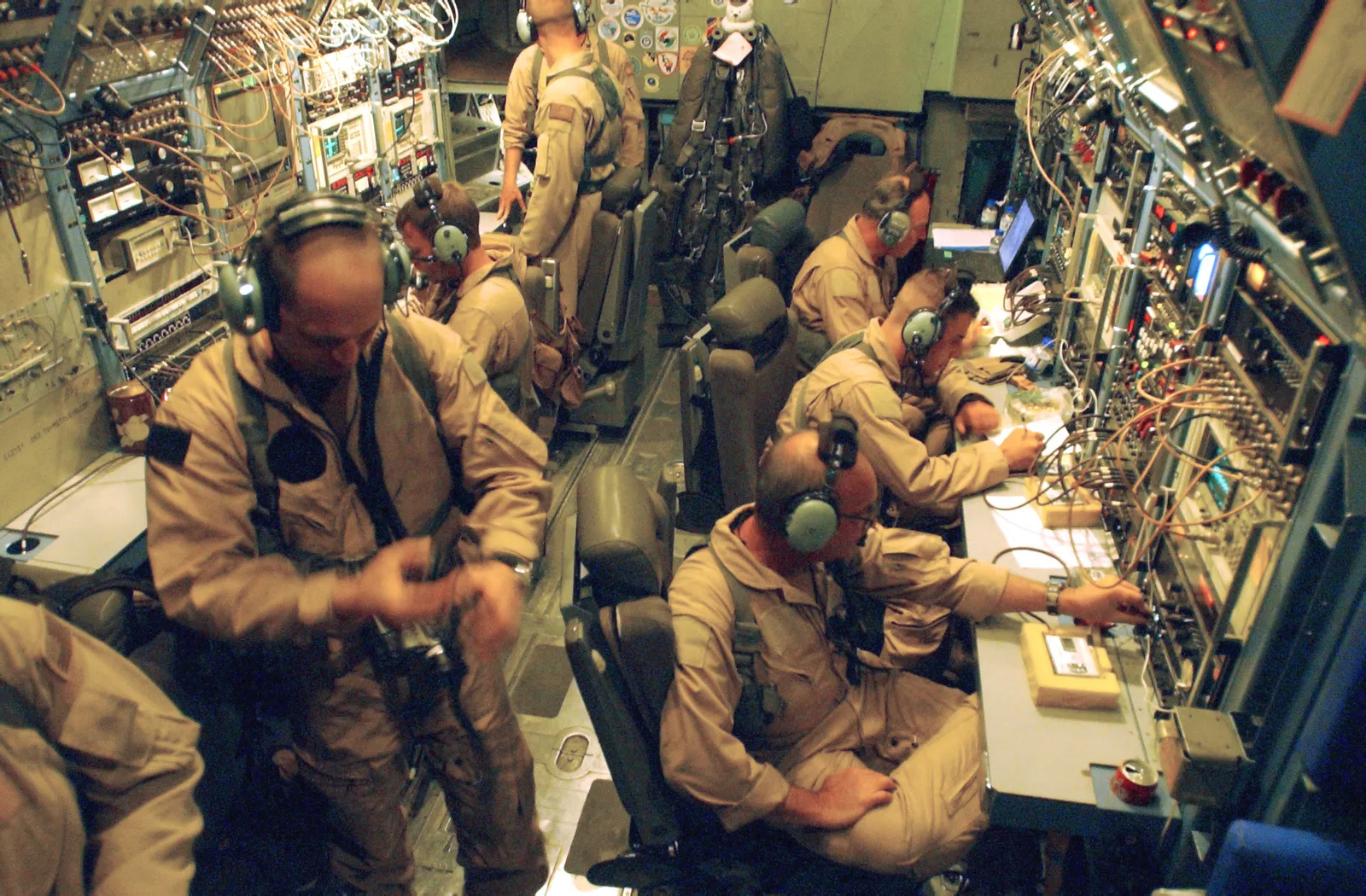

EC-130J Commando Solo, Airborne information operations and psychological operations aircraft, Aircraft & UAVs - view 2
Source: Wikimedia Commons Interior of an EC-130J Commando Solo Mar 2003
