D'Estienne d'Orves-class / A69 type aviso

The D'Estienne d'Orves-class, also known as the A69 type aviso, is a French-built light corvette class ordered for coastal anti-submarine defence and later used for escort and overseas presence missions. The class used diesel propulsion, reached 23.5 knots, and originally carried Exocet missiles, a 100 mm gun, torpedoes, and a 375 mm rocket launcher.

Specifications

Displacement
1,100 tonnes standard; 1,250 tonnes full load
Length
80 m
Beam
10.3 m
Draft
5.3 m
Crew
90
Propulsion
Two SEMT Pielstick 12 PC 2 V400 diesel engines on two shafts
Speed
23.5 knots
Range
4,500 nmi at 15 knots
Armament
100 mm gun, Exocet MM38 missiles, 20 mm guns, 12.7 mm machine guns, torpedoes, and a sextuple 375 mm rocket launcher
Sensors
DRBV 51A air/surface radar, DRBC 32E fire-control radar, Decca 1226 navigation radar, and DUBA 25 sonar

Original Combat Fit

The class entered service with a compact anti-submarine and escort fit that combined sonar, torpedoes, a gun, surface missiles, and a rocket launcher.

SystemFitRole
Main gun100 mm CADAM turretSurface combat and warning fire
MissilesExocet MM38Anti-ship strike
ASW weaponsFixed torpedo catapults and sextuple 375 mm rocket launcherCoastal anti-submarine warfare
SensorsDUBA 25 hull sonarSubsurface detection

Service And Conflict Use

Service History

In service
Entered French Navy service in 1976. Later French hulls shifted toward patrol and overseas presence duties, while export ships served with Turkey and Argentina.
Used by
French Navy, Turkish Navy, Argentine Navy

Conflict Usage

D’Estienne d’Orves-class avisos are publicly documented in Operation Atalanta counter-piracy actions, including Premier-Maître L’Her's January 2009 response to pirate attacks, and in earlier French operations off Lebanon.

Timeline

D'Estienne d'Orves-class / A69 type aviso Key Events

  1. Premier-Maître L'Her responded to a pirate attack

    A French Navy Atalanta bulletin describes Premier-Maître L'Her capturing a distress call from the cargo ship S. Venus while it was being chased by pirate skiffs.

    Sources: French Navy: BM 83 - Atalante et les opérations au large de la Somalie

  2. Premier-Maître L'Her retired from active service

    The French Navy said Premier-Maître L'Her completed its final sea trip after 43 years of service and was the twelfth ship in the class.

    Sources: French Navy: L'aviso PM L'Her tire sa révérence après 43 années de navigation

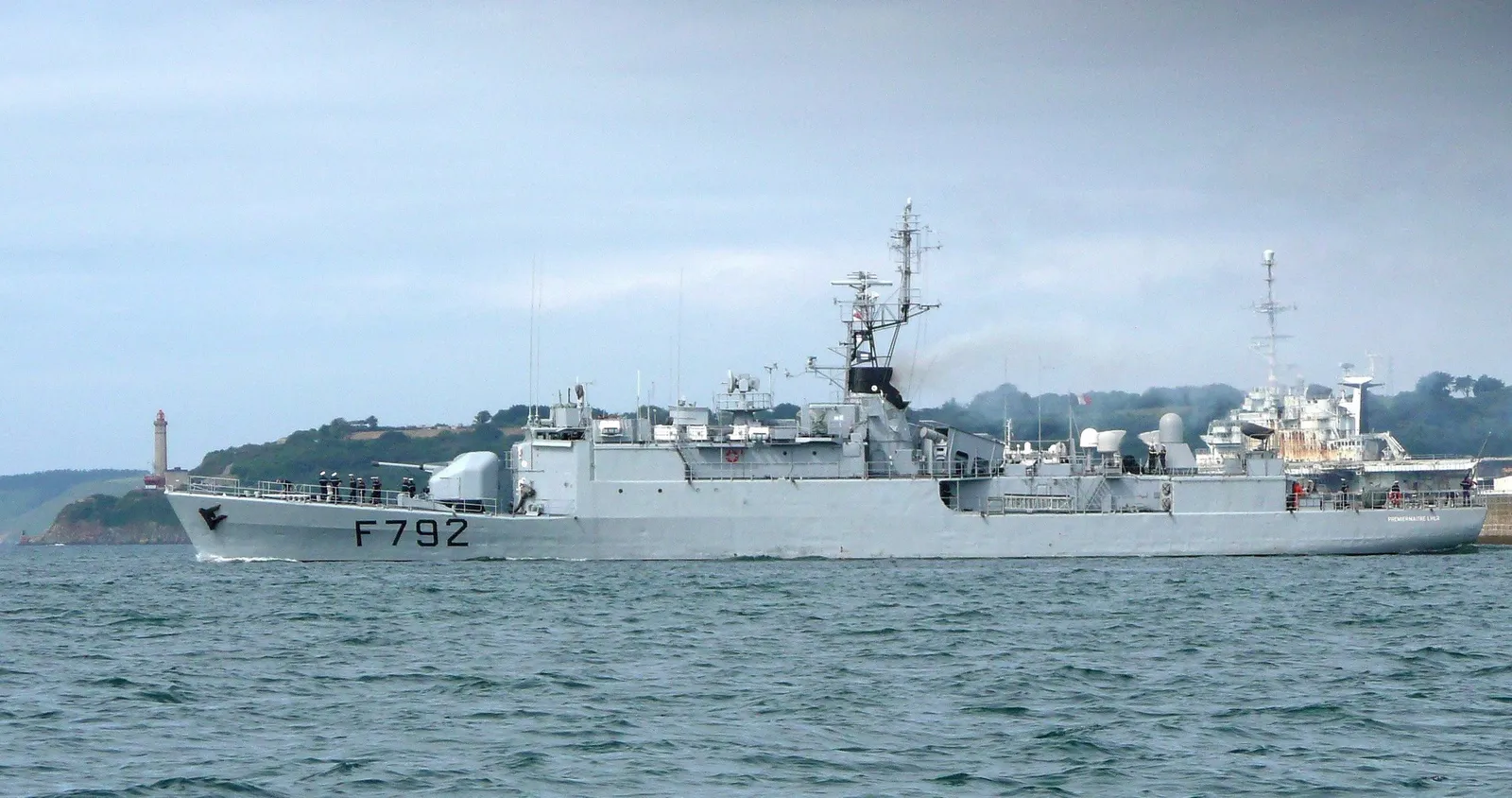

D'Estienne d'Orves-class / A69 type aviso Images
