Naval Systems

D'Estienne d'Orves-class aviso

Also known as
  • A69 type
  • A69 type aviso
  • A69 class aviso
  • A69 aviso
  • D'Estienne d'Orves class
  • D'Estienne d'Orves-class aviso
  • Type A69

The D'Estienne d'Orves-class aviso, also known as the Type A69, is a French-built light corvette and offshore-patrol family developed for coastal anti-submarine warfare, escort, and overseas-presence missions. Arsenal de Lorient built the French class around an 80-meter diesel hull with Exocet missiles, a 100 mm CADAM gun, torpedoes, and a 375 mm anti-submarine rocket launcher; later French service shifted surviving ships into high-seas patrol duties after heavy anti-submarine and anti-ship weapons were removed.

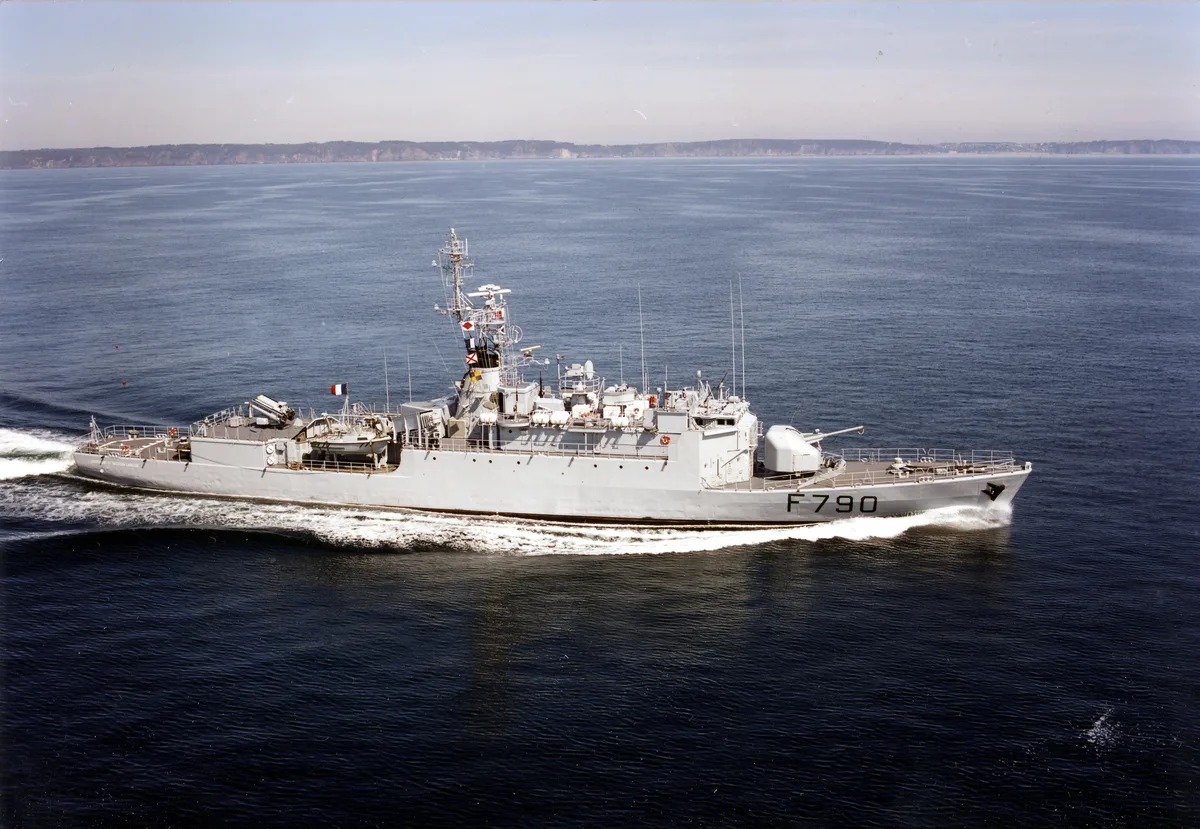

D'Estienne d'Orves-class aviso, Aviso / light corvette, Naval Systems
Image source: File:Lieutenant de vaisseau Lavallée.jpg

Role in Conflicts

1982 Falklands War
Fire SupportForce Protection

Argentine A69/Drummond corvettes served in the Falklands War; ARA Guerrico supported the South Georgia landing at Grytviken, fired on British positions, and was hit by small-arms and anti-tank fire before withdrawing.

Profile / Specs

Profile

Origin
France
Type
Aviso / light corvette
Service note
1976-present
Designed
1972
Produced
1972-1984
Number built
17 French Navy ships; 3 Argentine A69-derived Drummond-class corvettes

Specifications

Displacement
1,100 t standard / 1,270 t full load
Length
80 m overall
Beam
10.3 m
Draught
5.3 m
Speed
23.5 knots
Range
4,500 nmi at 15 knots
Crew
90
Propulsion
2 SEMT Pielstick 12 PC 2 V400 diesel engines, 2 shafts
Original armament
Exocet MM38 missiles, 100 mm CADAM gun, 20 mm modèle F2 guns, 12.7 mm machine guns, L3/L5 torpedo catapults, and sextuple 375 mm ASW rocket launcher
Sensors
DRBV 51A air/surface radar, DRBC 32E fire-control radar, Decca 1226 navigation radar, and DUBA 25 hull sonar
French patrol conversion
French ships reclassified as offshore patrol vessels had surface-to-surface missiles and heavy anti-submarine weapons removed
Operator Branches And Patrol Conversion

The A69 design appears in three useful catalog contexts: the original French avisos, transferred Turkish Burak-class corvettes, and French-built Argentine Drummond-class corvettes. French survivors later shifted from Cold War coastal anti-submarine work toward high-seas patrol missions.

BranchOperator contextSource-backed note
French A69Original aviso classFrench ships combined compact anti-submarine, escort, maritime-surveillance, and overseas-presence roles before later patrol conversion removed Exocet and heavy ASW weapons from French service.
Burak classTurkeySix ex-French A69 hulls were transferred to Turkey and served under Turkish names as the Burak class.
Drummond classArgentinaThree Argentine A69-derived corvettes are linked to Falklands War service; ARA Guerrico was damaged while supporting Argentine forces at South Georgia.

Sources: Seaforces: D'Estienne d'Orves class Corvette Aviso French Navy Marine; GlobalSecurity.org: Type A-69 D'Estienne D'Orves Frigates; South Georgia invasion - Naval-History.net.

Variants

The French A69 design also underpins export or transfer branches that appear under separate national class names.

VariantConfigurationDesignation notes
French Navy A69 / D'Estienne d'Orves classOriginal French aviso class

Seventeen French Navy ships entered service from the 1970s into the mid-1980s, with later French survivors reclassified for offshore patrol missions.

Sources: GlobalSecurity.org: Type A-69 D'Estienne D'Orves Frigates, Seaforces: D'Estienne d'Orves class Corvette Aviso French Navy Marine

Turkish Navy Burak classTransferred ex-French A69 corvettes

Six former French A69 hulls were transferred to Turkey and served as the Burak class.

Sources: GlobalSecurity.org: Type A-69 D'Estienne D'Orves Frigates, Seaforces: D'Estienne d'Orves class Corvette Aviso French Navy Marine

Argentine Navy Drummond classFrench-built A69-derived export corvettes

Three Argentine A69/Drummond corvettes are tied to the Falklands War service context, including ARA Guerrico at South Georgia.

Sources: GlobalSecurity.org: Type A-69 D'Estienne D'Orves Frigates, South Georgia invasion - Naval-History.net

Original Ship Armament

The class's original combat fit combined anti-ship missiles, a 100 mm gun, close-in 20 mm guns, fixed torpedo catapults, and a sextuple anti-submarine rocket launcher.

Carried itemItem typeCarriage evidence
Exocet MM38 anti-ship missile, Surface-launched anti-ship missile, MunitionsExocet MM38 anti-ship missileShip-launched anti-ship missile

Seaforces lists two Exocet MM38 surface-to-surface missiles in the class's original armament fit.

Sources: Seaforces: D'Estienne d'Orves class Corvette Aviso French Navy Marine

100 mm/55 Model 1968 CADAM naval gun, 100 mm naval gun mount, Naval Systems100 mm/55 Model 1968 CADAM naval gun100 mm naval gun mount

Seaforces lists one 100 mm CADAM gun in the class fit, and NavWeaps lists D'Estienne d'Orves among ship classes using the Model 1968/CADAM family.

Sources: Seaforces: D'Estienne d'Orves class Corvette Aviso French Navy Marine, NavWeaps 100 mm/55 Model 1968 CADAM

L3 or L5 type torpedo, Fixed-catapult-launched torpedo, MunitionsL3 or L5 type torpedoFixed-catapult-launched torpedo

Seaforces lists four fixed catapults for L3 or L5 type torpedoes in the class anti-submarine fit.

Sources: Seaforces: D'Estienne d'Orves class Corvette Aviso French Navy Marine, NavWeaps: French Torpedoes

Bofors 375 mm rocket launcher, Shipboard anti-submarine rocket launcher, Naval SystemsBofors 375 mm rocket launcherShipboard anti-submarine rocket launcher

Seaforces says the class carried one remote-controlled sextuple 375 mm rocket launcher with 30 reloads below the aft deckhouse.

Sources: Seaforces: D'Estienne d'Orves class Corvette Aviso French Navy Marine

20mm GIAT M693 autocannon, French 20 mm autocannon chambered for 20x139mm NATO rounds, Infantry Weapons20mm GIAT M693 autocannonNaval autocannon

Seaforces lists two 20 mm modèle F2 guns in the class fit, while NavWeaps identifies 20F2 as the navalized GIAT M693 family gun.

Sources: Seaforces: D'Estienne d'Orves class Corvette Aviso French Navy Marine, France 20 mm/90 GIAT M693 and 20 mm/73 GIAT M621 - NavWeaps

Timeline

D'Estienne d'Orves-class aviso Key Events

  1. Lead ship laid down

    D'Estienne d'Orves, the lead French A69 aviso, was laid down at Lorient on 1 September 1972.

    Sources: Seaforces: D'Estienne d'Orves class Corvette Aviso French Navy Marine

  2. Lead ship commissioned

    D'Estienne d'Orves entered French Navy service on 10 September 1976.

    Sources: Seaforces: D'Estienne d'Orves class Corvette Aviso French Navy Marine

  3. ARA Guerrico at South Georgia

    During the Falklands War, the Argentine corvette Guerrico supported the South Georgia landing at Grytviken and was damaged by British defensive fire.

    Sources: South Georgia invasion - Naval-History.net, GlobalSecurity.org: Type A-69 D'Estienne D'Orves Frigates

  4. French patrol conversion

    Public class references describe the remaining French ships as reclassified offshore patrol vessels, with French ships losing their Exocet missiles and heavy anti-submarine weapons.

    Sources: Seaforces: D'Estienne d'Orves class Corvette Aviso French Navy Marine

  5. Premier-Maître L'Her in Operation Atalanta

    A French Navy bulletin documents Premier-Maître L'Her responding to distress calls from the cargo ship S. Venus during counter-piracy operations off Somalia.

    Sources: French Navy: BM 83 - Atalante et les opérations au large de la Somalie

  6. Premier-Maître L'Her listed for Operation Irini

    Operation Irini material identified FS Premier-Maître L'Her as a naval asset for the EU maritime mission in the central Mediterranean.

    Sources: Operation Irini: FS Premier-Maître L'Her Naval Asset

  7. Premier-Maître L'Her final sea trip

    The French Navy reported Premier-Maître L'Her's final sea trip in June 2024 after 43 years of navigation.

    Sources: French Navy: L'aviso PM L'Her tire sa révérence après 43 années de navigation

Media

D'Estienne d'Orves-class aviso Videos

D'Estienne d'Orves-class aviso Images

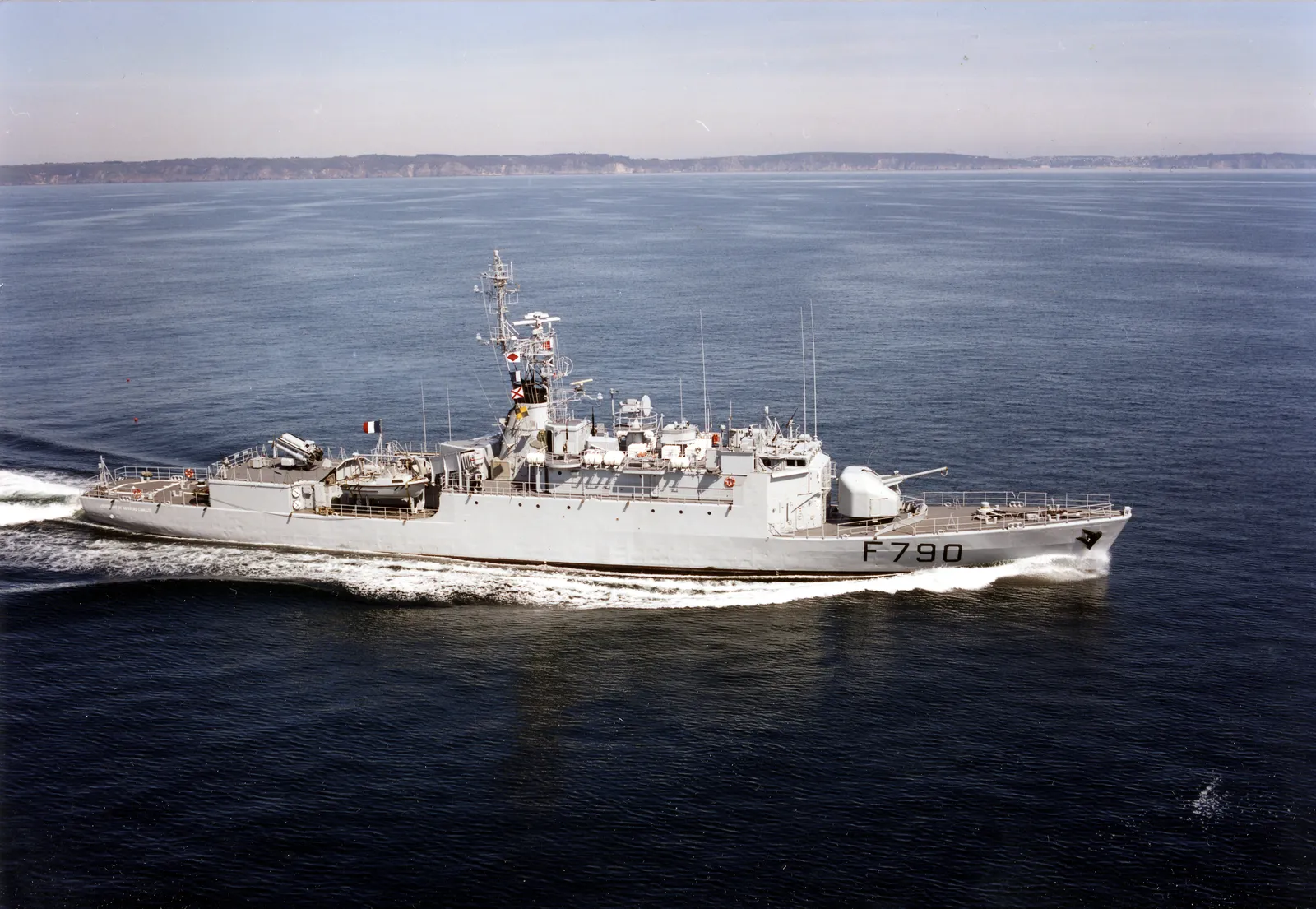

D'Estienne d'Orves-class aviso, Aviso / light corvette, Naval Systems - view 1
Source: File:Lieutenant de vaisseau Lavallée.jpg

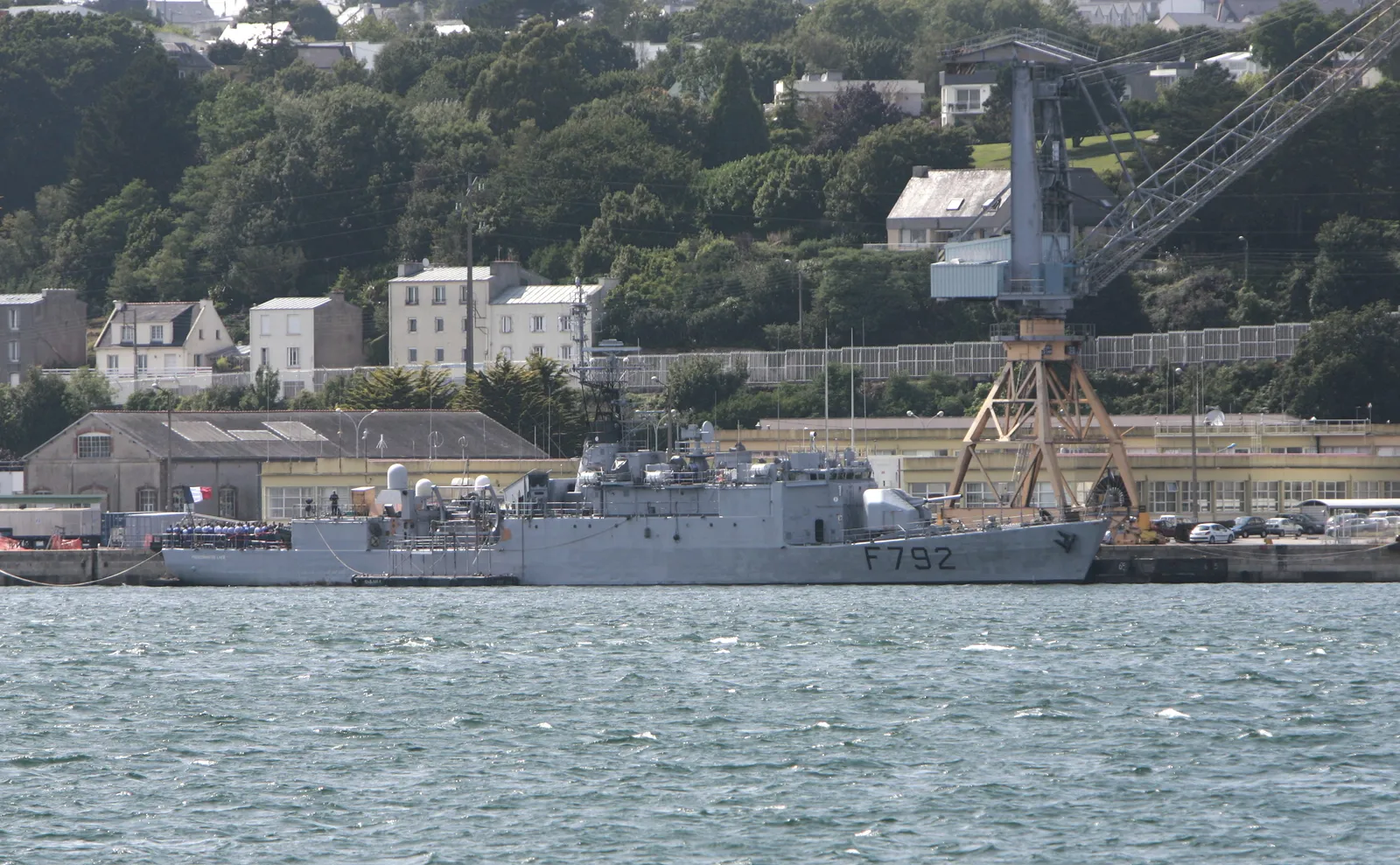

D'Estienne d'Orves-class aviso, Aviso / light corvette, Naval Systems - view 2
Source: File:Lieutenant de vaisseau Lavallée.jpg

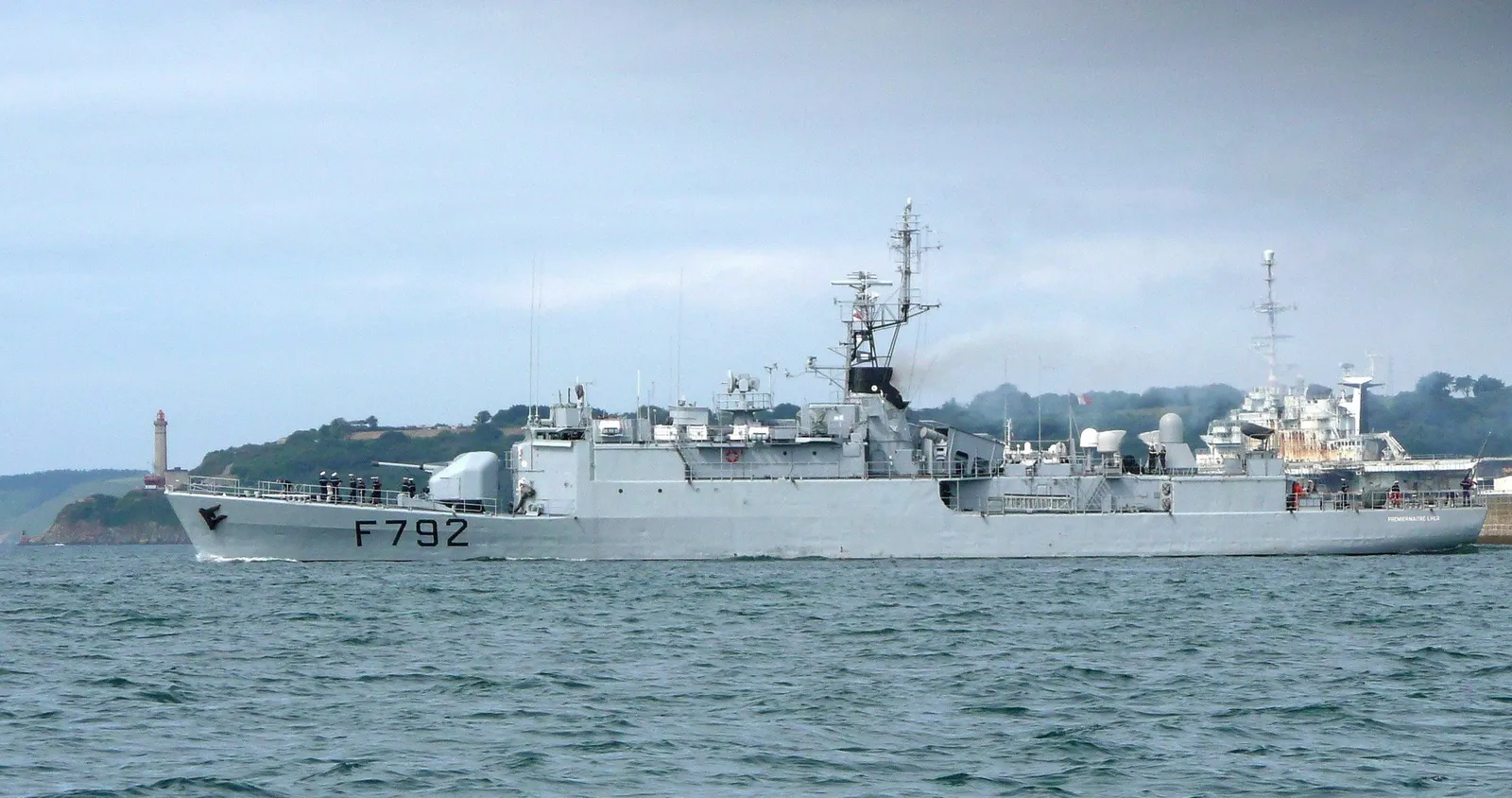

D'Estienne d'Orves-class aviso, Aviso / light corvette, Naval Systems - view 3
Source: File:Lieutenant de vaisseau Lavallée.jpg
