Naval Systems

Project 1331M / Parchim-class anti-submarine corvette

Also known as
  • Project 1331M
  • Project 133.1M
  • Project 133.1
  • Project 1331
  • Parchim-class corvette
  • Parchim class
  • Parchim II
  • Kapitan Pattimura-class

Project 1331M / Parchim-class anti-submarine corvette is an East German-developed coastal ASW corvette family built by Peene-Werft and later operated by Soviet, Russian, and Indonesian navies. The class carried 57 mm and 30 mm gun mounts, RBU-6000 rocket launchers, torpedo tubes, and sonar for shallow-water anti-submarine patrols, and an Indonesian Parchim-class ship was documented in the 2019 North Natuna Sea collision incident with Vietnamese fisheries-enforcement vessels.

Role in Conflicts

Profile / Specs

Profile

Origin
East Germany
Built by
Peene-Werft
Type
Anti-submarine corvette
Service note
Late 1970s-present
Produced
1985-1990
Number built
28
Developed from
Project 133.1

Specifications

Displacement
About 800 tonnes standard / 950 tonnes full load
Length
72 m
Beam
9.4 m
Draft
4.6 m
Speed
About 24.5 knots
Range
About 2,500 nmi at 14 knots
Propulsion
Three diesel engines, about 14,250 hp total
Crew
About 80
Armament
Twin 57 mm AK-725 gun, twin 30 mm AK-230 gun, two SA-N-5 positions, two RBU-6000 rocket launchers, and four 400 mm torpedo tubes
Sensors
Radar and hull-mounted sonar
Service And Refit Notes

The Parchim family is easiest to read as three overlapping service stories: an East German coastal ASW design, a Soviet/Russian Project 1331M batch, and the Indonesian Kapitan Pattimura-class refit path.

Service branchDesignation contextSourced notes
East German originProject 133.1 / Parchim IPeene-Werft built the original coastal ASW corvettes for the Volksmarine before German reunification and later Indonesian transfer.

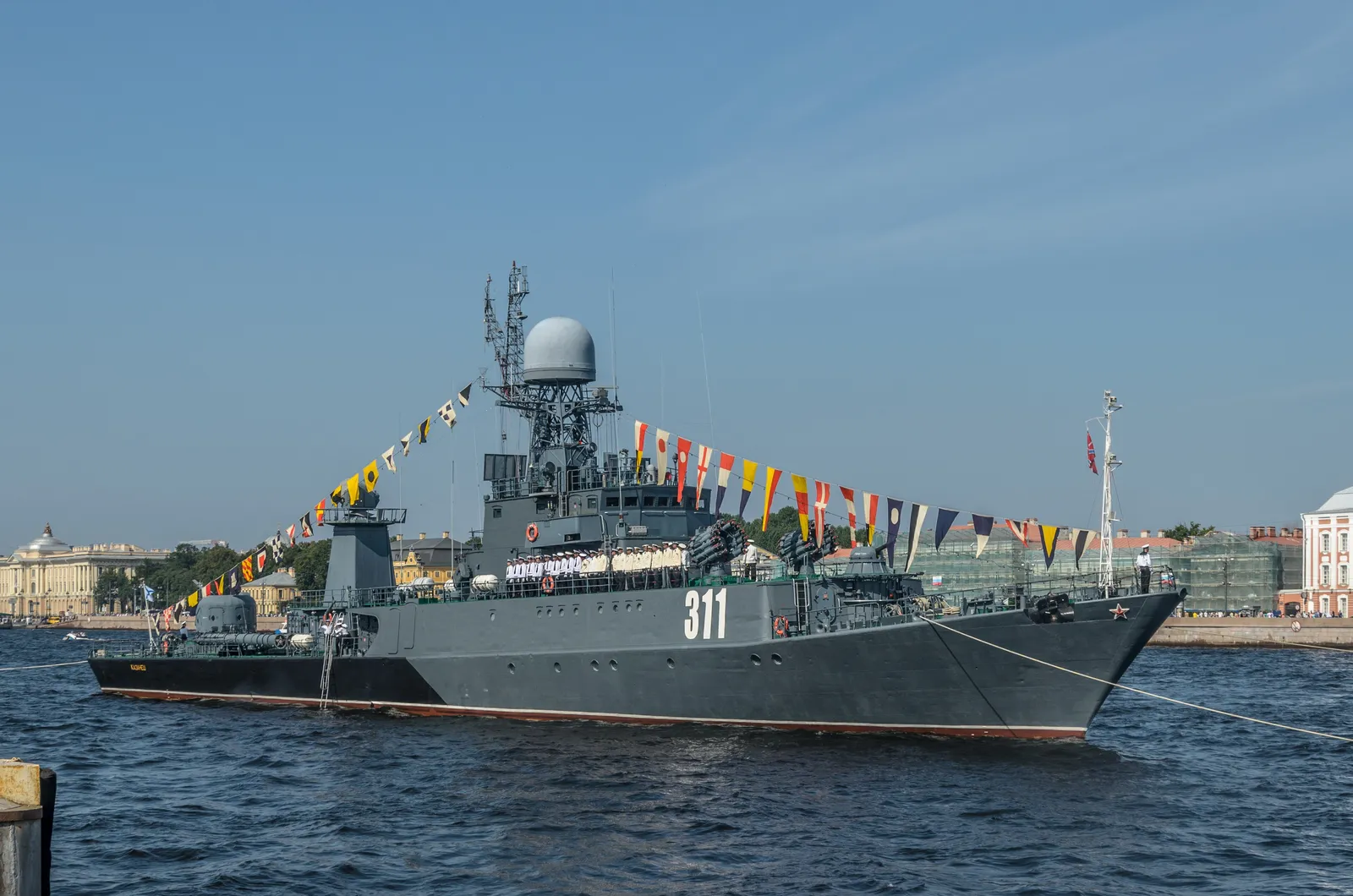

Soviet and Russian serviceProject 133.1M / Parchim IIRussianShips.info lists 12 Soviet Project 1331M ships and identifies the class as small anti-submarine ships with RBU-6000, torpedo, gun, and sonar equipment.

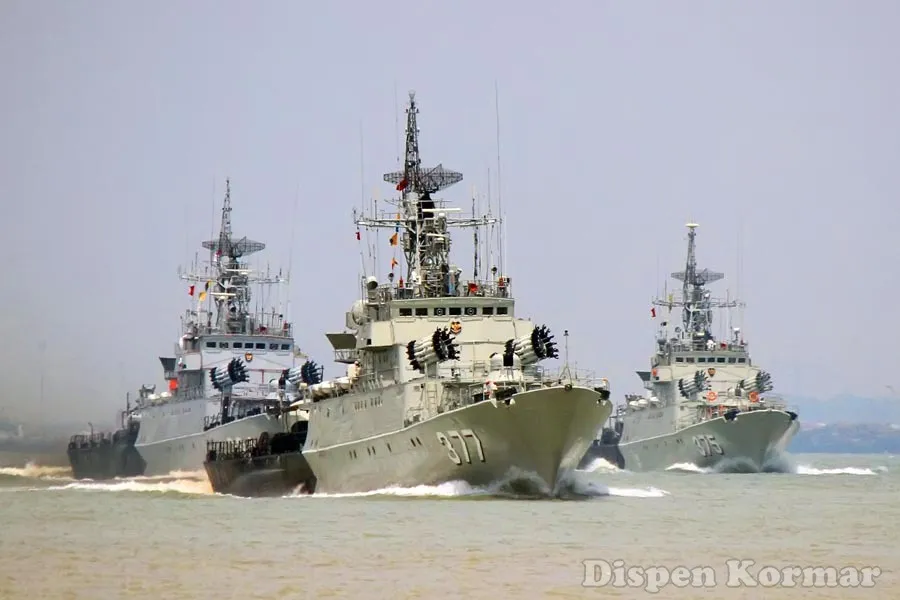

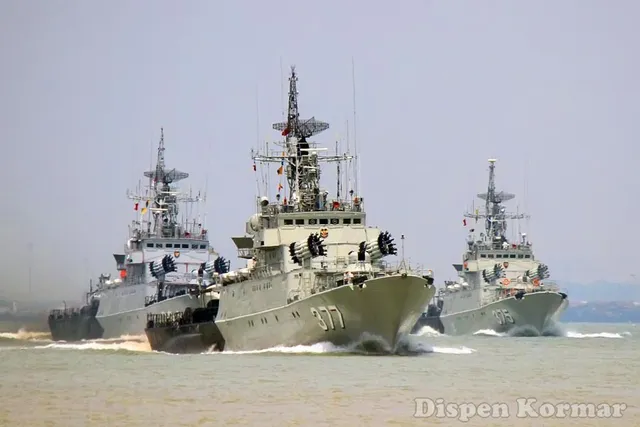

Indonesian serviceKapitan Pattimura-classIndonesian Parchim-class ships continued as patrol and enforcement vessels; Antara identified KRI Tjiptadi-381 as a Parchim-class TNI AL corvette during the 2019 North Natuna Sea incident.
Variants

Parchim naming separates the East German Project 133.1 / Parchim I boats from the modified Soviet Project 133.1M / Parchim II batch and the Indonesian Kapitan Pattimura-class service name for former East German hulls.

VariantConfigurationDesignation notes
Project 133.1 / Parchim IEast German baseline class

Wikipedia and the existing class references describe the original East German coastal ASW corvette design built by Peene-Werft for the Volksmarine before reunification.

Sources: Parchim-class corvette, Parchim (class) / Project 1331M Corvette Warship - Military Factory

Project 133.1M / Parchim IISoviet/Russian batch

RussianShips.info lists the Soviet Project 1331M small anti-submarine ships completed at Peene-Werft, while Military Factory notes the Parchim II NATO designation for the Soviet/Russian batch.

Sources: Small Anti-Submarine Ships - Project 1331M - RussianShips.info, Parchim (class) / Project 1331M Corvette Warship - Military Factory

Anti-Submarine Rocket Armament

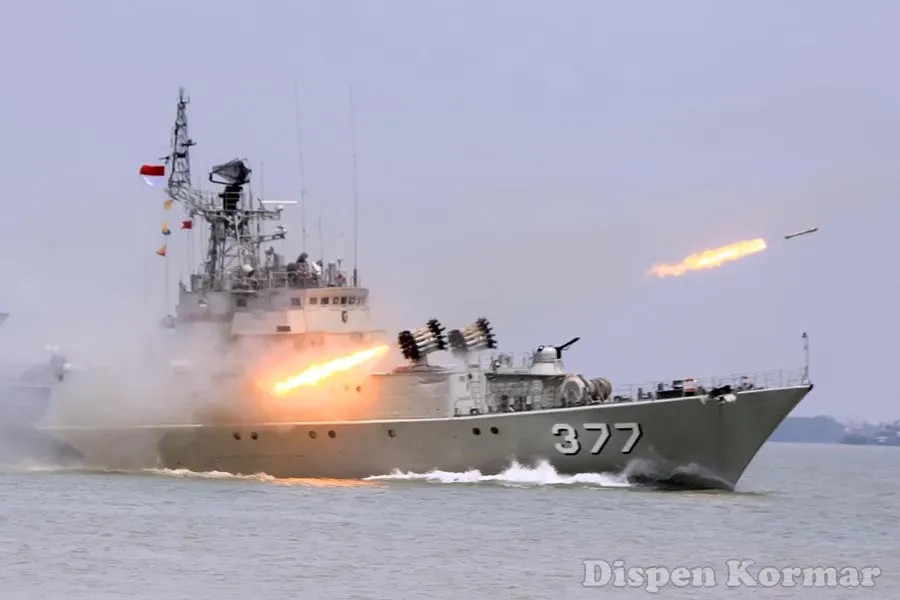

The class's close-range ASW fit centered on rocket depth-charge launchers and torpedo tubes rather than long-range anti-submarine missiles.

Carried itemItem typeCarriage evidence
RBU-6000 Smerch-2 anti-submarine rocket launcher, Shipboard anti-submarine rocket launcher, Naval SystemsRBU-6000 Smerch-2 anti-submarine rocket launcherShipboard ASW rocket launcher

RussianShips.info lists Project 1331M ships with two RBU-6000 Smerch launchers, and Military Factory separately lists two RBU-6000 anti-submarine rocket launchers in the Parchim-class armament suite.

Sources: Small Anti-Submarine Ships - Project 1331M - RussianShips.info, Parchim (class) / Project 1331M Corvette Warship - Military Factory

Timeline

Project 1331M / Parchim-class anti-submarine corvette Key Events

  1. Project 1331M production begins

    MPK-192, one of the Soviet Project 1331M boats, was laid down at Peene-Werft in Wolgast.

    Sources: Russian corvette Urengoy

  2. A Baltic Fleet ship enters service

    MPK-192 was commissioned into the Baltic Fleet, showing the Soviet-built Project 1331M batch in active service.

    Sources: Russian corvette Urengoy

  3. Former East German hulls transfer to Indonesia

    After German reunification, former East German Parchim hulls were sold to the Indonesian Navy and later refitted for continued service.

    Sources: Parchim-class corvette

  4. KRI Tjiptadi-381 involved in North Natuna Sea collision

    Antara reported that KRI Tjiptadi-381, a TNI AL Parchim-class corvette, was conducting law-enforcement operations against a Vietnamese fishing vessel when Vietnamese fisheries-enforcement vessels obstructed the arrest and collided with the Indonesian ship.

    Sources: Kapal perikanan Vietnam provokasi KRI Tjiptadi-381 di Natuna - Antara
