Artillery

20N6M 60 mm mortar

Also known as
  • 20N6M
  • 20N6M mortar
  • 20N6M 60 mm dual-purpose mortar

The 20N6M is an Azerbaijani 60 mm dual-purpose mortar built around bipod-mounted and lighter commando-style firing configurations. Azersilah lists separate range, weight, charge, and sight data for the two modes, while 2020 Nagorno-Karabakh visual-loss documentation records one Azerbaijani 20N6M as captured battlefield materiel.

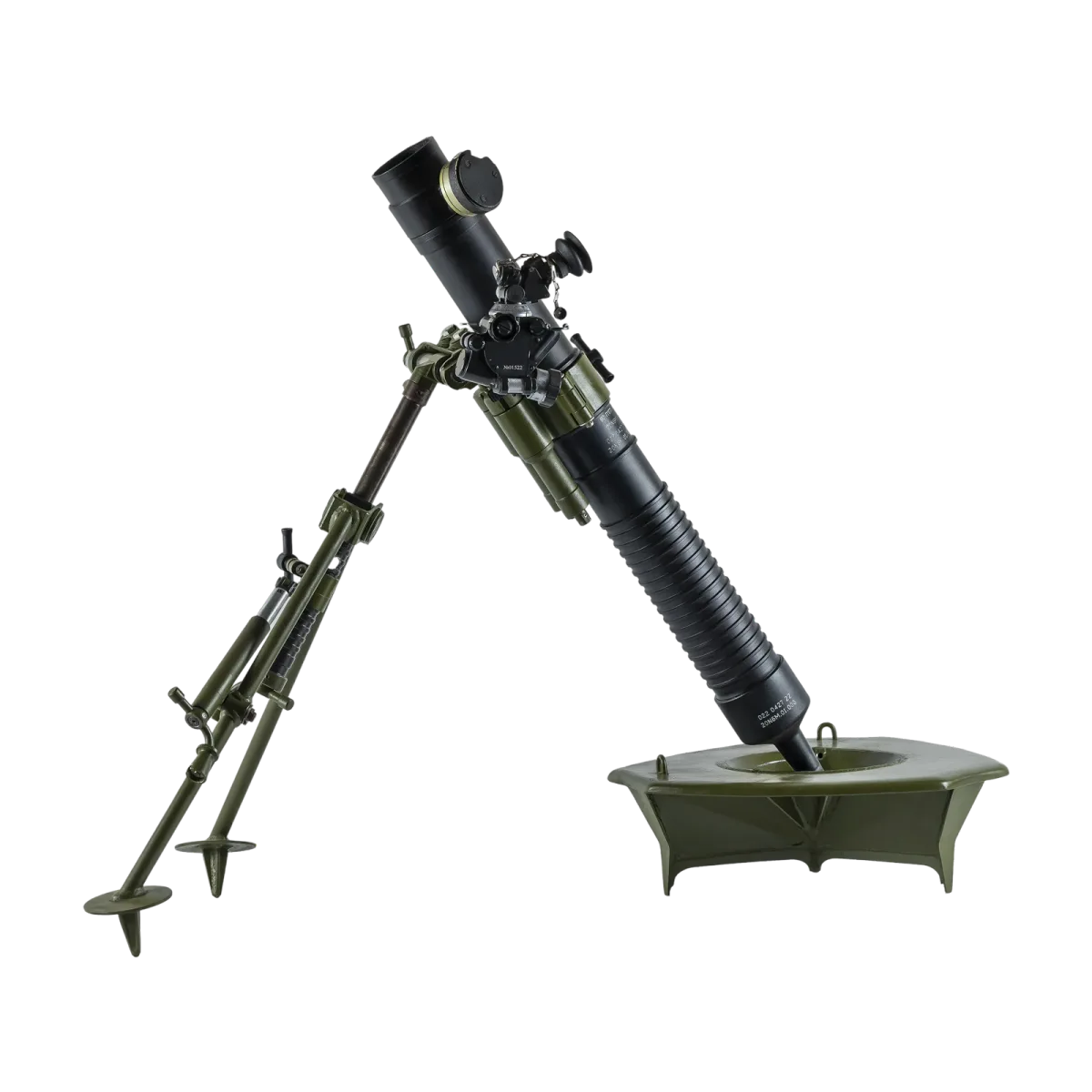

20N6M 60 mm mortar, 60 mm dual-purpose mortar, Artillery

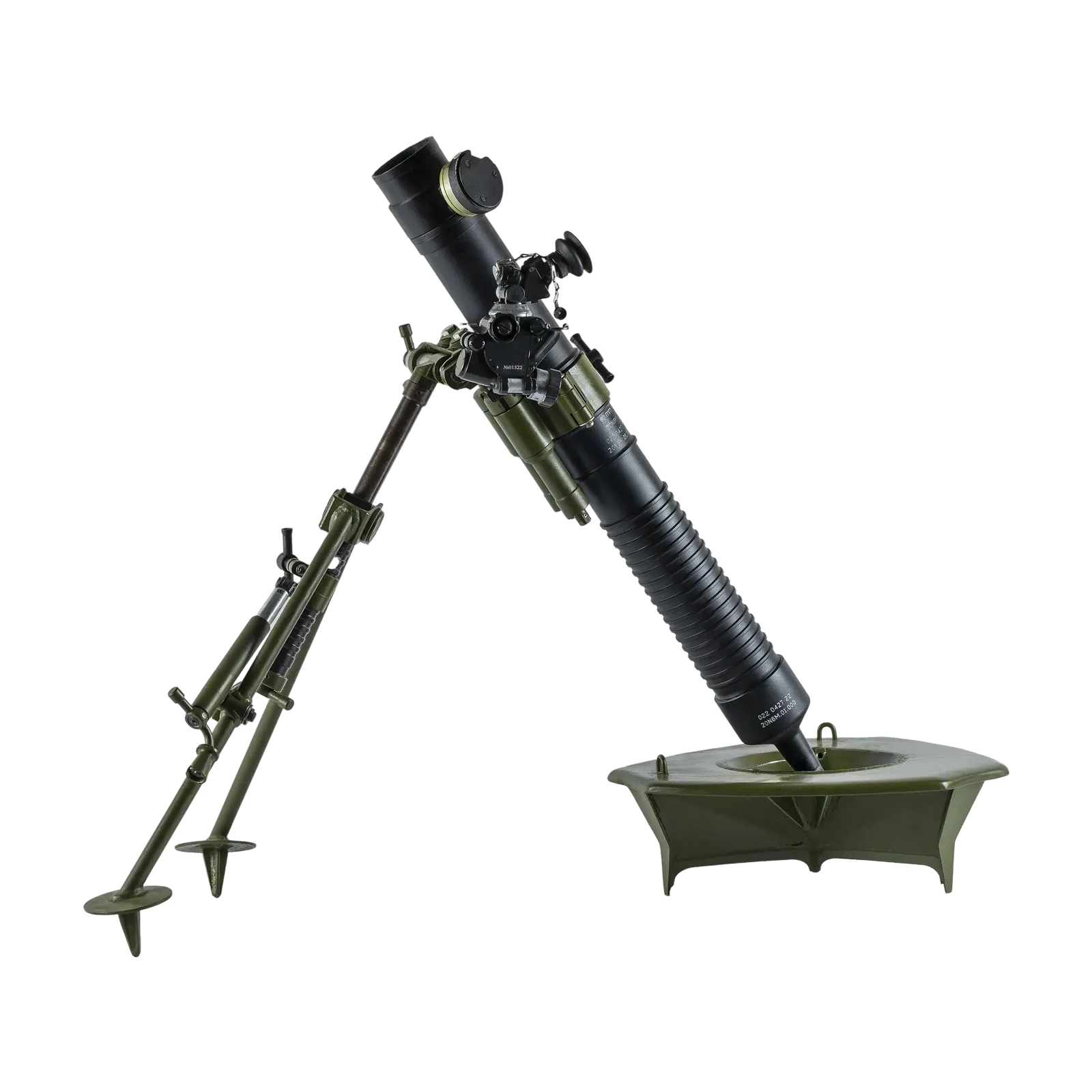

Image source: 20N6M 60 mm Dual-Purpose Mortar

Role in Conflicts

Profile / Specs

Profile

Origin
Azerbaijan
Built by
Azersilah
Type
60 mm dual-purpose mortar
Service note
2010s-present
Designer
Azerbaijani defense industry
Designed
By 2015
Produced
By 2015-present

Specifications

Caliber
60 mm
Firing range
150-2,550 m in bipod mode; 150-1,600 m in commando mode
Weight
18.5 kg without sight in bipod mode; 9.5 kg without sight in commando mode
Overall length
740 mm
Elevation
45 degrees to 85 degrees
Bomb weight
1.6 kg
Propelling charges
0/1/2/3/4 in bipod mode; 0/1/2 in commando mode
Rate of fire
20 rounds/min
Crew
2 operators
Ammunition
All standard 60 mm qualified rounds
Firing method
Drop-fire on fixed firing pin
Aiming system
Vial elevation sight with integrated mil/meter scales
Configuration Notes

Azersilah's 20N6M data separates the same mortar into two practical firing configurations rather than a single weight-and-range figure. The bipod-mounted setup carries the longer range and higher charge set, while the commando-style setup trades range and charge options for a lighter 9.5 kg listed weight without sight.

Bipod mode

150-2,550 m firing range with 0/1/2/3/4 propelling charges and 18.5 kg listed weight without sight.

Commando mode

150-1,600 m firing range with 0/1/2 propelling charges and 9.5 kg listed weight without sight.

Sight and ammunition

The official product page lists a vial elevation sight with integrated mil/meter scales and compatibility with standard qualified 60 mm rounds.

Sources: 20N6M 60 mm Dual-Purpose Mortar; Azerbaijan-Produced Mortars Export Report.

Variants

Azersilah presents the 20N6M as a dual-purpose mortar with separate bipod and commando-style firing configurations. The related 20N6MT designation appears in current Azersilah material as a distinct 60 mm long-range mortar, while a 2015 Azerbaijani report used older 20N6MT Commando wording.

VariantConfigurationDesignation notes
Bipod-mounted firing configurationLonger-range 20N6M mode

Azersilah lists the bipod mode with a 150-2,550 m range, 0/1/2/3/4 propelling charges, and 18.5 kg weight without sight.

Sources: 20N6M 60 mm Dual-Purpose Mortar

Commando-style firing configurationLighter 20N6M mode

Azersilah lists the commando mode with a 150-1,600 m range, 0/1/2 propelling charges, and 9.5 kg weight without sight.

Sources: 20N6M 60 mm Dual-Purpose Mortar

20N6MTAdjacent 60 mm long-range mortar

Azersilah's current product page describes 20N6MT as a separate 60 mm long-range mortar with 190-3,250 m range; Poliqon preserves older 2015 wording that treated 20N6MT Commando as a light version of the 20N6M family.

Sources: Azersilah 20N6MT 60 mm Long-Range Mortar, Azerbaijan-Produced Mortars Export Report

Compatible Ammunition

Azersilah lists these mortar bombs as ammunition designed for use with the 20N6M and other NATO-standard 60 mm smooth-bore mortars.

AmmunitionAmmunition typeFiring evidence
60 mm High-Explosive Mortar Bomb, 60 mm mortar bomb, Munitions60 mm High-Explosive Mortar Bomb60 mm mortar bomb

Azersilah says the 60 mm high-explosive mortar bomb is intended for use with the 20N6M and other NATO-standard 60 mm smooth-bore mortars.

Sources: Azersilah 60 mm High-Explosive Mortar Bomb

60 mm practice mortar bomb, 60 mm practice mortar bomb, Munitions60 mm practice mortar bomb60 mm practice mortar bomb

Azersilah says the practice bomb is designed for use with the 20N6M and other NATO-standard 60 mm smooth-bore mortars.

Sources: 60 mm practice mortar bomb

Timeline

20N6M 60 mm mortar Key Events

  1. Azerbaijani-produced 20N6M publicized

    Poliqon reported Ministry of Defence Industry information on Azerbaijani-produced 60 mm and 82 mm mortars, listing the 20N6M with 2,550 m range and 20 rounds/min fire rate.

    Sources: Azerbaijan-Produced Mortars Export Report

  2. Captured 20N6M documented in Nagorno-Karabakh loss list

    Oryx included one Azerbaijani 60 mm 20N6M mortar captured during the 2020 Nagorno-Karabakh fighting in its visually documented loss list.

    Sources: The Fight For Nagorno-Karabakh Loss List

Media

20N6M 60 mm mortar Images

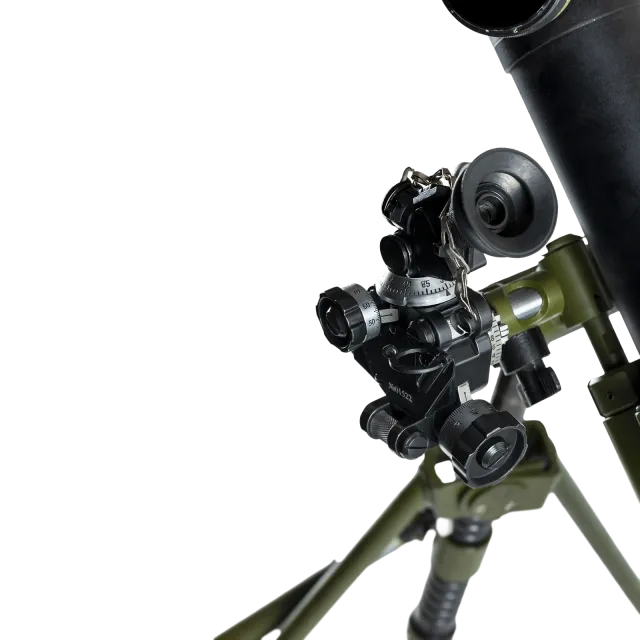

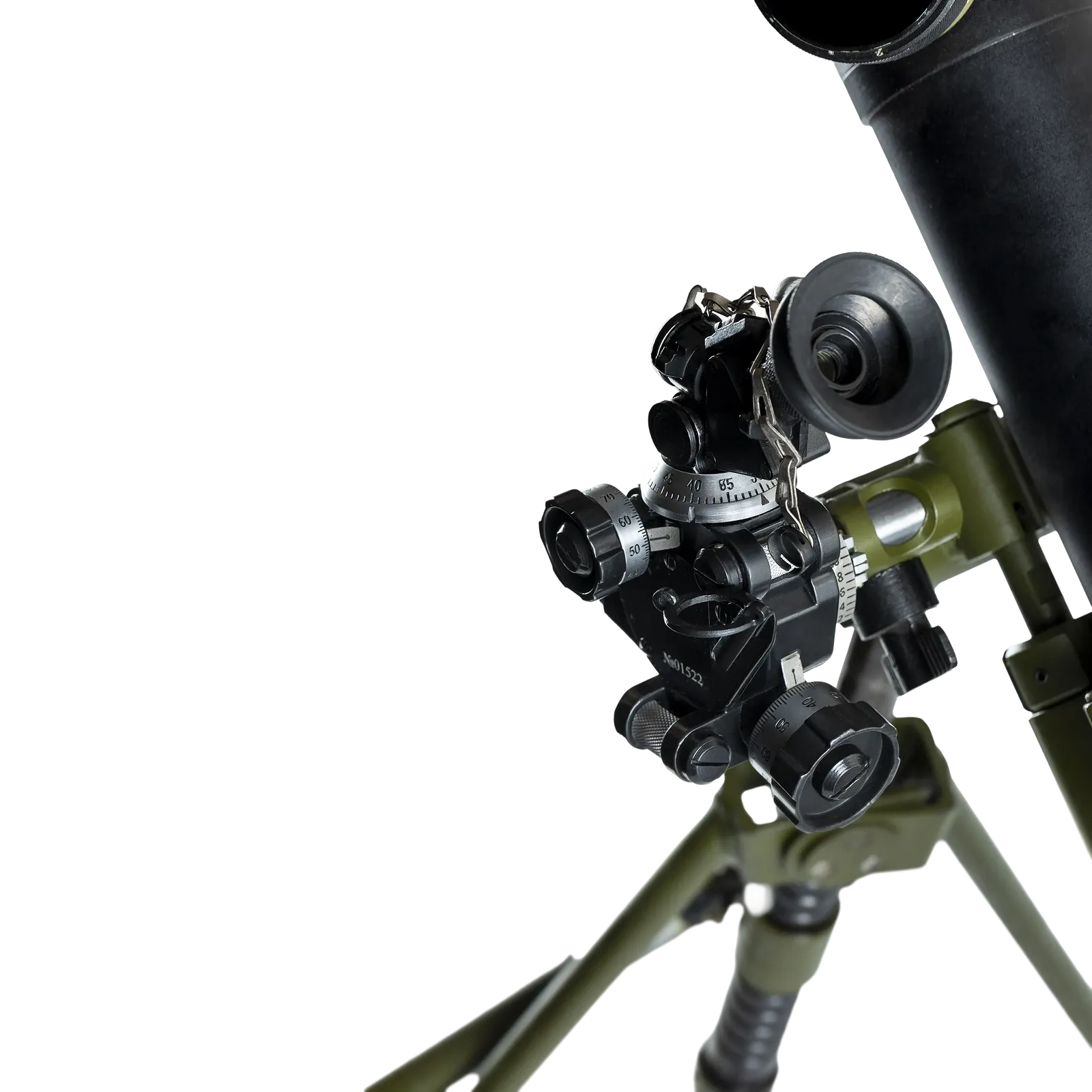

20N6M 60 mm mortar, 60 mm dual-purpose mortar, Artillery - view 1
Source: 20N6M 60 mm Dual-Purpose Mortar

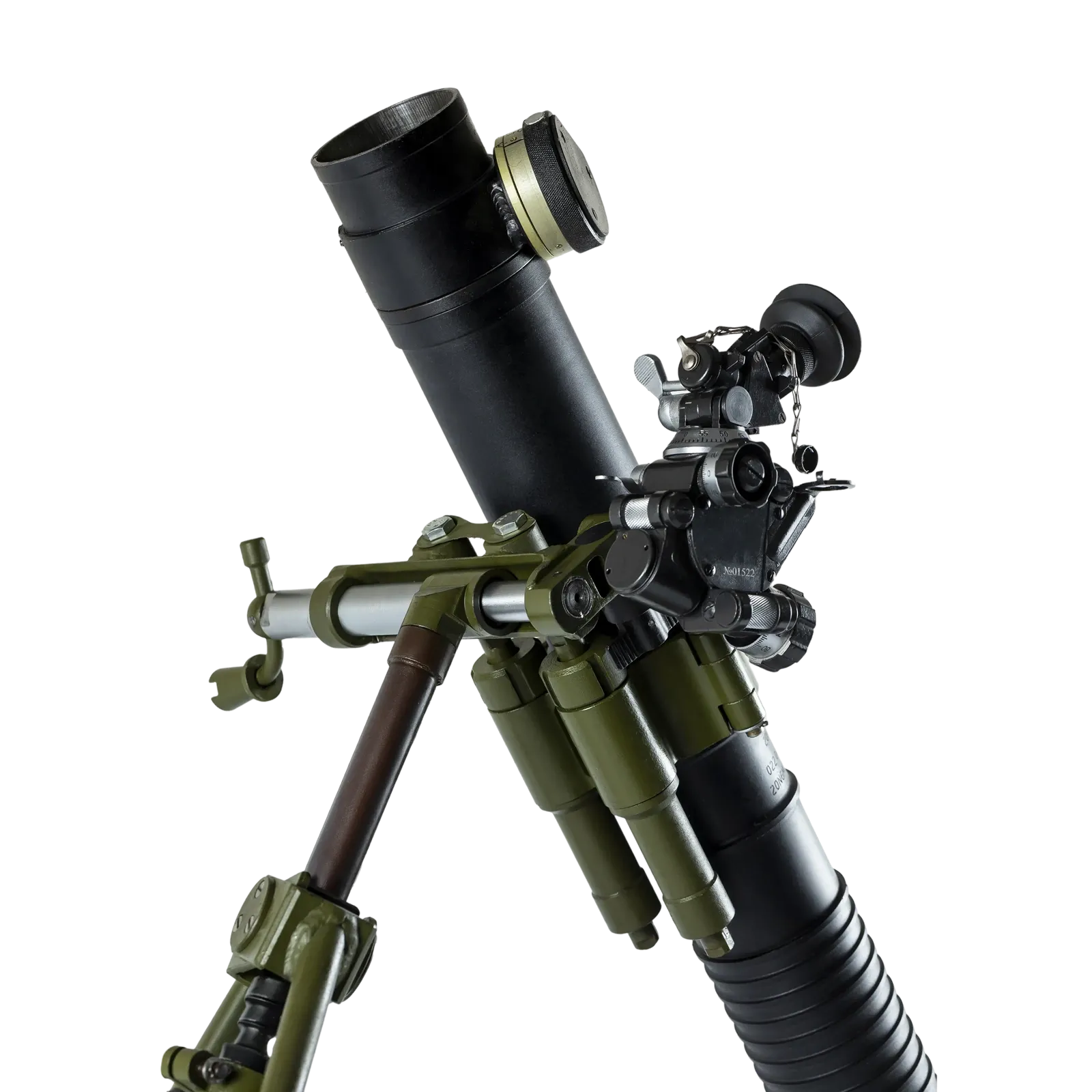

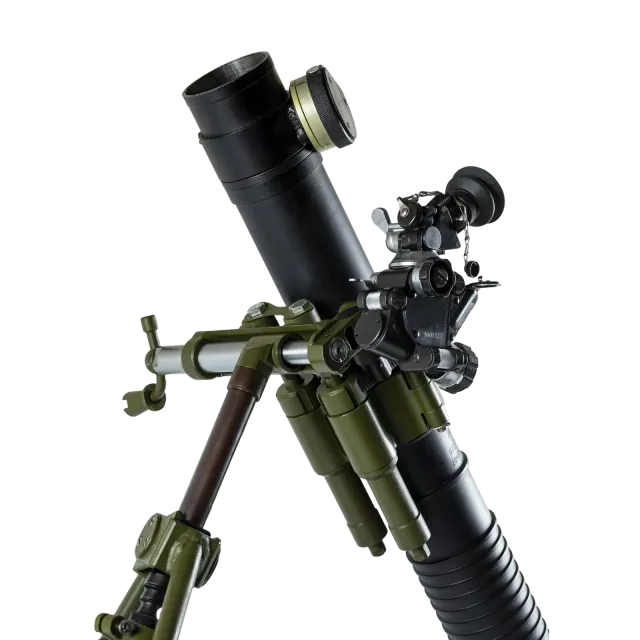

20N6M 60 mm mortar, 60 mm dual-purpose mortar, Artillery - view 2
Source: 20N6M 60 mm Dual-Purpose Mortar
Related Weapon Systems
60 mm M57 mortar, 60 mm light infantry mortar, ArtilleryArtillery60 mm M57 mortar60 mm light infantry mortarThe 60 mm M57 is a Yugoslav-pattern smoothbore light infantry mortar now listed by Serbian manufacturer PPT Namenska and in Yugoimport export material. Its official sheets describe a high-angle fire-support weapon built around barrel, base plate, bipod, sight, tools, spares, and accessories; post-Yugoslav records also show Serbian surplus stocks and Balkan export activity. In the 2020 Nagorno-Karabakh Conflict, open-source loss documentation recorded M57 mortars captured from Armenian forces.
60 mm mortar, Light infantry mortar, ArtilleryArtillery60 mm mortarLight infantry mortarThe 60 mm mortar is a portable light-infantry indirect-fire class used for close support where crews need high-angle fire from a weapon lighter than larger battalion mortars. The caliber family spans many national models: direct conflict sourcing documents PKK 60 mm mortar use and recovered ammunition in the Kurdish-Turkish conflict, disputed Thai 60 mm mortar fire claims in the 2025 Thailand-Cambodia border fighting, and Yemen-linked interdiction of 60 mm mortar tubes assessed by the United States as intended for Houthi forces rather than confirmed battlefield firing.
82 mm M69 mortar, 82 mm smoothbore infantry mortar, ArtilleryArtillery82 mm M69 mortar82 mm smoothbore infantry mortarThe 82 mm M69 is a Yugoslav-designed smoothbore infantry mortar family that remains in Serbian and former Yugoslav production and service channels, with the M69A variant using a four-person crew, NSB-3 sight, and high-angle fire out to roughly 4.9-6.25 km depending on ammunition. Direct open-source documentation links the family to Afghan government losses in 2021, Syrian opposition use near Aleppo, Armenian and Artsakh losses in Nagorno-Karabakh, and Ukrainian wartime receipt of BNT-marked M69A mortars.
Mortar launcher, 60mm, 60 mm light mortar launcher, ArtilleryArtilleryMortar launcher, 60mm60 mm light mortar launcherA 60 mm mortar launcher is a light infantry indirect-fire system built around a smoothbore, muzzle-loaded tube that can be used in conventional bipod-and-baseplate form or, on some modern systems, in reduced handheld or commando configurations. In the 2009 Boko Haram Insurgency, Nigerian reporting has documented 60 mm mortar tubes recovered from ISWAP fighters around Marte, Gajiram, Mandara Mountain, and the Timbuktu Triangle, while Conflict Armament Research has separately documented mortar materiel and captured 60 mm rounds among JAS/Boko Haram and ISWAP-linked seizures around Lake Chad. The recovered launcher models are not publicly identified, so this entry treats the item as a caliber-class system rather than a specific national model.
