1V110 BM-21 Grad battery command vehicle

Also known as
  • 1V110
  • 1V110 Bereza
  • 1V110 Beryoza
  • 1V110 battery command vehicle
  • 1V110 artillery fire-control vehicle
  • 1В110
  • 1В110 Берёза
  • 1В110 «Берёза»
  • 1V110-1
  • 1V17 Mashina-B battery command vehicle

The 1V110 Bereza is the senior battery officer's command vehicle in the Soviet 1V17 Mashina-B artillery fire-control complex, used with towed and rocket-artillery units including BM-21 Grad batteries. Built on a GAZ-66 truck chassis, it carries navigation, communications, meteorological, and fire-control equipment for battery-level coordination; Oryx has documented Russian 1V110 BM-21 Grad battery command vehicles among losses in the 2014 Russia-Ukraine War.

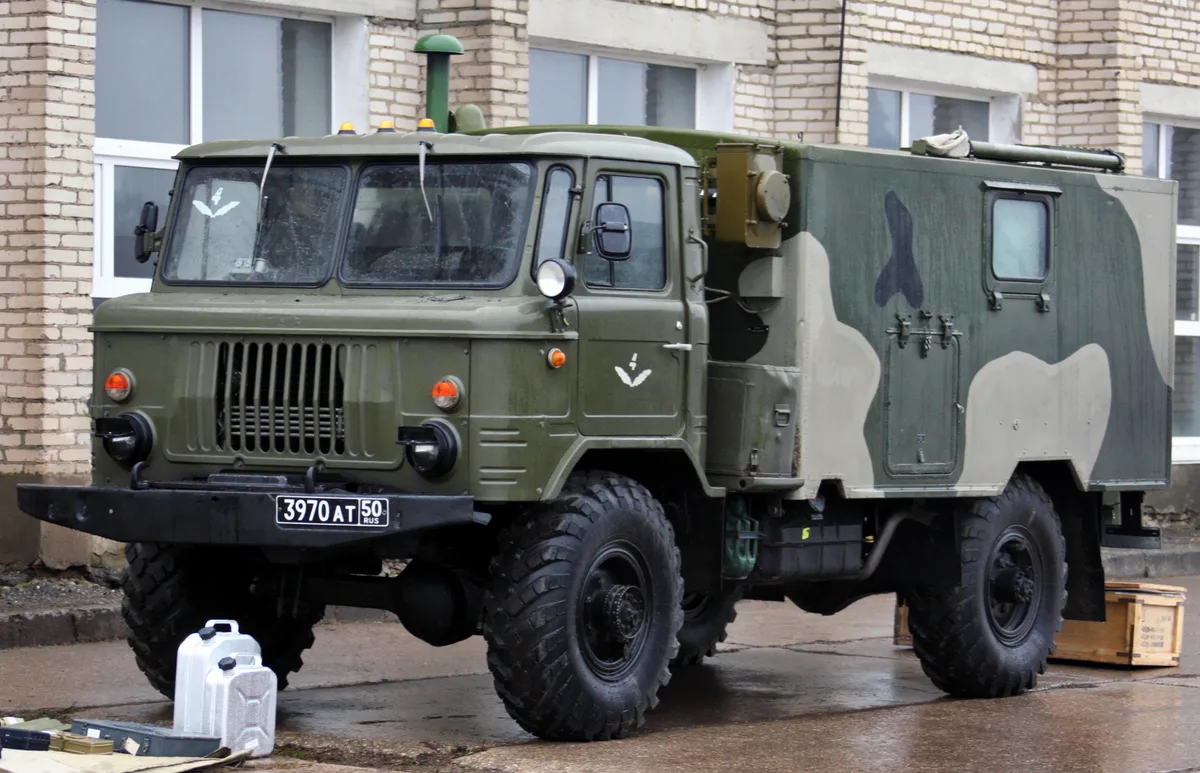

1V110 BM-21 Grad battery command vehicle, Artillery battery command and fire-control vehicle, Support Equipment

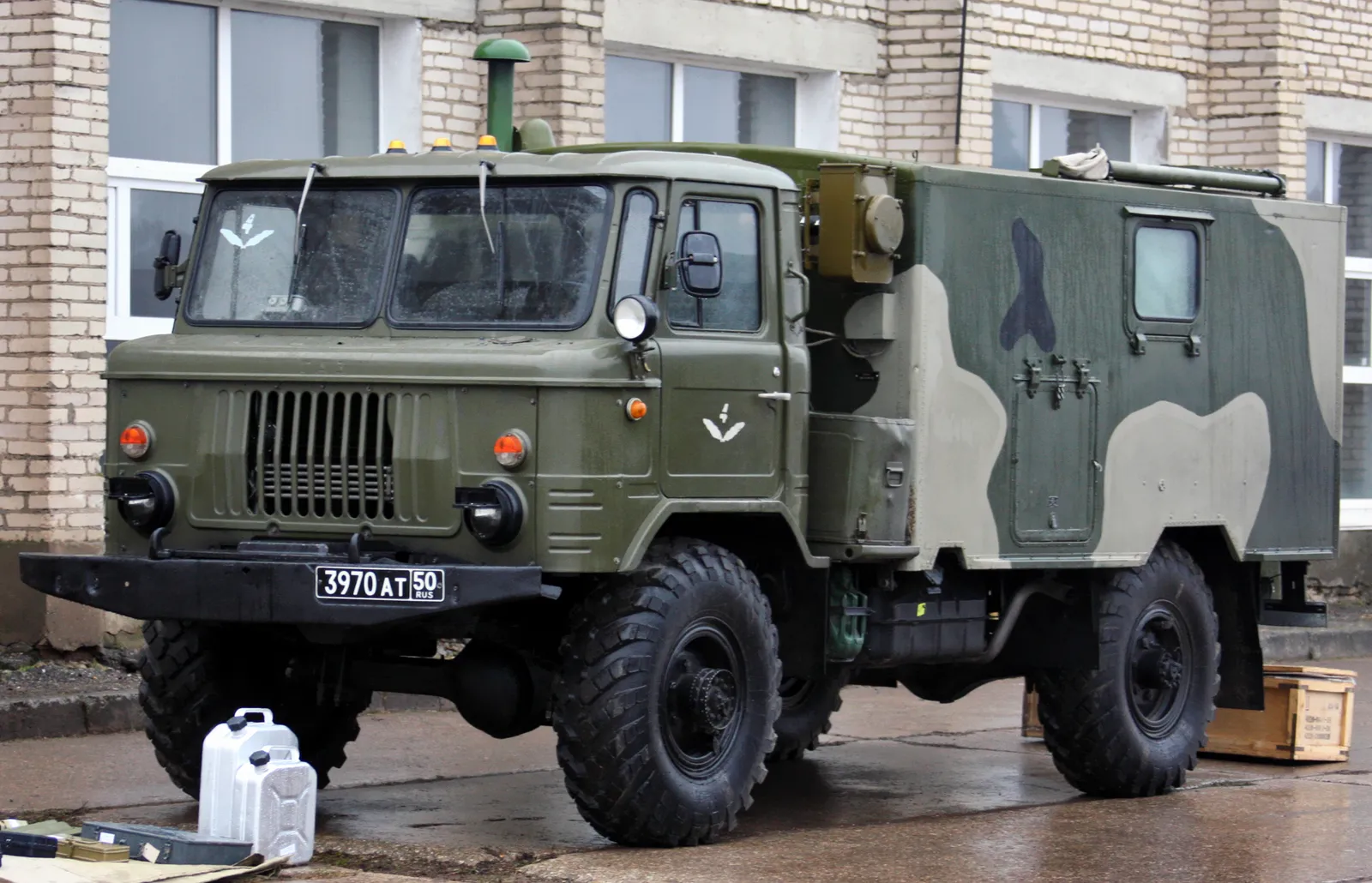

Image source: Wikimedia Commons 1V110 image

Role in Conflicts

2014 Russia-Ukraine War
Targeting SupportCaptured Equipment

Oryx lists two Russian 1V110 BM-21 Grad battery command vehicles in the 2014 Russia-Ukraine War loss record, including one captured and destroyed and another captured. Ukrainian reporting on the first month of the 2022 invasion separately described defenders capturing a 1V110 artillery fire-control vehicle; the sources support battlefield presence and capture/loss status, not confirmed Ukrainian operational reuse.

Role details
Profile / Specs

Profile

Origin
Soviet Union
Type
Artillery battery command and fire-control vehicle
Service note
Cold War artillery fire-control system in modern service
Designer
NPO Signal
Designed
Late 1960s to early 1970s for the 1V17 complex
Produced
In service from the 1970s as part of the 1V17 complex; 1V17-1 modernization accepted in 1984 and later 1V110-1 modernization shown in 2019
Developed from
1V17 Mashina-B automated artillery fire-control complex

Specifications

System role
Senior battery officer command and artillery fire-control vehicle
Complex
1V17 / 1V17-1 / 1V12M Mashina-B automated artillery fire-control complex
Base chassis
GAZ-66 4x4 truck with K66N special body
Combat weight
5.8 t for 1V110 in Armforc technical table
Crew
5
Maximum road speed
90 km/h for 1V110 in Armforc technical table
Operational range
800 km for 1V110 in Armforc technical table; other open references list 500 km
Engine power
115 hp
Navigation readiness
13 minutes reported for navigation equipment readiness
Communications
R-130, R-111, R-123M, R-326, R-193, 1T803M, and TA-57 listed for 1V110 in Armforc table
Supported artillery role
Battery-level fire control for towed and rocket artillery, including Grad battery context in open imagery and loss records
Documented repair context
June 2014 Ukrainian reporting named the 1V17 fire-control vehicle set, including 1V110, in Ministry of Defense repair tenders
Fire-Control Role

The 1V110 sits behind the launchers as a battery command node. Sources describe the 1V17 Mashina-B complex as a system for reconnaissance, topographic and meteorological preparation, and fire control for firing platoons, batteries, and artillery battalions.

Battery function

Coordinates firing-platoon control, battery position data, launcher orientation, firing settings, and command reception from the 1V111 vehicle.

Vehicle base

GAZ-66 truck with a K66N special body for command, communications, and calculation workstations.

System family

Part of the 1V17 Mashina-B automated fire-control complex for towed and rocket artillery.

Repair context

A June 2014 Ukrainian repair-procurement report named the 1V17 set, including 1V110, in the same Shepetivka repair package that also covered BM-21 Grad work.

Variants

Open sources distinguish the original 1V110 Bereza from the later 1V110-1 modernization, while the wider 1V17 complex also includes commander and battalion-level vehicles.

VariantConfigurationDesignation notes
1V110 BerezaOriginal battery senior officer vehicle

The 1V17 Mashina-B complex used three 1V110 vehicles for battery-level fire-control functions alongside 1V18, 1V111, and 1V19 vehicles.

Sources: Armforc 1V17 Mashina-B, Military History Journal artillery control automation

1V110-1Modernized battery command vehicle

Russian reference material describes a 1V110-1 modernization presented in 2019 with updated command and fire-control equipment on a GAZ-66B-family chassis.

Sources: Russian Arms 1V110, Russian Wikipedia 1V110

Rocket-Artillery Battery Supported

The 1V110 is a command and fire-control vehicle rather than a launcher. Its role is tied to battery-level coordination for the 1V17 Mashina-B system and to BM-21 Grad battery command in available imagery and loss records.

Compatible itemItem typeCompatibility evidence
BM-21 Grad, 122 mm multiple rocket launcher, ArtilleryBM-21 Grad122 mm multiple rocket launcher

Oryx identifies the Ukraine-loss examples as 1V110 BM-21 Grad battery command vehicles, and Wikimedia Commons imagery identifies a 1V110 within a BM-21 Grad battery training context.

Sources: Oryx Russian equipment losses, Wikimedia Commons BM-21 battery image

Timeline

1V110 BM-21 Grad battery command vehicle Key Events

  1. 1V17 complex enters service

    Russian reference material says the 1V17 Mashina-B fire-control complex was accepted into service in 1973 after development by NPO Signal.

    Sources: Armforc 1V17 Mashina-B, Russian Wikipedia 1V110

  2. 1V17-1 modernization accepted

    The Russian Military History Journal describes the 1V17-1 Mashina-B as the modernized towed-artillery counterpart to 1V12M Falset, accepted into service in 1984 and serially produced from the mid-1980s into the early 1990s.

    Sources: Military History Journal artillery control automation

  3. Training imagery shows BM-21 battery context

    A Wikimedia Commons image caption identifies a 1V110 from the artillery battalion of a BM-21 Grad battery during 4th Guards Tank Division training.

    Sources: Wikimedia Commons BM-21 battery image

  4. Ukrainian repair tender names the 1V17 set

    Ukrainian reporting on Ministry of Defense repair tenders named the 1V17 fire-control vehicle set, including 1V110, alongside BM-21 Grad repair work assigned to Shepetivka Repair Plant.

    Sources: iPress Ukrainian Grad repair tenders

  5. 1V110-1 modernization displayed

    Russian reference material describes a modernized 1V110-1 battery senior officer vehicle shown during a Missile Troops and Artillery Day event near Luga.

    Sources: Russian Wikipedia 1V110

  6. Russian losses documented in Ukraine

    Oryx's Russian equipment-loss list for the full-scale invasion records two 1V110 BM-21 Grad battery command vehicles as captured or captured and later destroyed; Ukrainian local reporting separately described defenders capturing a 1V110 artillery fire-control vehicle in the first month of the invasion.

    Sources: Oryx Russian equipment losses, Cheline Burkovskyi capture report

Media

1V110 BM-21 Grad battery command vehicle Images

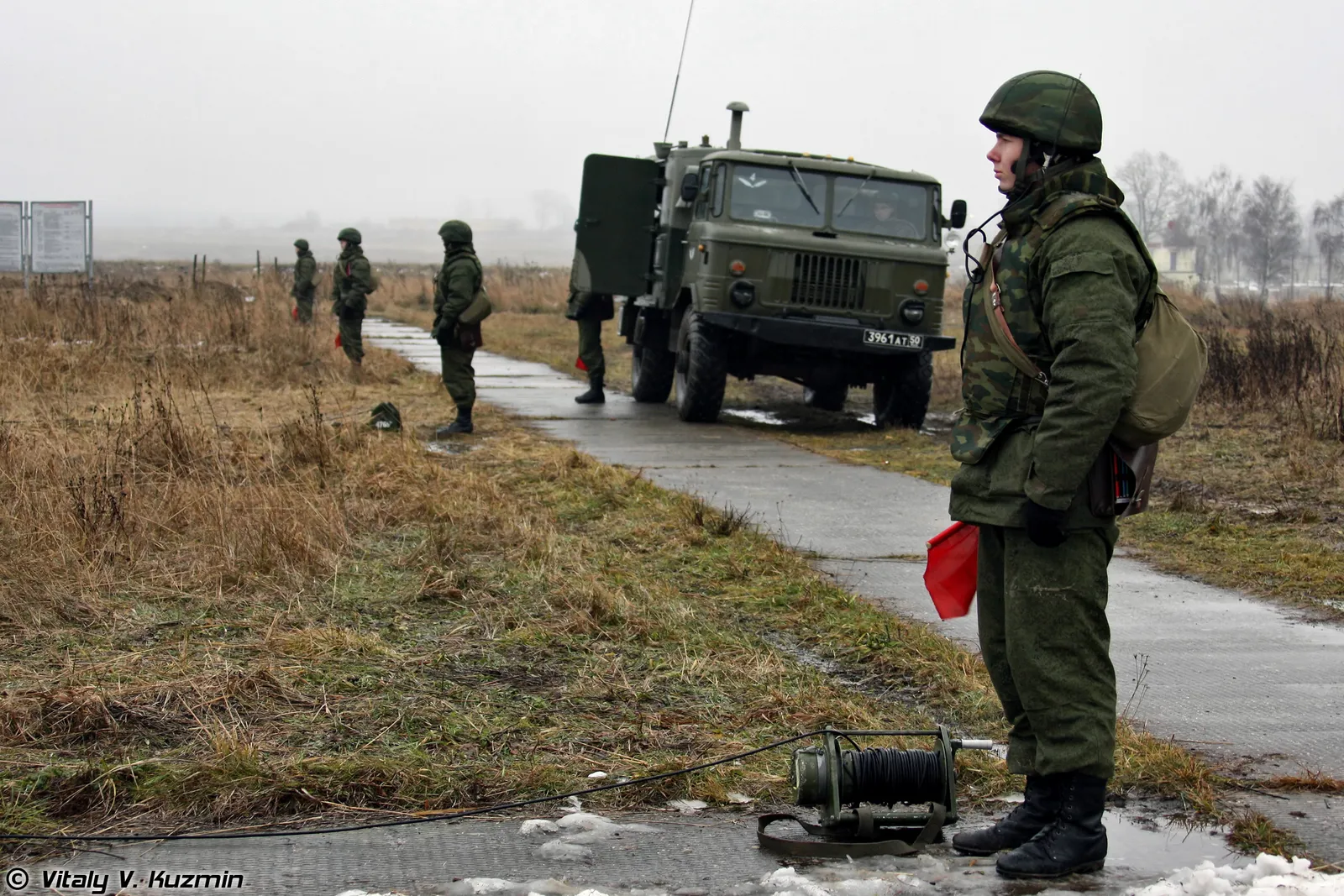

1V110 BM-21 Grad battery command vehicle, Artillery battery command and fire-control vehicle, Support Equipment - view 1
