Vulcain class

Also known as
  • Vulcain-class minesweeper
  • Vulcain-class diving tender
  • Bâtiment-base de plongeurs démineurs
  • BBPD
  • Vulcain M611
  • Pluton M622
  • Achéron A613
  • Styx M614

The Vulcain class is a four-ship French Navy bâtiment-base de plongeurs démineurs class built to support clearance-diver groups during mine-countermeasure, port-security, and underwater explosive-ordnance work. The class remains listed in French Navy service across Cherbourg, Toulon, and Brest, and Pluton is directly documented with French mine-clearance forces off Kuwait during the 1990 Gulf War.

Vulcain class, Clearance-diver support vessel (BBPD), Naval Systems

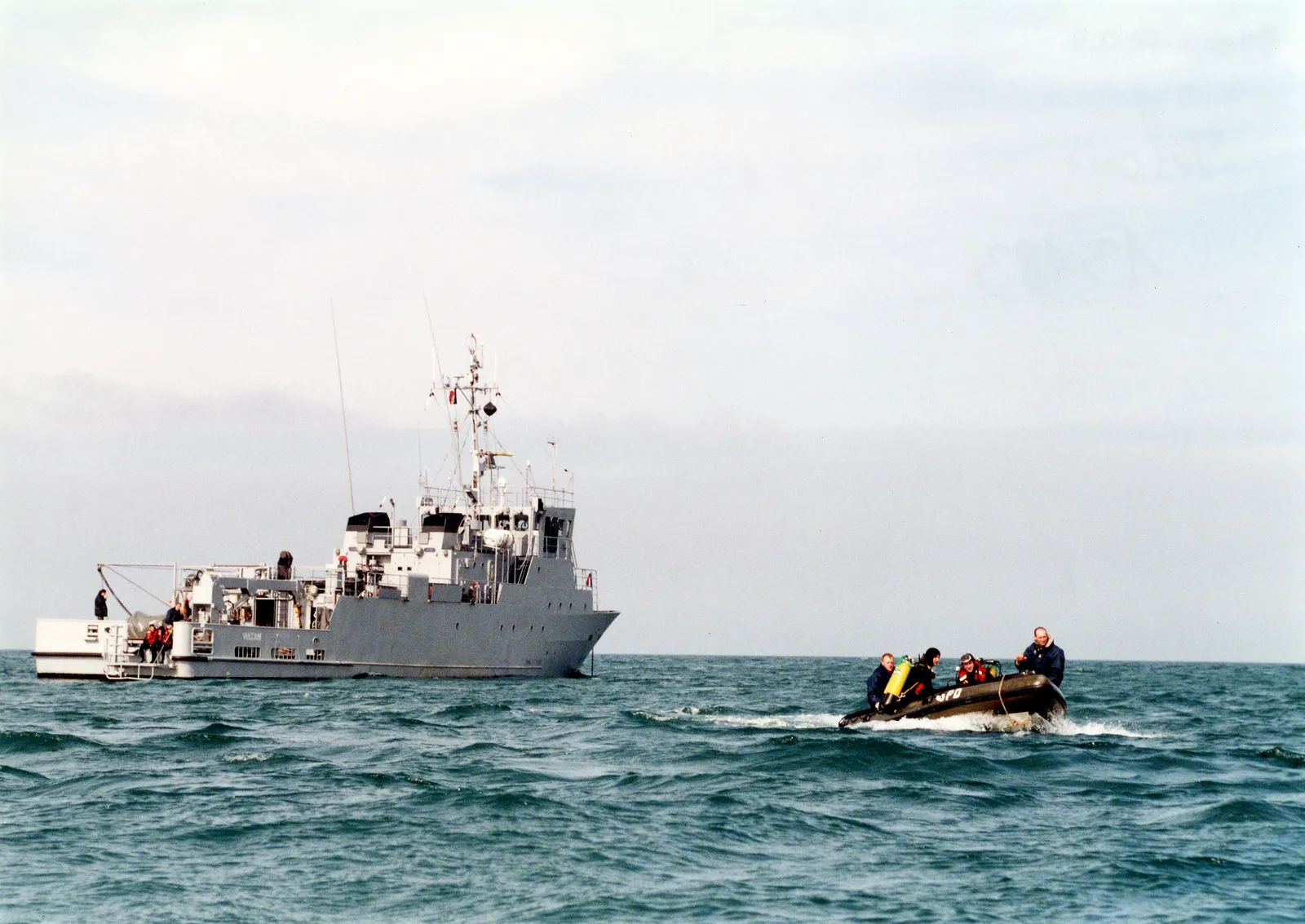

Image source: Batiment Vulcain.jpg

Role in Conflicts

Profile / Specs

Specifications

Displacement
409 tonnes
Length
41.6 m
Beam
7.5 m
Draught
3.2 m
Speed
13.5 knots
Range
7,400 nmi at 9 knots; 2,850 nmi at 13.5 knots
Mission equipment
Multiplace hyperbaric chamber, support equipment for clearance-diver detachments, and small-boat handling equipment
Diver capacity
Supports up to 15 divers on inflatables abaft the funnels
Complement
1 officer, 10 petty officers, plus quartermasters and sailors
Armament
2 AA-52 or AANF1 7.62 mm machine guns
Class Ships and Mission Context

French Navy sources identify the Vulcain class as four BBPD support ships assigned to the surface force's mine-warfare and clearance-diver mission. The ships provide a working base for diver detachments rather than acting as minehunters themselves.

ShipPennantBase or role context
VulcainM 611Listed at Cherbourg; supports the GPD Manche mission set.
AchéronA 613Listed at Toulon; French Navy reporting places it with Mediterranean BBPD operations and diving-support activity.
StyxM 614Listed at Brest; used by the GPD Atlantique with clearance-diver detachments and underwater vehicle support.
PlutonM 622Listed at Toulon; directly documented in the 1991 Kuwaiti-coast mine-clearance campaign.

The French Navy describes GPD units as operating in mine warfare, port demining, maritime approach security, and explosive-ordnance neutralization, with BBPD ships carrying the chamber and support equipment needed for those diver tasks.

Timeline

Vulcain class Key Events

  1. Keel laid

    The lead ship Vulcain was laid down at Chantiers et ateliers de la Perrière in Lorient.

    Sources: Category:Vulcain (ship, 1986)

  2. Launched

    Vulcain was launched in January 1986, beginning the class's French Navy service life.

    Sources: Category:Vulcain (ship, 1986)

  3. Commissioned

    The lead ship entered service later in 1986, with the class remaining in French use as BBPD support ships.

    Sources: Groupe de plongeurs-démineurs, Liste des navires de la Marine nationale

  4. Pluton enters service

    French Navy service information lists Pluton as admitted to active service in December 1986.

    Sources: Groupe de plongeurs-démineurs

  5. Four-ship class completed

    Styx entered active service in July 1987, completing the four-ship Vulcain class alongside Vulcain, Pluton, and Achéron.

    Sources: Groupe de plongeurs-démineurs

  6. French mine-clearance campaign off Kuwait

    French mine-warfare forces joined clearance operations off the Kuwaiti coast, with Pluton named among the French reinforcements to the mine-clearing force.

    Sources: La marine nationale et la guerre du Golfe, The French Naval Campaign off the Kuwaiti Coasts

  7. Four BBPD deployed during June operations

    The French Navy reported all four BBPD active during simultaneous deployments covering the Mediterranean, Baltic, and Channel-North Sea areas.

    Sources: Un mois de juin riche en opérations pour les quatre BBPD de la Marine nationale

Media

Vulcain class Videos

Vulcain class Images

Vulcain class, Clearance-diver support vessel (BBPD), Naval Systems - view 1

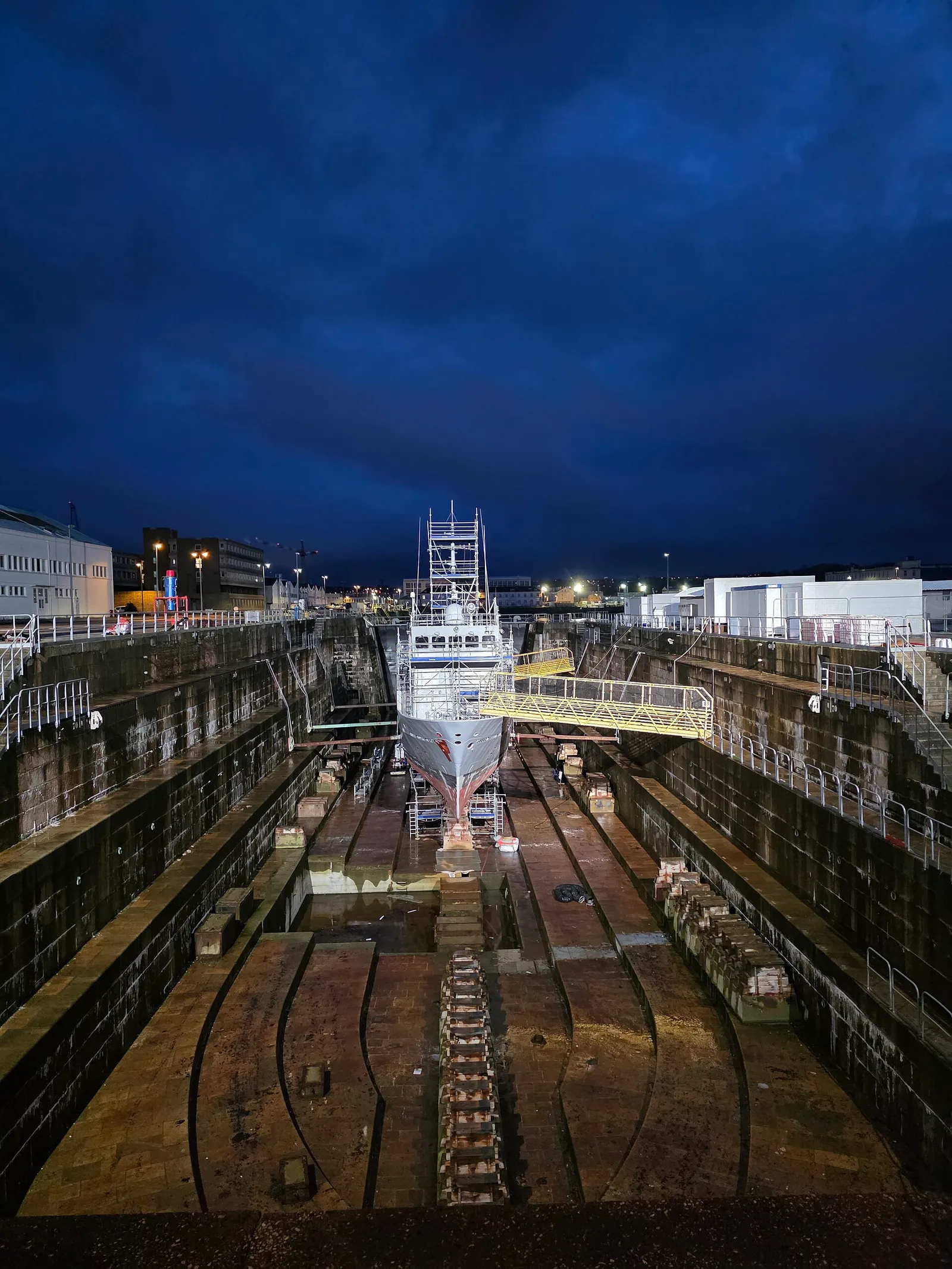

Source: M611 Vulcain in drydock.jpg
Vulcain class, Clearance-diver support vessel (BBPD), Naval Systems - view 2

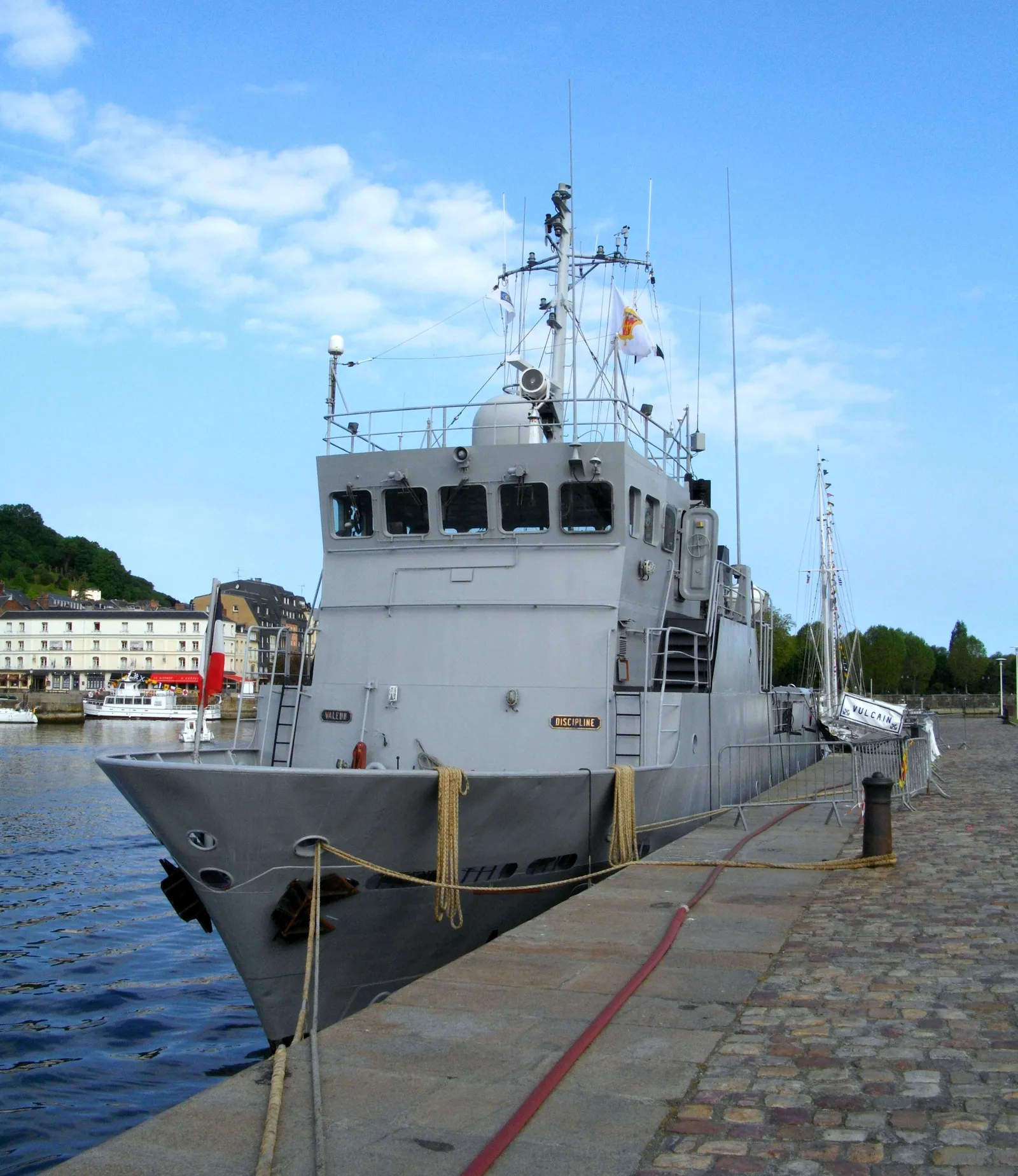

Source: VulcainM611b.JPG
