Infantry Weapons

Type 56-1 assault rifle

Also known as
  • Chinese Type 56-1
  • NORINCO Type 56-1
  • Type 56-1 rifle
  • Type 56-1 AK

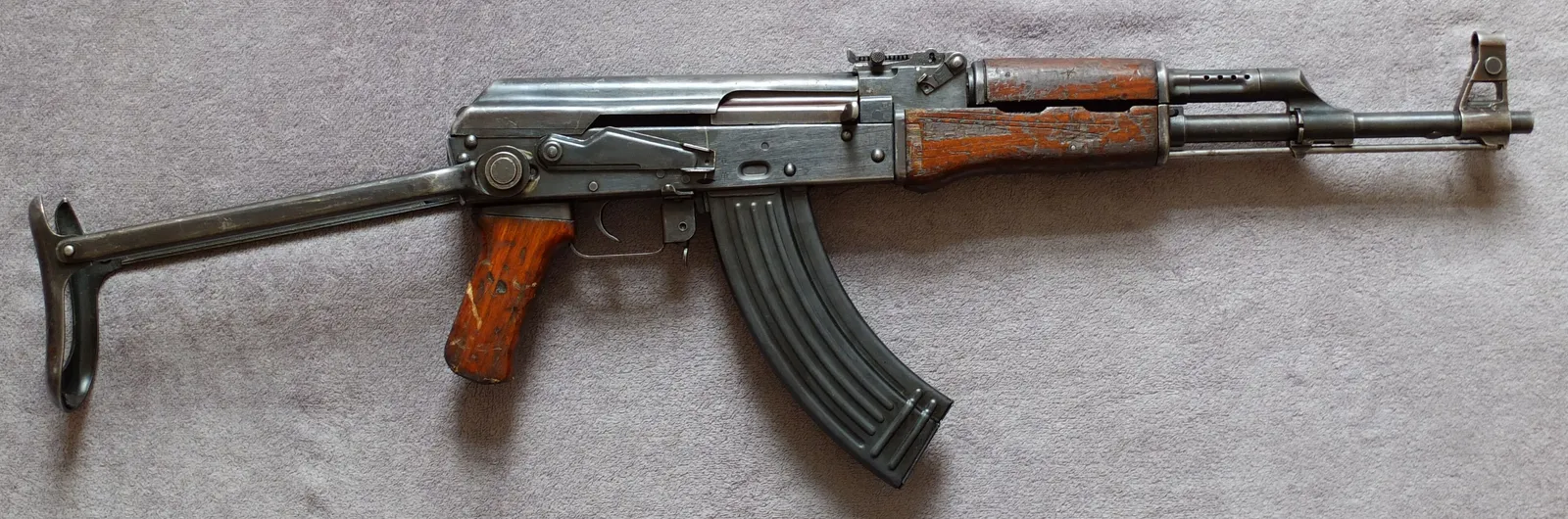

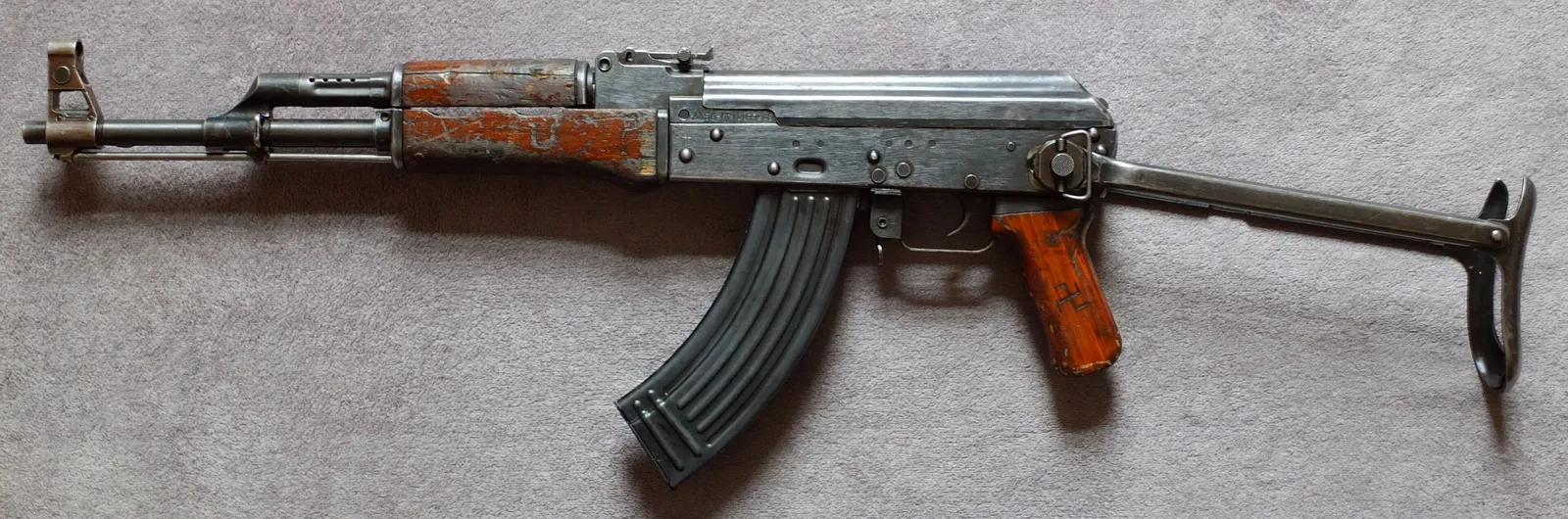

The Type 56-1 is the under-folding-stock member of China's Type 56 Kalashnikov-pattern rifle family, chambered for 7.62x39mm ammunition and built for compact carriage by infantry and irregular forces. Modern Firearms and museum records identify it as a Chinese Type 56-family rifle made by state arms factories and NORINCO, while field and interdiction reporting links Type 56-1 rifles to Boko Haram seizures in Niger and Iran-backed supply channels for Houthi-aligned forces in Yemen.

Role in Conflicts

Role in conflict
Insurgent small-arms rifle

Nigerien forces documented Chinese Type 56 and Type 56-1 assault rifles among weapons seized from Boko Haram members in the Diffa region between 2015 and 2016, supporting insurgent possession and small-arms use during the conflict.

Profile / Specs

Profile

Origin
China
Type
7.62x39mm under-folding-stock assault rifle
Service note
Cold War design still circulating in recent conflicts
Designer
Chinese Kalashnikov design lineage
Designed
Type 56 family adopted in 1956; Type 56-1 under-folding variant followed within the Type 56 family
Produced
1956-present for Type 56-family production and export variants
Number built
Millions across the Type 56 family; Type 56-1-specific totals are not consistently published

Specifications

Caliber
7.62x39mm
Operation
Gas-operated, rotating bolt, selective fire
Overall length
874 mm
Folded length
About 630 mm on the Imperial War Museums Type 56-1 example
Barrel length
414 mm
Weight
About 3.8 kg
Magazine
30-round detachable box magazine
Rate of fire
About 650 rounds per minute
Stock
Under-folding metal stock on the Type 56-1 variant
Variants
  • Type 56
  • Type 56-1
  • Type 56-2
  • Type 56C
Ammunition Fired

The Type 56-1 is documented as a Type 56-family Kalashnikov-pattern rifle chambered for 7.62x39mm ammunition.

AmmunitionAmmunition typeFiring evidence
7.62x39mm cartridge, Intermediate rifle cartridge, Munitions7.62x39mm cartridgeIntermediate rifle cartridge

Modern Firearms lists the Type 56 family as chambered for Soviet 7.62x39 ammunition, and Small Arms Survey identifies the Type 56-1 as a close AKM derivative in 7.62 x 39 mm M1943.

Sources: Type 56, Kalashnikov AKM (& close derivatives)

Timeline

Type 56-1 assault rifle Key Events

  1. Type 56 family adopted

    China adopted the Type 56 Kalashnikov-pattern rifle family in 1956 alongside the Type 56 SKS, both chambered for Soviet 7.62x39mm ammunition.

    Sources: Type 56

  2. Front-line PLA replacement begins

    The PLA adopted the Type 81 in the early 1980s, gradually replacing Type 56 rifles in front-line service while Type 56 export production continued.

    Sources: Type 56

  3. Boko Haram seizures in Niger

    Small Arms Survey documented Chinese Type 56 and Type 56-1 assault rifles among weapons seized from Boko Haram members in Niger's Diffa region.

    Sources: At the Crossroads of Sahelian Conflicts

  4. Sana'a storehouse documentation

    GI-TOC documented Type 56-1 rifles in a Sana'a storehouse and linked their markings to Yemen and Somalia trafficking traces.

    Sources: Iranian weapons supplied to the Houthis may end up in Somalia

  5. North Arabian Sea interdiction

    U.S. forces seized about 1,400 assault rifles and 226,600 rounds from a stateless fishing vessel on a route assessed as historically used to traffic weapons to the Houthis in Yemen; GI-TOC assessed the rifles as seemingly Type 56-1s.

    Sources: U.S. Navy Seizes 1,400 Assault Rifles During Illicit Weapons Interdiction, Maritime interdiction of over a thousand assault rifles en route to Yemen

Media
Related Weapon Systems
Type 56 assault rifle, 7.62x39mm Kalashnikov-pattern assault rifle, Infantry WeaponsInfantry WeaponsType 56 assault rifle7.62x39mm Kalashnikov-pattern assault rifleThe Type 56 is China's 7.62x39mm Kalashnikov-pattern assault rifle family, adopted in 1956, built in very large numbers, and exported widely through state, surplus, and illicit channels. Its early rifles followed the Soviet AK-47 with milled receivers, later production used AKM-style stamped receivers under the same designation, and many examples are recognizable by a permanently attached folding spike bayonet. In the 2009 Boko Haram Insurgency, Small Arms Survey and Stimson reporting link Chinese Type 56 rifles to weapons seized from Boko Haram members and to materiel captured during the 2016 Bosso camp attack in Niger.
AKM, 7.62x39mm assault rifle, Infantry WeaponsInfantry WeaponsAKM7.62x39mm assault rifleThe AKM is the stamped-receiver modernization of the Soviet Kalashnikov assault rifle, chambered for 7.62x39mm and built around a long-stroke gas piston and rotating bolt. Adopted in 1959, it reduced production burden compared with earlier milled-receiver AK rifles and became a widely licensed baseline for later 7.62mm Kalashnikov-pattern weapons. CAR and ARES field documentation continues to place AKM and AKM-pattern rifles in modern conflict stocks, from Islamic State recoveries in Iraq and Syria to Taliban captures in Afghanistan.
AK-47/AKM rifle family, Selective-fire assault rifle family, Infantry WeaponsInfantry WeaponsAK-47/AKM rifle familySelective-fire assault rifle familyAK-47/AKM-family rifles are Kalashnikov-pattern small arms derived from the Soviet AK-47 and 1959 AKM modernization, usually chambered in 7.62 x 39 mm. In the post-2015 catalog they appear with FARC dissidents in Colombia, gangs in Haiti, PKK fighters, GNA scouts in Libya, insurgents in Mali, Islamic State forces in Iraq and Syria, militants in Sinai, RSF units in Sudan, Hamas fighters in Gaza, Taliban fighters in Afghanistan, Boko Haram-linked militants in the Lake Chad basin, and Houthi-linked supply chains in Yemen.
AKMS, Folding-stock 7.62x39mm assault rifle, Infantry WeaponsInfantry WeaponsAKMSFolding-stock 7.62x39mm assault rifleThe AKMS is the under-folding-stock member of the Soviet AKM assault-rifle family, retaining the stamped receiver, long-stroke gas system, select-fire controls, and 7.62x39mm chambering while shortening the rifle for airborne troops, vehicle crews, and compact carry. Conflict Armament Research and ARES documentation places AKMS-family rifles in Islamic State stocks around Kobane and in a 2022 Ukrainian police seizure from an alleged Russian saboteur, showing how older Kalashnikov-pattern rifles remain visible in modern war.
Type 63 107 mm multiple rocket launcher, Towed 107 mm multiple rocket launcher, ArtilleryArtilleryType 63 107 mm multiple rocket launcherTowed 107 mm multiple rocket launcherThe Type 63 is a Chinese 12-tube 107 mm multiple rocket launcher designed for simple short-range area fire from a light split-trail carriage, truck mount, or derivative launcher. Developed by State Factory 847 and introduced with the PLA in 1963, the system became widely exported and copied; source-backed conflict records now show Taliban Type 63-family launcher use in Afghanistan, Boko Haram capture of a launcher in Niger, Russian Type-63 systems in Ukraine, and Houthi-aligned stocks in Yemen.
