Serna-class landing craft (Project 11770)

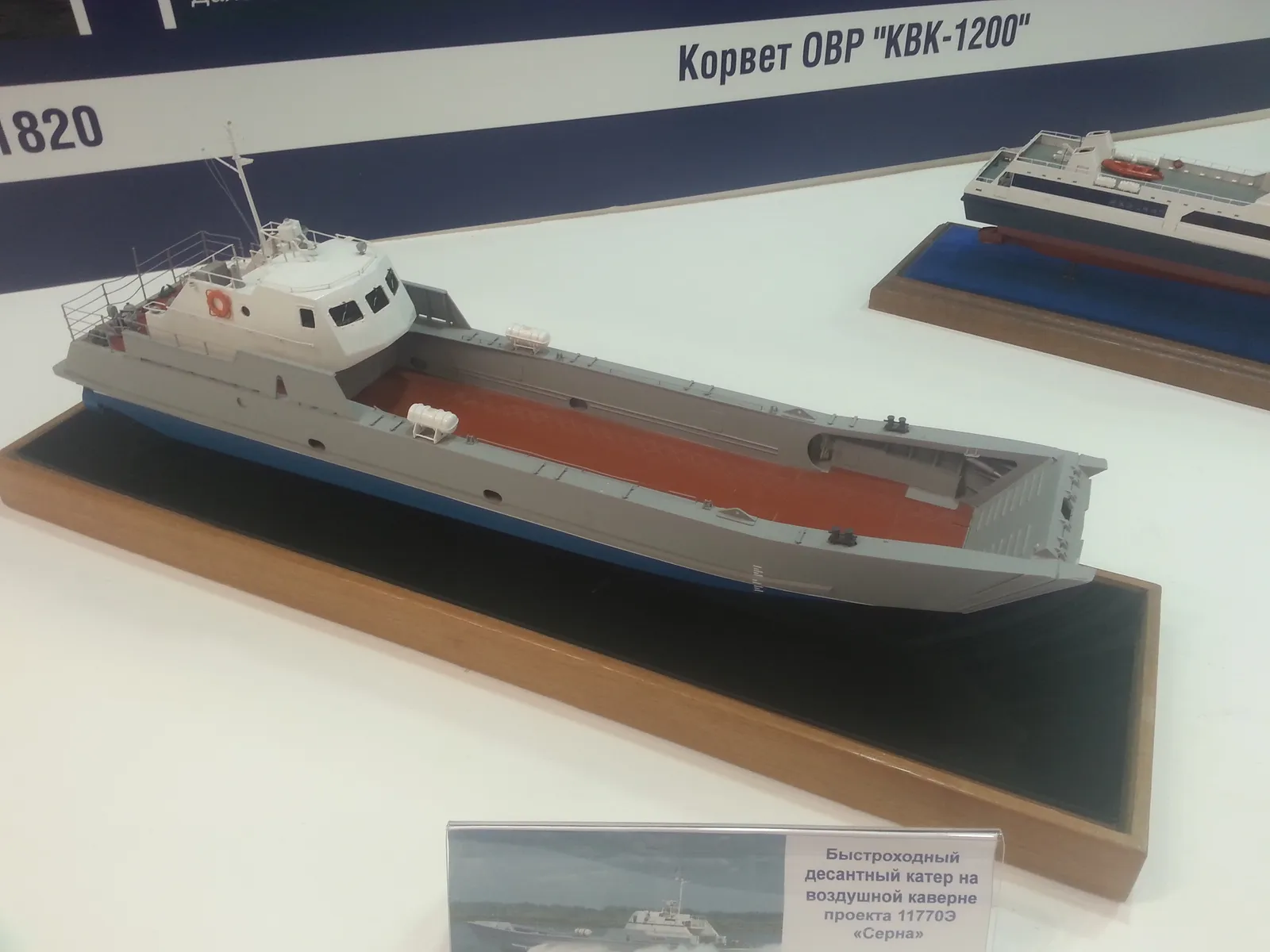

The Serna-class landing craft, Russian Project 11770, is an air-cavity fast landing craft built for the Russian Navy to move vehicles, cargo, and assault troops directly onto an unimproved shore. Vostochnaya Verf built the class in Russia, and open sources describe a 30-knot craft that can carry one tank, two BTRs, or 92 troops.

Profile

Origin
Russia
Built by
Vostochnaya Verf
Type
Air-cavity fast landing craft
Service note
1994-present
Produced
1994-2014
Number built
12 domestic boats; 4 export Project 11771 boats
Variants
Project 11771 export variant

Also Known As

  • Project 11770
  • Project 11770 Serna
  • Serna
  • Serna class
  • Serna-class landing craft
  • Project 11770 air-cavity landing craft

Specifications

Displacement
61 tons standard; 99.7 tons full load
Length
25.65 m
Beam
5.66 m
Draft
1.52 m
Speed
30-35 knots
Range
600 nmi at 12 knots; 100 nmi at 30 knots
Capacity
1 main battle tank or 2 BTRs or 92 troops or 50 tons of cargo
Crew
5
Propulsion
2 × MTU16V2000M90 diesels and 2 × DG-16/1500 diesel generators

Service And Conflict Use

Service History

In service
In Russian Navy service since the 1990s; individual hulls continued entering service through 2014.
Used by
Russian Navy
Wars
Russia-Ukraine War

Conflict Usage

Russian Project 11770 Serna-class landing craft were used around Snake Island and occupied Crimea for landing, resupply, and movement of equipment. Ukrainian Bayraktar TB2 drones struck a Serna-class craft near Snake Island in May 2022, and Ukrainian naval drones later attacked Serna/Ondatra-type landing craft at Vuzka Bay in occupied Crimea in November 2023.

Timeline

Serna-class landing craft (Project 11770) Key Events

  1. D-199 enters service

    KCHF lists the Project 11770 air-cavity fast landing craft D-199 as launched in 2012 and commissioned in 2014, showing how late-built hulls still entered Russian service after the class's initial 1990s run.

    Sources: KCHF Project 11770 Serna class

  2. Snake Island craft hit by TB2

    Naval News reported that a Bayraktar TB2 strike targeted a Serna-class landing craft berthed at Snake Island and that the craft carried a Tor air-defense system.

    Sources: Naval News TB2 strike on Serna

  3. Occupied Crimea attack damages two craft

    Defense Express reported that two Project 11770 Serna-class landing craft carrying crew and armored vehicles, including BTR-82 APCs, were damaged in occupied Crimea.

    Sources: Defense Express Crimea landing ships
