Project 1234 Ovod / Nanuchka-class missile corvette

Project 1234 Ovod / Nanuchka-class missile corvette is a Soviet-designed guided-missile corvette family built by Almaz and Vympel shipyards for Soviet and export customers. The class centered on P-120 Malakhit anti-ship missiles in Soviet service, used export P-15 Termit missiles, and later Nanuchka III refits added Kh-35 or Uran anti-ship missiles and stronger point defense.

Profile

Origin
Soviet Union
Built by
Almaz ShipyardVympel Shipyard
Type
Guided missile corvette family
Service note
1969-present
Produced
1967-1991
Number built
35 original Soviet ships, plus export derivatives for India, Algeria, and Libya
Variants
Project 1234 (Nanuchka I), Project 1234E (Nanuchka II), Project 12341 (Nanuchka III), Project 12347 (Nanuchka IV)

Also Known As

  • Project 1234
  • Project 1234 Ovod
  • Nanuchka
  • Nanuchka-class corvette

Specifications

Displacement
560 long tons standard; 660 long tons full load
Length
59.3 m
Beam
12.6 m
Draft
2.7 m
Crew
60
Propulsion
Three-shaft diesel plant, 30,000 hp
Speed
32 knots
Range
2,500 nmi at 12 knots; 900 nmi at 30 knots
Armament
6 x P-120 Malakhit or 4 x P-15 Termit anti-ship missiles; 20 x SA-N-4 SAMs; twin 57 mm AK-257 on Nanuchka I, 76 mm AK-176 and 30 mm AK-630 on Nanuchka III

Class Variants

The Project 1234 family split into Soviet and export branches, then into later refits with different missiles and gun fits.

VariantKey fitNotes
Project 1234 / Nanuchka IP-120 Malakhit anti-ship missilesBaseline Soviet service variant with the original missile-heavy coastal strike layout.
Project 1234E / Nanuchka IIP-15 Termit export fitExport derivative built for customers including Libya, India, and Algeria.
Project 12341 / Nanuchka IIIKh-35 / Uran modernization and stronger point defenseLater Russian refits added updated missiles and improved gun and fire-control equipment.

Service And Conflict Use

Service History

In service
Entered Soviet Navy service in 1970. Export hulls went to India, Algeria, and Libya, while Russian Nanuchka III boats remained active into the 2020s after later missile and fire-control refits.
Used by
Soviet Navy, Russian Navy, Algerian National Navy, Indian Navy, Libyan Navy

Conflict Usage

Side
🏳️Unspecified

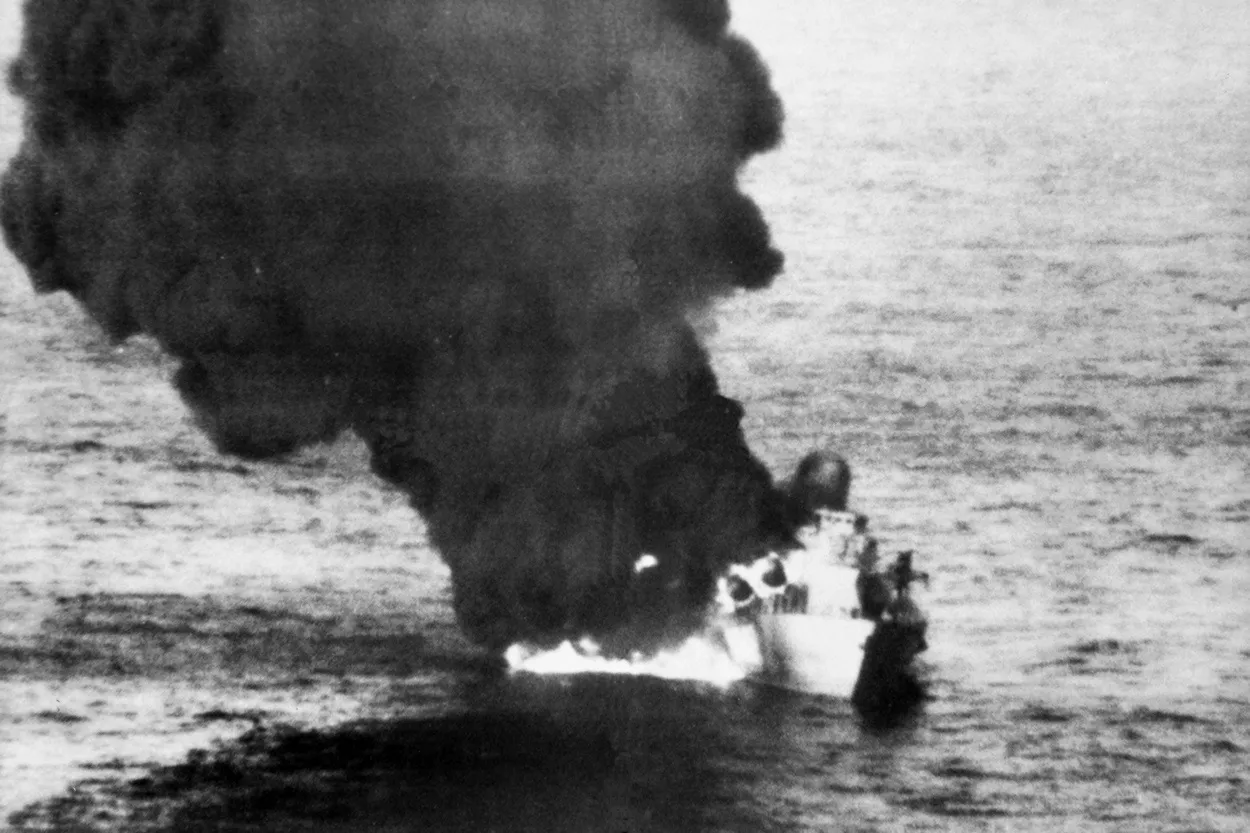

Export Nanuchka II vessels in Libyan service were reportedly damaged or destroyed in separate 1986, 2011, and 2014 incidents.

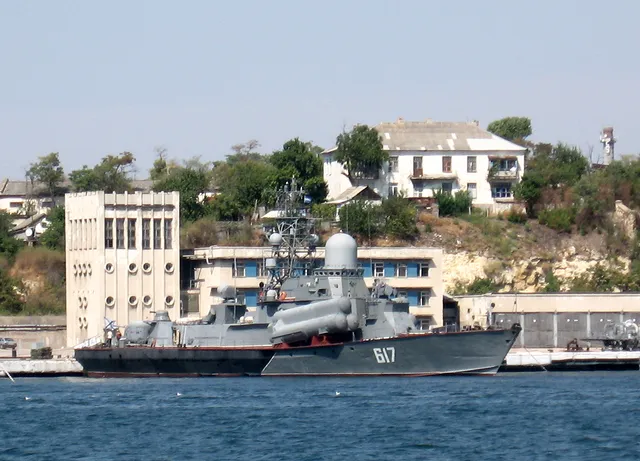

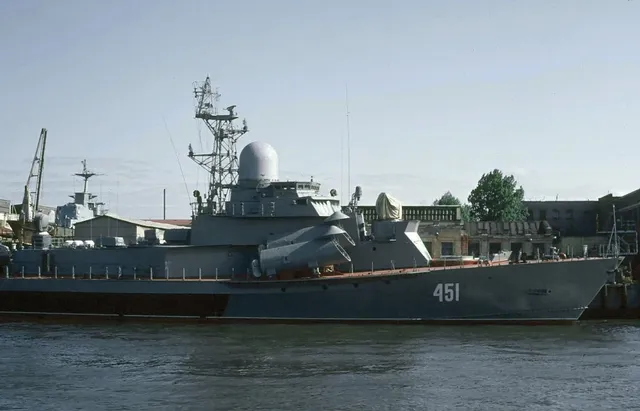

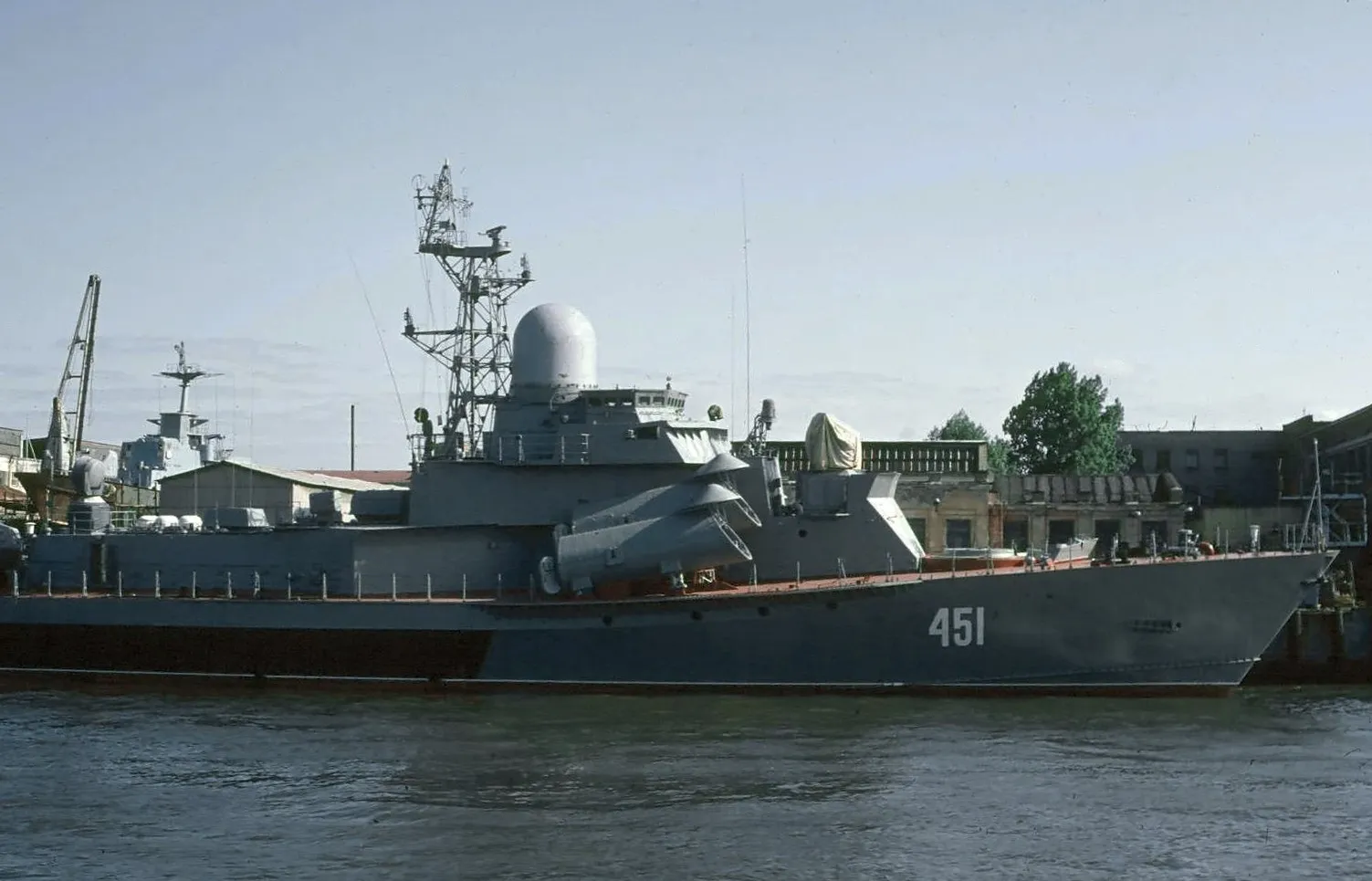

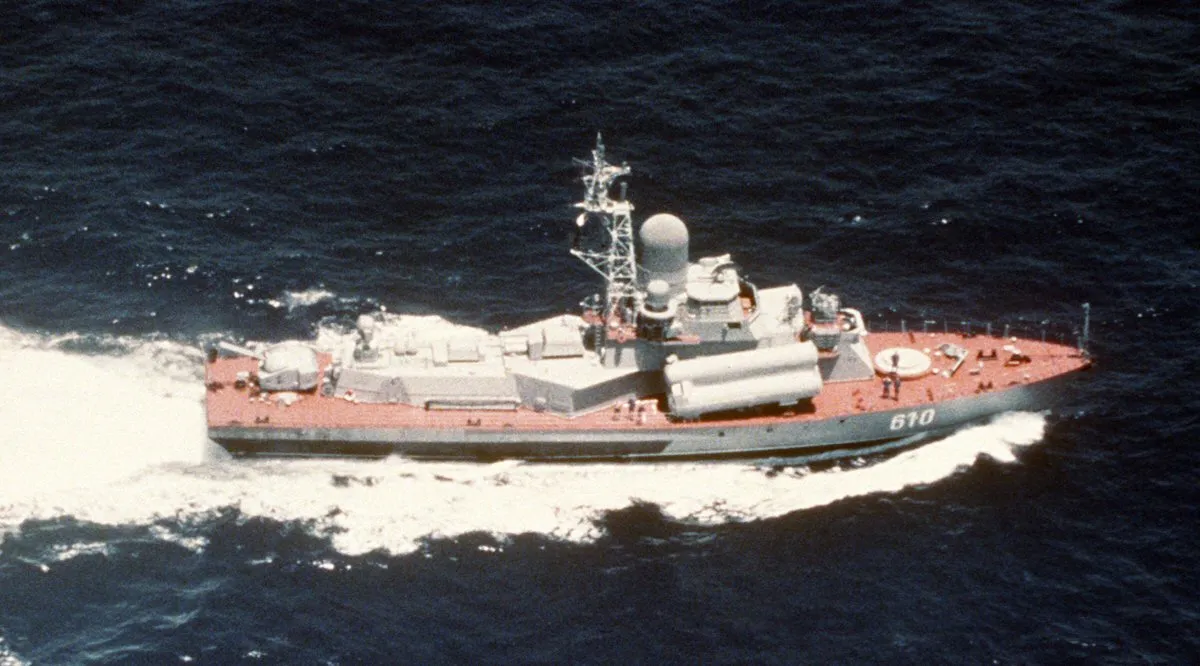

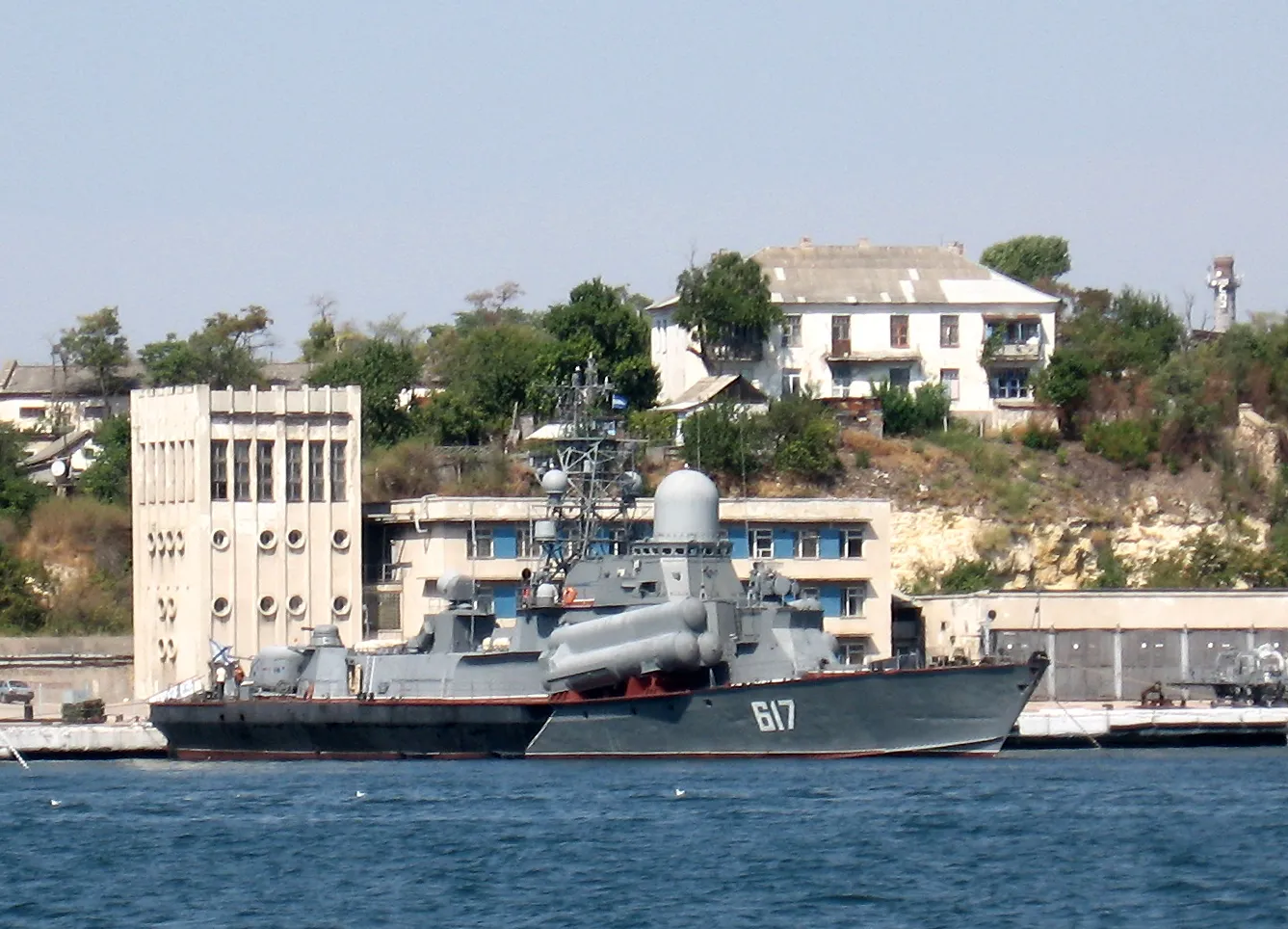

Project 1234 Ovod / Nanuchka-class missile corvette Images
