The Italian Navy records Bersagliere in the NATO Unified Protector force during the 2011 Libyan crisis and lists the ship's armament as one OTO Melara 127/54; the source supports fielding aboard the naval force, not documented combat firing.
Naval Systems
OTO Melara 127/54 Compact naval gun
Also known as
- Otobreda 127/54 Compact
- OTO Melara 127/54 Compact
- 127/54 Compact
- 127/54C
- 127 mm/54 Compact
- 5 inch Compact naval gun
The OTO Melara 127/54 Compact is an Italian 127 mm automatic naval gun mount for frigates and destroyers, using a water-cooled 54-caliber barrel, automatic ammunition handling, and 66 ready-use rounds in three selectable drums. It served across Italian and export surface combatants and later formed part of Leonardo's Vulcano V-kit upgrade path for ships retaining the previous 127/54 C gun.
Role in Conflicts
Profile / Specs
Profile
- Origin
- Italy
- Built by
- OTO MelaraLeonardo
- Type
- 127 mm automatic naval gun mount
- Service note
- 1968-present service in naval inventories
- Designer
- OTO Melara
- Designed
- About 1965
- Produced
- 1968 service entry for the Compact mount; later Vulcano V-kit upgrade work documented in 2014
Specifications
- Caliber
- 127 mm / 5 inch, 54-caliber barrel
- Role
- Automatic dual-purpose naval gun mount for frigates and destroyers
- Barrel length
- 270.0 in / 6.858 m bore length
- Mount weight
- 37,500 kg without ammunition
- Elevation
- -15 to +83 degrees
- Rate of fire
- 40 rounds per minute for Compact and LW mountings
- Ready ammunition
- 66 ready-use rounds in three drums for the Compact mount
- Magazine
- About 500 to 600 rounds per gun
- Ammunition
- USN standard 5 inch/54 semi-fixed ammunition; 127 Vulcano BER fired in documented 127/54 C V-kit trials
- Muzzle velocity
- 2,650 ft/s / 808 m/s for Mark 80 ammunition
- Range
- 23,000 m maximum in SeaForces technical summary; Leonardo reported more than 38 km with Vulcano BER in a range-limited 2014 V-kit trial
- Mounting features
- Water-cooled barrel, automated hoists, selectable ammunition drums, and central-console control
Variants
The 127/54 Compact and 127/54 LW are earlier 54-caliber members of the OTO Melara 127 mm naval-gun family, distinct from the later 127/64 LW Vulcano system.
| Variant | Configuration | Designation notes |
|---|---|---|
| 127/54 Compact | Frigate and destroyer automatic gun mount | NavWeaps lists the Compact with a 1968 in-service date, while SeaForces summarizes the later shipboard fit as a 37,500 kg mount with 66 ready rounds in three loader drums. Sources: NavWeaps: Italy 127 mm/54 Compact and LW, SeaForces: Oto Melara Breda 127/54C Gun |
| 127/54 LW | Lightweight 54-caliber mounting | NavWeaps treats the LW as a simpler 127/54 mounting for smaller ships, with selectable dual feed and modular magazines. |
| 127/54 C with Vulcano V-kit | Upgrade path for Vulcano ammunition trials | Leonardo described 2014 Italian Navy trials using a 127/54 C gun equipped with a Vulcano V-kit on the frigate Bersagliere; the trial fired 127 Vulcano BER rounds and framed GLR/GLR-SAL as the guided follow-on family. Sources: Leonardo: Firing Trials of 127/54 Compact with Vulcano Kit |
127 mm Naval Gun Family
The older 127/54 Compact is linked to the cataloged 127/64 LW and Vulcano ammunition records through Leonardo's documented upgrade and ammunition path.
| Compatible item | Item type | Compatibility evidence |
|---|---|---|
 | Later 64-caliber Vulcano-compatible naval gun system | Leonardo's Vulcano trial release distinguishes navies using the newer 127/64 LW weapon system from those using previous 127/54 C guns with a V-kit upgrade. Sources: Leonardo: Firing Trials of 127/54 Compact with Vulcano Kit |
 | Guided long-range ammunition family | Leonardo's 2014 V-kit release says the guided 127 GLR and GLR-SAL versions were the follow-on Vulcano family for ships using OTO Melara naval guns; the documented 127/54 C trial itself fired Vulcano BER ammunition. Sources: Leonardo: Firing Trials of 127/54 Compact with Vulcano Kit, Leonardo Electronics US: Vulcano Ammunition |
Operator And Ship Fit
The 127/54 Compact appears in public naval references as a main gun for several frigate and destroyer classes. The examples below are representative platform fits, not a complete operator census.
| Operator | Ship class or hull | Documented context |
|---|---|---|
| Italian Navy | Audace, Durand de la Penne, Lupo, Maestrale, and Bersagliere | NavWeaps associates the family with Italian Audace, Maestrale, and Lupo classes; Leonardo documents Vulcano V-kit firing trials from the frigate Bersagliere in 2014. |

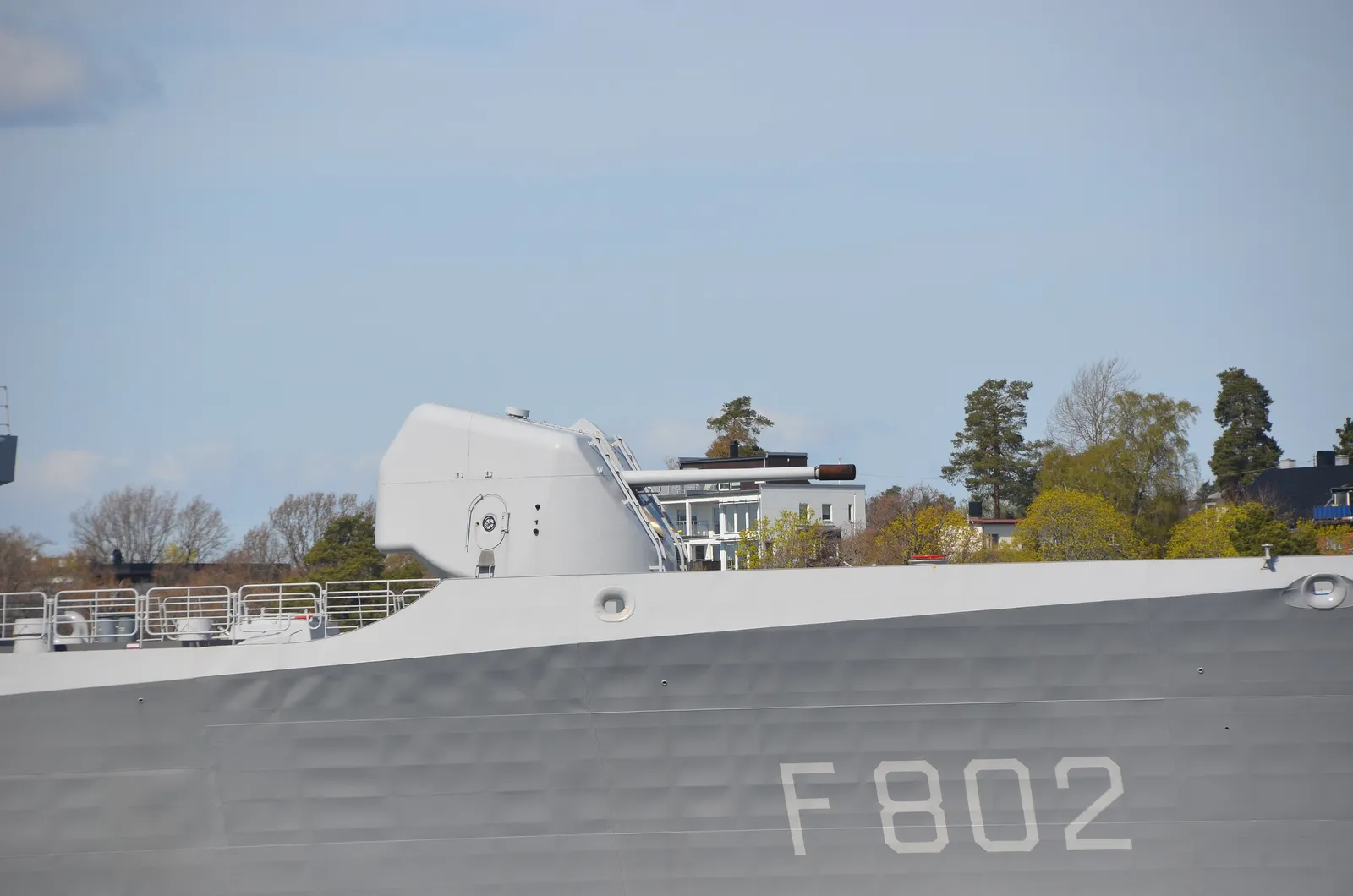

| Royal Netherlands Navy | De Zeven Provincien class | SeaForces lists the De Zeven Provincien class among ships using the Oto Melara/OtoBreda 127/54C gun and captions several RNLN shipboard images. |

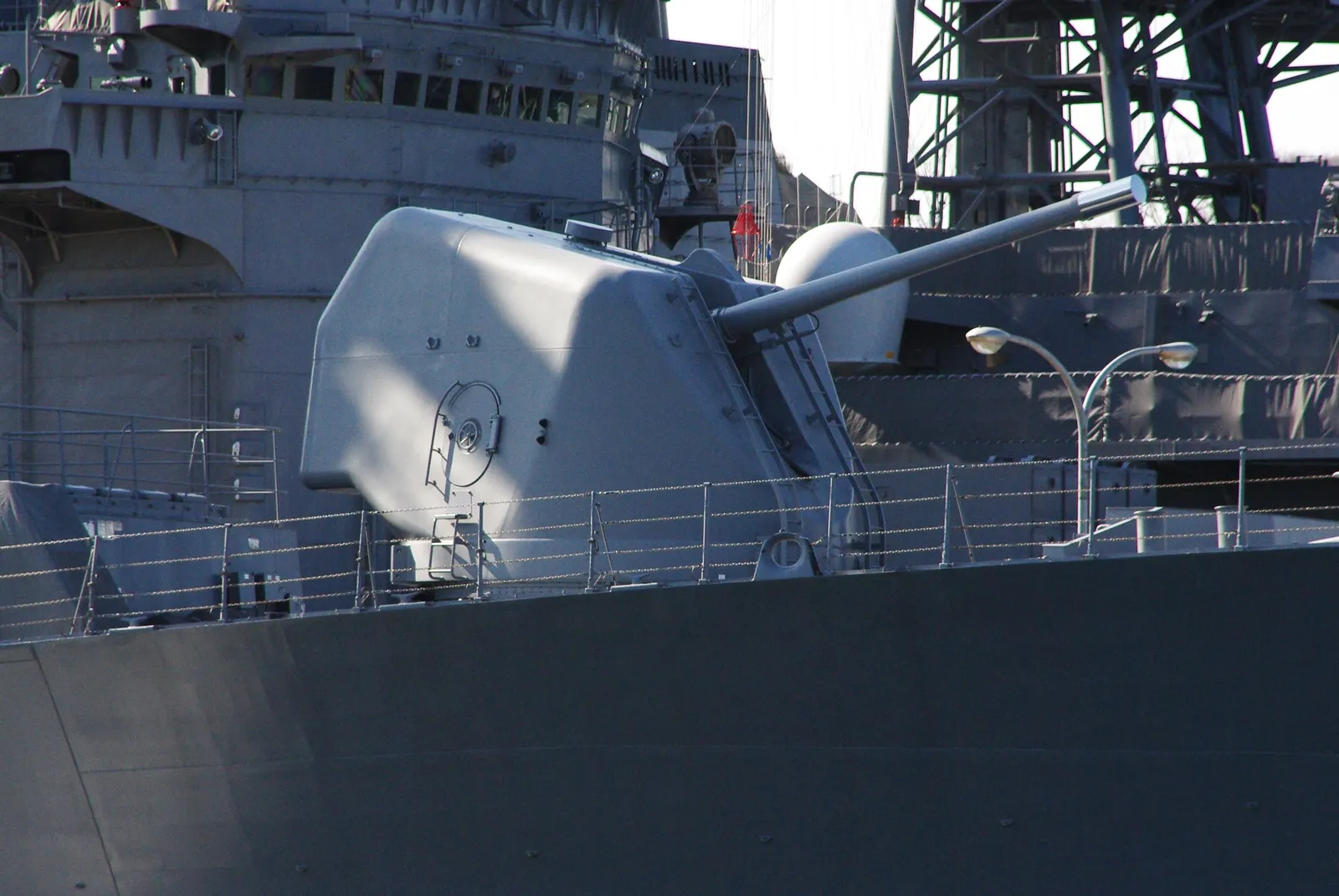

| Japan Maritime Self-Defense Force | Kongo and Takanami classes | SeaForces lists both classes and captions shipboard 127/54C images on Kongo-class and Takanami-class destroyers. |
| Republic of Korea Navy | Gwanggaeto the Great class | SeaForces lists the class as a 127/54C platform and captions multiple Republic of Korea Navy shipboard images. |
| Argentina, Nigeria, Peru, and Venezuela | MEKO 360 and Lupo-family frigates | SeaForces identifies MEKO 360 frigates for Argentina and Nigeria, and Lupo-class frigates for Italian, Peruvian, and Venezuelan service. |
Timeline
OTO Melara 127/54 Compact naval gun Key Events
Compact design period
NavWeaps gives about 1965 as the design date for the 127 mm/54 Compact and LW family.
Sources: NavWeaps: Italy 127 mm/54 Compact and LW
Compact mount enters service
NavWeaps lists 1968 as the Compact mount's in-service date.
Sources: NavWeaps: Italy 127 mm/54 Compact and LW
Italian Navy Vulcano-kit trials
Leonardo reported Italian Navy firing trials from the frigate Bersagliere with a 127/54 C gun fitted with a Vulcano V-kit, using 127 Vulcano BER ammunition and reaching more than 38 km during a range-limited trial.
Sources: Leonardo: Firing Trials of 127/54 Compact with Vulcano Kit
Related Weapon Systems
Sources
NavWeaps: Italy 127 mm/54 Compact and LWPublisher: NavWeaps | Note: Supports designation, service dates, intended ship classes, ammunition handling, rate of fire, barrel length, ready-round count, and ammunition notes. | Accessed: 2026-07-06SeaForces: Oto Melara Breda 127/54C GunPublisher: SeaForces Online | Note: Supports technical summary fields, dual-purpose description, ammunition stowage, mount weight, elevation, muzzle velocity, range, and representative ship-class/operator examples. | Accessed: 2026-07-13Leonardo: Firing Trials of 127/54 Compact with Vulcano KitPublisher: Leonardo | Note: Supports the 127/54 C Vulcano V-kit trial, Bersagliere firing context, 127 Vulcano BER trial ammunition, range-limited firing result, guided 127 GLR/GLR-SAL follow-on context, and distinction from the later 127/64 LW weapon system. | Accessed: 2026-07-06Leonardo Electronics US: Vulcano AmmunitionPublisher: Leonardo Electronics US | Note: Supports Vulcano family identity, BER/GLR terminology, 76 mm/127 mm/155 mm scope, 127 mm mechanical-interface notes, ship-integration equipment, and 127 mm GLR range/guidance claims. | Accessed: 2026-07-13Wikimedia Commons: Otobreda 127/54 Compact CategoryPublisher: Wikimedia Commons | Note: Supports reusable media selection and basic public-domain or freely licensed image provenance for Otobreda 127/54 Compact files. | Accessed: 2026-07-06Wikimedia Commons: JS Onami 127mm Gun Firing at Malabar 2020Publisher: Wikimedia Commons | Note: Supports gallery image provenance for a Japan Maritime Self-Defense Force CC BY 4.0 photograph of JS Onami firing a 54-caliber 127 mm gun during Malabar 2020. | Accessed: 2026-07-13Wikimedia Commons: JS Takanami Live-Fire Exercise July 2022Publisher: Wikimedia Commons | Note: Supports gallery image provenance for a public-domain Japan Maritime Self-Defense Force/DVIDS photograph of JS Takanami firing its 127 mm gun during RIMPAC 2022. | Accessed: 2026-07-13Bersagliere - Marina MilitarePublisher: Marina Militare | Note: Supports 2011 First Libyan Civil War fielding by recording Bersagliere in NATO Unified Protector in 2011 and listing one OTO Melara 127/54 in the ship armament; it does not document the gun firing. | Accessed: 2026-07-13
