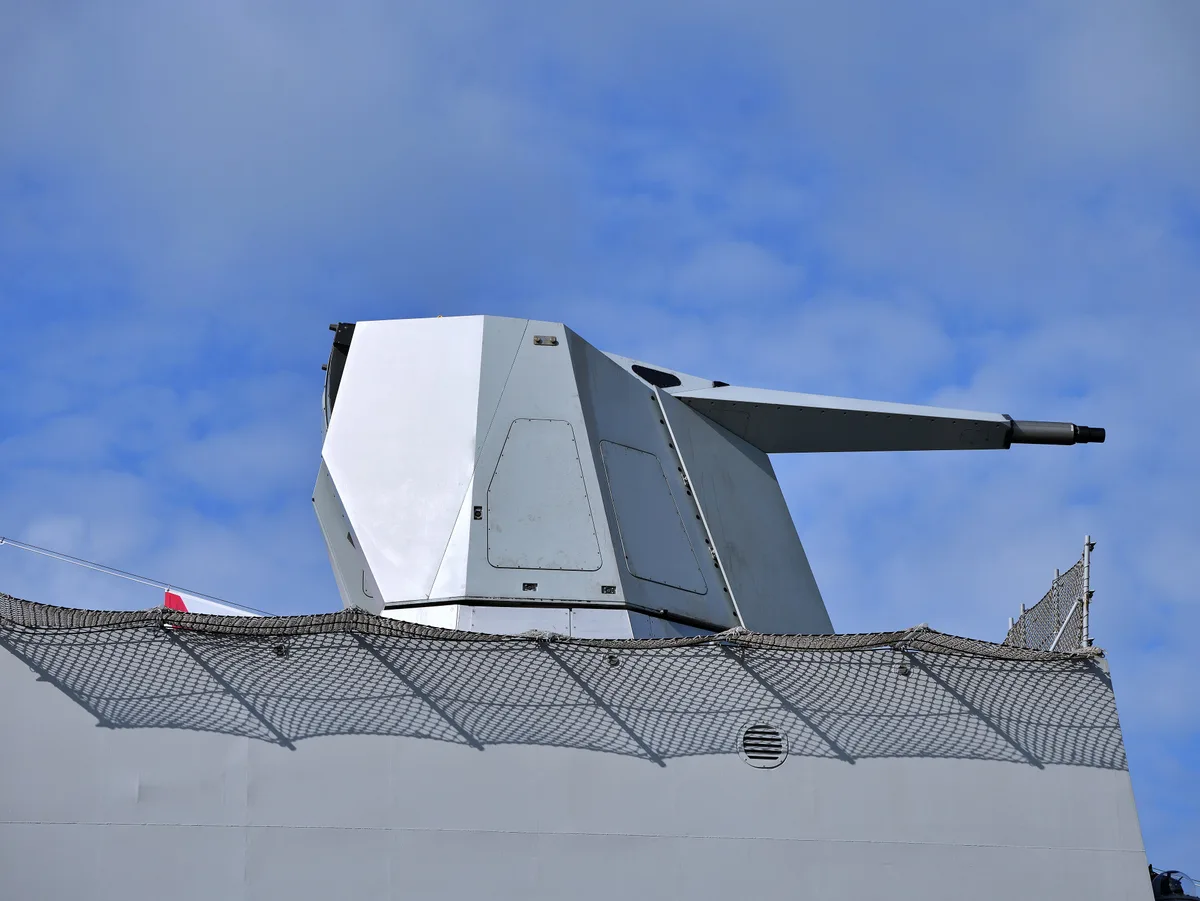

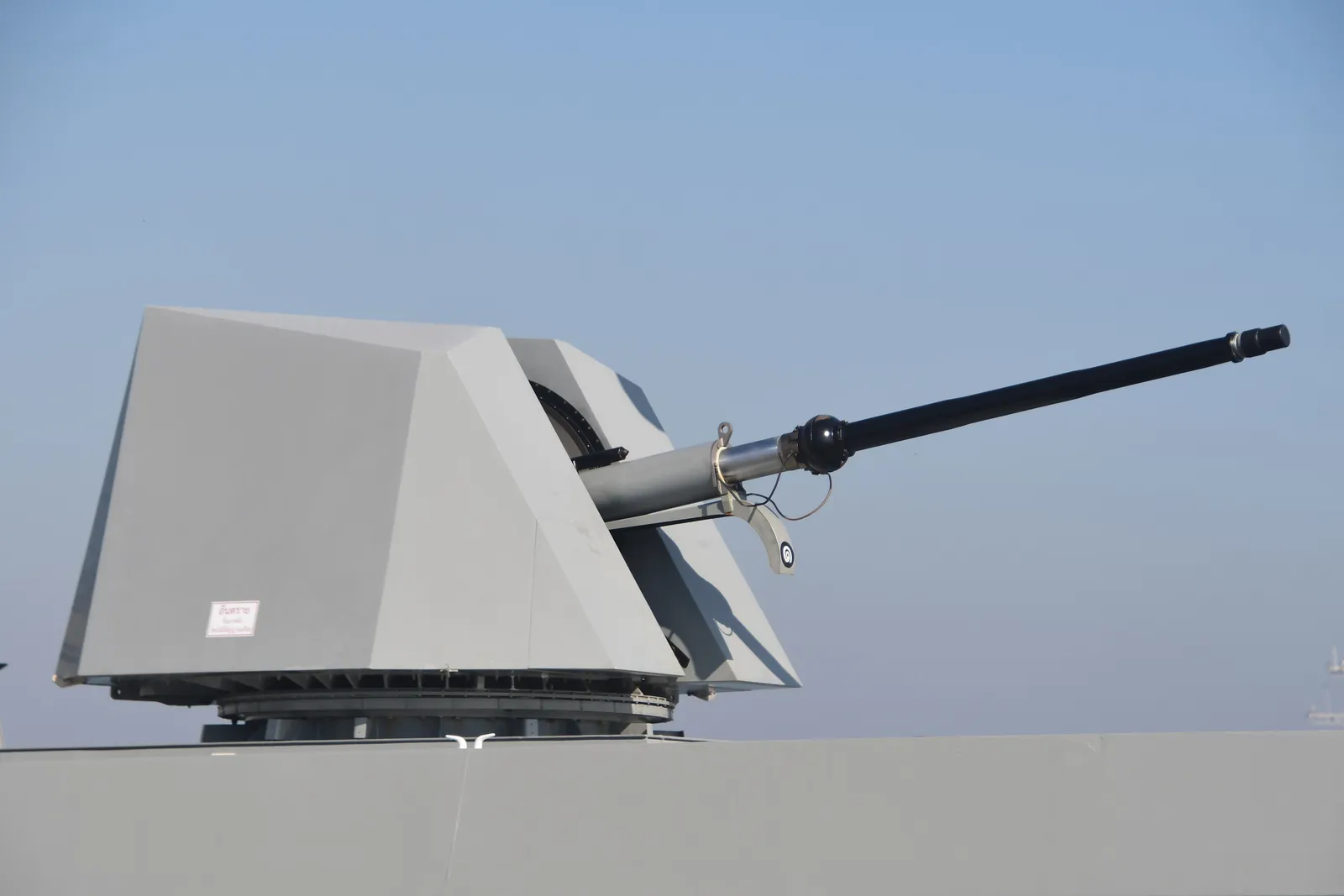

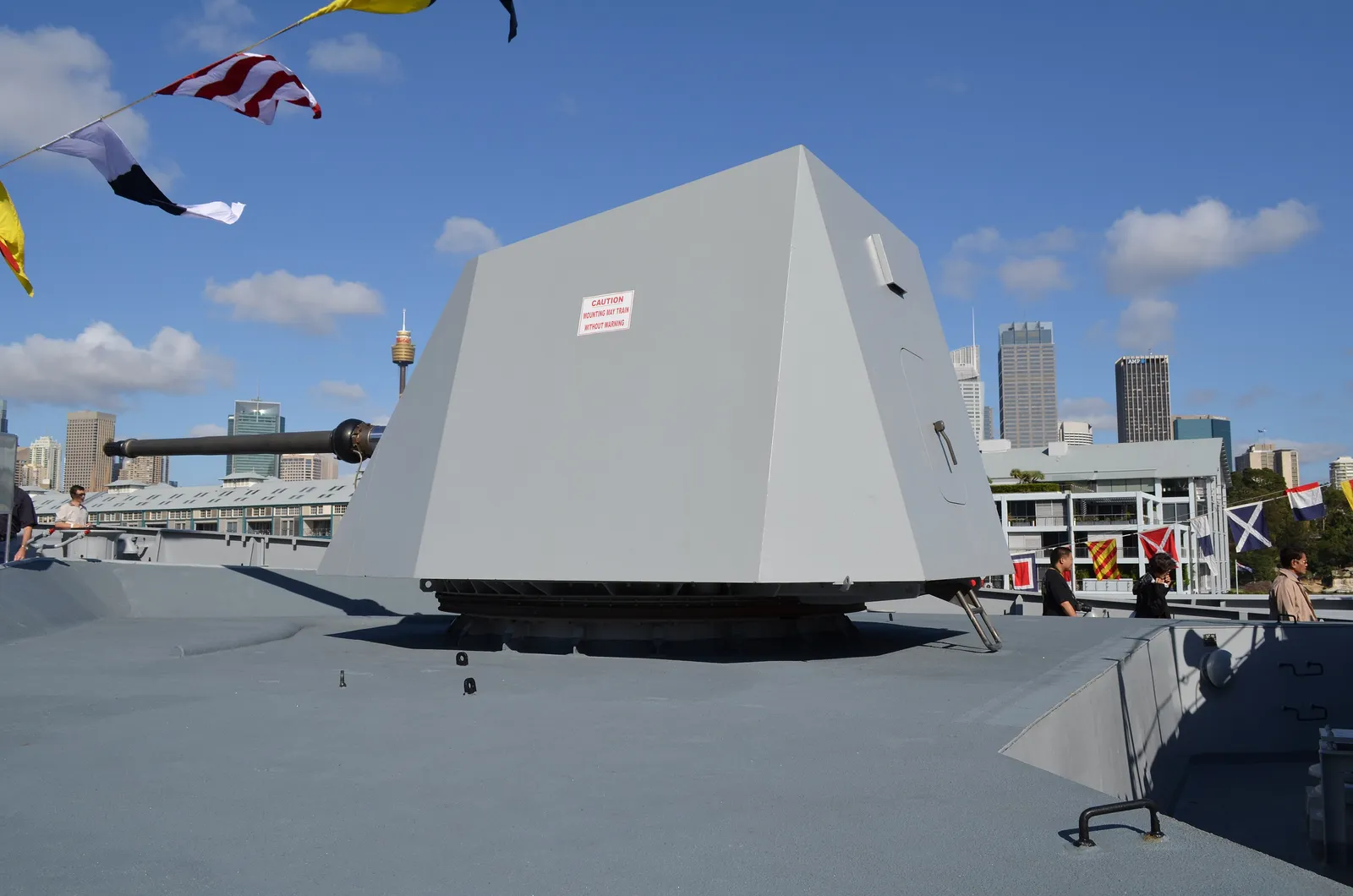

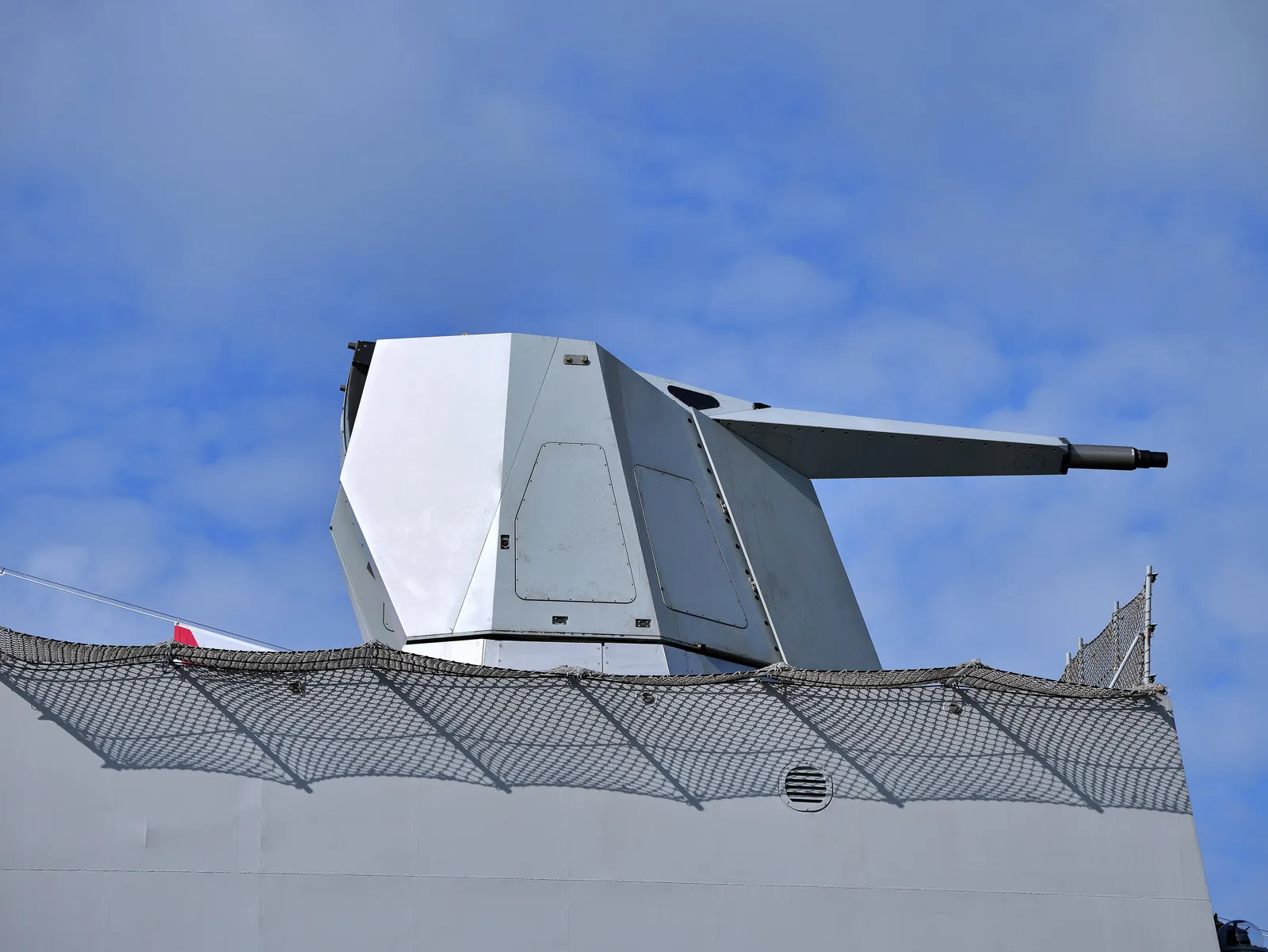

The OTO 76/62 Super Rapid is Leonardo's Italian 76 mm naval gun mount for corvettes, frigates, patrol vessels, and other surface combatants. It combines a selectable 120-round-per-minute rate of fire, an 80-round ready magazine, anti-surface and air-defense roles, optional Strales/DART guided-ammunition integration, and compact installation on small naval units. Its 2014 Russia-Ukraine War link is Ukraine's Ada-class corvette program: Naval News identified a Leonardo 76 mm Super Rapid fitted to Hetman Ivan Mazepa during sea trials in Turkiye while the corvette project remained shaped by wartime transfer constraints.
Naval News reported that Ukraine's Ada-class corvette Hetman Ivan Mazepa was fitted with a Leonardo 76 mm Super Rapid gun during Turkish sea trials; the source also notes the corvette's transfer and completion plans were affected by Russia's invasion.
Role detailsThe Super Rapid mount is not just a faster 76 mm gun. Leonardo's current material emphasizes integration with ship combat-management systems, a digital control console, rapid tactical response, optional multi-feeding, muzzle-velocity radar, a stealth shield, and Strales/DART guided-ammunition support.
Leonardo lists a maximum range of 16 km with standard ammunition and 20 km with extended-range SAPOMER ammunition.
Source: Leonardo OTO 76/62 SR Datasheet.
The same datasheet lists 40 km with guided long-range OTO Vulcano 76 ammunition as in development, while the Strales source describes DART as the guided projectile for the 76/62 package.
Sources: Leonardo OTO 76/62 SR Datasheet; Leonardo OTO STRALES and OTO DART.
Leonardo's DART datasheet describes a beam-riding sub-caliber guided round for 76/62 Strales or Sovraponte systems, with a typical operating range up to 8 km and high-maneuvering terminal control.
Source: Leonardo DART Datasheet.
Ukraine-specific sources document the gun fitted to a Ukrainian corvette in trials, not combat firing from Ukrainian waters.
Source: Naval News Ivan Mazepa sea trials.
The 76/62 family spans the earlier Compact mount, the higher-rate Super Rapid mount, Strales/DART guided-ammunition configurations, and later above-deck Sovraponte / OTO AD installations.
| Variant | Configuration | Designation notes |
|---|---|---|
| 76/62 Compact | Original compact 76 mm naval gun family | NavWeaps describes the Compact as the earlier 76 mm/62 mount from which the Super Rapid family developed. Sources: NavWeaps 76 mm/62 Compact and SR |
| 76/62 Super Rapid | 120-round-per-minute rapid-fire mount | Leonardo's current datasheet gives the SR mount a selectable firing rate up to 120 rounds per minute and an 80-round ready supply on the gun mount. Sources: Leonardo OTO 76/62 SR Datasheet |
| 76/62 Super Rapid Multi Feeding | Multi-ammunition feed configuration | The Defense Post describes Leonardo's multi-feeding configuration on Sa'ar 6 corvettes as allowing rapid selection between conventional and guided ammunition configurations. Sources: Defense Post Sa'ar 6 Super Rapid |
| 76/62 Strales with OTO DART | Guided-ammunition anti-missile package | Leonardo presents Strales as a 76/62 naval-gun, DART guided-ammunition, and radio-frequency guidance package that can be integrated with 76/62 naval artillery. Sources: Leonardo OTO STRALES and OTO DART, Leonardo OTO STRALES and OTO DART Datasheet |
| 76/62 Sovraponte / OTO AD | Over-deck lightweight installation branch | Leonardo described the OTO AD concept as a no-deck-intrusion, low-weight 76/62 gun, and later company reporting says 76/62 over-deck gun functional qualification was finalized in 2019. Sources: Leonardo IDEX NAVDEX OTO AD, Leonardo 2019 Annual Report Sovraponte, Commons Strales Sovraponte Image |
Cataloged ships are linked only where sources identify the 76/62 Super Rapid or a 76 mm main-gun fit on the platform.
| Carrier | Carrier type | Carriage evidence |
|---|---|---|
 | Ada-class corvette | STM lists a 76 mm main gun in the Ada-class weapons fit, and Naval News identifies the Ukrainian Ada-class corvette Hetman Ivan Mazepa with a Leonardo 76 mm Super Rapid during trials. Sources: STM Ada Class Corvette, Naval News Ivan Mazepa sea trials |
 | Sa'ar 6-class corvette | The Defense Post reported Leonardo's 76/62 Super Rapid Multi-Feeding naval gun was received for Sa'ar 6-class corvettes INS Oz and INS Magen. Sources: Defense Post Sa'ar 6 Super Rapid |
 | Avante 2200 / Sarawat-class corvette | EDR identifies the Leonardo OTO Super-Rapido 76/62 mm weapon as part of the Al Jubail / Sarawat fit, and Baird Maritime separately reports a Leonardo 76 mm naval gun in the class armament. Sources: EDR Al Jubail Corvette, Baird Maritime Al Jubail Corvette |
 | Guided-missile destroyer | WeaponSystems.net lists the Kolkata-class destroyer gun fit as one 76 mm SuperRapid dual-purpose gun. Sources: WeaponSystems.net Kolkata Class |
NavWeaps lists the Compact 76 mm/62 family as introduced in the 1960s before later Super Rapid development.
Sources: NavWeaps 76 mm/62 Compact and SR
NavWeaps places the Super Rapid version's service introduction around 1988 and describes it as a faster-firing anti-ship-missile-defense improvement over Compact.
Sources: NavWeaps 76 mm/62 Compact and SR
Leonardo's acceptance event placed the 76/62 Super Rapido Multi-Feeding gun aboard Israeli Sa'ar 6-class corvettes INS Oz and INS Magen.
Sources: Defense Post Sa'ar 6 Super Rapid
STM says the Ukrainian corvette Hetman Ivan Mazepa began sea acceptance trials on 29 May 2024, and Naval News later identified the corvette's Leonardo 76 mm Super Rapid fit from trial footage.
Sources: STM Ukrainian Corvette Project, Naval News Ivan Mazepa sea trials
The 2026 Leonardo datasheet lists the current Super Rapid mount's 120-round-per-minute rate of fire, 80 ready rounds, optional Strales integration, and ammunition range bands.
Sources: Leonardo OTO 76/62 SR Datasheet
