Munitions

OF-462

Also known as
  • HE-462
  • 53-OF-462
  • 53 OF 462
  • OF462
  • 122 mm OF-462
  • 122mm OF462

OF-462 is a Soviet 122 mm high-explosive fragmentation shell used as the projectile element in separate-loaded artillery ammunition. STV Group's current Nb 122 HE cartridges describe a HE-462 projectile equivalent to OF-462 for D-30 and 2S1 howitzers, CSG Defence identifies the original projectile as 53 OF 462, and OSINT-based defense reporting documented OF-462 rounds in Ukrainian artillery service during the 2014 Russia-Ukraine War.

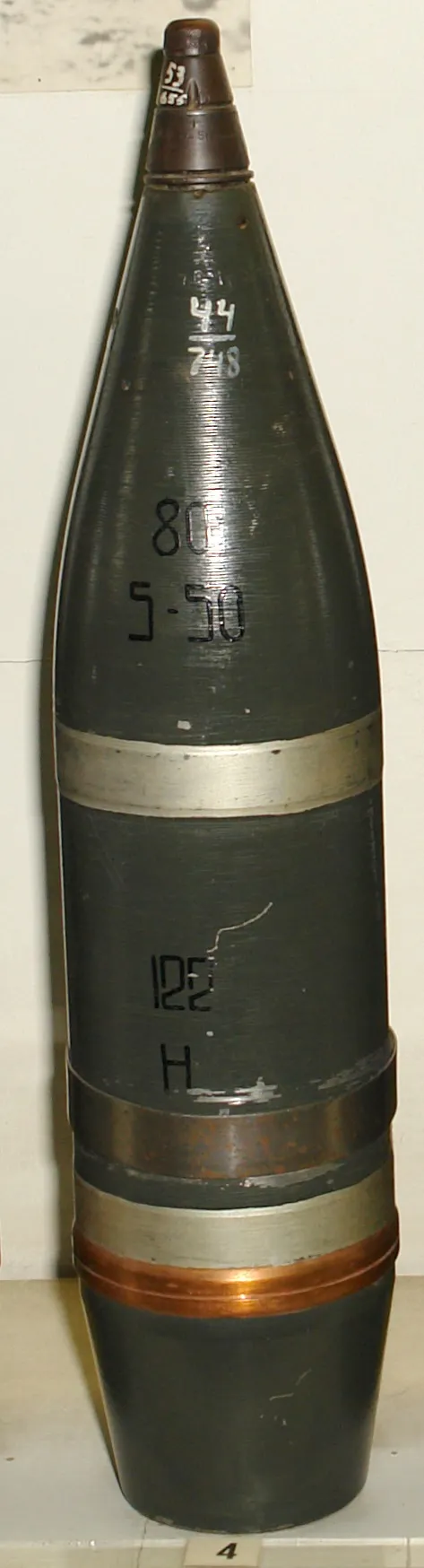

OF-462, 122 mm high-explosive fragmentation shell, Munitions
Image source: 122 mm OF-462.jpg

Role in Conflicts

2014 Russia-Ukraine War
Fire Support

OSINT-based defense reporting identified 122 mm OF-462 projectiles, including Iranian-made rounds for D-30 howitzers, in Ukrainian artillery service from September 2022; public sources did not confirm quantities, exact locations, or the transfer route.

Role details
Documented Targets

STV describes the cartridge family as a general-purpose 122 mm HE round for D-30 and 2S1 howitzers. The published use description emphasizes four recurring target sets.

  • enemy manpower in the open or in field-type shelters
  • passages through minefields and defense wire obstacles
  • counter-battery and artillery suppression
  • light armored vehicles and other equipment

Source: Ammunition 122 mm for cannon D-30 and 2S1 Gvozdika - STV Group.

Profile / Specs

Profile

Origin
Soviet Union
Type
122 mm high-explosive fragmentation shell
Service note
Soviet-era 122 mm artillery ammunition

Specifications

Caliber
122 mm
Projectile class
High-explosive fragmentation shell
Loading
Separate-loaded ammunition
Projectile length
552-564 mm
Projectile weight
21.76 kg
Explosive filler
3.6 kg TNT
Fuzes
RGM-2; RGM-6; V-429
Propelling charges
Ž 9-1 full charge; Ž 10 reduced charge
Cartridge case
Fe/brass
Muzzle velocity (full charge)
690 m/s ± 7%
Muzzle velocity (reduced charge)
565 m/s ± 5%
Max range (full charge)
about 15,300 m
Max range (reduced charge)
about 12,870 m
Safe operational temperature range
-40 to 50 °C
A-19 velocity
765 m/s with charge no. 1
A-19 range
16,600 m with charge no. 1
Ordnance Recognition Context

Public 122 mm ammunition references use several closely related labels around this projectile. STV uses HE-462 for the projectile and states that it is equivalent to OF-462, while CSG Defence describes the HE projectile in its D-30 and 2S1 ammunition family as equivalent to the original 53 OF 462 developed in the former USSR.

Projectile identity

OF-462, HE-462, and 53-OF-462 references point to the same Soviet-pattern 122 mm HE-fragmentation projectile family in the cited manufacturer material.

Complete rounds

The projectile appears in full-charge and reduced-charge complete rounds for D-30 and 2S1 Gvozdika howitzers.

Sources: Cartridge 122 mm HE with full charge - STV GROUP; Cartridge 122 mm HE with reduced charge - STV Group; Artillery Ammunition - CSG Defence.

Variants

Current manufacturer pages and ammunition-family references treat OF-462 / HE-462 / 53-OF-462 as the projectile at the center of complete 122 mm HE rounds assembled with different propelling charges.

VariantConfigurationDesignation notes
Cartridge 122 mm HE with full charge, 122 mm separate-loaded high-explosive cartridge, MunitionsCartridge 122 mm HE with full chargeFull-charge Nb 122 HE cartridge

STV's full-charge cartridge uses an HE-462 projectile equivalent to OF-462 with a Ž 9-1 propelling charge for the higher published velocity and range.

Sources: Cartridge 122 mm HE with full charge - STV GROUP, Artillery Ammunition - CSG Defence

Cartridge 122 mm HE with reduced charge, 122 mm separate-loaded HE artillery cartridge, MunitionsCartridge 122 mm HE with reduced chargeReduced-charge Nb 122 HE cartridge

STV's reduced-charge cartridge keeps the same HE-462/OF-462-equivalent projectile but uses a Ž 10 charge for lower velocity and shorter range.

Sources: Cartridge 122 mm HE with reduced charge - STV Group, Artillery Ammunition - CSG Defence

Firing Platforms

STV's current ammunition pages group OF-462/HE-462 with D-30 and 2S1 Gvozdika howitzers, and the older A-19 table also lists OF-462 with charge no. 1.

Firing weaponWeapon typeFiring evidence
D-30 122 mm howitzer, 122 mm towed howitzer, ArtilleryD-30 122 mm howitzer122 mm howitzer

STV says the full-charge Nb 122 HE cartridge is intended to be fired from 122 mm D-30 howitzers.

Sources: Cartridge 122 mm HE with full charge - STV GROUP, Ammunition 122 mm for cannon D-30 and 2S1 Gvozdika - STV Group

2S1 Gvozdika, 122 mm tracked self-propelled howitzer, Artillery2S1 Gvozdika122 mm self-propelled howitzer

STV groups the full- and reduced-charge Nb 122 HE cartridges under the D-30 and 2S1 Gvozdika artillery ammunition family.

Sources: Ammunition 122 mm for cannon D-30 and 2S1 Gvozdika - STV Group

A-19 122 mm field gun, 122 mm towed corps gun, ArtilleryA-19 122 mm field gun122 mm field gun

The A-19 ammunition table lists OF-462 as a 122 mm howitzer shell fired with charge no. 1, with 765 m/s muzzle velocity and 16,600 m range.

Sources: A-19 ammunition table

Compatible Gun Systems
Compatible itemItem typeCompatibility evidence
ATS-59-122, Yemeni 122 mm tracked self-propelled artillery conversion, ArtilleryATS-59-122D-30-based 122 mm mount

Klüser identifies ATS-59-122 as an ATS-59 D-30 122 mm type, and STV documents OF-462 as the 122 mm HE shell family used with D-30 gun-howitzers.

Sources: Modelling vehicle history - ATS-59-122, 122 mm howitzer 2A18 (D-30), Cartridge 122 mm HE with full charge - STV GROUP

Variant Split

STV's current ammunition pages split the OF-462/HE-462 family into full- and reduced-charge cartridges. The projectile stays the same; the propelling charge and resulting ballistics change.

CartridgeChargeVelocityRange
Cartridge 122 mm HE with full charge, 122 mm separate-loaded high-explosive cartridge, MunitionsCartridge 122 mm HE with full chargeŽ 9-1690 m/s ± 7%about 15,300 m
Cartridge 122 mm HE with reduced charge, 122 mm separate-loaded HE artillery cartridge, MunitionsCartridge 122 mm HE with reduced chargeŽ 10565 m/s ± 5%about 12,870 m

Sources: Cartridge 122 mm HE with full charge - STV GROUP; Cartridge 122 mm HE with reduced charge - STV Group; Artillery Ammunition - CSG Defence.
