OF-471

OF-471 is a Soviet 122 mm high-explosive fragmentation shell documented for the A-19 and related D-25-family guns. Contemporary references list it at roughly 25.5 kg projectile mass, about 3.6 kg of TNT filler, 800 m/s muzzle velocity, and about 19.8 km range.

OF-471, 122 mm high-explosive fragmentation shell, Munitions

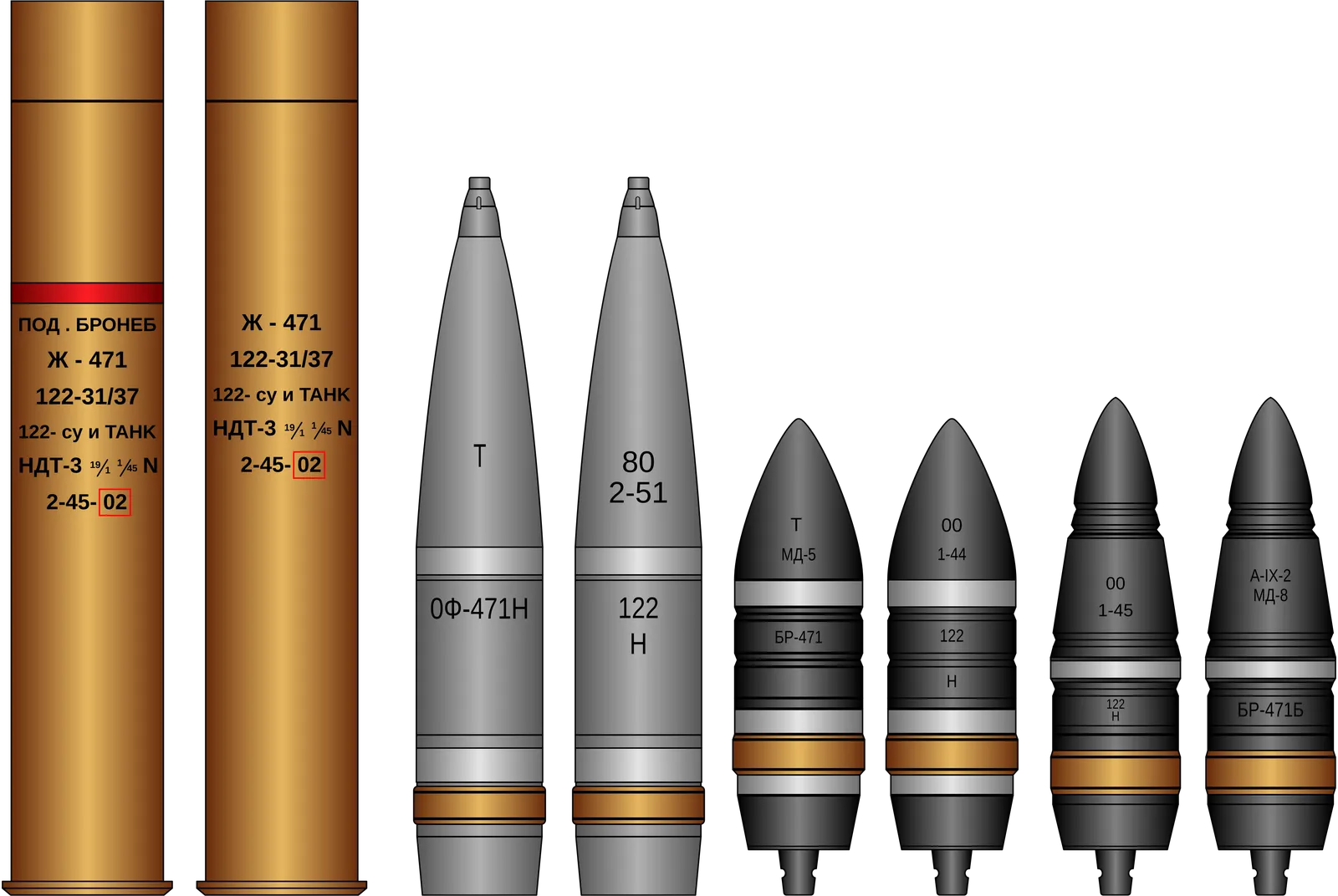

Image source: D25T shells.svg

Profile

Origin: Soviet Union
Built by: Soviet munitions industry
Type: 122 mm high-explosive fragmentation shell
Service note: World War II Soviet artillery ammunition

artillery 122 mm he-frag

Specifications

Caliber: 121.9 mm
Projectile mass: 25.53 kg
Explosive fill: 3.605 kg TNT
Muzzle velocity: 800 m/s
Maximum range: 19.8 km
Compatible guns: A-19, D-25, D-25S, and A-19S family weapons

Service And Conflict Use

Service History

In service: Documented as ammunition for the A-19 and related 122 mm D-25-family guns.

Firing Guns

A-19 ammunition tables and ordnance references place OF-471 in the 122 mm gun family fired by the A-19 and related D-25 weapons.

Firing weapon

Weapon type

Firing evidence

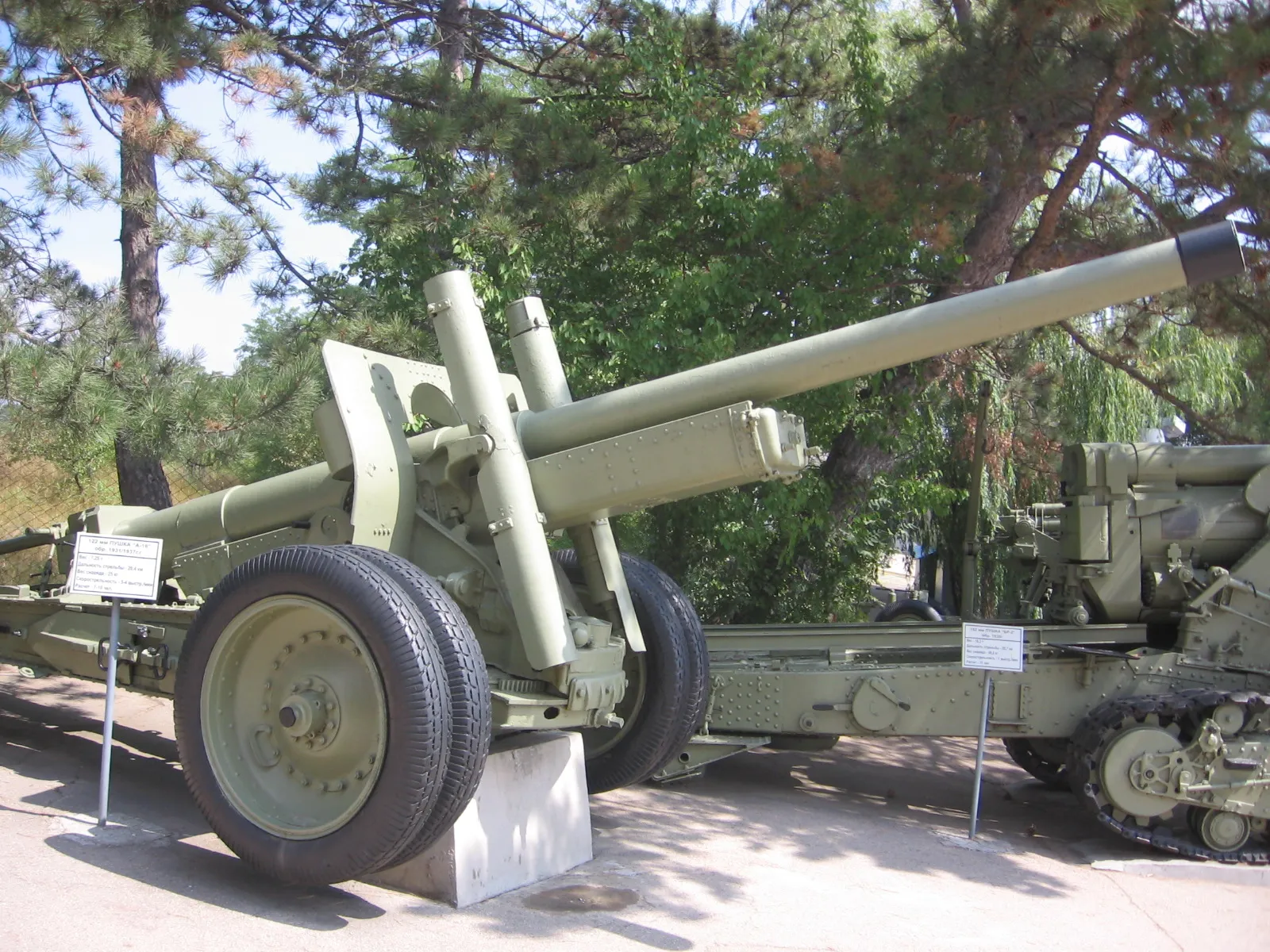

A-19 122 mm field gun

122 mm corps gun

Wikipedia's A-19 ammunition table lists OF-471 as a 122 mm HE-fragmentation shell, and WW2 Equipment Data identifies the same round as fired from the A-19 and related D-25-family guns.

Sources: A-19 ammunition table, WW2 Equipment Data OF-471 article

OF-471 Images

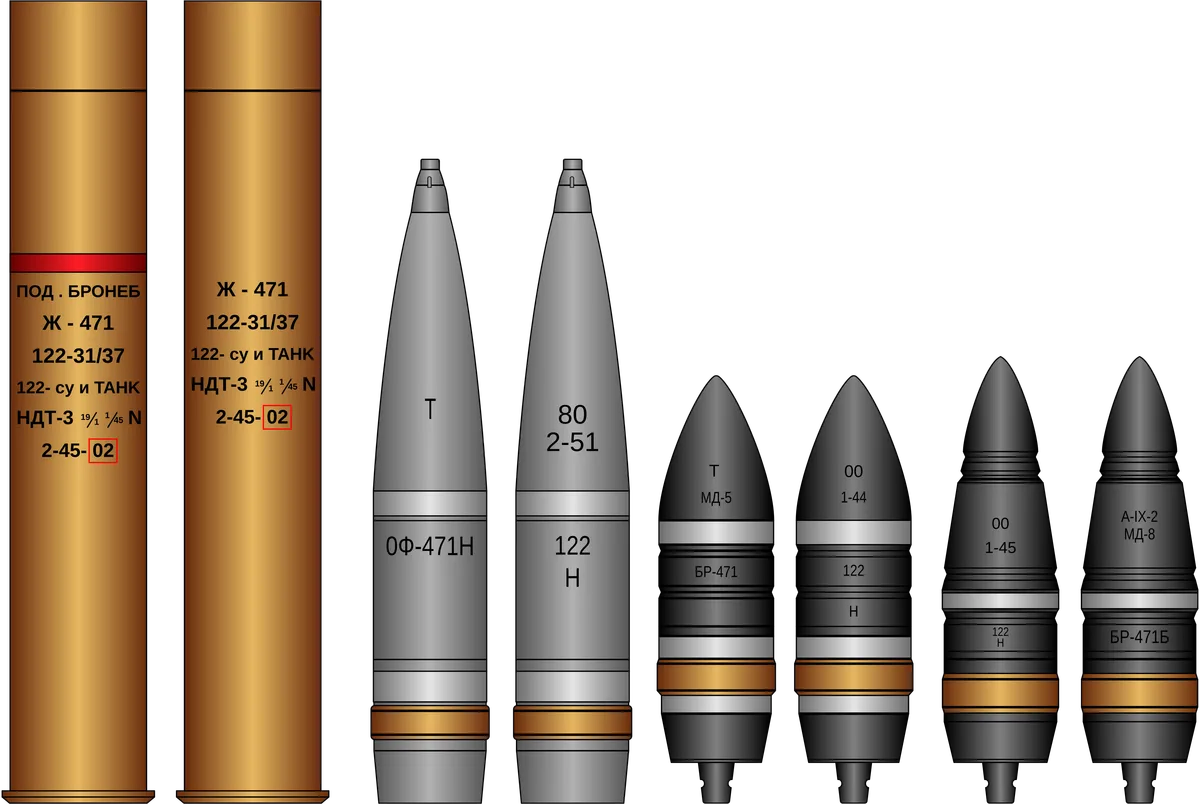

OF-471, 122 mm high-explosive fragmentation shell, Munitions - view 1 — Source: D25T shells.svg
