Support Equipment

Nurse TB

Also known as
  • Ratel Nurse TB
  • Nurse UGV
  • Nurse TB UGV
  • Nurse robotic logistician
  • Nurse tracked UGV

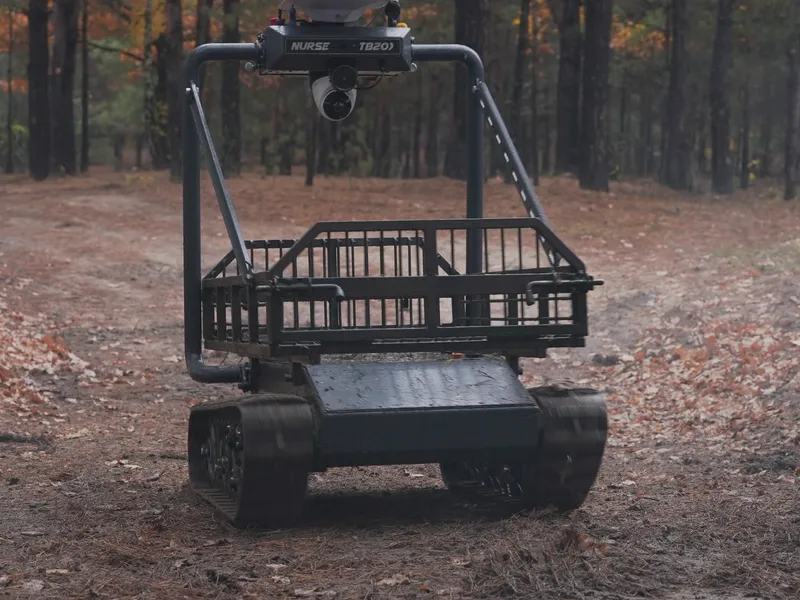

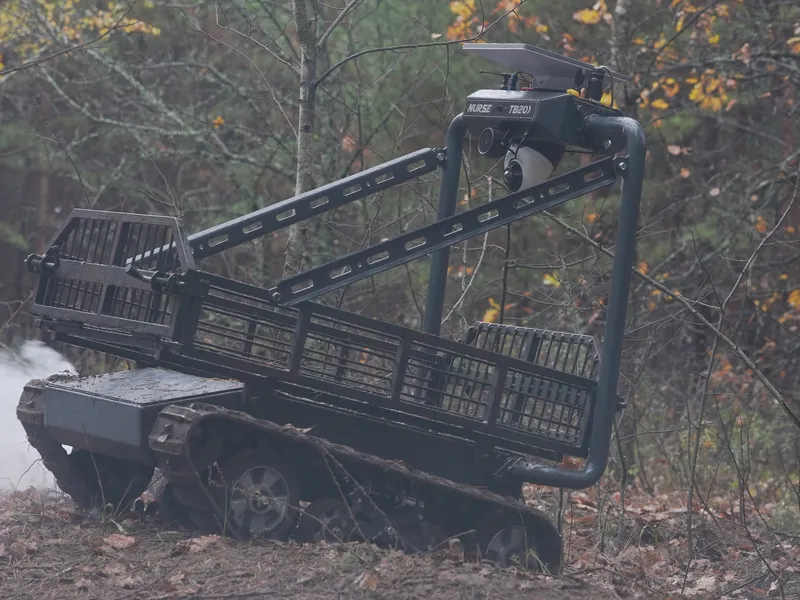

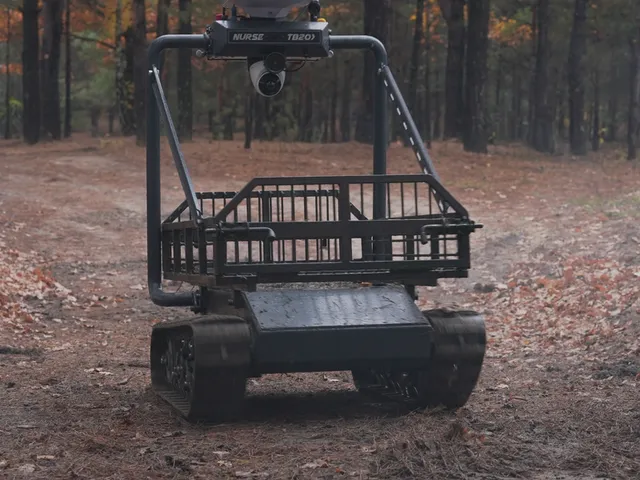

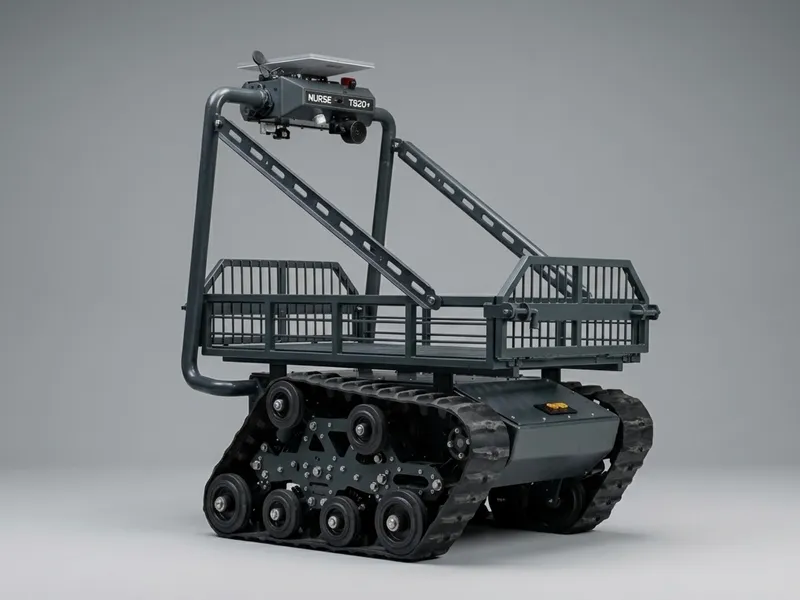

Nurse TB is a compact tracked Ukrainian UGV from Ratel Robotics for infantry logistics, remote mining, ammunition or water delivery, and casualty-evacuation support. Public sources describe a 150 kg payload class, a six-TM-62 mine load example, radio and fiber-optic control options, and a follow-me mode intended to reduce soldier exposure on dangerous support routes.

Role in Conflicts

Introduced by Ratel Robotics during the 2014 Russia-Ukraine War as a compact tracked UGV for Ukrainian infantry-support tasks; sources describe logistics, remote mining, ammunition and water delivery, and stretcher-based casualty evacuation, while wider Ratel reporting documents the company's UGVs moving from factory floors to Ukrainian front-line units.

Role details
Mission Configurations

Nurse TB is documented as a small infantry-support UGV whose mission changes with the carried load and control setup, rather than as a single-purpose mine robot or ambulance.

ConfigurationDocumented detailReader context
Logistics carrierOfficial materials list cargo, substances, and ammunition delivery to designated locations with a 150 kg payload class.Frames the platform as a short-range support vehicle for exposed routes.
Remote miningRatel's weight example and defense-tech reporting identify a six-TM-62 mine load.Explains why the page links Nurse TB to the TM-62 mine record.
Casualty evacuationDefender Media reported that the platform can be fitted with medical stretchers for CASEVAC.Places Nurse TB in the same risk-reduction mission set as other Ukrainian UGV evacuation tools.
Follow-me movementDefense-tech reporting describes a camera and target-tracking mode that lets the UGV automatically follow a soldier.Shows how the system can reduce operator workload during infantry-support movement.
Control linksThe official page lists radio and fiber-optic application ranges, plus control with or without a repeater.Documents why the specs separate application range from operator control range.
Profile / Specs

Profile

Origin
Ukraine
Type
Compact tracked uncrewed ground logistics vehicle
Service note
Full-scale 2014 Russia-Ukraine War
Designer
Ratel Robotics
Designed
Publicly unveiled on 2026-04-08
Unit cost
Not publicly disclosed
Produced
Production announced in April 2026
Number built
Not publicly disclosed

Specifications

Crew
Uncrewed; remotely operated from a ground control station
Payload
150 kg working payload class; manufacturer example lists six TM-62 mines
Dimensions
1,000 x 600 x 1,200 mm
Weight
120 kg empty; 270 kg with payload
Speed
Up to 10 km/h
Loaded range
At least 8 km on hard surface and at least 6 km off-road
Application range
At least 8,000 m by radio communication and at least 20,000 m by fiber optic
Control range
7,000 m without repeater and 10,000 m with repeater
Power
Three replaceable batteries
Control features

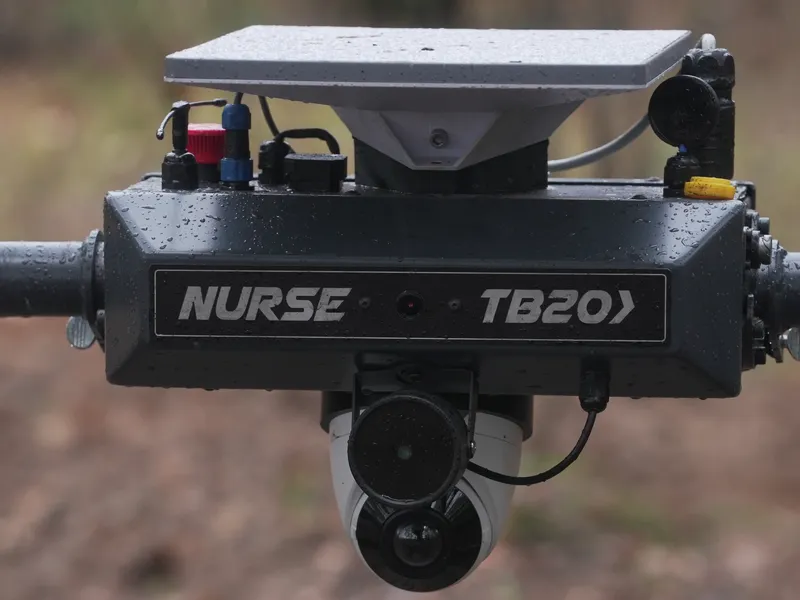

Reported follow-me mode using onboard camera and target-tracking algorithms
Included equipment
Ground control station, multicopter repeater, charging station, documentation, and additional components
Variants

Public reporting presents Nurse TB as one tracked platform with mission configurations rather than as a family of named production variants; Defender Media also identifies it as the successor to Ratel S in Ratel's portfolio.

VariantConfigurationDesignation notes
Cargo and ammunition configurationRobotic logistics carrier

The official product page describes Nurse TB as a robotic logistics complex for delivering cargo, substances, or ammunition to designated locations with a 150 kg payload class.

Sources: Nurse TB Product Page

Remote-mining payload configurationMine-delivery support configuration

Ratel and defense-tech reporting describe Nurse TB as suitable for remote mining, with public payload examples citing carriage of up to six TM-62 anti-tank mines.

Sources: Nurse TB Product Page, Defender Media Nurse TB Report, Oboronka Nurse TB Coverage

Medical-stretcher configurationCASEVAC support configuration

Defender Media reported that Nurse TB can be fitted with medical stretchers for casualty evacuation, allowing wounded personnel to be extracted without sending additional troops into the same danger area.

Sources: Defender Media Nurse TB Report

Ratel S, Uncrewed ground vehicle / remote-mining and explosive-delivery robot, Support EquipmentRatel SEarlier Ratel remote-mining and explosive-delivery UGV

Defender Media reported that Nurse TB would succeed the Ratel S kamikaze UGV in the company's portfolio as Ratel S was phased out of production.

Sources: Defender Media Nurse TB Report

Carried Mine Payload

Nurse TB is primarily a logistics platform, but its public payload examples include anti-tank mines for remote-mining tasks.

Carried itemItem typeCarriage evidence
TM-62, Anti-tank blast mine, Infantry WeaponsTM-62Anti-tank mine payload

Ratel's product page lists the working weight example as six TM-62 mines, and Defender Media described Nurse TB as able to carry up to six TM62 anti-tank mines within its 150 kg payload class.

Sources: Nurse TB Product Page, Defender Media Nurse TB Report

Timeline

Nurse TB Key Events

  1. Nurse TB production announced

    Defender Media reported that Ratel Robotics had commenced production of Nurse TB as a tracked UGV for logistics and remote-mining operations.

    Sources: Defender Media Nurse TB Report, Oboronka Nurse TB Coverage

  2. Ratel factory and front-line UGV use documented

    Business Insider reported from Ukraine on Ratel Robotics' UGV production and described the company's robots being built for front-line tasks including logistics, mine laying, casualty evacuation, FPV launch, and attacks.

    Sources: Ukraine's War Robots Are Surging Into the Kill Zone
