Support Equipment

Ratel X

Ratel X is a Ukrainian six-wheeled uncrewed ground platform built by Ratel Robotics for heavy logistics, reconnaissance support, and carrying compatible mission equipment. It is not a primary weapon system; its catalog role is as an enabling platform that can move payloads, host observation equipment, and reduce soldiers' exposure in high-risk areas.

Russia-Ukraine WarUkraine

Conflict side: Ukraine
Built by: Ratel Robotics
Built in: Ukraine

Ratel X, Six-wheeled uncrewed logistics platform, Support Equipment

Image source: Ratel X Product Page

Profile

Type: Six-wheeled uncrewed logistics platform
Conflict side: Ukraine
Origin: Ukraine
Service note: Full-scale Russia-Ukraine War

ugv uncrewed logistics reconnaissance wheeledelectric

Service History

In service: Marketed for Ukraine's wartime ground-robot logistics and special-purpose roles
Used by: Ukrainian units operating Ratel Robotics UGVs
Wars: Russia-Ukraine War

Production History

Designer: Ratel Robotics
Designed: Publicly listed by Ratel Robotics by 2026
Built by: Ratel Robotics
Built in: Ukraine
Unit cost: Price on request
Produced: 2026-present
Number built: Not publicly disclosed
Variants: Logistics platform, Mobile observation-point configuration, Carrier for compatible third-party equipment

Specifications

Crew: Uncrewed; remotely operated from a ground control station
Payload: Useful load at least 400 kg; listed weight with payload 1,530 kg
Dimensions: 2,580 x 1,780 x 830-1,930 mm, depending on antenna configuration
Weight: 1,130 kg empty
Ground clearance: 400 mm
Mobility: Six-wheeled electric platform; listed speed 14 km/h
Range: Listed radius of use at least 115 km and travel range up to 100 km on hard surface or off-road
Sensors: Daytime and night cameras
Included equipment: Ground control station, multicopter repeater, charging station, accessories, and satellite-based control system

Conflict Usage

Russia-Ukraine War: Side: UkraineRole: Heavy uncrewed logistics and support UGVlogistics reconnaissance
Used by Ukrainian units as part of the Russia-Ukraine War's expanding Ratel Robotics ground-robot family; the Ratel X is represented as a heavy logistics and special-purpose UGV rather than a strike weapon, with family-level reporting documenting Ratel robots in front-line logistics, evacuation, drone-launch, mine-laying, and attack roles.

Ratel X Videos

Inside The Factory Making 'Mothership' Ground Robots For Ukraine's War

Ratel X Images

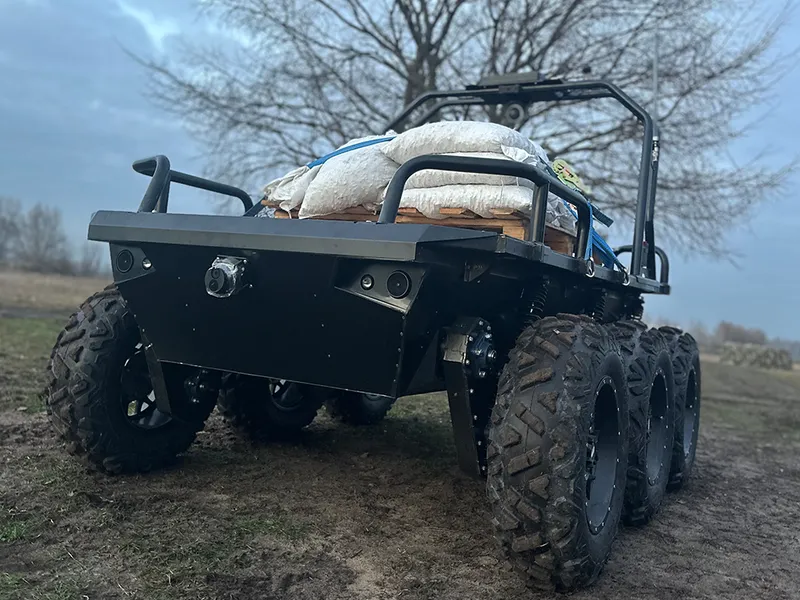

Ratel X, Six-wheeled uncrewed logistics platform, Support Equipment - view 1 — Source: Ratel X Product Page

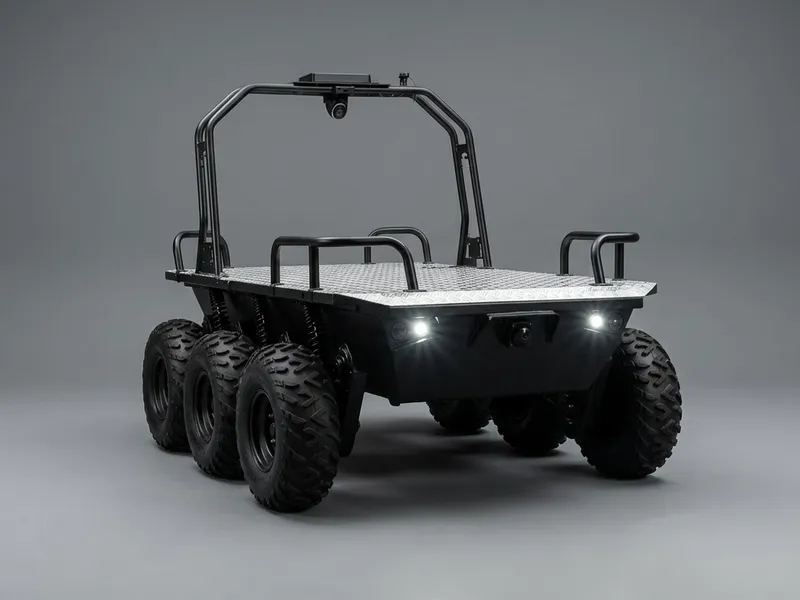

Ratel X, Six-wheeled uncrewed logistics platform, Support Equipment - view 2 — Source: Ratel X Product Page

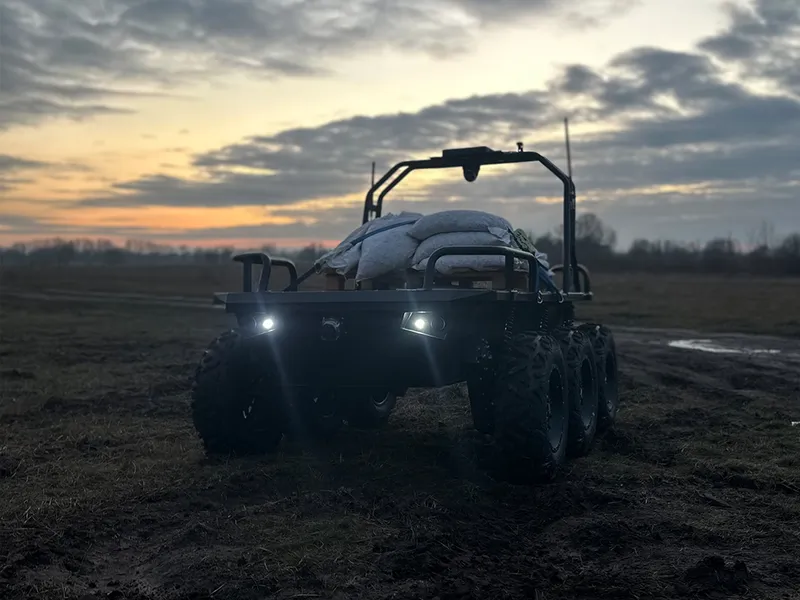

Ratel X, Six-wheeled uncrewed logistics platform, Support Equipment - view 3 — Source: Ratel X Product Page

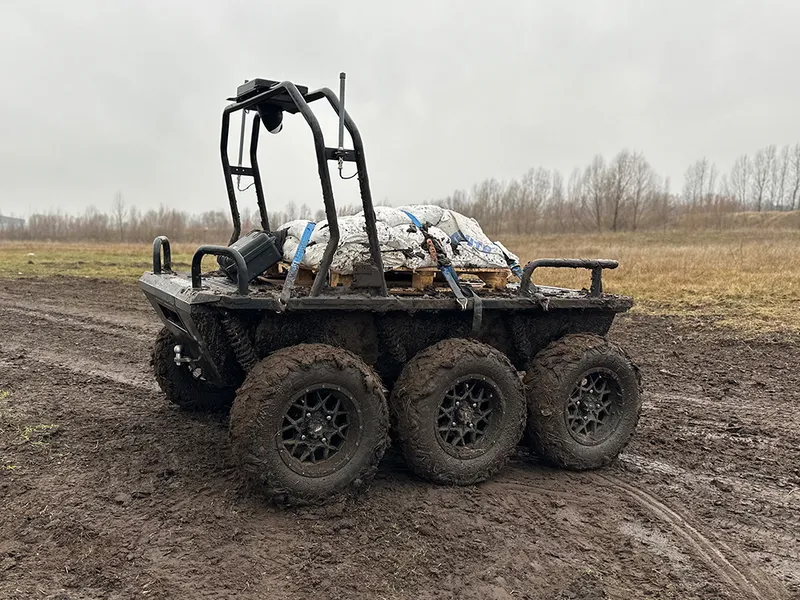

Ratel X, Six-wheeled uncrewed logistics platform, Support Equipment - view 4 — Source: Ratel X Product Page

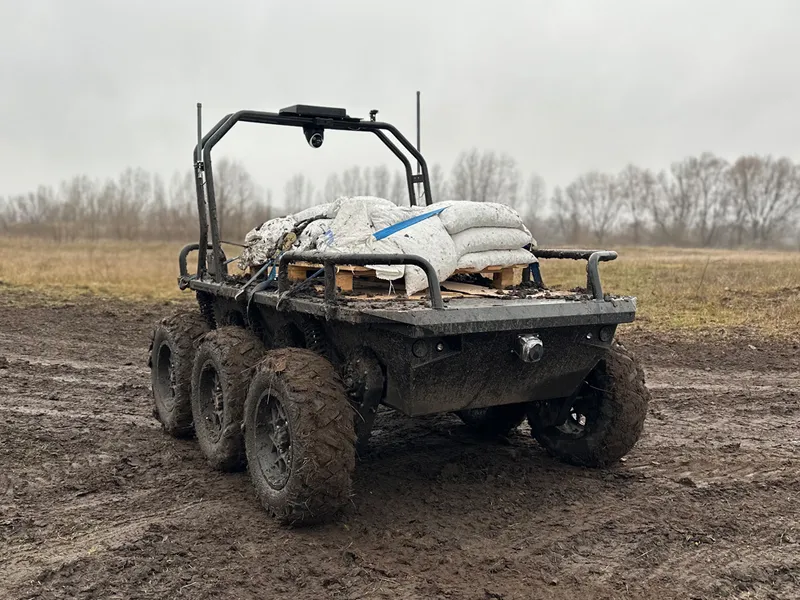

Ratel X, Six-wheeled uncrewed logistics platform, Support Equipment - view 5 — Source: Ratel X Product Page

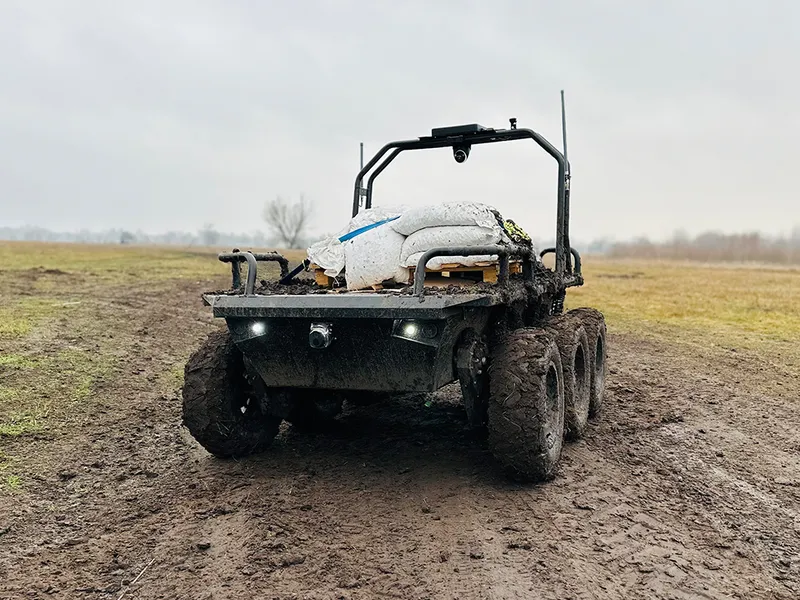

Ratel X, Six-wheeled uncrewed logistics platform, Support Equipment - view 6 — Source: Ratel X Product Page
