Support Equipment

Platform for UGVs

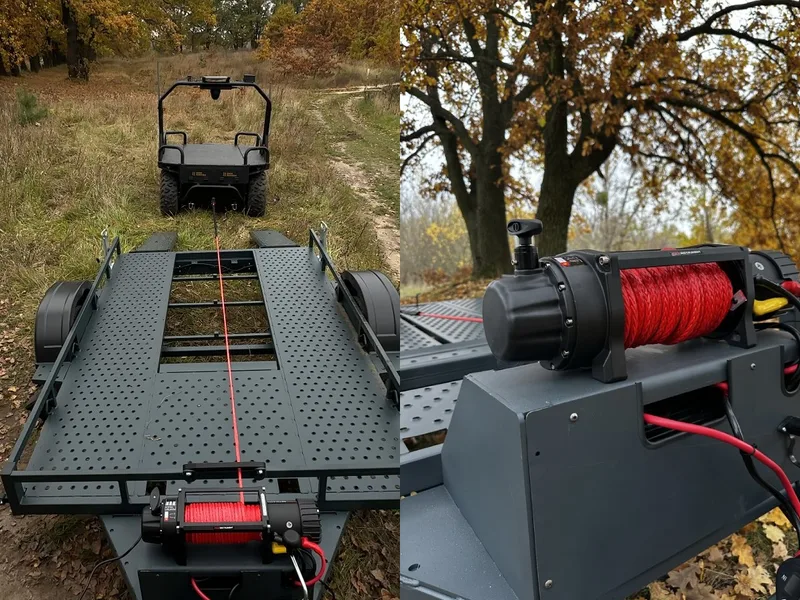

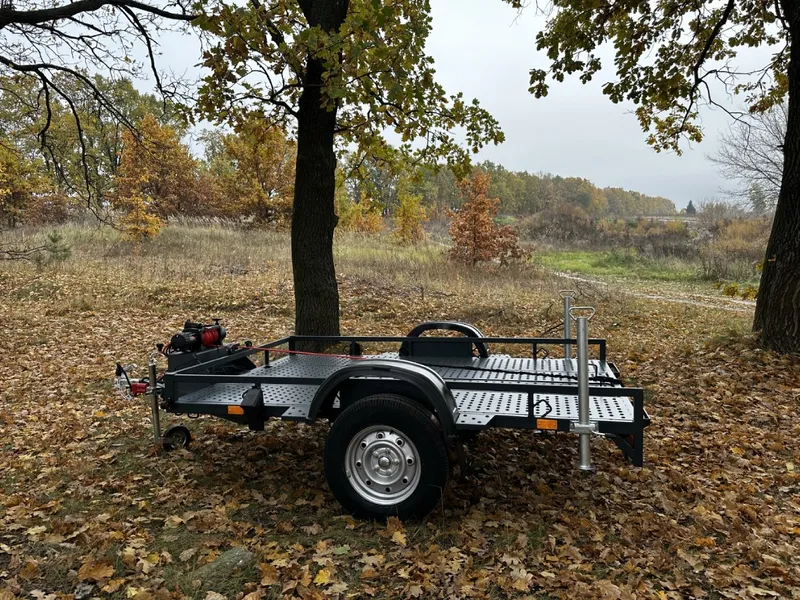

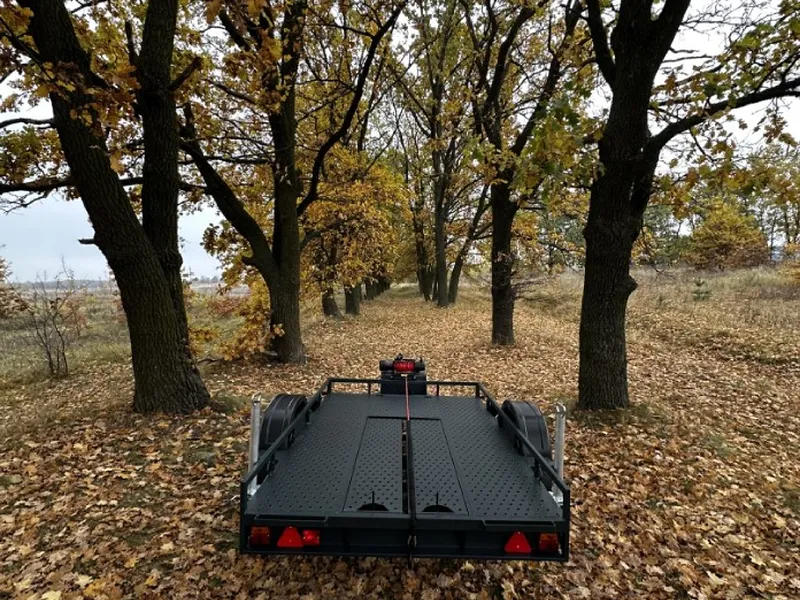

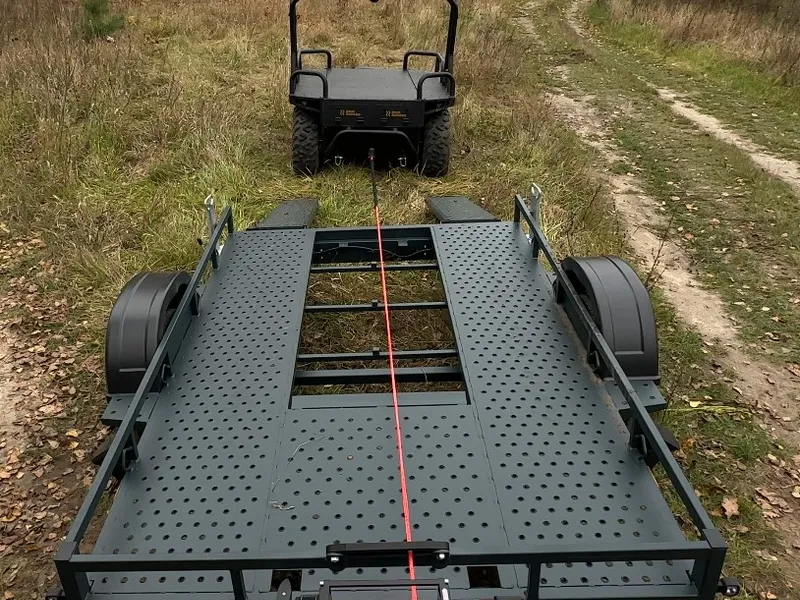

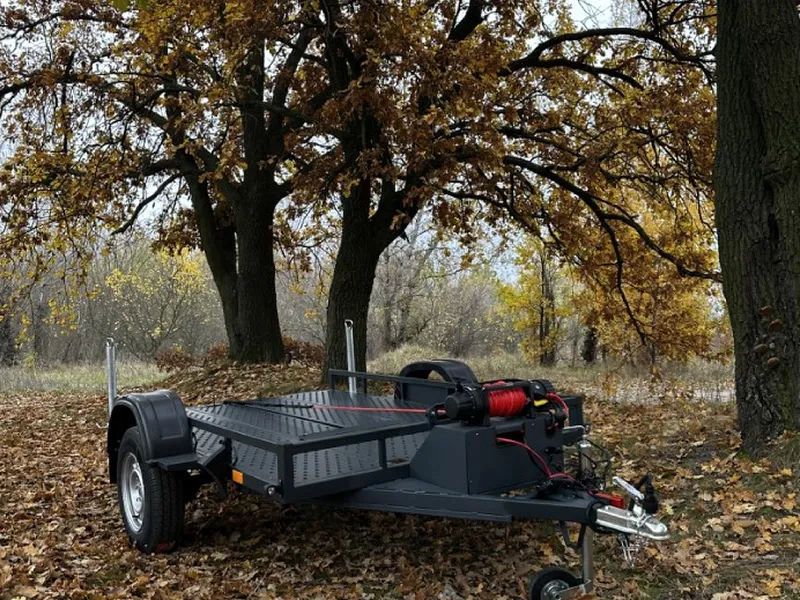

Ratel Robotics' Platform for UGVs is a logistics and recovery trailer for transporting ground robotic systems and evacuating equipment. It adds an electric 5 t winch, onboard 12 V power, ramps, and a reinforced platform to the basic trailer role, making it support equipment for keeping UGVs moving in field conditions.

Russia-Ukraine WarUkraine

Conflict side: Ukraine
Built by: Ratel Robotics
Built in: Ukraine

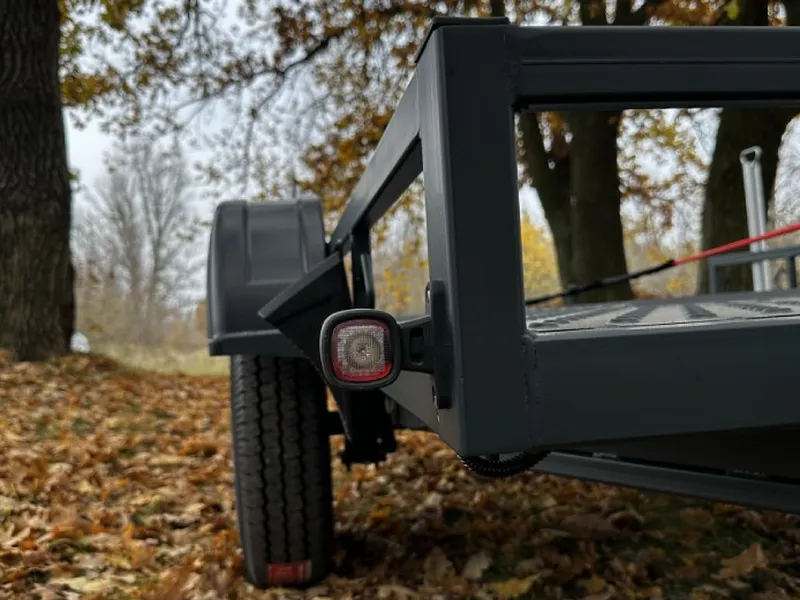

Platform for UGVs, Winch-equipped logistics trailer for ground robotic systems, Support Equipment

Image source: Platform for UGVs Product Page

Profile

Type: Winch-equipped logistics trailer for ground robotic systems
Conflict side: Ukraine
Origin: Ukraine
Service note: Full-scale Russia-Ukraine War

logisticsrecoverytrailerugv support transport

Service History

In service: Marketed for transporting and evacuating ground robotic systems
Used by: Ukrainian units operating ground robotic systems
Wars: Russia-Ukraine War

Production History

Designer: Ratel Robotics
Designed: Publicly listed by Ratel Robotics by 2026
Built by: Ratel Robotics
Built in: Ukraine
Unit cost: 230,000 UAH listed price
Produced: 2026-present
Number built: Not publicly disclosed
Variants: Logistics platform with 5 t electric winch

Specifications

Load capacity: Up to 1,020 kg
Overall dimensions: 3,670 mm length x 2,080 mm width x 810 mm height in transport position

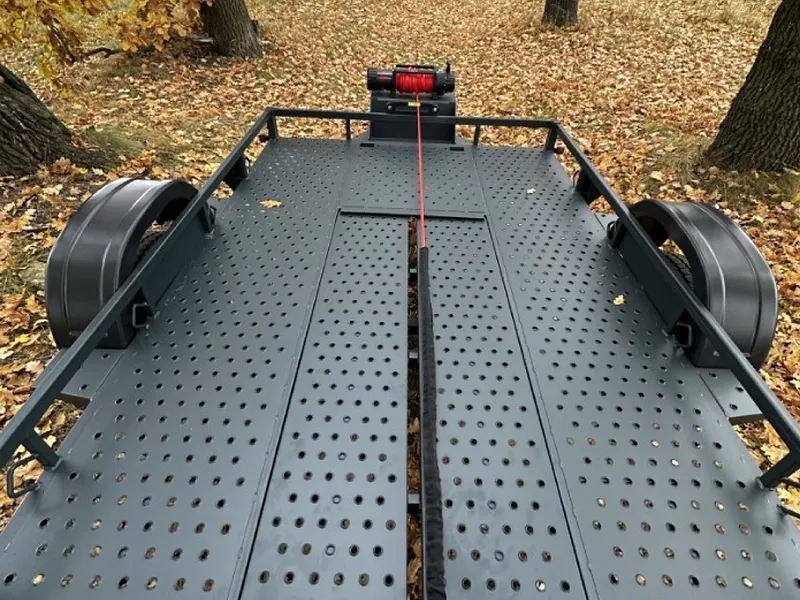

Internal platform dimensions: 2,520 x 1,600 mm
Track width: 1,865 mm
Ground clearance: At least 225 mm
Loading height: 540 mm
Electrical system: 12 V system with 95 Ah EFB battery and 20 A 14.6 V charger

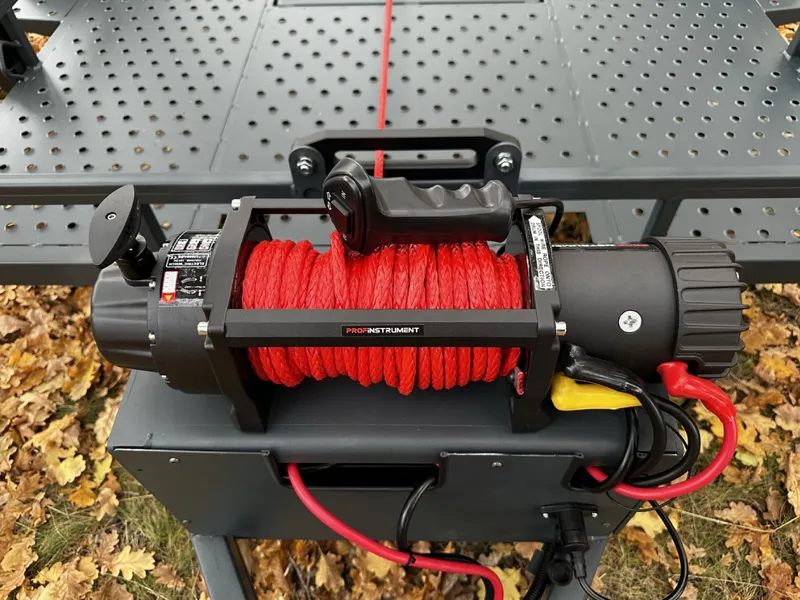

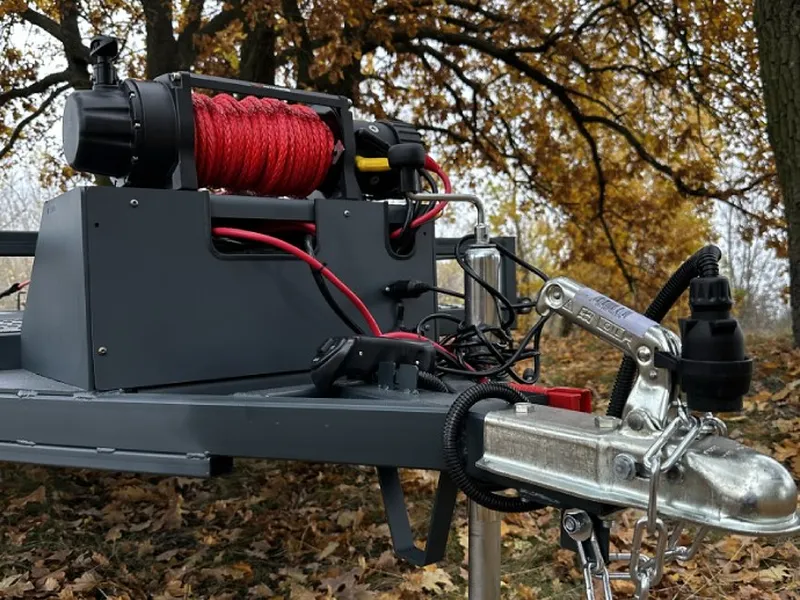

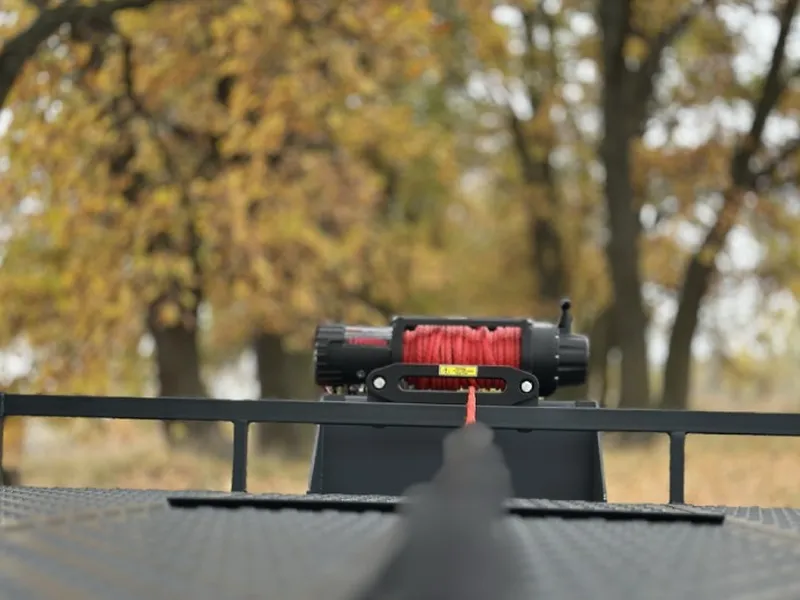

Winch: Electric winch rated to 5,000 kg
Included equipment: Trailer, ramps, cargo securing loops, support legs, wheel chocks, tool box, emergency power cables, battery, and charger

Conflict Usage

Russia-Ukraine War: Side: UkraineRole: Winch-equipped UGV transport and evacuation platformlogistics
Used by Ukrainian units as part of the Russia-Ukraine War's Ratel Robotics ground-robot logistics and recovery ecosystem; the platform is a trailer with an autonomous winch for transporting and evacuating equipment, not a weapon.
