Support Equipment

Ratel H

Ratel H is a Ukrainian heavy uncrewed ground platform from Ratel Robotics built for cargo movement, ammunition delivery, casualty evacuation, towing, and carrying add-on systems such as stretchers, limited-range electronic warfare equipment, or combat modules. It is the larger logistics member of the Ratel Robotics ground-robot line, with a 400 kg payload class and long travel range for battlefield support routes.

Russia-Ukraine WarUkraine

Conflict side: Ukraine
Built by: Ratel Robotics
Built in: Ukraine

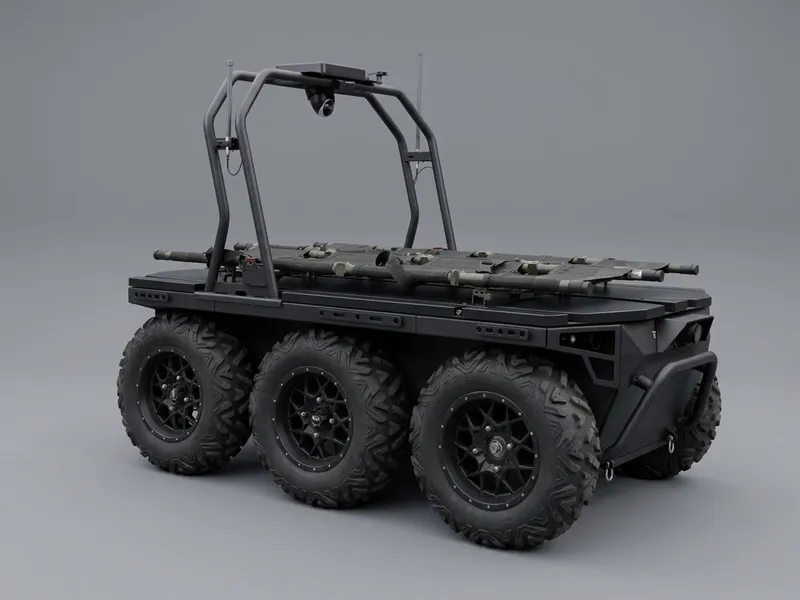

Ratel H, Heavy uncrewed ground logistics and tow vehicle, Support Equipment

Image source: Ratel H Product Page

Profile

Type: Heavy uncrewed ground logistics and tow vehicle
Conflict side: Ukraine
Origin: Ukraine
Service note: Full-scale Russia-Ukraine War

ugv uncrewed logistics wheeled

Service History

In service: Offered and reported in the Ratel Robotics wartime UGV family during the Russia-Ukraine War
Used by: Ukrainian Armed Forces
Wars: Russia-Ukraine War

Production History

Designer: Ratel Robotics
Built by: Ratel Robotics
Built in: Ukraine
Unit cost: Not publicly disclosed
Produced: 2024-present
Number built: Not publicly disclosed
Variants: Ratel H logistics / tow platform, Stretcher evacuation configuration, Payload platform for add-on electronic-warfare or combat modules

Specifications

Crew: Uncrewed; remotely operated from a ground control station
Payload: 400 kg useful load; 1,500 kg listed weight with payload
Dimensions: 2,300 x 1,300 x 1,900 mm
Weight: 1,100 kg empty
Radius of use: At least 50 km
Speed: 8 km/h
Travel range: Up to 60 km on hard surface or off-road
Sensors: Daytime and night cameras
Included equipment: Ground control station, multicopter repeater, charging station, documentation, additional components, and satellite-based remote-control system

Conflict Usage

Russia-Ukraine War: Side: UkraineRole: Robotic logistics and casualty-evacuation supportlogistics
Used by Ukrainian units as part of the Russia-Ukraine War's Ratel Robotics ground-robot family; the Ratel H product is a heavy logistics and tow platform intended to move cargo, ammunition, wounded personnel, and add-on systems while keeping operators farther from exposed routes.

Ratel H Videos

Ratel H / Logistics & Evacuator / We will take everything out!

Ratel H 6x6 robotic logistics platform

Ratel H Images

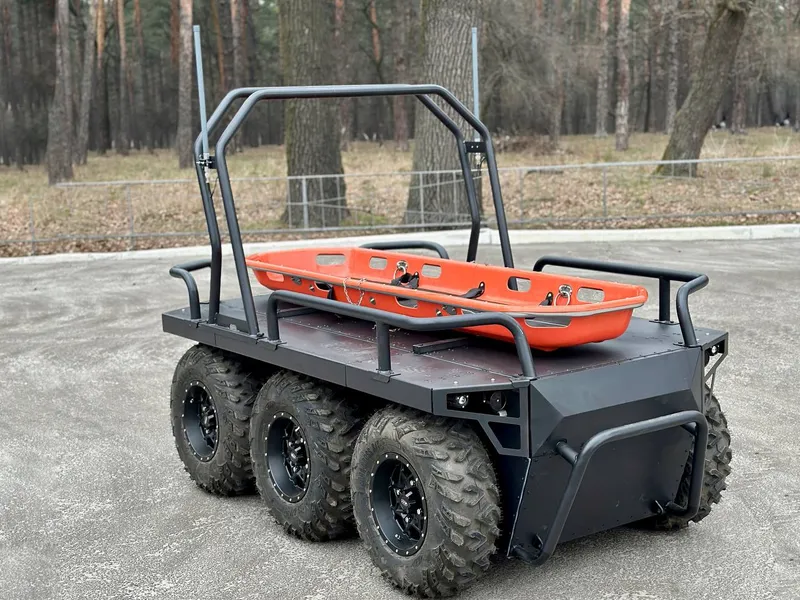

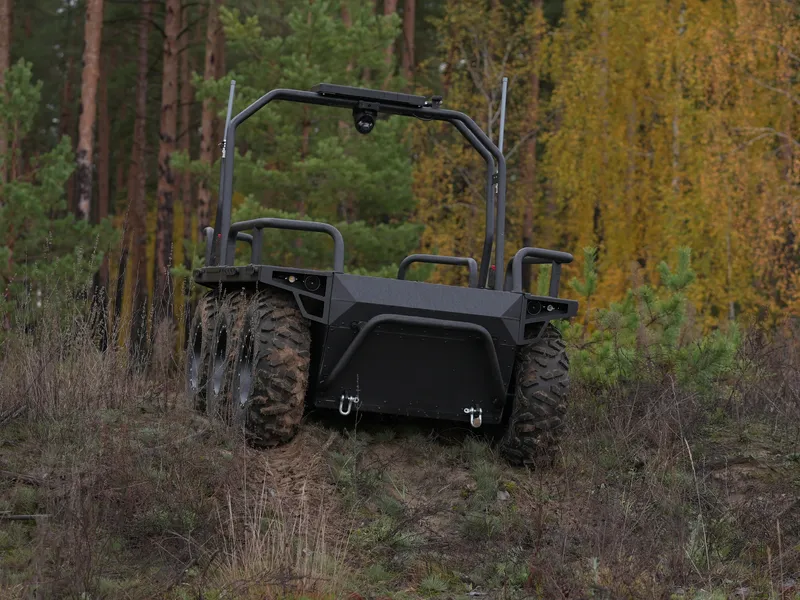

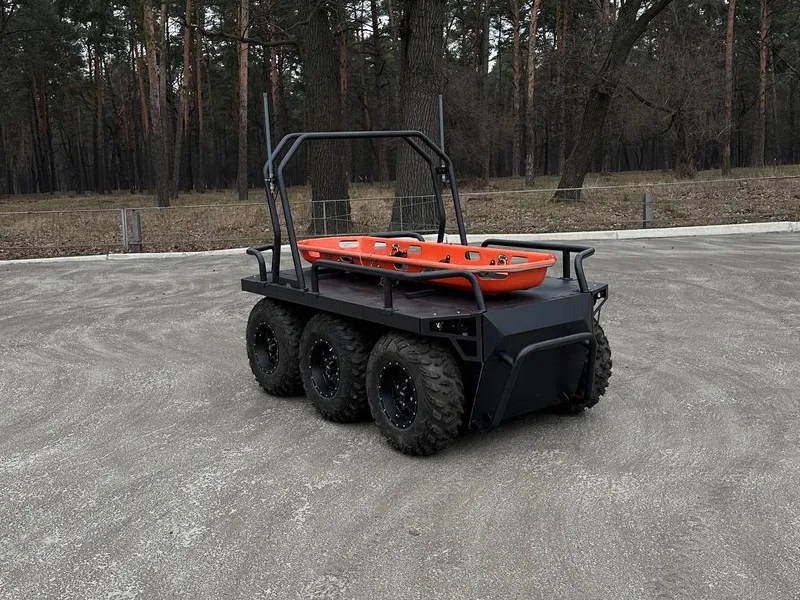

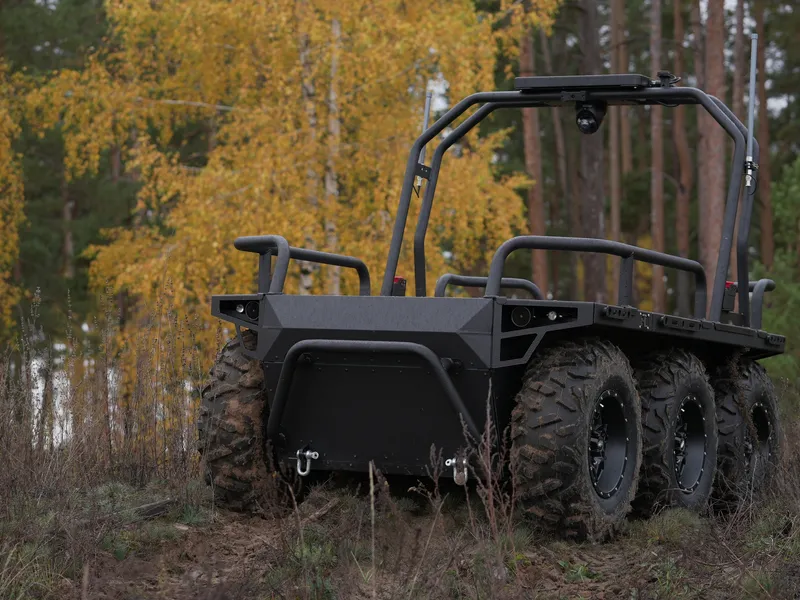

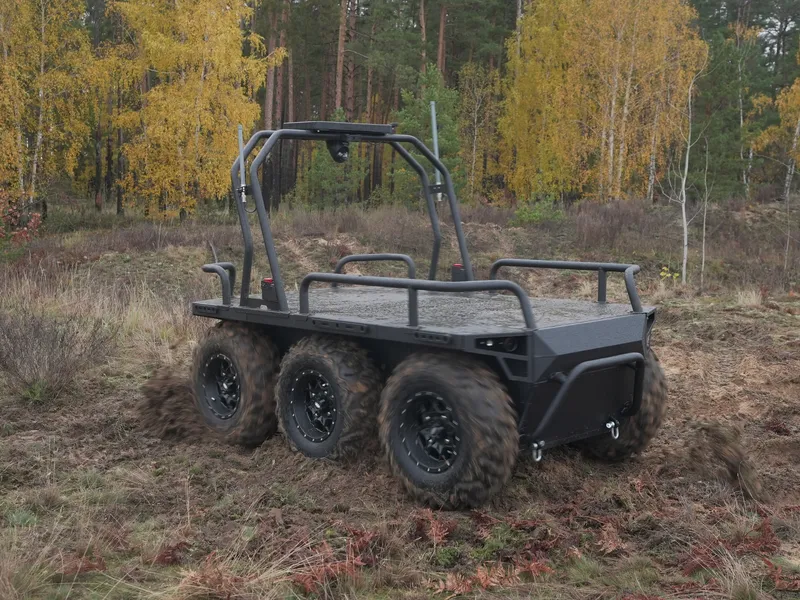

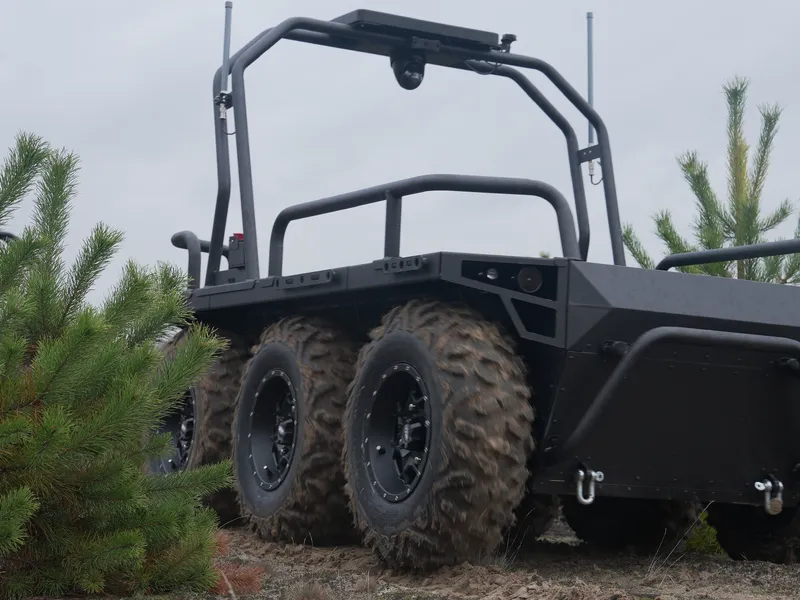

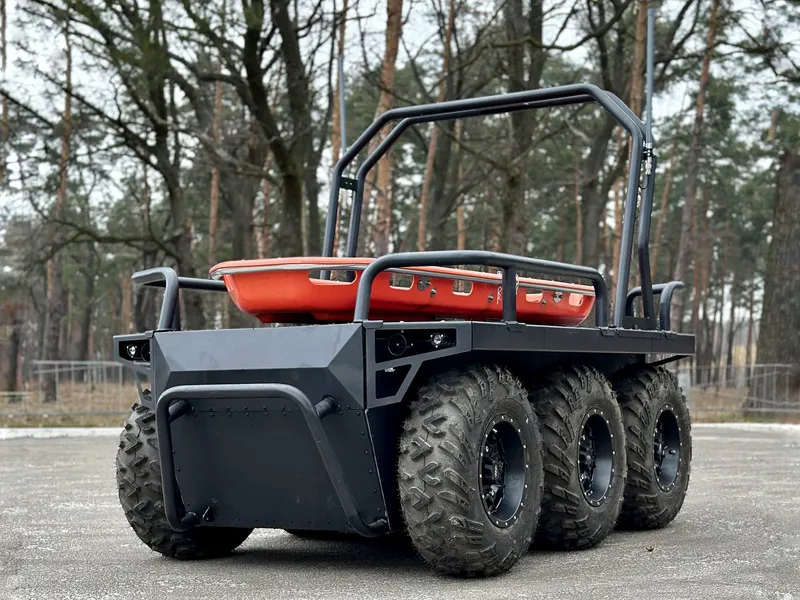

Ratel H, Heavy uncrewed ground logistics and tow vehicle, Support Equipment - view 1 — Source: Ratel H Product Page

Ratel H, Heavy uncrewed ground logistics and tow vehicle, Support Equipment - view 2 — Source: Ratel H Product Page

Ratel H, Heavy uncrewed ground logistics and tow vehicle, Support Equipment - view 3 — Source: Ratel H Product Page

Ratel H, Heavy uncrewed ground logistics and tow vehicle, Support Equipment - view 4 — Source: Ratel H Product Page
