Support Equipment

Electric stretcher

The Ratel Robotics Electric stretcher is a powered evacuation aid for moving casualties with less direct exposure for rescuers near the contact line. It uses replaceable batteries and a low electric chassis to carry a loaded stretcher over hard-surface and off-road routes, fitting the support-equipment side of Ukraine's ground-robotics ecosystem.

Russia-Ukraine WarUkraine

Conflict side: Ukraine
Built by: Ratel Robotics
Built in: Ukraine

Electric stretcher, Electric casualty-evacuation stretcher, Support Equipment

Image source: Electric Stretcher Product Page

Profile

Type: Electric casualty-evacuation stretcher
Conflict side: Ukraine
Origin: Ukraine
Service note: Full-scale Russia-Ukraine War

casualty evacuationmedicallogisticselectricsupport wheeled

Service History

In service: Marketed for evacuation tasks from the contact line
Used by: Ukrainian units operating ground robotic evacuation systems
Wars: Russia-Ukraine War

Production History

Designer: Ratel Robotics
Designed: Publicly listed by Ratel Robotics by 2026
Built by: Ratel Robotics
Built in: Ukraine
Unit cost: Price on request
Produced: 2026-present
Number built: Not publicly disclosed
Variants: Ratel electric evacuation stretcher

Specifications

Crew: Powered stretcher; operated by evacuation personnel
Working load: Up to 150 kg listed evacuation load
Dimensions: 2,200 x 700 x 400 mm
Weight: 70 kg empty; 220 kg with payload
Batteries: Three replaceable batteries
Speed: Up to 7 km/h
Range: At least 8,000 m with load on hard surface; at least 4,000 m with load off-road
Control radius: 100 m
Included equipment: Electric stretcher, charging station, passport, user manual, and additional components

Conflict Usage

Russia-Ukraine War: Side: UkraineRole: Remote casualty evacuation supportlogistics
Used by Ukrainian units within the Russia-Ukraine War's wider ground-robot casualty-evacuation effort; Ratel's electric stretcher is a support system for moving wounded personnel from dangerous areas, not a weapon.

Electric stretcher Videos

Easy to operate electric medical stretchers for evacuating wounded

Electric stretcher Images

Electric stretcher, Electric casualty-evacuation stretcher, Support Equipment - view 1 — Source: Electric Stretcher Product Page

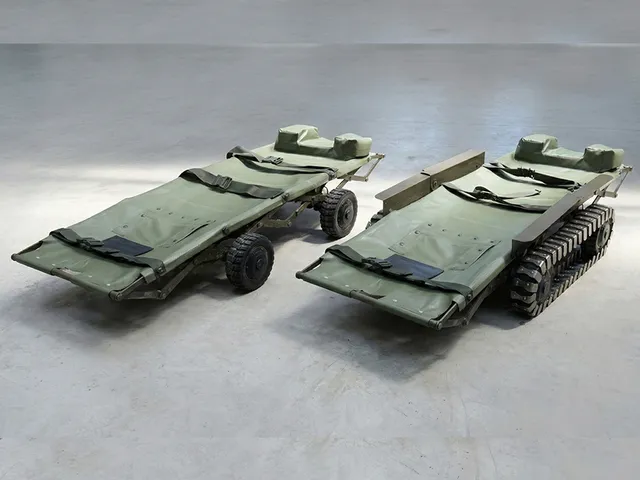

Electric stretcher, Electric casualty-evacuation stretcher, Support Equipment - view 2 — Source: Electric Stretcher Product Page

Electric stretcher, Electric casualty-evacuation stretcher, Support Equipment - view 3 — Source: Electric Stretcher Product Page

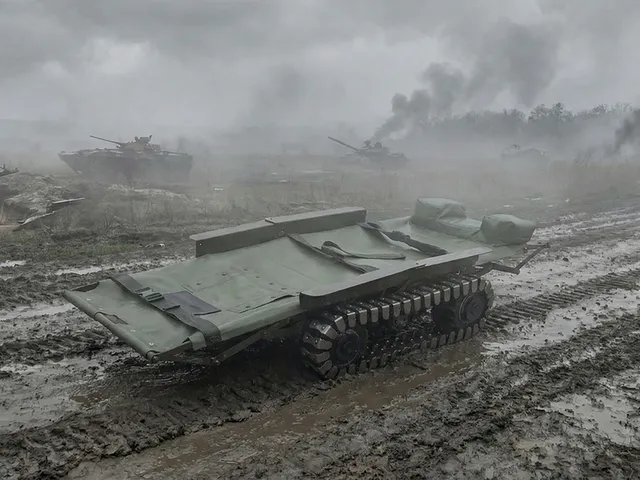

Electric stretcher, Electric casualty-evacuation stretcher, Support Equipment - view 4 — Source: Electric Stretcher Product Page

Electric stretcher, Electric casualty-evacuation stretcher, Support Equipment - view 5 — Source: Electric Stretcher Product Page
