Air Defense

Mistral

Also known as
  • Mistral
  • Mistral 3
  • Mistral MANPADS
  • Mistral ATLAS
  • Mistral SIMBAD-RC
  • Mistral ATAM
  • Air-to-Air Mistral
  • Missile Transportable Anti-aerien Leger
  • Missile Transportable Anti-aérien Léger
  • SATCP

Mistral is a French infrared-homing very-short-range air-defense missile family built by MBDA for portable, ground, naval, vehicle, and helicopter launchers. The current Mistral 3 missile gives the family an 8 km interception range with a matrix-imager seeker, while Ukraine conflict evidence documents Mistral missiles and launchers supplied for short-range air defense against Russian air attacks.

Role in Conflicts

Profile / Specs

Profile

Origin
France
Built by
MBDA France
Type
Very-short-range air-defense missile family
Service note
Mistral entered production around 1989-1990; Mistral 3 entered service in 2013.
Designed
1974
Unit cost
Mistral 3 reported unit cost: US$545,600 (2024), source-dependent.
Produced
1990-present

Specifications

Guidance
Infrared homing; Mistral 3 uses an IR matrix imager
Launch mode
Fire-and-forget
MANPADS setup
Two operators can prepare a fully equipped launcher in less than 60 seconds
ATLAS ready missiles
Two missiles on a twin manual launcher
SIMBAD-RC role
Remotely controlled naval short-range self-defense launcher
ATAM ready missiles
Four ready-to-fire missiles on two twin launchers
Length
1.88 m including launch motor
Diameter
About 92 mm
Mass
Less than 20 kg
Interception range
500 m to 8,000 m
Interception altitude
Up to 6,000 m
Helicopter launch envelope
Hover to 200 knots; nap-of-earth to above 15,000 ft
Warhead
About 3 kg with laser proximity and impact fuze
Platforms
Portable launchers, vehicles, ships, and helicopter ATAM installations
Variants

The entry covers the Mistral missile family across its ground, naval, and helicopter launch arrangements. Mistral 3 is the current missile standard, while MANPADS, ATLAS, SIMBAD-RC, and ATAM describe launcher or installation formats rather than separate missile bodies.

VariantConfigurationDesignation notes
Mistral 1Initial production missile

Reference sources identify Mistral 1 as the first production standard introduced around 1990.

Sources: Mistral (missile) - Wikipedia

Mistral 2Improved missile standard

Reference sources identify Mistral 2 as the later family standard introduced before Mistral 3.

Sources: Mistral (missile) - Wikipedia

Mistral 3Current missile standard

MBDA describes Mistral 3 as the latest family version, using a matrix imager seeker, laser proximity and impact fuzing, and an 8 km range.

Sources: MISTRAL 3 | MBDA

Mistral MANPADSPortable short-range air-defense launcher

MBDA describes the MANPADS configuration as a portable launcher for the Mistral 3 fire-and-forget VSHORAD missile on land, vehicles, or naval vessels.

Sources: MISTRAL MANPADS | MBDA

Mistral ATLASTwin manual ground or vehicle launcher

MBDA identifies ATLAS as a twin manual launcher that can be mounted on a vehicle or deployed on the ground, with two missiles fired in quick succession.

Sources: MISTRAL ATLAS | MBDA

Mistral SIMBAD-RCRemotely controlled naval launcher

MBDA presents SIMBAD-RC as a short-range naval self-defense launcher using Mistral missiles against air and surface threats.

Sources: MISTRAL SIMBAD-RC | MBDA

Mistral ATAMHelicopter air-to-air installation

MBDA's ATAM documentation describes two twin launchers fitted to the helicopter, four ready-to-fire missiles, combat-system or simplified-control integration, and operation through the helicopter flight envelope.

Sources: MISTRAL ATAM datasheet

Carrier Aircraft

The broader Mistral family is primarily a short-range air-defense system, but ATAM is the helicopter-mounted air-to-air installation. MBDA documents Tiger service, Cougar compatibility, and Indian and Korean integration lanes, while existing catalog links support the Tiger, Super Puma/Cougar, and AW-109 carrier relationships.

CarrierCarrier typeCarriage evidence
Eurocopter Tiger attack helicopter, Attack helicopter, Aircraft & UAVsEurocopter Tiger attack helicopterAttack helicopter

MBDA's ATAM datasheet states that French Army Aviation operates Mistral ATAM on the Tiger attack helicopter, with two twin launchers and four ready-to-fire missiles.

Sources: MISTRAL ATAM datasheet

AW-109, Light twin-engine attack and utility helicopter, Aircraft & UAVsAW-109Armed helicopter

GlobalSecurity lists Mistral among the AW-109's air-to-air missile options, and MBDA's ATAM documentation shows the family mounted on helicopter launchers.

Sources: GlobalSecurity A109 specifications, MISTRAL ATAM | MBDA

Super Puma combat support helicopter, Twin-engine medium-lift utility helicopter, Aircraft & UAVsSuper Puma combat support helicopterUtility helicopter

MBDA's ATAM datasheet lists Cougar among utility helicopters that can mount Mistral ATAM as a standalone weapon system; the catalog Super Puma record covers the AS532 Cougar branch.

Sources: MISTRAL ATAM datasheet

Launcher And Integration Context

MBDA frames Mistral as one missile family adapted to several launch environments. The portable and ATLAS ground launchers cover point air defense for land forces, SIMBAD-RC covers ship self-defense, and ATAM adapts the same missile family to helicopters.

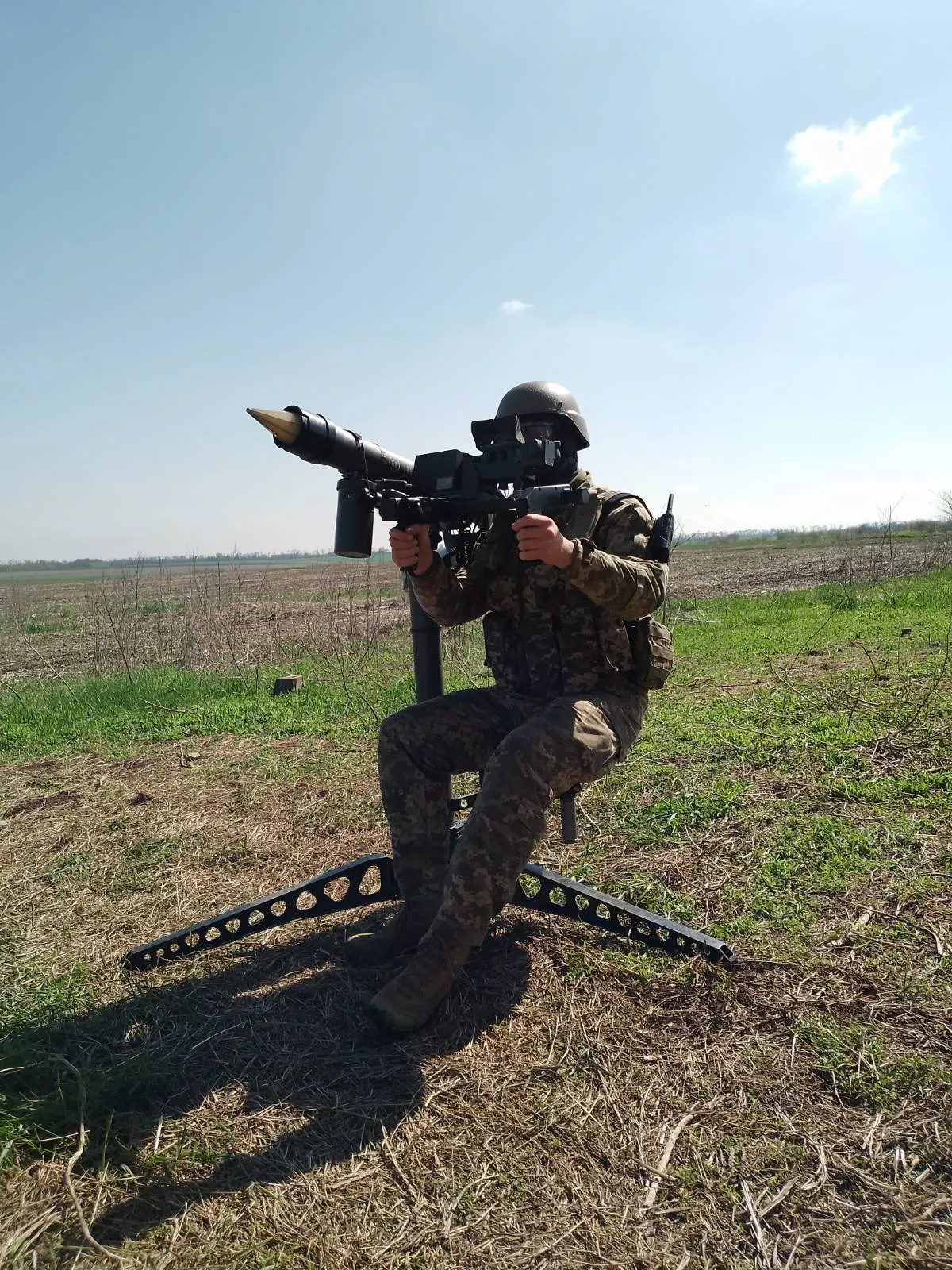

Portable role

Mistral MANPADS is a seated two-operator launcher for the Mistral 3 fire-and-forget missile, with setup and reload times measured in under a minute in MBDA's product description.

Ground launcher

ATLAS is the twin manual launcher for ground or vehicle use, giving one position two ready missiles and fast reload.

Naval launcher

SIMBAD-RC is the remotely controlled naval self-defense branch of the Mistral family for short-range air and surface threats.

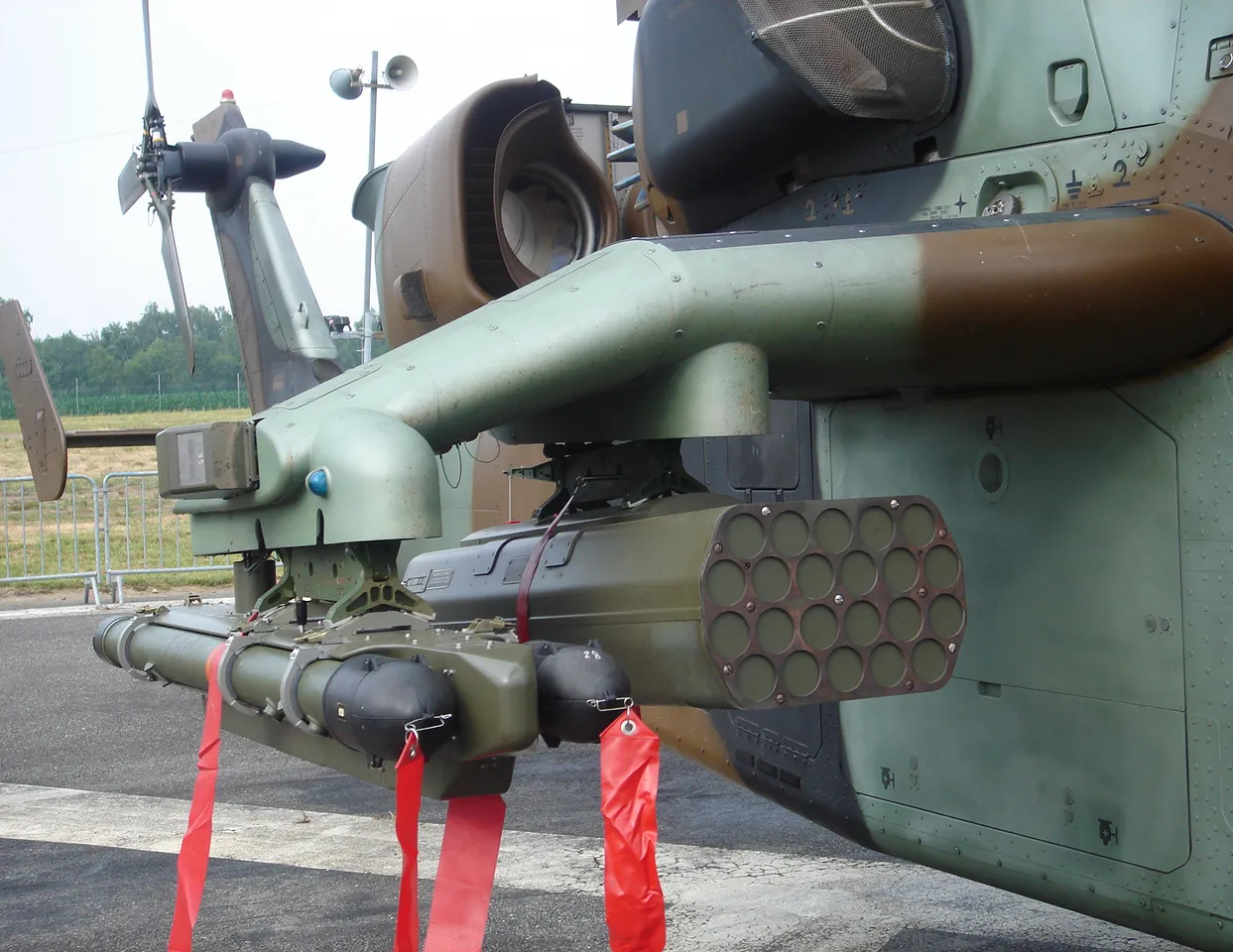

Helicopter branch

ATAM mounts two twin launchers on helicopters for four ready-to-fire missiles, with combat-system or simplified-control integration.

Timeline

Mistral Key Events

  1. SATCP development begins

    Reference sources trace the Mistral family to French SATCP development that began in 1974.

  2. Helicopter version contracted

    Specialist missile references describe a 1986 contract for a helicopter-launched Mistral variant, later known as ATAM.

  3. Mistral enters the early service period

    Reference and MBDA sources place early Mistral service around 1989-1990; specialist missile references also report initial ATAM launches from Gazelle helicopters in 1990.

  4. Indian assembly agreement

    MBDA announced an agreement with Bharat Dynamics Limited for Mistral and ASRAAM final assembly, integration, and test in India, noting completed Mistral ATAM integration on Dhruv and Light Combat Helicopter platforms.

  5. Norway ships Mistral systems to Ukraine

    Norway announced that approximately 100 Mistral air-defense missiles and launchers had already been shipped to Ukraine from Norwegian stocks.

  6. KMAH integration contract

    MBDA announced a Korea Aerospace Industries contract to integrate Mistral ATAM on the Korean Marine Attack Helicopter.

  7. Estonia announces Mistral aid for Ukraine

    Estonia's Ministry of Defence said Estonia would send Mistral-type short-range air-defense missile systems and missiles to Ukraine.
