Artillery

LORA ballistic missile

Also known as
  • LORA
  • AIR LORA
  • Air-Launched LORA
  • Long Range Artillery
  • Long Range Artillery Weapon System
  • Long-Range Artillery Weapon System

LORA is an Israeli precision short-range ballistic missile from Israel Aerospace Industries, carried in sealed canisters on mobile, maritime, and air-launched configurations. In the 2020 Nagorno-Karabakh war, Azerbaijani forces used it sparingly for a high-value bridge strike meant to disrupt Armenian reinforcement routes.

LORA ballistic missile, Short-range road-mobile ballistic missile system, Artillery

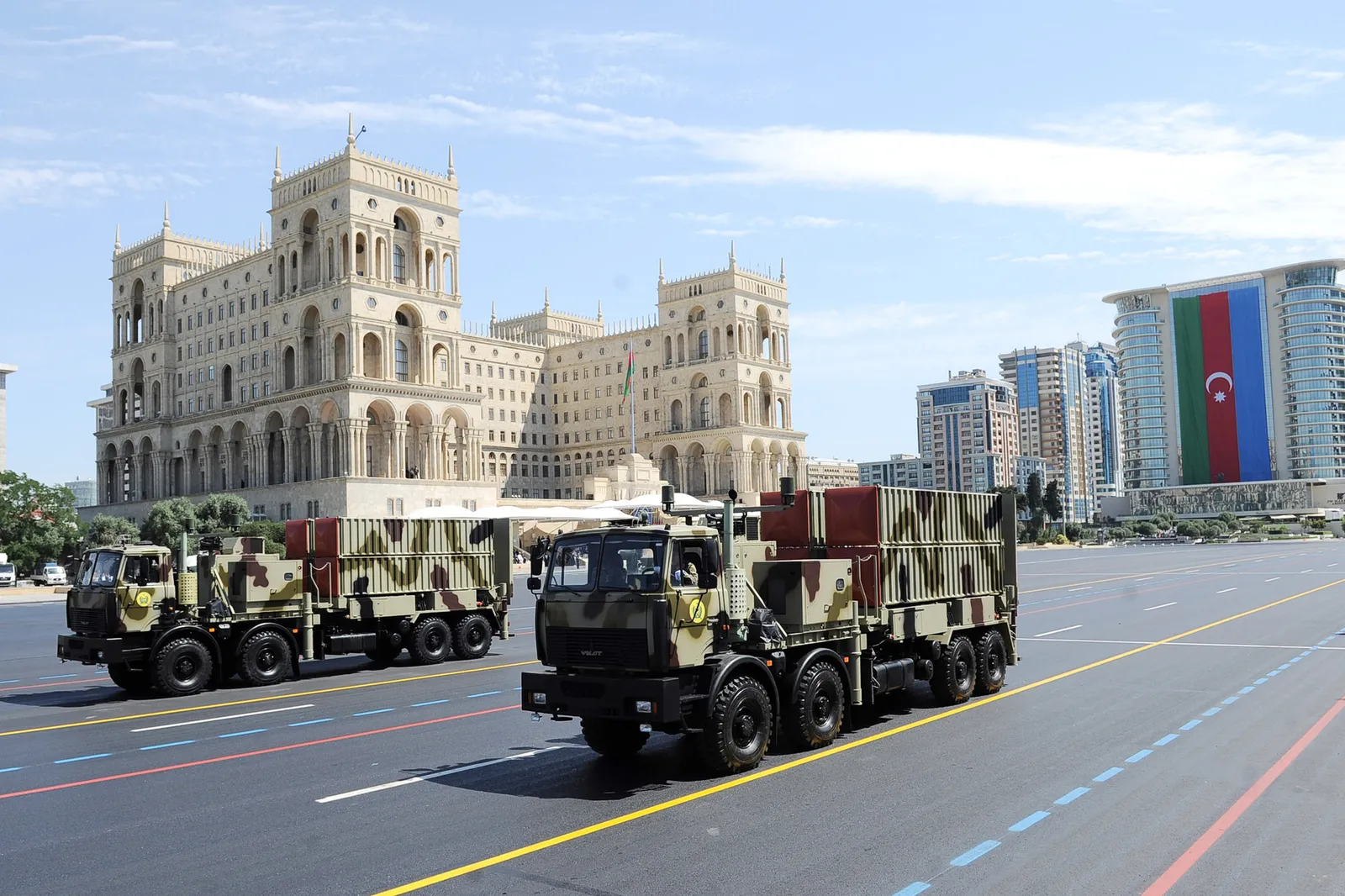

Image source: LORA at Baku Military Parade

Role in Conflicts

Profile / Specs

Profile

Origin
Israel
Type
Short-range road-mobile ballistic missile system
Service note
Operational by the late 2000s; Azerbaijani service documented by 2018
Designer
Israel Aerospace Industries MLM division
Designed
Early 2000s development; publicly displayed in the mid-2000s

Specifications

Range
IAI lists 90 to 430 km; CSIS lists 280 km for the missile profile
Launch weight
1,600 kg
Dimensions
5.2 m length; 624 mm diameter
Warhead
Single high-explosive or submunition payload; IAI describes penetration capability against fortified targets
Guidance
GPS/INS guidance, with CSIS also describing TV terminal guidance in reported specifications
Propulsion
Solid-fuel rocket motor
Launcher
Four sealed missiles on a standard 16-ton flat-bed truck, with maritime launch option
Air LORA configuration
Aircraft-launched derivative with stand-alone or avionics-integrated carriage, fire-and-forget operation, airborne target definition, and reported F-16 launch testing
Variants

The LORA family centers on the same sealed-canister precision ballistic missile concept, with launch-mode variants marketed for ground, maritime, and aircraft carriage.

VariantConfigurationDesignation notes
Ground-launched LORARoad-mobile canister launcher

IAI describes the ground configuration as four sealed missiles on a standard 16-ton flat-bed truck.

Sources: IAI LORA Product Page

Naval LORAShip-launched canister configuration

IAI's 2020 firing trial launched LORA from a vessel at short and long test ranges, documenting the maritime launch option.

Sources: LORA Ballistic Missile Firing Trial

Air LORAAir-launched ballistic missile derivative

IAI markets Air LORA as an aircraft-launched member of the family for standoff precision strike, and Janes reported that the variant had been launched from an F-16 before its ILA 2024 debut.

Sources: IAI Air LORA Product Page, Janes Air LORA ILA 2024

Timeline

LORA ballistic missile Key Events

  1. Operational status reported

    CSIS lists LORA as operational with an unconfirmed 2007 in-service date and identifies Israel and Azerbaijan as possessors.

    Sources: LORA Missile Profile

  2. Azerbaijani parade display

    Azerbaijani LORA launchers appeared in Baku military parade imagery, giving public evidence of the system in Azerbaijani service before the 2020 war.

    Sources: LORA at Baku Military Parade

  3. Sea-based firing trial

    IAI announced a successful LORA firing trial from a vessel, including short-range and long-range shots against planned targets.

    Sources: LORA Ballistic Missile Firing Trial

  4. Nagorno-Karabakh combat use

    CSIS and RUSI describe Azerbaijan using LORA against a bridge link during the 2020 Nagorno-Karabakh war.

    Sources: The Air and Missile War in Nagorno-Karabakh, Democratisation of Precision Strike in Nagorno-Karabakh

  5. India production agreement announced

    BEL announced an agreement with IAI to jointly produce LORA missiles for Indian tri-service requirements.

    Sources: BEL IAI LORA India Production Announcement

  6. Air LORA shown at ILA Berlin

    Janes reported that IAI debuted Air LORA at ILA 2024 as an air-launched version of the surface-launched LORA, with F-16 launch testing already completed.

    Sources: Janes Air LORA ILA 2024

Launch Modes

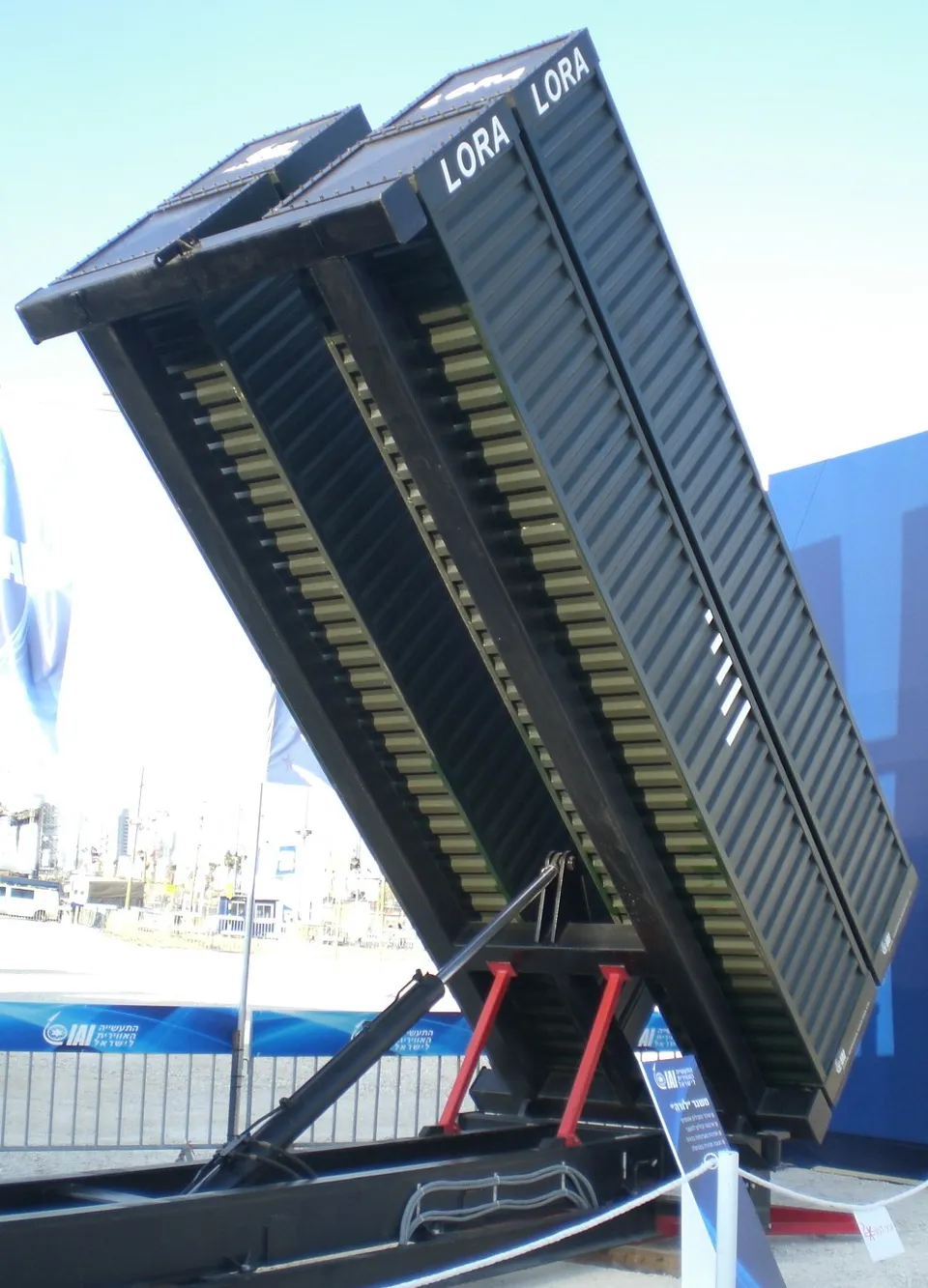

Ground launch: IAI describes a truck-mounted load of four sealed missiles. Sea launch: the 2020 firing trial documented launch from a vessel at 90 km and 400 km test ranges. Air launch: Air LORA extends the family into aircraft-carried standoff strike rather than a separate conflict-use record.

Source support: IAI LORA Product Page; LORA Ballistic Missile Firing Trial; IAI Air LORA Product Page.

Air LORA Variant Context

Air LORA is the aircraft-carried member of the LORA family rather than a separately documented conflict-use entry. IAI describes it as a stand-off air-to-ground ballistic missile for strategic targets, with fire-and-forget operation, airborne target definition, INS/GPS navigation, GNSS anti-jamming, and blast-fragmentation, multi-purpose, or deep-penetration warhead options. Janes and Breaking Defense both reported its June 2024 ILA Berlin debut and F-16 launch testing; public reporting did not identify an operational customer at that time.

Carrier integration

IAI says Air LORA can integrate as a stand-alone aircraft configuration or through existing avionics.

Reported test platform

Janes reported that IAI had already launched Air LORA from an F-16 before the ILA 2024 public debut.

Known limits

Public sources reviewed support variant status and testing, not direct combat use of Air LORA as distinct from ground-launched LORA.

Source support: IAI Air LORA Product Page; Janes Air LORA ILA 2024; Breaking Defense Air Lora Rollout.

Media

LORA ballistic missile Videos

LORA ballistic missile Images

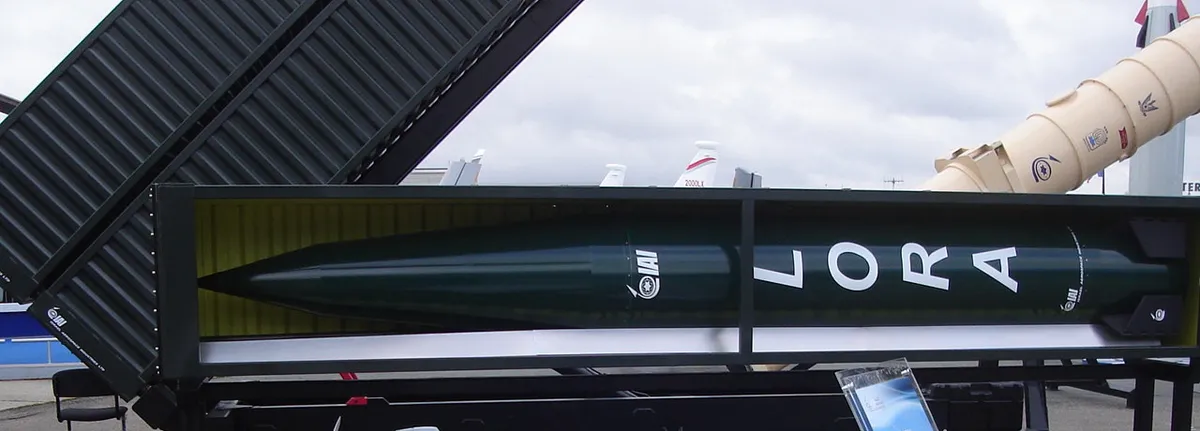

LORA ballistic missile, Short-range road-mobile ballistic missile system, Artillery - view 1
Source: LORA Missile Launcher Image

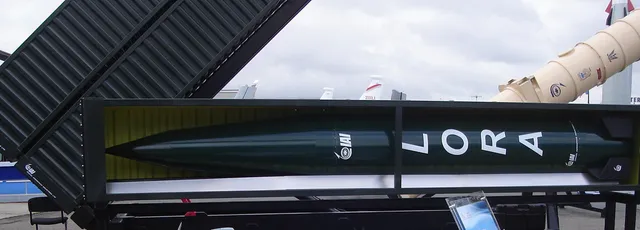

LORA ballistic missile, Short-range road-mobile ballistic missile system, Artillery - view 2
Source: LORA Missile Launcher Image
