Support Equipment

KPU-51 Lancet launcher and control-station context

Also known as
  • KPU-51
  • KPU 51
  • KPU-51E
  • KPU 51E
  • Product 51 launcher
  • Izdeliye 51 launcher
  • Izdeliye 51E launcher
  • ZALA compact launcher
  • Lancet-E single-use launcher
  • Lancet ground control station

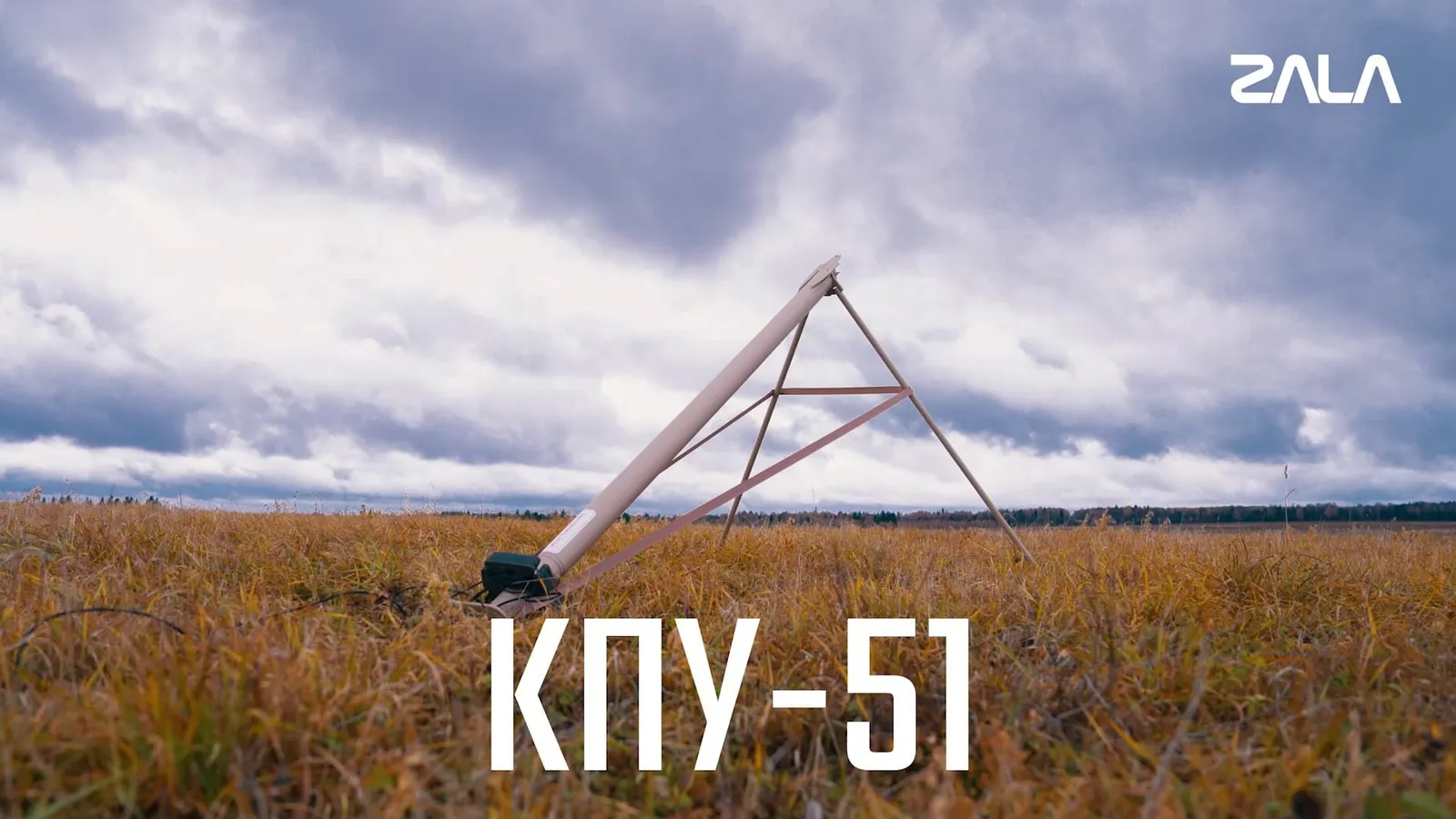

KPU-51 and KPU-51E identify compact launcher equipment tied to ZALA's Product 51 / Izdeliye 51E Lancet loitering munition rather than a separate strike drone. ZALA describes the domestic Product 51 launcher as a man-portable unit that can be fired away from the ground control station, while Rosoboronexport and exhibition reporting place the export KPU 51E launcher inside the Lancet-E reconnaissance-strike system with Z-16E reconnaissance UAVs and Izdeliye 51E / 52E loitering munitions.

Role in Conflicts

Side
Russia

ZALA says the compact Product 51 launcher is in serial production, completed combat testing, and is actively used in Russia's stated special-military-operation context; independent exhibition reporting identifies the export KPU 51E as the single-use launcher added to the Lancet-E reconnaissance-strike system.

Profile / Specs

Profile

Origin
Russia
Type
Loitering-munition launcher and control-station support equipment
Service note
2025-present launcher context for Product 51 and Lancet-E
Designer
ZALA Aero Group
Designed
Publicly described in 2025; export KPU 51E shown at UMEX 2026
Produced
2025-present

Specifications

Launcher role
Compact launcher for Product 51 / Izdeliye 51E Lancet-family loitering munitions
Launcher format
Tripod-mounted aluminum-alloy tubular guide in EDR's KPU 51E description
Launch mechanism
Pyrotechnic cartridge driving a metal ejector rod on the KPU 51E; Rosoboronexport lists a disposable ejector for Izdeliye 51E
Crew and setup
ZALA and EDR describe one-person deployment and launch preparation in less than one minute
Control-station relationship
ZALA says the compact launcher allows launch at a considerable distance from the ground control station
System context
Lancet-E export system includes a Z-16E reconnaissance UAV and Izdeliye 51E / Izdeliye 52E loitering munitions
Compatible munition
Izdeliye 51E is listed with a 45 km range, 50-minute endurance, 5 kg warhead, and disposable-ejector launch method in Rosoboronexport data
Launched Loitering Munition

The launcher is useful as a catalog record because it explains how the Product 51 / Izdeliye 51E branch of the Lancet family is deployed and separated from the operator's ground control position.

Launched itemItem typeLaunch evidence
ZALA Lancet, Loitering munition, Aircraft & UAVsZALA LancetLoitering munition family

ZALA's Product 51 launcher article links the compact launcher to the largest munition in the Lancet series, and Rosoboronexport's Lancet-E page lists Izdeliye 51E as the 5 kg-warhead loitering munition using a disposable-ejector launch method.

Sources: ZALA Product 51 Launcher, Rosoboronexport Lancet-E

Launcher And Control Link

The source-backed distinction is between the launcher at the firing point and the operator/control equipment that communicates with the munition. Public reporting supports KPU-51/KPU-51E as launcher terminology; it does not identify a separate named Lancet ground-control-station model.

Launcher

ZALA describes a compact Product 51 launcher that one operator can prepare in under a minute and carry manually.

EDR identifies the export version shown at UMEX 2026 as KPU 51E.

Control station

ZALA says the compact launcher allows launch at a distance from the ground control station.

ISIS separately describes Lancet-3 communication through an antenna or mobile ground station.

System context

Rosoboronexport lists Lancet-E as a reconnaissance-strike system with Z-16E reconnaissance UAVs and Izdeliye 51E / 52E loitering munitions.

The launcher is therefore best read as support equipment for the Lancet family, not as a separate munition.

Timeline

KPU-51 Lancet launcher and control-station context Key Events

  1. ZALA describes the compact Product 51 launcher

    ZALA said its new Product 51 launcher was compact, manually portable, quicker to prepare than earlier vehicle-based launchers, and usable away from the ground control station.

    Sources: ZALA Product 51 Launcher

  2. KPU 51E shown at UMEX 2026

    EDR reported that ZALA unveiled the KPU 51E single-use launcher for Izdeliye 51E at UMEX 2026 and described its tripod guide, pyrotechnic ejector, one-person operation, combat testing, and serial-production status.

    Sources: EDR UMEX 2026 KPU 51E

  3. Lancet-E presentation emphasizes single-operator launch

    ZALA's UMEX 2026 coverage said Rosoboronexport demonstrated a new Lancet-E launcher that allows launch by a single operator.

    Sources: ZALA Rosoboronexport UMEX 2026 Lancet-E
