Fennek Reconnaissance Vehicle

Also known as
  • FENNEK
  • Spähwagen Fennek
  • Spaehwagen Fennek
  • LGS Fennek
  • Leichter Gepanzerter Spähwagen
  • Fennek LGS
  • Fennek 1A1
  • Fennek 1A2
  • Fennek 1A4
  • Fennek JFST
  • Fennek FST
  • Fennek SWP
  • Fennek LRAT
  • Fennek AD

The Fennek is a German-Dutch 4x4 armored reconnaissance vehicle built around a low silhouette, mast-mounted observation equipment, protected mobility, and small three-person scout teams. Germany, the Netherlands, and Qatar field reconnaissance-family variants, while official and UN reporting documents Fennek vehicles in Afghanistan, MINUSMA operations in Mali, and Dutch military support to Ukraine.

Fennek Reconnaissance Vehicle, Armored reconnaissance vehicle, Armored Vehicles

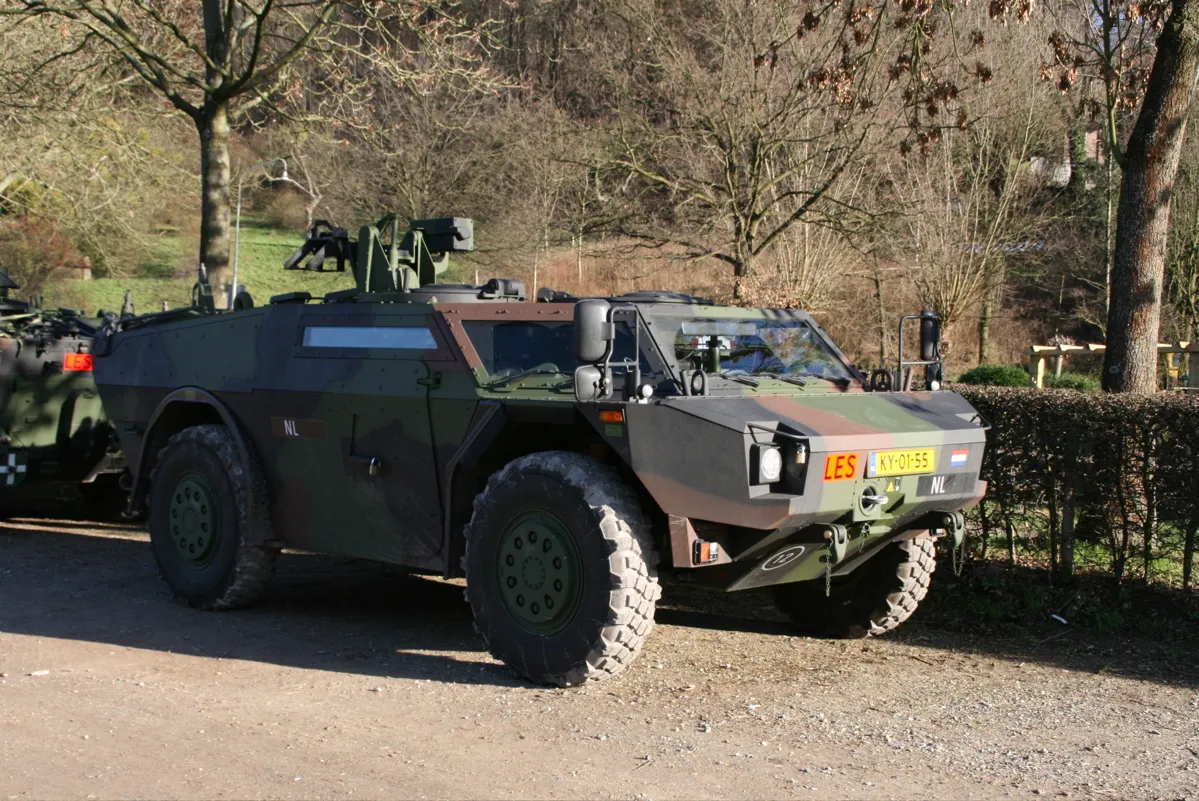

Image source: Fennek20070115.jpg

Role in Conflicts

Profile / Specs

Profile

Origin
Germany / Netherlands
Type
Armored reconnaissance vehicle
Service note
2000s-present
Designed
1990s-2001
Unit cost
US$4.235 million (2024 USD, reported)
Produced
2001-present
Number built
690 (through 2022, reported)

Specifications

Crew
3
Configuration
4x4 wheeled chassis
Length
5.58 m (18 ft 4 in)
Width
2.55 m (8 ft 4 in) / 2.67 m (8 ft 9 in)
Height
1.79 m vehicle roof; Bundeswehr profile height about 2.3 m
Weight
Up to about 12 t
Engine power
177 kW, with some KNDS data also listing 235 kW configurations
Speed
> 100 km/h
Range
About 1,000 km
Observation equipment
Mast-mounted BAA with day camera, thermal imager, and laser rangefinder
Dutch fleet after MLU
345 vehicles across AD, AD Mortier, AD VCP, LRAT, LVB, FST, DTV, SWP, and OLM configurations
Protection
Ballistic, mine, IED, and fragmentation protection
Armament
40 mm grenade machine gun, 7.62 mm machine gun, .50 cal machine gun, or mission-specific launcher
Reconnaissance System

The Fennek's value comes from combining a compact protected vehicle with sensors that can work from concealed positions. Bundeswehr material describes a mast-mounted BAA package with thermal imaging, day camera and laser rangefinder, plus a cable-mounted option for dismounted observation away from the vehicle.

Observation

The BAA is mounted on an electrically driven mast that can rise above the vehicle roof and can also be used on a tripod away from the vehicle.

Scout Team

A three-person crew operates the vehicle, observation equipment, navigation systems and defensive weapon station.

Bundeswehr Sensors

The BAA III upgrade adds new sensor packages for 30 scout Fenneks and 50 JFST Fenneks, with deliveries planned from the first quarter of 2026.

Dutch MLU

The Dutch midlife update covers most of the fleet with revised C4I equipment, observation, protection, mobility and weapon-station changes across nine configurations.

Variants

Fennek variants keep the same compact 4x4 reconnaissance-vehicle basis but change observation equipment, mission electronics, stowage, or launcher fit for scout, engineer, fire-support, air-defense, and anti-tank roles.

VariantConfigurationDesignation notes
Fennek 1A1German scout vehicle with KMW 1530 weapon station

The Bundeswehr lists Fennek 1A1 as the scout-vehicle configuration with the KMW 1530 weapon station.

Sources: Spähwagen Fennek | Bundeswehr

Fennek 1A2German upgraded scout and engineer configuration

The Bundeswehr lists Fennek 1A2 configurations with FLW200 remote weapon station, improved IED protection, CG-20 electronic countermeasures, bow-box protection, and IR searchlight changes.

Sources: Spähwagen Fennek | Bundeswehr

Fennek JFST / FSTJoint fire-support team vehicle

KNDS describes the German JFST and Dutch FST configuration as a two-vehicle artillery-observer and forward-air-controller team with expanded communications and laser designation for tactical fire support.

Sources: FENNEK (J)FST | KNDS

Fennek FAOForward artillery observer

KNDS describes the FAO variant as a forward-observer Fennek with improved navigation for accurate target localization, artillery command-and-control links, digital mapping, and additional fire-support communications.

Sources: FENNEK FAO | KNDS

Fennek SWPStinger weapon platform

KNDS describes the SWP as a Fennek air-defense variant carrying a launcher for four Stinger guided missiles.

Sources: FENNEK SWP | KNDS

Fennek LRATDutch long-range anti-tank variant

KNDS identifies LRAT as the Dutch long-range anti-tank Fennek variant while retaining the vehicle's low silhouette and quiet propulsion.

Sources: FENNEK LRAT | KNDS

Fennek ADDutch general-service and engineering support variant

KNDS describes the Dutch AD variant as a command and function vehicle with material stowage in place of the normal observation and reconnaissance equipment, used by Dutch engineering troops since 2005.

Sources: FENNEK AD | KNDS

Fennek LVBDutch light reconnaissance and surveillance vehicle

Dutch Defence identifies the LVB as the mast-equipped reconnaissance and surveillance Fennek, with the BAA sensor head usable from inside the vehicle or on a tripod up to 40 m away.

Sources: Fennek-verkenningsvoertuig | Defensie.nl

Fennek AD MortierDutch mortar carrier

Dutch Defence describes the Mortierdrager as an AD-derived Fennek that carries an 81 mm mortar for front-line combat support, with the mortar assembled outside the vehicle before firing.

Sources: Fennek-verkenningsvoertuig | Defensie.nl

Fennek PionierGerman engineer command and reconnaissance vehicle

The Bundeswehr describes engineer-force Fenneks as command and reconnaissance vehicles used for leadership tasks and reconnaissance of operating areas and water-crossing points.

Sources: Spähwagen Fennek | Bundeswehr

Carrier Helicopter

NAVAIR documents the Fennek as an internal-load example inside the CH-53K heavy-lift envelope.

CarrierCarrier typeCarriage evidence
CH-53K King Stallion, Heavy-lift transport helicopter, Aircraft & UAVsCH-53K King StallionHeavy-lift transport helicopter

NAVAIR says the CH-53K payload capability can include an internally loaded European Fennek armored personnel carrier.

Sources: CH-53K vehicle lift with Fennek | NAVAIR

Air-Defense Missile

The Fennek SWP adapts the vehicle into a short-range air-defense launcher rather than a pure scout vehicle.

Launched itemItem typeLaunch evidence
FIM-92 Stinger, Man-portable air-defense system, Air DefenseFIM-92 StingerMan-portable air-defense missile

KNDS describes the Fennek SWP as a Stinger Weapon Platform with a launcher for four Stinger guided missiles.

Sources: FENNEK SWP | KNDS

Timeline

Fennek Reconnaissance Vehicle Key Events

  1. German-Dutch program sponsorship

    Forecast International describes the Fennek program as sponsored by the German and Dutch defense ministries from December 1994 after earlier private-venture work.

    Sources: Fennek - Forecast International

  2. Bundeswehr service begins

    The Bundeswehr says it has had the Fennek since 2003 and uses it as the main weapon system of the Army reconnaissance force.

    Sources: Spähwagen Fennek | Bundeswehr

  3. Dutch AD variant enters engineer use

    KNDS states that Dutch engineering troops have used the Fennek AD command and function variant since 2005.

    Sources: FENNEK AD | KNDS

  4. Dutch ISR-Coy completes Mali handover

    The Netherlands Ministry of Defence reported that Dutch ISR personnel in Mali used Fennek reconnaissance vehicles for thousands of kilometers of desert intelligence work before handing duties to German personnel.

    Sources: Missie Mali moet het zonder JISTARC doen | Defensiekrant

  5. Bundeswehr JFST conversion contract

    BAAINBw announced a contract for KMW to convert 30 Bundeswehr Fennek vehicles to the Joint Fire Support Team configuration, with first converted vehicles planned for delivery the following year.

    Sources: Bundeswehr erhält weitere FENNEK für die Joint Fire Support Teams | BAAINBw

  6. Dutch midlife update contracted

    The Netherlands Ministry of Defence said 322 of 344 Dutch Fenneks would receive a midlife update led by Krauss-Maffei Wegmann, with nine configurations, C4I updates, and deliveries planned from 2022 to 2027.

    Sources: Fennek-pantservoertuigen krijgen flinke upgrade | Defensie.nl

  7. Dutch MLU design phase moves to prototypes

    Dutch Defence magazine reported that design work for the last of nine MLU variants had been completed, clearing the way for prototypes and adding upgrades such as BAAIINL sensors, driver night vision, smoke launchers, C4I changes, and power-system updates.

    Sources: MLU Fennek in nieuwe fase | Materieelgezien

  8. Dutch support to Ukraine disclosed

    The Netherlands Ministry of Defence publicly identified Fennek reconnaissance vehicles among military equipment sent to Ukraine.

    Sources: Defence to publish more information about deliveries to Ukraine

  9. BAA III sensor modernization announced

    Hensoldt announced a contract to modernize 90 Bundeswehr Fennek vehicles with 92 BAA III sensor sets, covering 30 scout vehicles and 50 JFST vehicles with reserve and integration sets.

    Sources: Modernising sensor technology of Fennek reconnaissance vehicles of the Bundeswehr | HENSOLDT

Media

Fennek Reconnaissance Vehicle Videos

Fennek Reconnaissance Vehicle Images

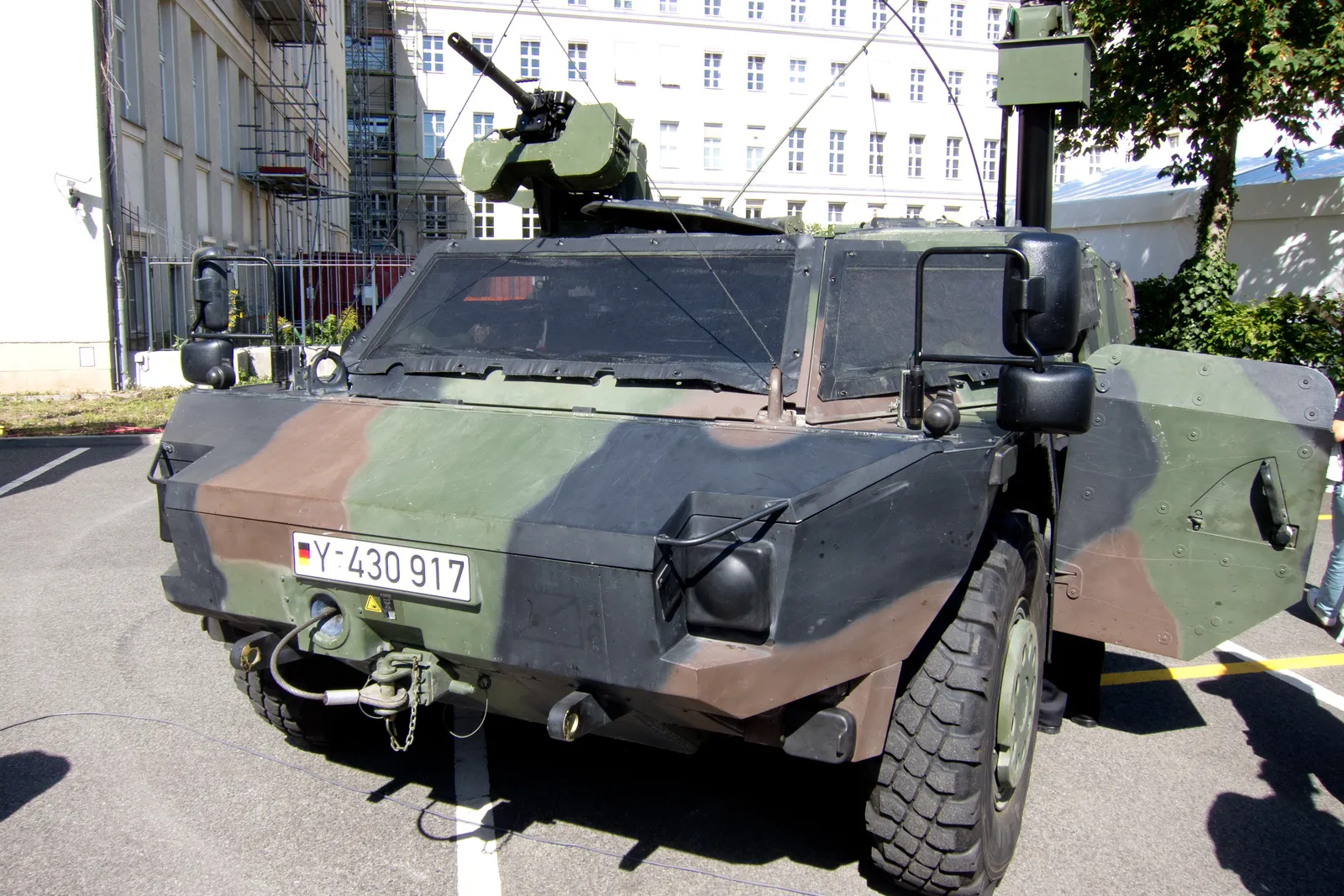

Fennek Reconnaissance Vehicle, Armored reconnaissance vehicle, Armored Vehicles - view 1
Source: Fennek reconnaissance vehicle - Berlin 2011.jpg

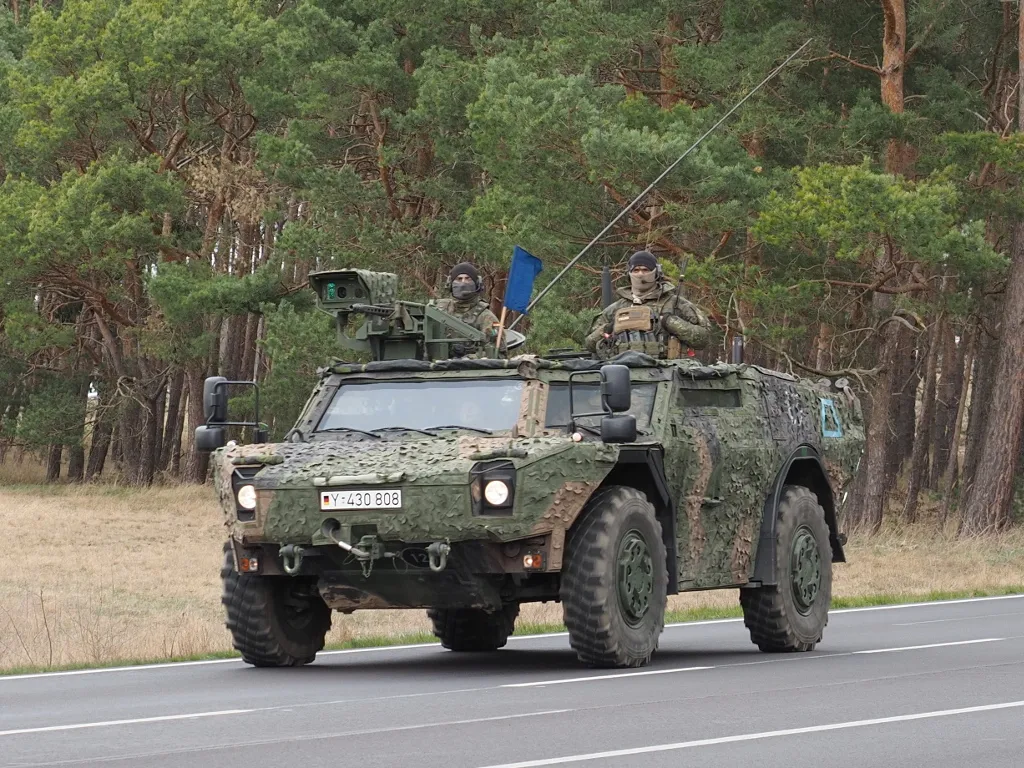

Fennek Reconnaissance Vehicle, Armored reconnaissance vehicle, Armored Vehicles - view 2
Source: SpW Fennek Wettin Sword 2022.jpg
