Naval Systems

Astute-class submarine

Also known as
  • Astute class
  • Astute class submarine
  • Astute class attack submarine
  • Astute-class
  • A-boat

The Astute class is the Royal Navy's nuclear-powered attack submarine family built by BAE Systems in Barrow-in-Furness. Its boats use Combat System Masts instead of traditional optical periscopes, carry Tomahawk land-attack missiles and Spearfish heavyweight torpedoes, and provide covert strike, surveillance, and anti-submarine warfare capability.

Astute-class submarine, Nuclear-powered attack submarine, Naval Systems

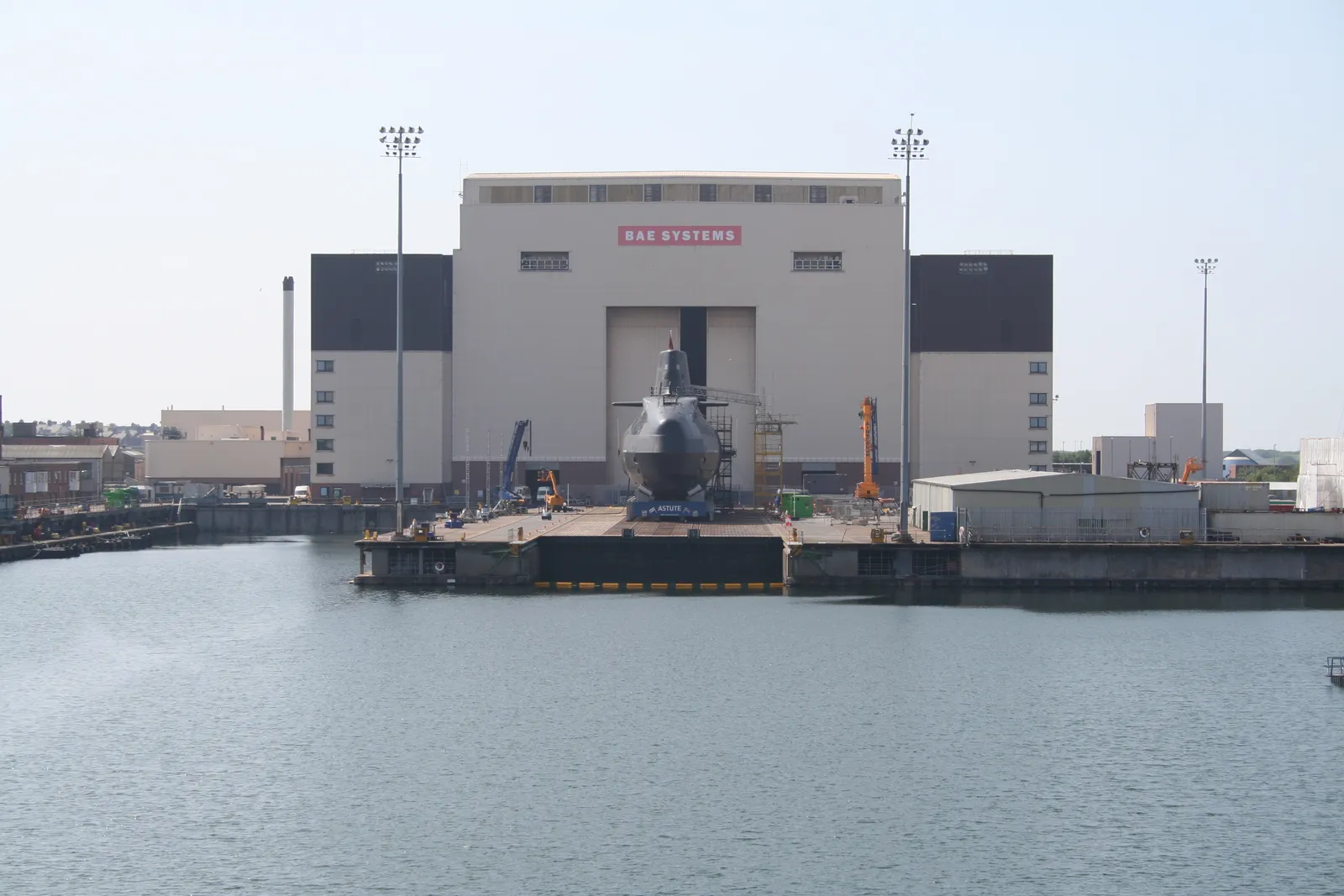

Image source: Astute1.JPG

Role in Conflicts

Profile / Specs

Profile

Origin
United Kingdom
Type
Nuclear-powered attack submarine
Service note
2010-present
Unit cost
£1.4 billion (reported 2017 contract for HMS Agamemnon, the sixth Astute-class boat)
Number built
7 planned; 6 in service, 1 under construction

Specifications

Displacement
7,400 tonnes
Length
97 metres
Speed
30 knots
Range
Unlimited submerged
Armament
Tomahawk Land Attack Cruise Missiles and Spearfish heavyweight torpedoes
Sensors
Sonar 2076 integrated passive/active search sonar suite with hull and towed arrays
Masts
Combat System Masts instead of traditional optical periscopes
Carried Munitions

The class's long-range strike reach comes from the Tomahawk family carried by Astute boats.

Carried itemItem typeCarriage evidence
BGM-109 Tomahawk Land Attack Missile, Ship- and submarine-launched land-attack cruise missile, MunitionsBGM-109 Tomahawk Land Attack MissileLand-attack cruise missile

Royal Navy says Astute-class submarines carry Tomahawk Land Attack Cruise Missiles for strikes on ground targets hundreds of miles inland.

Sources: Astute Class Attack Submarine

Design Notes

Royal Navy coverage highlights three features that set the class apart from earlier British attack submarines.

FeatureWhat the source says
Combat System MastsUpdated digital periscopes replace traditional optical periscopes on the class.
Submerged enduranceAstute boats can circumnavigate the globe while submerged and produce their own oxygen and drinking water.
Underwater sensingSonar 2076 combines bow, flank, and towed arrays for integrated search and tracking.
Timeline

Astute-class submarine Key Events

  1. HMS Astute fires first Tomahawk

    The first Astute-class boat completed its first test firing mission by launching Tomahawk missiles during trials in the Gulf of Mexico.

    Sources: Navy sub fires first Tomahawk missile

  2. MOD awards sixth-boat contract

    The Ministry of Defence announced a £1.4 billion contract for the sixth Astute-class submarine, HMS Agamemnon, in the seven-boat programme.

    Sources: £1.4 billion deal for Royal Navy's new attack submarine

  3. HMS Astute returns from Carrier Strike Group deployment

    Royal Navy reporting said HMS Astute returned to HMNB Clyde after deploying with the Carrier Strike Group, where it provided undersea defense.

    Sources: Carrier Strike Group submarine returns home

  4. HMS Agamemnon is commissioned

    Royal Navy commissioned HMS Agamemnon as the sixth Astute-class submarine in Barrow-in-Furness.

    Sources: The King sees Royal Navy's newest submarine commissioned

  5. First commission ends with refit

    The Royal Navy marked 15 years of continuous service as HMS Astute entered Devonport for a mid-life revalidation period.

    Sources: Royal Navy hunter-killer submarine completes first historic phase of front-line career

Media

Astute-class submarine Videos

Astute-class submarine Images

Astute-class submarine, Nuclear-powered attack submarine, Naval Systems - view 1

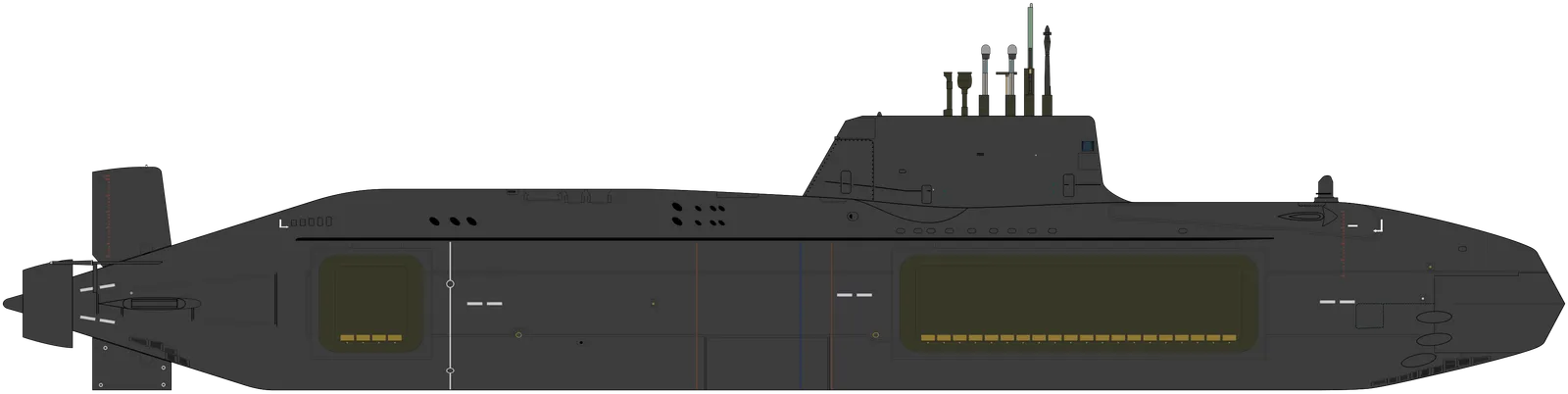

Source: Astute class SSN.svg
Astute-class submarine, Nuclear-powered attack submarine, Naval Systems - view 2
Source: Astute class SSN.svg
Astute-class submarine, Nuclear-powered attack submarine, Naval Systems - view 3
Source: Commissioning of HMS Agamemnon.webp
