3M8 anti-aircraft guided missile

Also known as
  • 3M8
  • 3M8M
  • 3M8M1
  • 3M8M2
  • 3M8M3
  • 9M8
  • 9M8M1
  • 9M8M2
  • SA-4 Ganef missile
  • Krug missile

The 3M8 is the large Soviet surface-to-air missile built for the 2K11 Krug / SA-4 Ganef tracked air-defense system. It combined four solid-fuel launch boosters with a kerosene ramjet sustainer, a heavy fragmentation warhead, and command-guidance integration with Krug radars and launchers. In the Nagorno-Karabakh conflict record, direct public evidence is limited to captured 3M8 missiles documented with abandoned Armenian Krug equipment after the 2023 Azerbaijani offensive.

3M8 anti-aircraft guided missile, Soviet ramjet-powered surface-to-air missile carried and launched by the 2K11 Krug system, Munitions

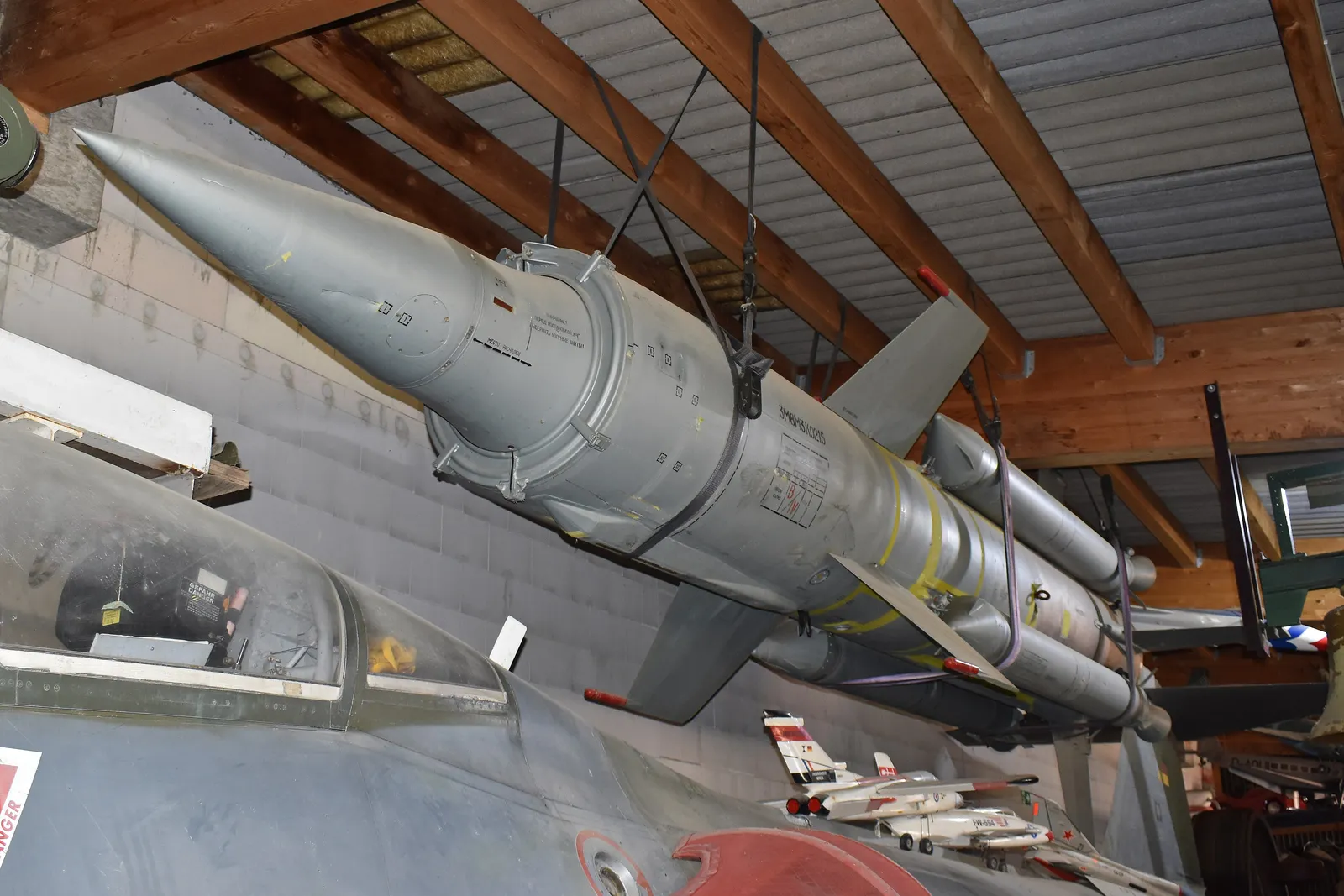

Image source: 3M8 surface-to-air missile '3M8M3K0215' at the Swabian Farmers and Technology Museum. 23-4-2023 (54810356270).jpg

Role in Conflicts

Profile / Specs

Profile

Origin
Soviet Union
Type
Soviet ramjet-powered surface-to-air missile carried and launched by the 2K11 Krug system
Service note
Cold War missile retained with legacy Krug systems
Designer
Lyulev OKB / OKB-8
Designed
Late 1950s to mid-1960s
Produced
1960s-1970s
Developed from
2K11 Krug / SA-4 Ganef

Specifications

Propulsion
Four solid-fuel boosters followed by a kerosene-powered ramjet sustainer
Guidance/control
Radio-command guidance through the Krug system; sources differ on planned or variant terminal-homing details
Warhead
About 135-150 kg high-explosive fragmentation warhead with radio/proximity fuze
Launch weight
About 2,450-2,455 kg
Range
Baseline about 11-45 km; later Krug variants reached roughly 50-55 km depending on source and missile fit
Engagement altitude
Baseline about 3-23.5 km; later Krug-M1 envelope about 0.15-24.5 km
Length
About 8.4 m
Diameter
About 850 mm
Control surfaces
Mid-body movable wings with tail stabilizers around the ramjet body
Missile Architecture

The 3M8 was built around a large ramjet body rather than a compact rocket motor. Public technical sources describe four detachable solid-fuel boosters for launch acceleration, a kerosene ramjet sustainer for the main flight, and a central intake body that housed the warhead, fuze, and pressure equipment.

Launch sequence

Boosters accelerated the missile before the ramjet sustainer took over.

System dependency

The missile depended on the Krug launcher and radar chain rather than operating as an independent round.

Evidence limit

Conflict evidence here documents captured 3M8 missiles with Krug equipment, not confirmed missile firings.

Variants

Sources use both 3M8 and later 9M8-style designations for Krug missiles. The family rows below keep the catalog's 3M8 naming while noting the Krug system versions that public sources tie to the missile improvements.

VariantConfigurationDesignation notes
3M8M / Krug-A missile fitDead-zone reduction upgrade

Krug-A reduced the system's minimum engagement altitude and minimum range compared with the original Krug version.

Sources: 2K11 anti-aircraft missile system Krug, The Saving Circle: how the world's first self-propelled anti-aircraft missile system was created

3M8M1 / Krug-M missile fitRange and altitude improvement

Krug-M is described with an improved far boundary of about 50 km and an upper engagement boundary around 24.5 km.

Sources: 2K11 anti-aircraft missile system Krug

3M8M2 / 3M8M3 / Krug-M1 missile fitLow-altitude and close-range improvement

Krug-M1 lowered the close engagement boundary to roughly 150 m altitude and 6-7 km range; sources also identify later missile references as 9M8M2/3M8M2 or museum-displayed 3M8M3 rounds.

Sources: 2K11 anti-aircraft missile system Krug, SA-4 GANEF, 2K11 Krug anti-aircraft missile system. 2022

Launch Platform

The 3M8 was the missile carried and fired by the tracked 2K11 Krug surface-to-air missile complex.

LauncherLauncher typeLaunch evidence
2K11 Krug / SA-4 Ganef, Tracked medium-range surface-to-air missile system, Air Defense2K11 Krug / SA-4 GanefTracked surface-to-air missile system

Krug documentation identifies 3M8 as the missile carried on 2P24 launchers and launched as part of the wider air-defense complex.

Sources: 2K11 Krug (SA-4 Ganef), 2K11 anti-aircraft missile system Krug, Legacy Air Defence System Vehicles

Timeline

3M8 anti-aircraft guided missile Key Events

  1. Krug development work begins

    Soviet work on the mobile Krug air-defense complex began with NII-20 leading the system and OKB-8/Lyulyev developing the 3M8 missile.

    Sources: 2K11 anti-aircraft missile system Krug, The Saving Circle: how the world's first self-propelled anti-aircraft missile system was created

  2. Krug accepted into service

    VPK/TASS reporting says the 2K11 Krug complex was accepted into Soviet service by USSR Ministry of Defense order.

    Sources: The Saving Circle: how the world's first self-propelled anti-aircraft missile system was created

  3. Krug-A modernization enters service

    Krug-A reduced the system dead zone, lowering the minimum range and minimum altitude for engagements.

    Sources: 2K11 anti-aircraft missile system Krug, The Saving Circle: how the world's first self-propelled anti-aircraft missile system was created

  4. Krug-M improves envelope

    Krug-M improved the far and upper boundaries of the engagement zone for the missile system.

    Sources: 2K11 anti-aircraft missile system Krug

  5. Krug-M1 lowers close engagement limits

    Krug-M1 further reduced the system's low-altitude and close-range engagement limits.

    Sources: 2K11 anti-aircraft missile system Krug, The Saving Circle: how the world's first self-propelled anti-aircraft missile system was created

  6. 3M8 missiles reported seized in Karabakh

    Azerbaijan's defense ministry said abandoned Armenian Krug equipment near Khojaly included 2P24 launchers with 3M8 guided anti-aircraft missiles.

    Sources: Qarabag abandoned air-defense position video

Media

3M8 anti-aircraft guided missile Videos

3M8 anti-aircraft guided missile Images

3M8 anti-aircraft guided missile, Soviet ramjet-powered surface-to-air missile carried and launched by the 2K11 Krug system, Munitions - view 1

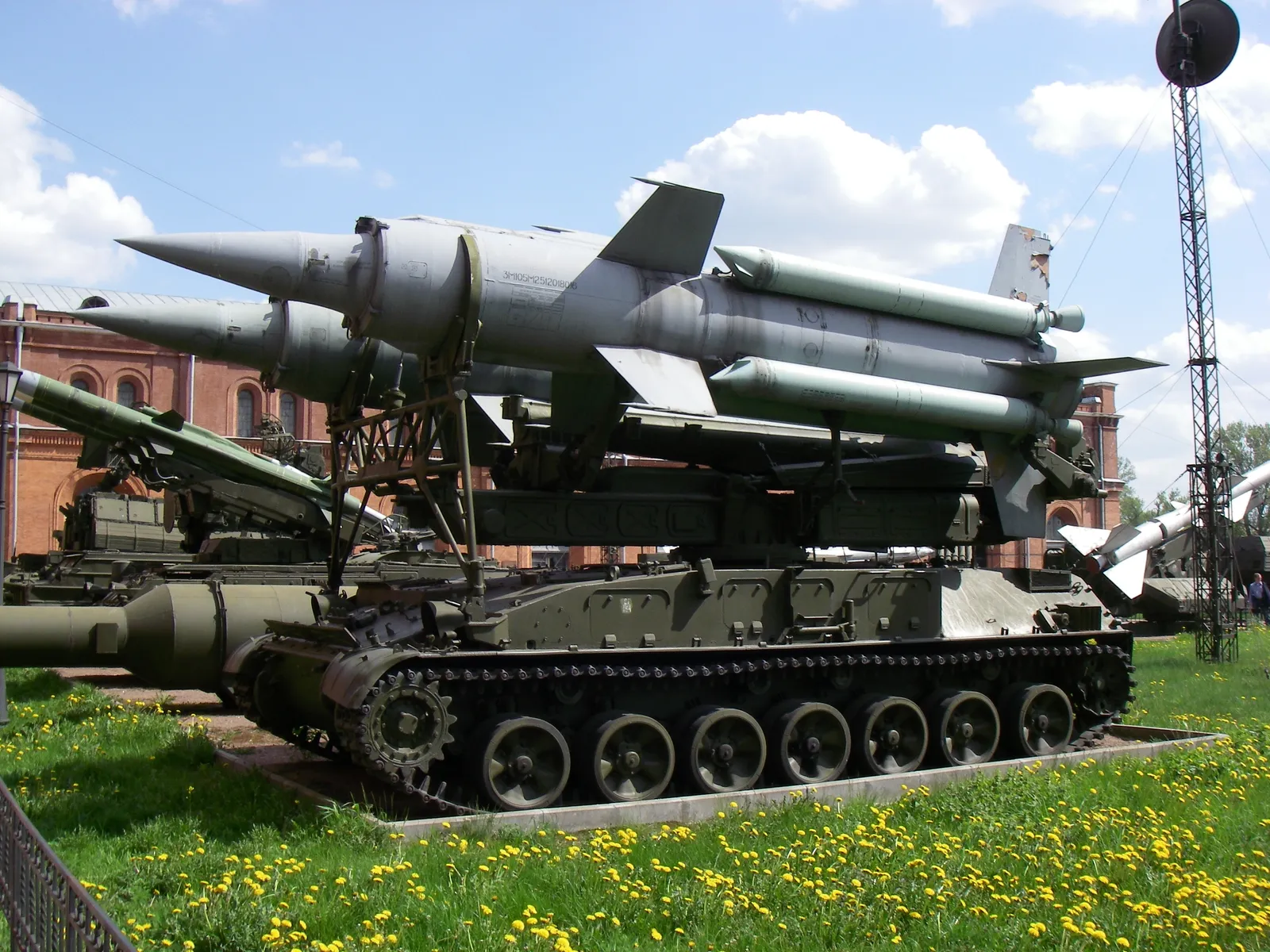

Source: 2P24 Transporter-Erector-Launcher with two 3M8 missiles of 2K1 surface-to-air missile complex «Krug» in Military-historical Museum of Artillery, Engineer and Signal Corps in Saint-Petersburg, Russia. Left view.jpg
