9M528 high-explosive fragmentation rocket

Also known as

9M528
9M528 rocket
9M528 Smerch rocket
9M528 high-explosive rocket

The 9M528 is a Russian 300 mm artillery rocket for the 9K58 Smerch multiple launch rocket system. It carries a 243 kg high-explosive fragmentation warhead, has 800 preformed fragments, uses a contact fuze, and has a maximum range of 90 km.

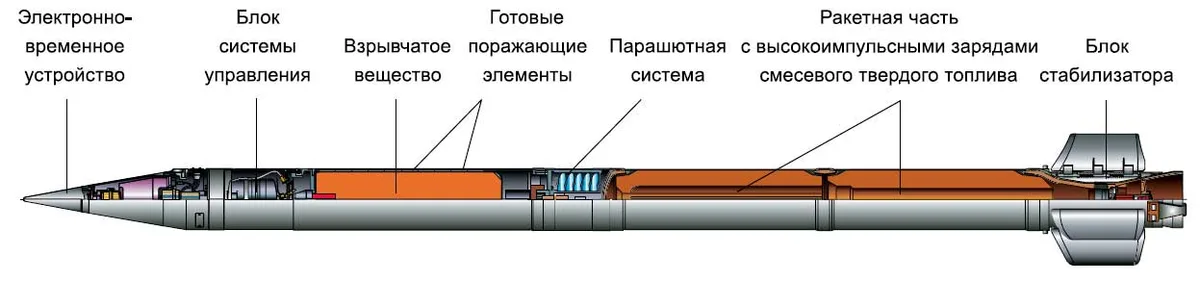

9M528 high-explosive fragmentation rocket, 300 mm high-explosive fragmentation rocket, Munitions

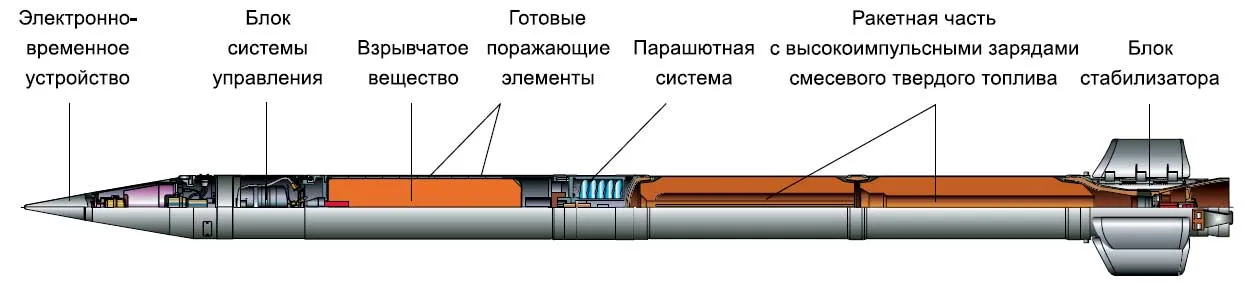

Image source: Missilery 9M528 rocket image

Profile / Specs

Profile

Origin: Russia
Built by: NPO Splav
Type: 300 mm high-explosive fragmentation rocket

rocket artillery unguided he-fragmentation 300 mm smerch

Specifications

Caliber: 300 mm
Weight: 815 kg
Length: 7,600 mm
Warhead: 243 kg high-explosive fragmentation
Explosive weight: 95 kg
Preformed fragments: 800
Maximum range: 90 km
Minimum range: 25 km

Launch Platforms

The 9M528 is a 300 mm Smerch-family rocket fired from the BM-30 / 9K58 launcher.

Launcher

Launcher type

Launch evidence

BM-30 Smerch, 300 mm heavy multiple launch rocket system, Artillery

300 mm multiple launch rocket system

Rosoboronexport lists the 9M528 among 300 mm ammunition for the BM-30 / 9K58 Smerch family.

Sources: Rosoboronexport 300 mm ammunition catalog

Service And Conflict Use

Service History

In service: Compatible with 9K58 Smerch multiple launch rocket systems
