9M525 fragmentation submunition rocket

Also known as

9M525
9М525

The 9M525 is a Russian 300 mm Smerch rocket that carries 72 fragmentation submunitions and is offered for export as a BM-30 / 9K58-compatible round. Missilery describes it as a personnel and soft-skinned-target munition completed in 2004, with a 25 to 90 km firing range, 815 kg mass, and 243 kg warhead.

9M525 fragmentation submunition rocket, 300 mm rocket with fragmentation submunitions, Munitions

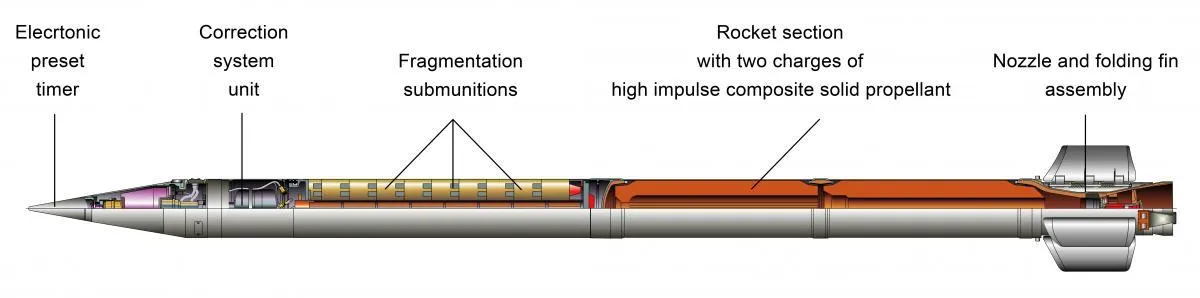

Image source: 9M525 rocket

Profile / Specs

Profile

Origin: Russia
Built by: NPO Splav
Type: 300 mm rocket with fragmentation submunitions
Service note: 2004-present
Produced: 2004-present

300 mm cluster munition fragmentation rocket

Specifications

Caliber: 300 mm
Weight: 815 kg
Length: 7,600 mm
Warhead weight: 243 kg
Payload: 72 fragmentation submunitions
Fragmentation submunition weight: 1.75 kg
Range: 25-90 km
Self-destruction time: 110 s

Launch Platform

The 9M525 is a Smerch-fired 300 mm rocket offered for export.

Launcher

Launcher type

Launch evidence

BM-30 Smerch, 300 mm heavy multiple launch rocket system, Artillery

300 mm multiple launch rocket system

Missilery describes the 9M525 as a rocket designed to use from the Smerch multiple launch rocket system, and Rosoboronexport lists it in the 300 mm ammunition catalog.

Sources: 9M525 rocket, Rosoboronexport 300 mm ammunition catalog

Service And Conflict Use

Service History

In service: Designed for the BM-30 / 9K58 Smerch family; offered for export.
