120 mm UBM-52

Also known as
  • UBM-52
  • UB M52
  • M52UB
  • Universal Mortar UB M52
  • Minobacac 120mm UBM52
  • Minobacac 120 mm UB M52

The 120 mm UBM-52 is a Yugoslav heavy mortar designed by the Military Technical Institute Belgrade as a lighter, wheeled alternative in the Soviet 120 mm mortar lineage. Croatian archive-derived reporting documents UB M52 mortars with Croatian police and ZNG-linked defenders around Otočac during the 1991 Croatian War of Independence.

120 mm UBM-52, 120 mm heavy mortar, Artillery

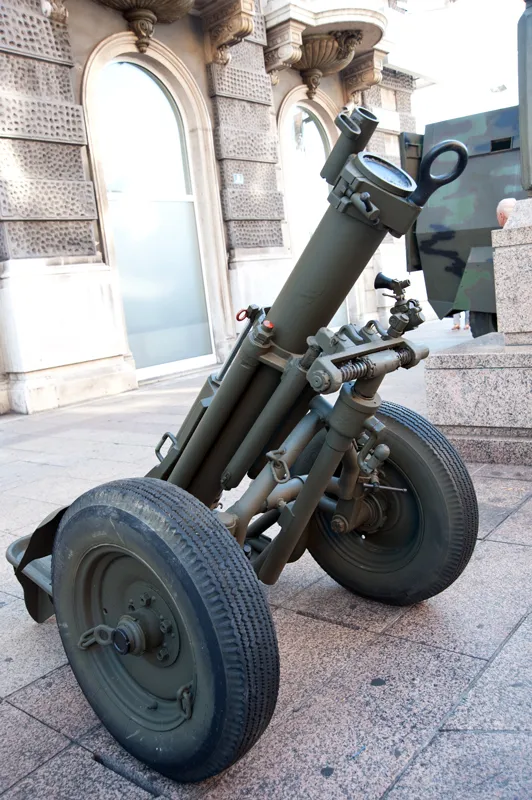

Image source: Wikimedia Commons UB M52 7242

Role in Conflicts

Profile / Specs

Profile

Origin
Yugoslavia
Built in
YugoslaviaSerbia
Type
120 mm heavy mortar
Service note
Entered service in the early 1950s; documented in limited service and reserve inventories
Designer
Military Technical Institute Belgrade
Designed
1948-1951
Produced
1952 onward
Number built
At least several hundred reported by WeaponSystems.net
Developed from
Soviet 120 mm PM-38 / PM-43 mortar lineage
Developed into
Later Yugoslav 120 mm mortar families, including the M74 and M75 light mortars

Specifications

Caliber
120 mm smoothbore mortar
Crew
5
Weight
About 400 kg complete; barrel 92 kg, baseplate 68.5 kg, carriage 237 kg
Barrel length
1.85 m
Rate of fire
25 rounds per minute maximum for up to one minute; 10 rounds per minute normal; 70 rounds per hour sustained
Range
4.8 km with heavy shell; 6.1 km with light shell; 195 m minimum with heavy shell
Carriage
Fixed two-wheel carriage that doubles as the bipod
Mobility
Towed by 4x4 or 6x6 light truck
Variants

Public reference sources describe the UBM-52 family through the base M52 and incremental M52A-series improvements.

VariantConfigurationDesignation notes
M52Base production model

Listed as the basic UBM-52 variant.

Sources: ARMSNET UBM-52

M52A1Incremental improvement

Described as a reduced-weight update with smaller parts and revised materials or hydraulic fluid.

Sources: ARMSNET UBM-52

M52A2Muzzle-system update

Described as using one fewer cylinder with an improved muzzle arrangement.

Sources: ARMSNET UBM-52

M52A3Hydraulic-system update

Described as using revised hydraulic fluid with a fluid-level indicator.

Sources: ARMSNET UBM-52

M52A4Mobility update

Military Periscope identifies the UB M52A4 as a common variant fitted with pneumatic tires.

Sources: Military Periscope UB M52 Overview

Related 120 mm Mortars

The UBM-52 sits in the same Yugoslav and Soviet-pattern 120 mm mortar lineage as several cataloged systems.

Compatible itemItem typeCompatibility evidence
120-PM-38, 120 mm towed heavy mortar, Artillery120-PM-38Soviet-pattern predecessor

WeaponSystems.net notes the Soviet 120 mm PM-38 as the design basis visible behind the UBM-52 lineage.

Sources: WeaponSystems.net UBM-52

PM-43, 120 mm towed heavy mortar, ArtilleryPM-43Related Soviet 120 mm mortar

WeaponSystems.net links the UBM-52 to the broader Soviet 120 mm mortar capability that the Yugoslav design sought to mimic in a lighter format.

Sources: WeaponSystems.net UBM-52

120 mm M74 mortar, 120 mm smoothbore towed mortar, Artillery120 mm M74 mortarLater Yugoslav 120 mm mortar

The M74 is cataloged separately as a later Yugoslav 120 mm mortar family member rather than a UBM-52 subvariant.

Sources: Universal Mortar UB M52

120 mm M75 mortar, 120 mm towed smoothbore mortar, Artillery120 mm M75 mortarLater Yugoslav 120 mm mortar

The M75 is cataloged separately as another later Yugoslav 120 mm mortar family member rather than a UBM-52 subvariant.

Sources: Universal Mortar UB M52

Ammunition Fired

Public reference material describes the UB M52 as a smoothbore 120 mm mortar firing fin-stabilized 120 mm mortar ammunition; individual round compatibility still depends on pressure and launcher qualification.

AmmunitionAmmunition typeFiring evidence
Mortar bombs, 120mm, Heavy mortar ammunition, MunitionsMortar bombs, 120mm120 mm mortar ammunition class

The UB M52 is documented as a 120 mm smoothbore mortar, and reference material lists high-explosive, smoke, illumination, and practice 120 mm mortar bombs among its ammunition types.

Sources: Universal Mortar UB M52

Timeline

120 mm UBM-52 Key Events

  1. Yugoslav service entry

    Reference sources place UBM-52 service entry and production in the early 1950s after 1948-1951 development work.

  2. UB M52 transferred for Otočac defense

    Davor Peitel's HMDCDR-published account records a 120 mm UB M52 with an NSB-1 sight handed over for the defense of Otočac.

Media

120 mm UBM-52 Images

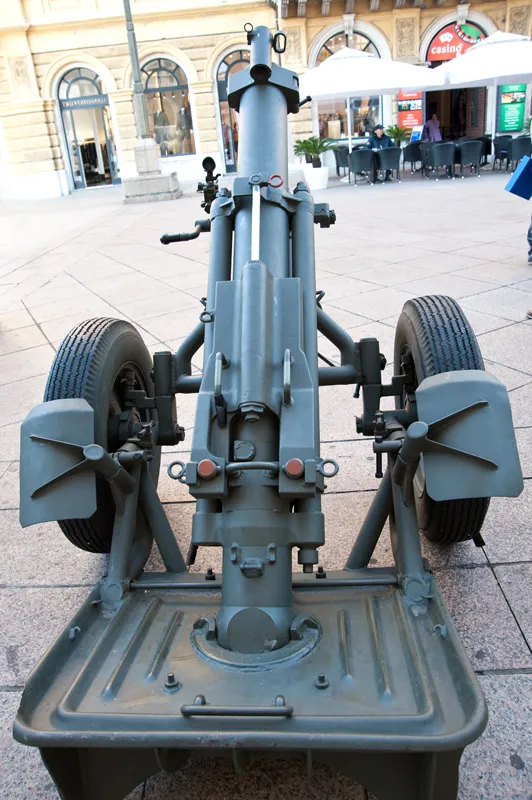

120 mm UBM-52, 120 mm heavy mortar, Artillery - view 1
Source: Wikimedia Commons UB M52 7245

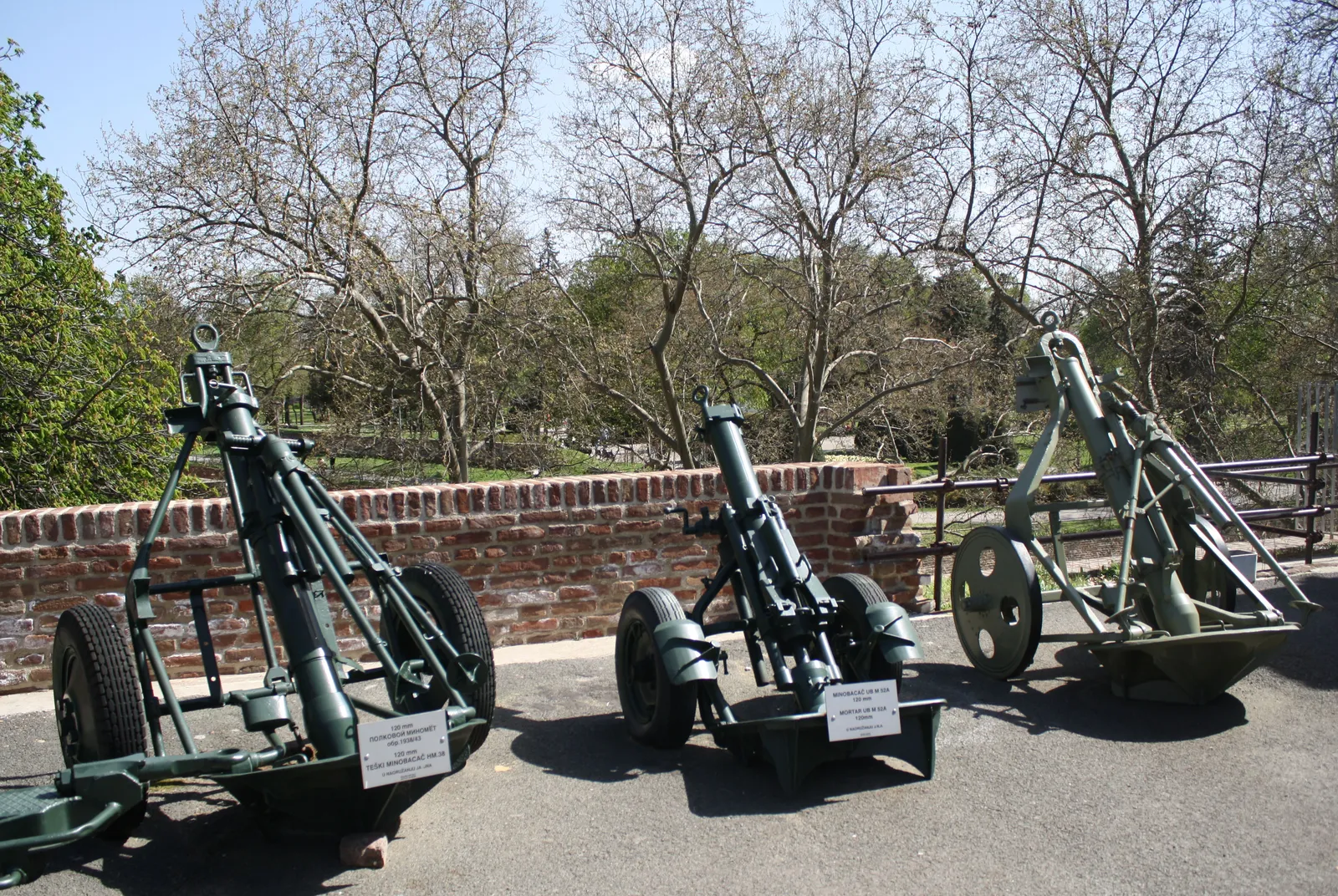

120 mm UBM-52, 120 mm heavy mortar, Artillery - view 2
Source: Wikimedia Commons UB M52A Kalemegdan
