120mm FAK-120

Also known as
  • Bofors FAK 120
  • FAK 120
  • FAK 12 X 53
  • 12 cm Lvakan 4501
  • 12 cm luftvärnsautomatkanon 4501
  • 12 cm Lvkan 4501
  • 120 mm Anti Aircraft Gun 4501
  • Bofors 120 mm Automatic Field Gun L/46
  • Bofors 120mm Automatic A.A. Field Gun L/46

The 120mm FAK-120 was the field anti-aircraft version of Bofors' 120 mm/46 automatic-gun family. Open sources describe it as a single large-caliber, water-cooled automatic gun with a 52-round feed system and a 70-80 round-per-minute rate of fire; NavWeaps identifies the later naval TAK-120 as a private-venture adaptation of the same Luftvärnsautomatkanon 4501 field-gun line.

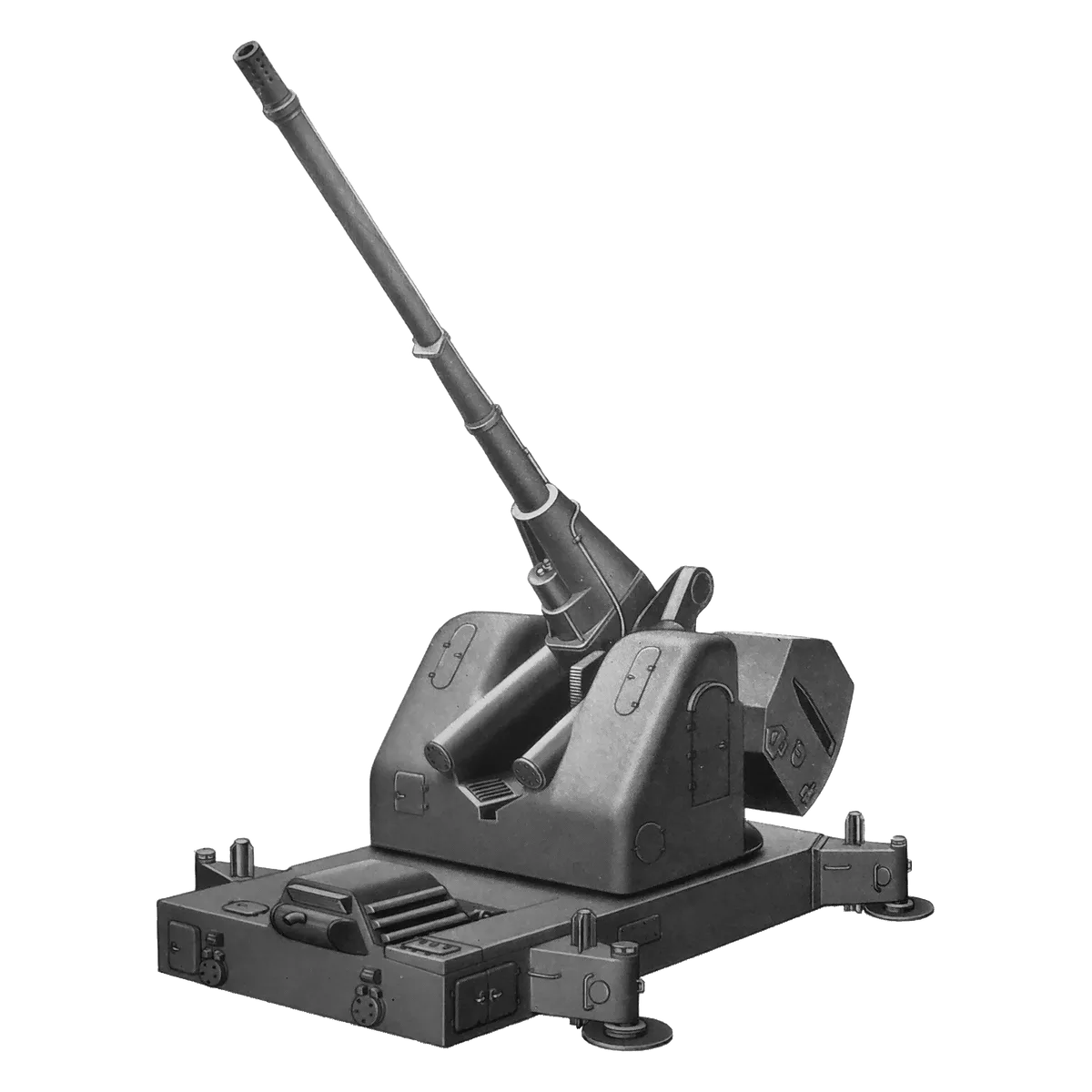

120mm FAK-120, Prototype 120 mm/46 automatic anti-aircraft field gun, Air Defense

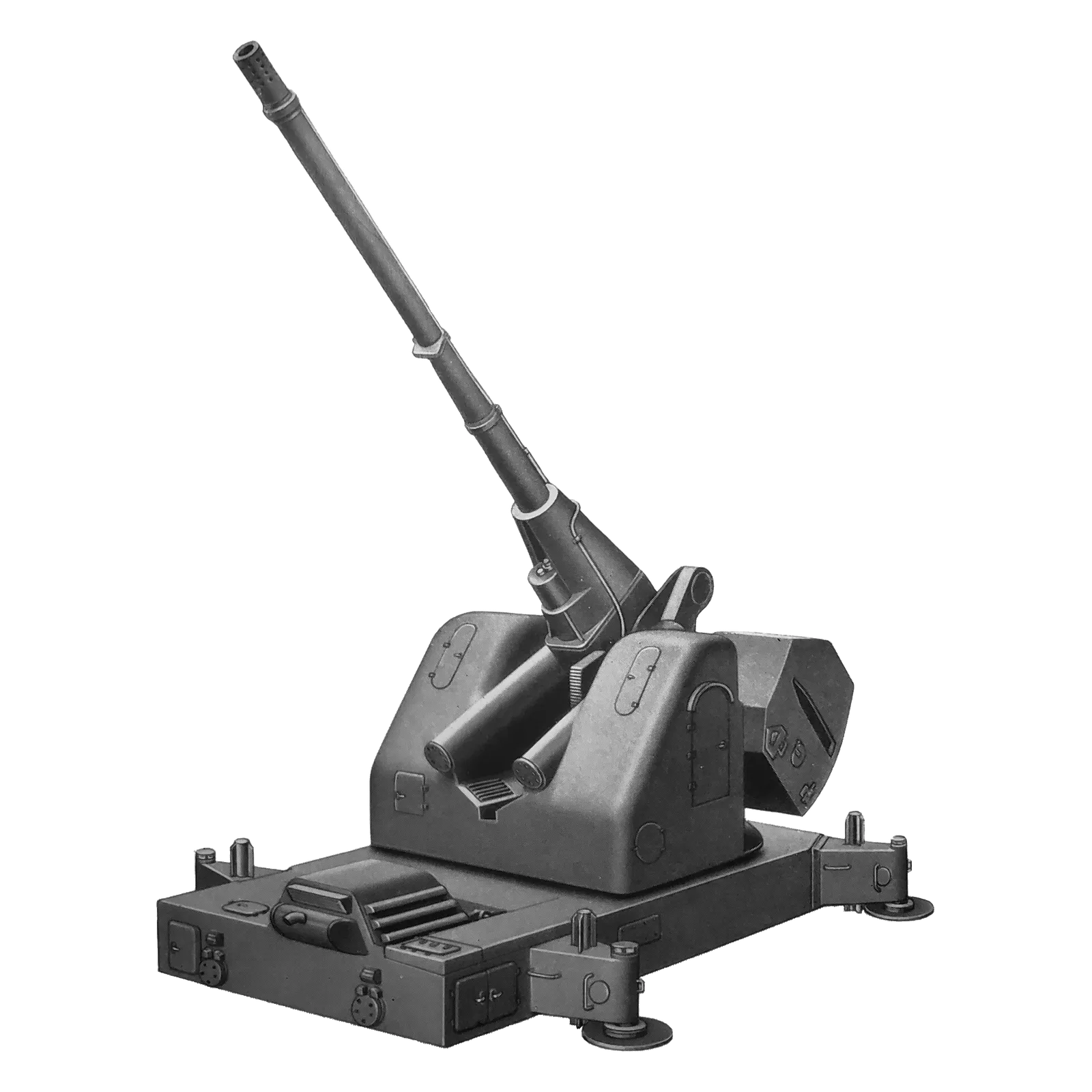

Image source: 12 cm lvakan 4501 firing-position image
Profile / Specs

Profile

Origin
Sweden
Type
Prototype 120 mm/46 automatic anti-aircraft field gun
Service note
Cold War Swedish anti-aircraft prototype developed in the 1950s and reportedly retained in Swedish air-defense service from 1960 to 1973
Designer
Bofors
Designed
1953-1960
Produced
1950s; one prototype reportedly delivered to the Swedish Army in 1960
Number built
One prototype reported by From the Swedish Archives; TAK-120 sources describe the naval turret as derived from this field-gun line rather than as a mass-produced field system
Developed into
120mm TAK-120 naval turret

Specifications

Caliber
120 mm/46
Configuration
Single automatic anti-aircraft field gun on a transportable carriage
Role
Large-caliber ground anti-aircraft prototype
Rate of fire
70-80 rounds per minute reported for the field gun
Muzzle velocity
About 800 m/s with normal projectile data reported by From the Swedish Archives
Feed system
52 rounds in the gun and magazines
Elevation
-5 to +85 degrees
Traverse
360 degrees
Powered laying
Up to 25 degrees per second elevation and 32 degrees per second traverse
Weight
About 23 tons for the gun; over 30 tons including the transport vehicle
Crew
Two gunners on the gun, excluding the transport vehicle crew
Relationship to TAK-120
NavWeaps describes the naval TAK120 as developed from the Luftvärnsautomatkanon 4501 anti-aircraft field gun
Variants

The FAK-120 field gun and TAK-120 naval turret are documented as two configurations of the same Bofors 120 mm/46 automatic-gun family.

VariantConfigurationDesignation notes
120mm TAK-120, Single 120 mm/46 dual-purpose naval automatic gun turret, Naval Systems120mm TAK-120Navalized turret adaptation

NavWeaps describes the TAK120 as a Bofors private-venture naval weapon developed from the Luftvärnsautomatkanon 4501 anti-aircraft field gun.

Sources: NavWeaps 120 mm TAK120

Related Naval Turret

The field gun is cataloged here mainly to support the sourced design relationship to the TAK-120 naval turret.

Compatible itemItem typeCompatibility evidence
120mm TAK-120, Single 120 mm/46 dual-purpose naval automatic gun turret, Naval Systems120mm TAK-120Naval automatic gun turret

NavWeaps identifies the TAK120 as a naval development from the Luftvärnsautomatkanon 4501 field gun, while WeaponSystems.net describes TAK-120 as a smaller single-gun mount intended to deliver firepower comparable to the earlier Bofors M1950.

Sources: NavWeaps 120 mm TAK120, WeaponSystems.net 120mm TAK-120

Field Gun To Naval Turret

The FAK-120 record is relationship-only because the reviewed sources support design history and preserved-image context, not direct conflict use by this exact field gun. Its main catalog value is the sourced link to the TAK-120 naval turret, which NavWeaps describes as a Bofors private-venture naval weapon developed from the Luftvärnsautomatkanon 4501 anti-aircraft field gun.

Field configuration

From the Swedish Archives describes the ground gun as a water-cooled single 120 mm automatic weapon with powered traverse and elevation, two gunner positions, and 52 rounds in the feed system.

Naval derivative

NavWeaps identifies the TAK120 as the naval Bofors turret derived from the Luftvärnsautomatkanon 4501 line.

Sources: From the Swedish Archives FAK 120; NavWeaps 120 mm TAK120.

Timeline

120mm FAK-120 Key Events

  1. FAK 12 X 53 work begins

    From the Swedish Archives says work on adapting Bofors' large automatic-gun technology for ground anti-aircraft use began under the FAK 12 X 53 designation in 1953.

    Sources: From the Swedish Archives FAK 120

  2. Prototype delivered to Swedish Army

    From the Swedish Archives reports that the gun was delivered to the Swedish Army in 1960 and received the 12 cm Lvkan 4501 or Lvkan fm/1 designation.

    Sources: From the Swedish Archives FAK 120

  3. TAK120 naval design period begins

    NavWeaps lists 1963 as the TAK120 naval design date and describes that turret as developed from the Luftvärnsautomatkanon 4501 field gun.

    Sources: NavWeaps 120 mm TAK120

  4. Reported Swedish retirement

    From the Swedish Archives reports that the single FAK/Lvkan prototype served with Swedish air defense from 1960 to 1973 before retirement.

    Sources: From the Swedish Archives FAK 120

Media

120mm FAK-120 Images

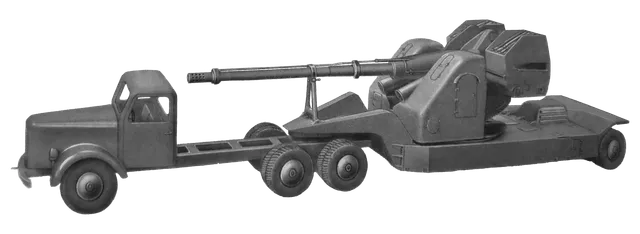

120mm FAK-120, Prototype 120 mm/46 automatic anti-aircraft field gun, Air Defense - view 1

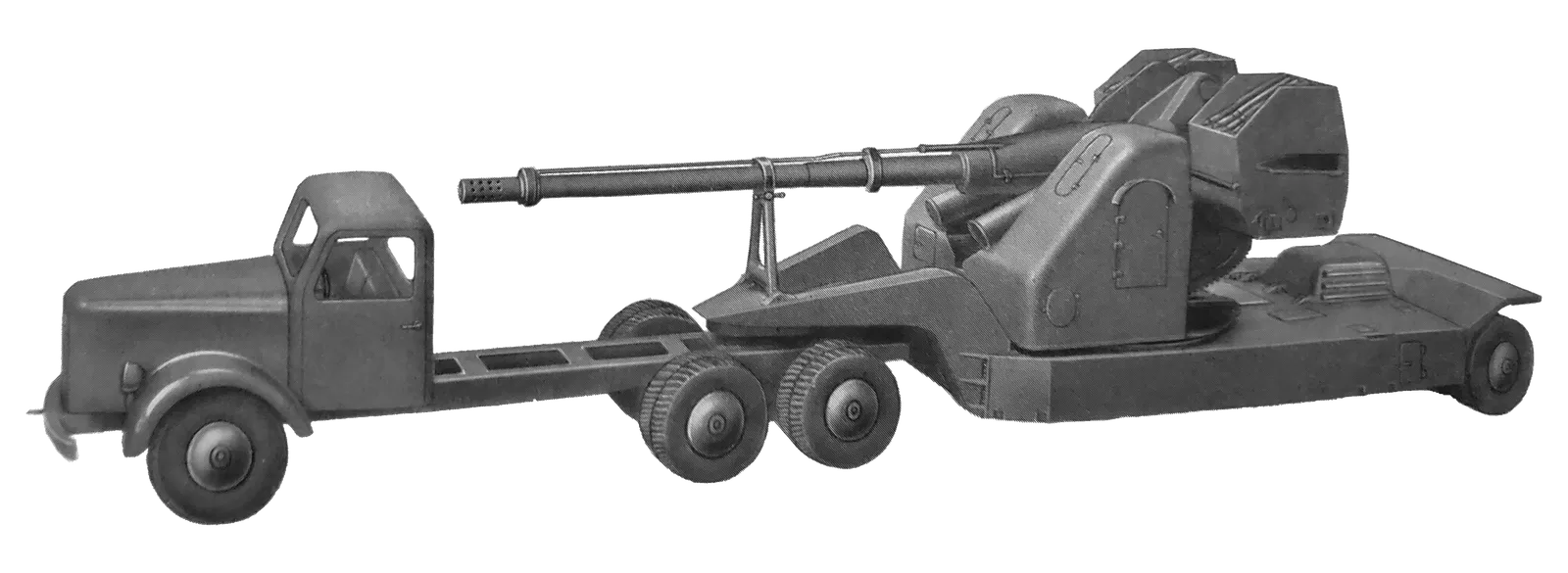

Source: 12 cm lvakan 4501 transport image
