Artillery

Zuzana 2

Also known as
  • SpGH Zuzana 2

Zuzana 2 is a Slovak 155 mm/52-caliber wheeled self-propelled howitzer built around an automated loading system and a Tatra 8x8 chassis. Its NATO-standard ammunition, long-range indirect-fire role, and documented deliveries to Ukraine make it one of the clearest examples of Slovakia's modern artillery export reaching the 2014 Russia-Ukraine War.

Zuzana 2, 155 mm wheeled self-propelled howitzer, Artillery
Image source: Slovak Ground Forces Zuzana 2 first time outside Slovakia

Role in Conflicts

Profile / Specs

Profile

Origin
Slovakia
Type
155 mm wheeled self-propelled howitzer
Service note
2010s-present; supplied to Ukraine during the full-scale 2014 Russia-Ukraine War
Designer
Konstrukta-Defence
Designed
2000s development; Slovak trials completed before domestic procurement
Unit cost
About EUR 5.75 million reported for 2022 Ukrainian orders
Produced
2019-present
Number built
Limited production; at least 24 ordered or funded for Ukraine by 2023 reporting

Specifications

Caliber
155 mm, 52-caliber barrel
Maximum range
More than 50 km with VLAP ammunition; more than 41 km with ERFB-BB shells
Rate of fire
5 rounds in the first minute or 13 rounds in 3 minutes in automatic mode
Ammunition carried
40 projectiles and 40 charges
Crew
4
Combat weight
33,800 kg
Mobility
Tatra 8x8 chassis; 90 km/h road speed; 325 kW Tatra T3D-928 engine
Design Notes

The manufacturer's own project page highlights the features that separate Zuzana 2 from a generic truck-mounted gun: an automatic loader, a protected four-person crew, and a Tatra 8x8 chassis built for both road mobility and long-range fire support.

FeatureDocumented detail
ChassisFour-axle Tatra chassis with central tire inflation
LoadingAutomatic loading of projectiles and charges
Ammunition stowage40 projectiles and 40 charges
Range driversMore than 50 km with VLAP ammunition and more than 41 km with ERFB-BB shells
Variants
  • 155 mm SpGH Zuzana 2
Ammunition

KONŠTRUKTA describes Zuzana 2 as a 155 mm system that uses NATO-standard ammunition and also highlights VLAP rounds for extended range.

AmmunitionAmmunition typeFiring evidence
155 mm NATO ammunition, 155 mm NATO-standard artillery ammunition family for 39-, 45-, and 52-caliber howitzers, Munitions155 mm NATO ammunition155 mm NATO ammunition

The manufacturer lists Zuzana 2 as a 155 mm platform designed around NATO-standard ammunition.

Sources: ZUZANA 2

M2005 V-LAP 155 mm shell, 155 mm rocket-assisted base-bleed shell, MunitionsM2005 V-LAP 155 mm shellRange-extending shell

KONŠTRUKTA cites more than 50 km of range when Zuzana 2 fires VLAP ammunition.

Sources: ZUZANA 2

Timeline

Zuzana 2 Key Events

  1. Ukraine contract signed

    Slovakia signed a contract to deliver eight Zuzana 2 howitzers to Ukraine.

    Sources: Contract for delivery of Zuzana 2 howitzers to Ukraine signed

  2. First batch delivered

    The Slovak Ministry of Defence said Ukraine had taken delivery of the first batch of ordered Zuzana 2 self-propelled howitzer guns.

    Sources: Ukraine receives the first batch of Slovakia's Zuzana 2 self-propelled howitzer guns

  3. Initial battery completed

    The Slovak Ministry of Defence reported that Ukraine had taken over the eighth Slovak-made Zuzana 2, completing the initial battery under the original contract.

    Sources: Slovakia fulfils its contract with Ukraine by delivering an entire Zuzana 2 howitzer battery to Ukrainian Armed Forces

Media

Zuzana 2 Videos

Zuzana 2 Images

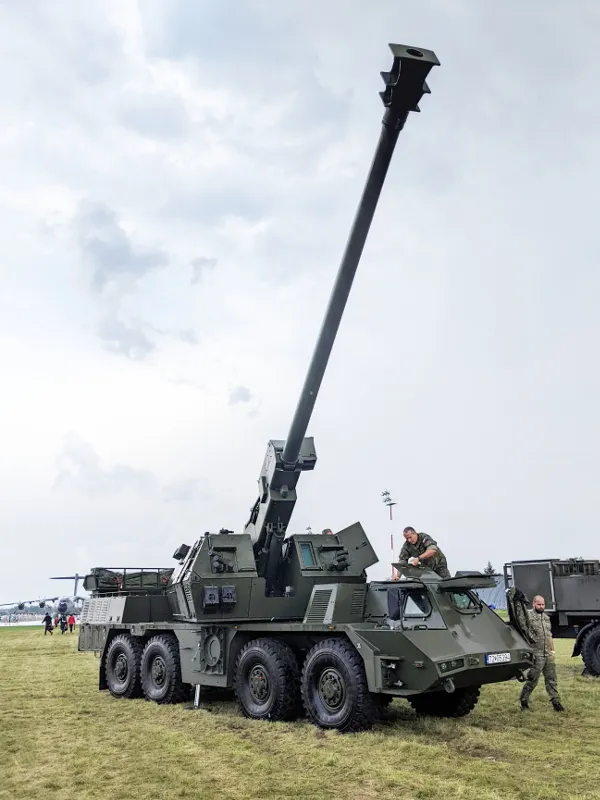

Zuzana 2, 155 mm wheeled self-propelled howitzer, Artillery - view 1
Source: ShKH Suzana at SIAF-2022
