Artillery

155 mm ShKH ZUZANA vz. 2000

Also known as
  • Zuzana
  • 155 mm SpGH Zuzana
  • 155mm SpGH ZUZANA
  • ShKH vz. 2000 Zuzana
  • ZUZANA 2000
  • M. 2000 Zuzana
  • ZUZANA model 2000
  • Zuzana 1
  • Zuzana M2000G

The 155 mm ShKH ZUZANA is the Slovak NATO-caliber development of the DANA wheeled artillery family, using a 45-caliber 155 mm gun, automatic loading, and a Tatra 8x8 chassis. Open sources support its Slovak and Cypriot service context and its relationship to Zuzana 2, but the older M. 2000 system is kept out of conflict listings because direct battlefield-use sourcing was not verified.

155 mm ShKH ZUZANA vz. 2000, 155 mm/45 wheeled self-propelled gun-howitzer, Artillery
Image source: 155mm Skh Zuzana image
Profile / Specs

Profile

Origin
Slovakia
Type
155 mm/45 wheeled self-propelled gun-howitzer
Service note
Accepted into Slovak service in the late 1990s; maintained here as relationship-only until direct conflict-use evidence is available.
Designer
Konstrukta-Defence / Konstrukta Trencin lineage
Designed
Prototype completed in December 1992; accepted into Slovak Army service in 1997 reporting
Produced
Late 1990s-2000s production for Slovakia and export variants
Number built
Forecast International and Army Recognition describe Slovak and Greek/Cypriot orders, but open-source totals vary by source and by whether prototypes and later Zuzana 2 systems are counted.
Developed from
152 mm SpGH DANA wheeled self-propelled gun-howitzer
Developed into
Zuzana 2 and related Slovak 155 mm artillery developments

Specifications

Caliber
155 mm, 45-caliber gun
Maximum range
39 km on the ZTS-SPECIAL gun page; Army Recognition lists 39.6 km for the system
Rate of fire
6 rounds per minute by automatic loader; ZTS-SPECIAL also lists 30 rounds per 6 minutes
Ammunition carried
40 projectiles and charges; 30 ready to fire and 10 in a fixed magazine per Army Recognition
Crew
4
Combat weight
28,600 kg listed by Army Recognition
Mobility
Tatra 815 VP 31 8x8 chassis; 80 km/h road speed; 740 km road range
Protection
Hull and turret protection against 7.62 mm small-arms fire and artillery shell splinters
Design Context

The original ZUZANA matters because it converted the DANA-style wheeled self-propelled artillery layout to NATO-standard 155 mm ammunition before the later Zuzana 2 redesign. Public reporting describes a protected Tatra 8x8 vehicle with the gun mounted between separated turret compartments and automatic loading for both projectile and charge.

Gun

ZTS-SPECIAL identifies the ZUZANA version 2000 gun as a 155 mm, 45-caliber weapon with 39 km maximum range and automatic-loader fire rates up to six rounds per minute.

Vehicle

Army Recognition describes a Tatra 815 VP 31 8x8 chassis, four-person crew, 80 km/h road speed, 740 km road range, and armored protection against small-arms fire and shell splinters.

Catalog boundary

Ukraine delivery sources found for this task point to Zuzana 2. The older ZUZANA record is therefore maintained as a sourced family and service-context page, not a conflict-use page.

Variants

This record covers the original 45-caliber ZUZANA / M. 2000 line. The later 52-caliber Zuzana 2 remains a separate catalog entry because it has independent Ukraine conflict-use sourcing.

VariantConfigurationDesignation notes
ShKH vz. 2000 ZuzanaOriginal Slovak wheeled production version

Army Recognition describes ZUZANA 2000 as the accepted Slovak Army designation for the original 155 mm wheeled self-propelled howitzer.

Sources: Army Recognition Zuzana 2000

Zuzana M2000GExport configuration

Army Recognition identifies Zuzana 2000G as a Greek Army variant; Forecast International and Cypriot defense reporting place the export line in the Greece-to-Cyprus service path.

Sources: Army Recognition Zuzana 2000, Forecast International DANA and Zuzana, Defence Redefined Zuzana 2 successor, Cyprus National Guard Zuzana image

Zuzana A 40 HimalayaTracked prototype/adaptation

Forecast International describes the tracked Himalaya concept as an effort to integrate the ZUZANA turret with a T-72 chassis for export evaluation.

Sources: Forecast International DANA and Zuzana

Zuzana 2, 155 mm wheeled self-propelled howitzer, ArtilleryZuzana 252-caliber successor system

The linked Zuzana 2 record covers the newer 52-caliber Slovak howitzer and its directly sourced Ukrainian service.

Sources: CZDEFENCE Zuzana 2 sale

Ammunition Fired

ZUZANA moved the DANA wheeled-artillery layout into the NATO 155 mm ammunition family.

AmmunitionAmmunition typeFiring evidence
155 mm NATO ammunition, 155 mm NATO-standard artillery ammunition family for 39-, 45-, and 52-caliber howitzers, Munitions155 mm NATO ammunition155 mm NATO artillery ammunition

Army Recognition says the ZUZANA carries 40 projectiles and charges and can fire standard NATO 155 mm artillery ammunition.

Sources: Army Recognition Zuzana 2000

Family Links

The catalog separates the Soviet-caliber DANA, the original NATO-caliber ZUZANA, and the later Zuzana 2 because each has a different sourcing and conflict-use profile.

Compatible itemItem typeCompatibility evidence
152 mm SpGH DANA, 152 mm wheeled self-propelled gun-howitzer, Artillery152 mm SpGH DANA152 mm predecessor family

The original ZUZANA is described in open references as a NATO-caliber development of the DANA wheeled self-propelled howitzer lineage.

Sources: Army Recognition Zuzana 2000

Zuzana 2, 155 mm wheeled self-propelled howitzer, ArtilleryZuzana 2155 mm successor system

CZDEFENCE describes Zuzana 2 as the replacement path for Slovakia's ShKH m. 2000 Zuzana fleet and notes that Ukraine deliveries involved Zuzana 2 rather than the older M. 2000 system.

Sources: CZDEFENCE Zuzana 2 sale

Timeline

155 mm ShKH ZUZANA vz. 2000 Key Events

  1. First prototype completed

    Army Recognition reports that the first ZUZANA prototype was completed in December 1992.

    Sources: Army Recognition Zuzana 2000

  2. Accepted as ZUZANA 2000

    Army Recognition says the system was accepted into Slovak Army service in 1997 under the ZUZANA 2000 designation.

    Sources: Army Recognition Zuzana 2000

  3. Follow-on Slovak order reported

    Army Recognition reports an initial Slovak order for eight vehicles followed by a May 1998 order for 40 more Zuzana artillery vehicles; Forecast International also documents the early Slovak order history.

    Sources: Army Recognition Zuzana 2000, Forecast International DANA and Zuzana

  4. Greek export order path

    Forecast International reports a Greek order for 12 ZUZANA systems in November 2000, while later Cypriot defense reporting and imagery place the export variant in Cypriot National Guard service.

    Sources: Forecast International DANA and Zuzana, Defence Redefined Zuzana 2 successor, Cyprus National Guard Zuzana image

  5. Zuzana 2 replacement context

    CZDEFENCE described Slovakia's Zuzana 2 acquisition as the replacement path for the older ShKH m. 2000 Zuzana fleet while reporting that Ukraine's 2022 contract covered Zuzana 2 howitzers.

    Sources: CZDEFENCE Zuzana 2 sale

Media

155 mm ShKH ZUZANA vz. 2000 Videos

155 mm ShKH ZUZANA vz. 2000 Images

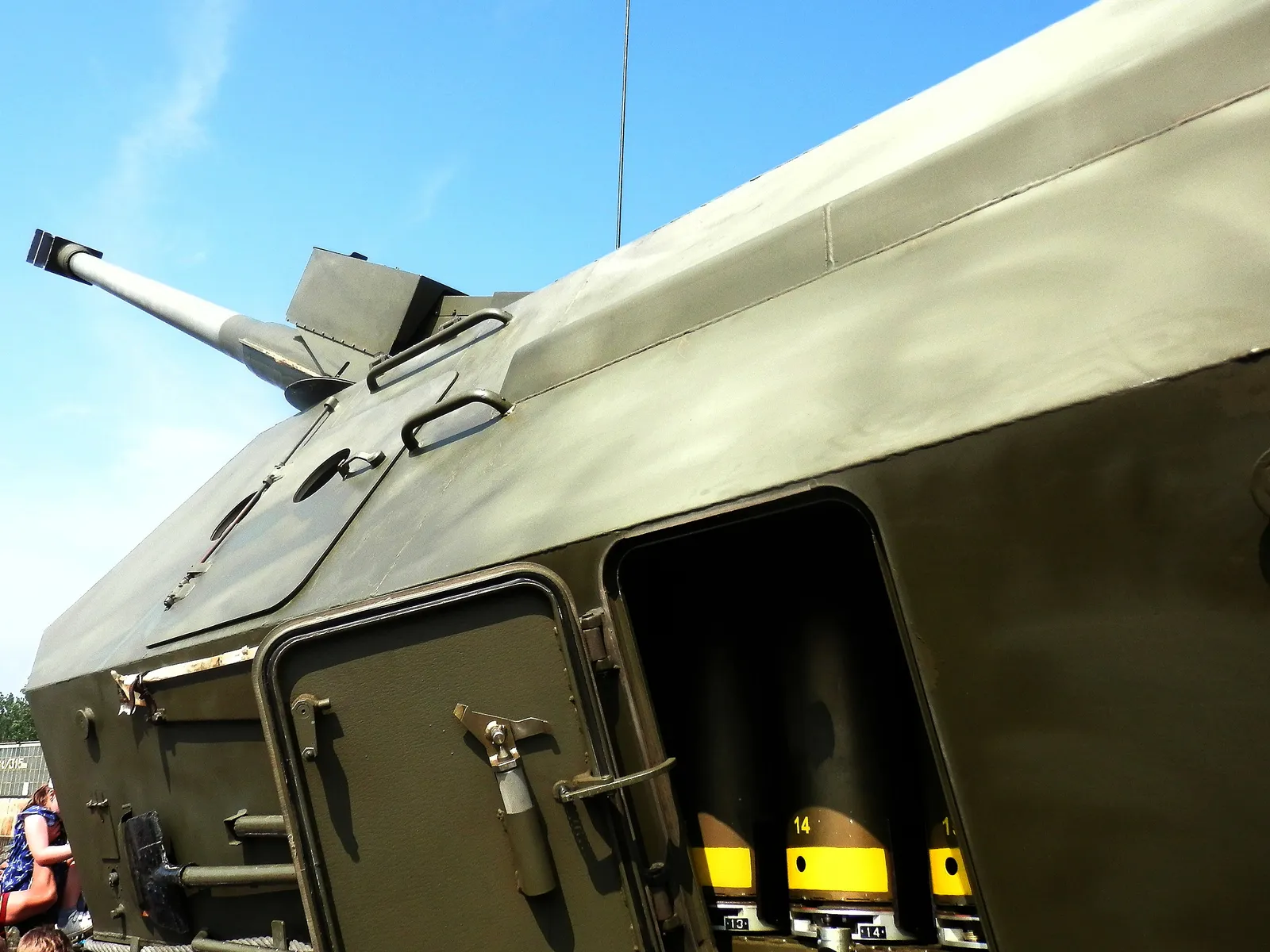

155 mm ShKH ZUZANA vz. 2000, 155 mm/45 wheeled self-propelled gun-howitzer, Artillery - view 1
Source: Children's Day Presov Airport Slovakia30 image

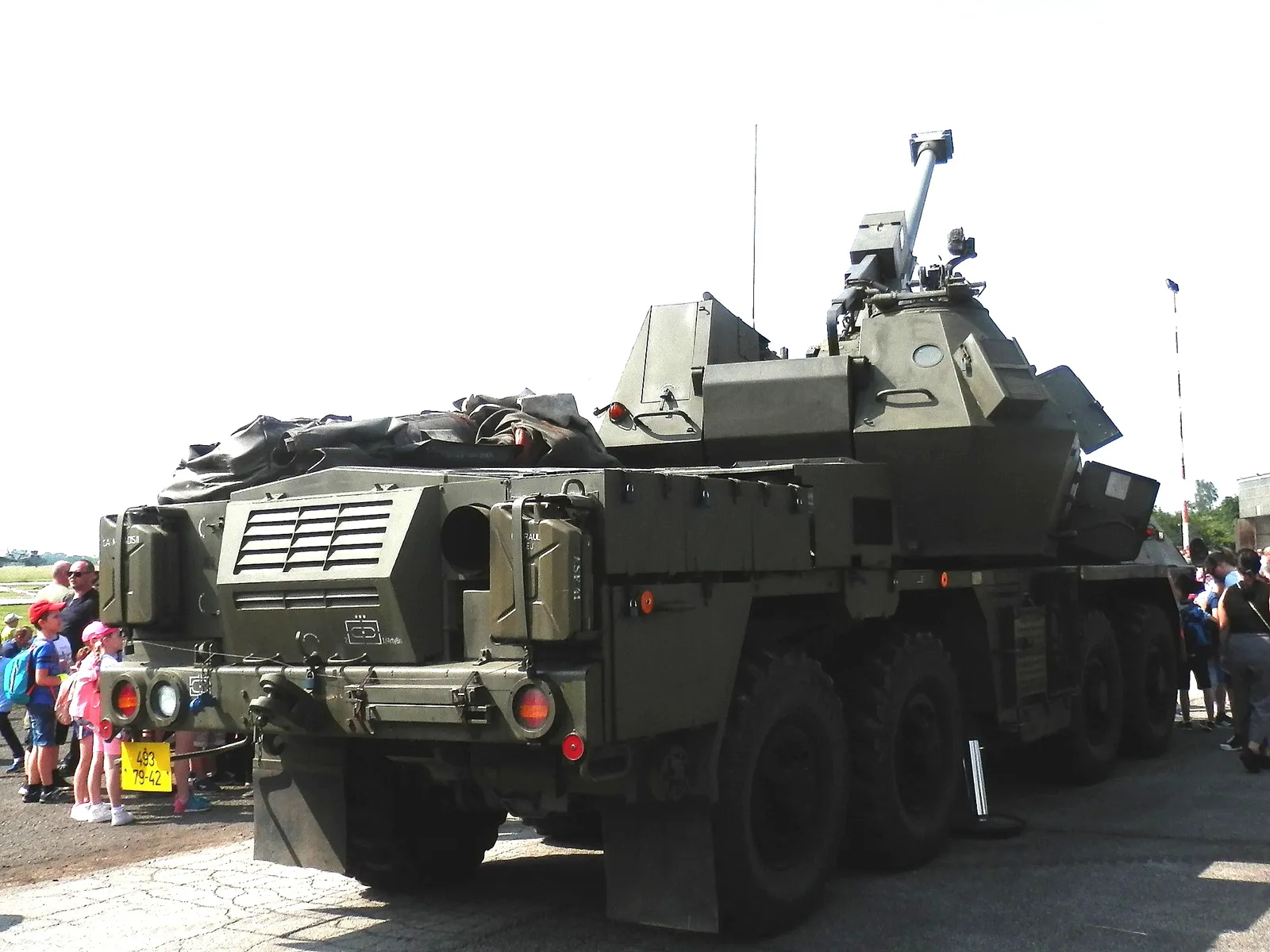

155 mm ShKH ZUZANA vz. 2000, 155 mm/45 wheeled self-propelled gun-howitzer, Artillery - view 2
Source: Children's Day Presov Airport Slovakia31 image

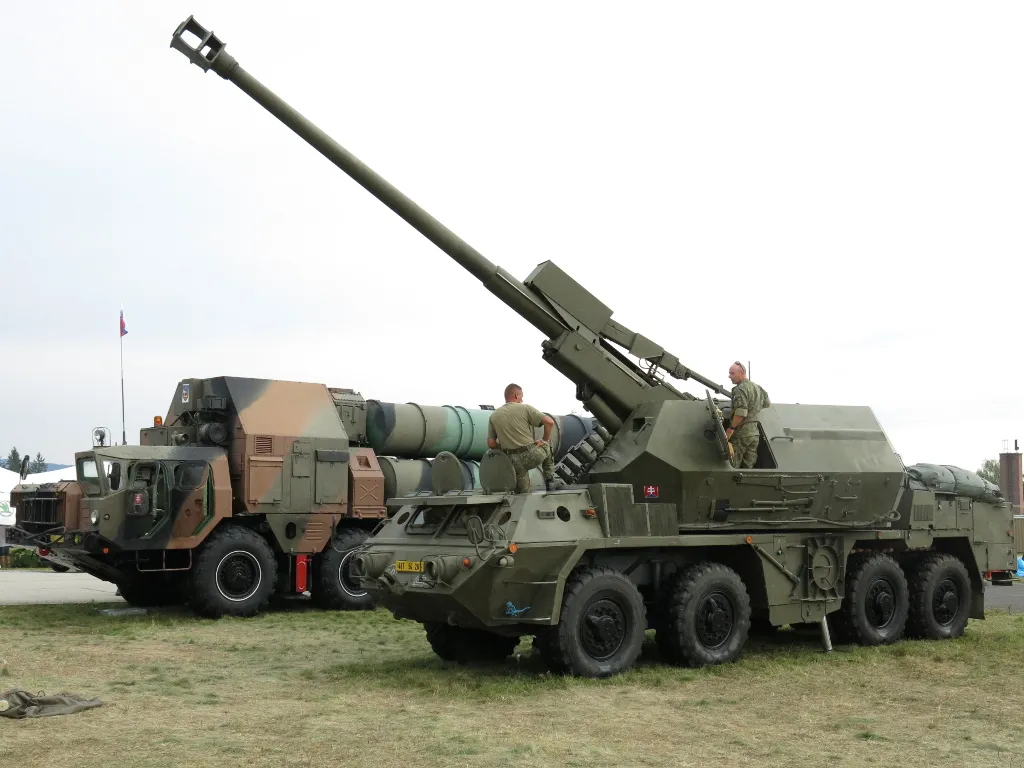

155 mm ShKH ZUZANA vz. 2000, 155 mm/45 wheeled self-propelled gun-howitzer, Artillery - view 3
Source: ShKH Zuzana at SIAF-2017 image

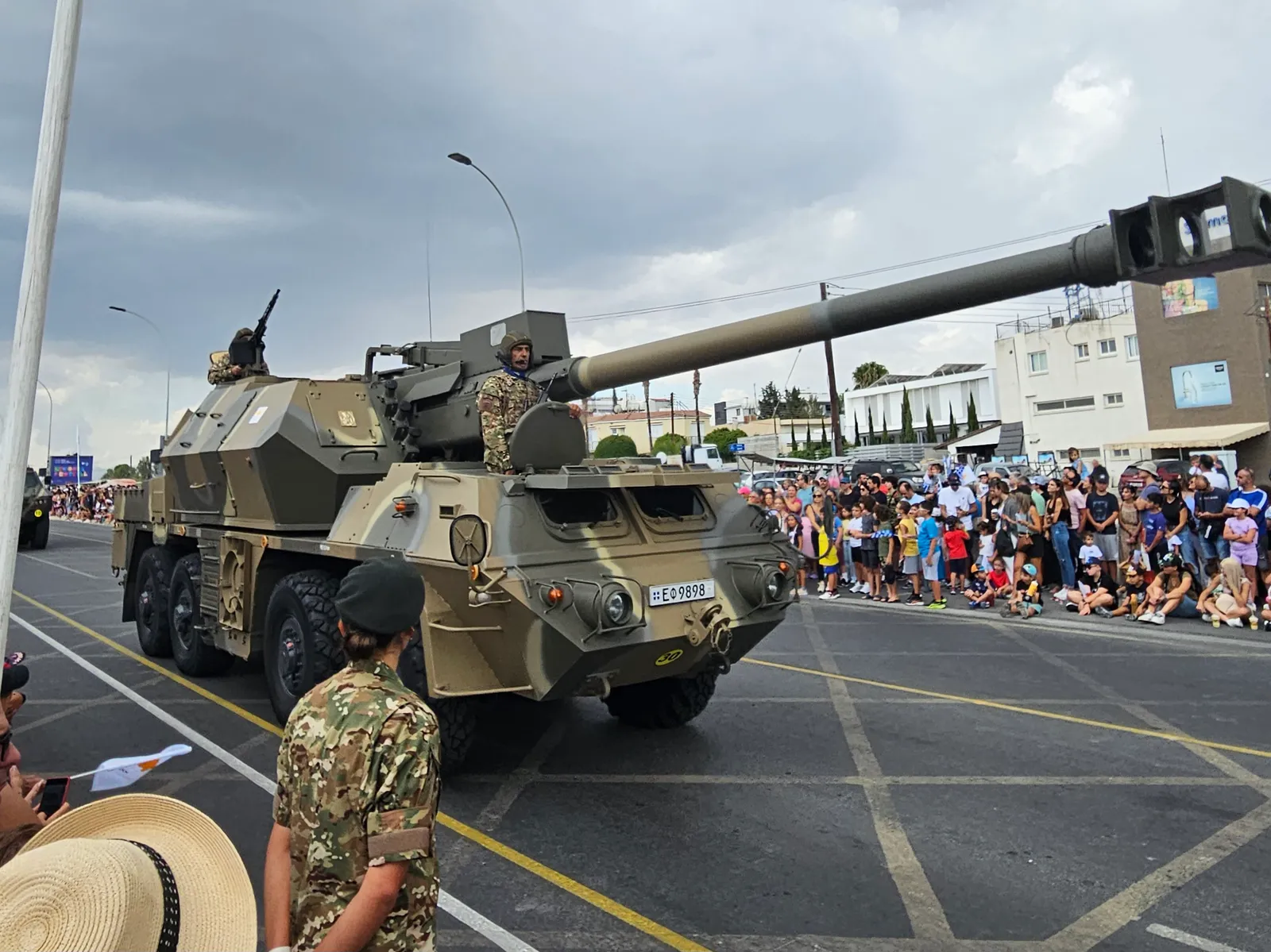

155 mm ShKH ZUZANA vz. 2000, 155 mm/45 wheeled self-propelled gun-howitzer, Artillery - view 4
