REVA armored vehicle

Also known as
  • REVA APC
  • REVA 4x4 APC
  • REVA MRAP
  • REVA mine-resistant armored vehicle

The REVA is a South African mine-resistant armored vehicle family from Integrated Convoy Protection, built around a V-shaped armored hull for troop transport, protected mobility, and utility roles. The family spans the earlier REVA III 4x4 APC, newer REVA V and VI designs, and the UAE-linked Kasser II derivative, while conflict reporting documents REVA vehicles in Iraq, Nigerian counter-insurgency operations, and UAE-backed local-force operations in Yemen.

REVA armored vehicle, Mine-resistant ambush-protected armored personnel carrier, Armored Vehicles

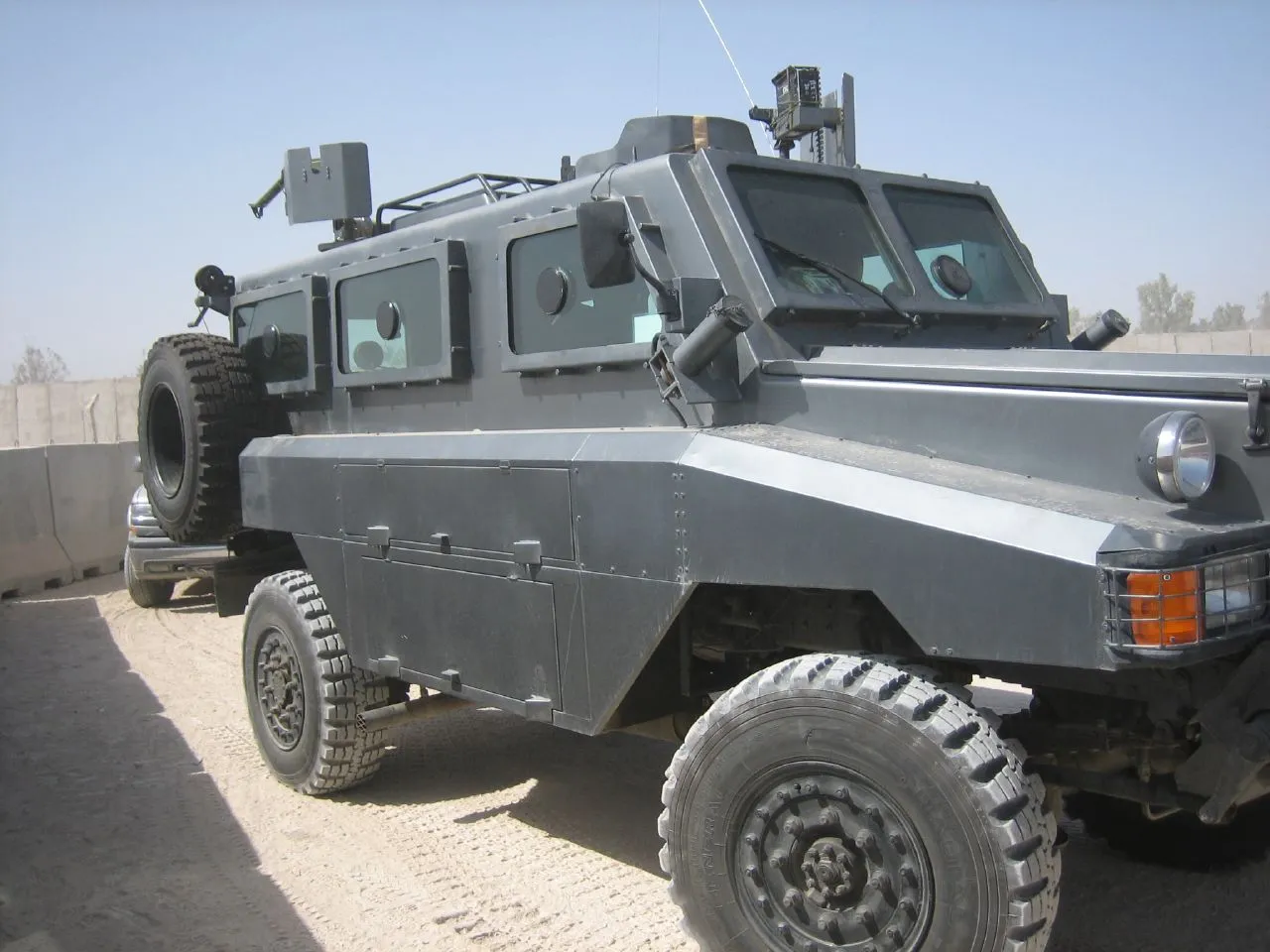

Image source: File:Reva APC.jpg

Role in Conflicts

Profile / Specs

Profile

Origin
South Africa
Type
Mine-resistant ambush-protected armored personnel carrier
Service note
2000s-present
Designer
Integrated Convoy Protection
Designed
2004
Produced
2000s-present

Specifications

Configuration
South African REVA mine-resistant armored vehicle family covering 4x4 APCs and newer 4x4/6x6 armoured utility vehicles
REVA III
4x4 mine-protected APC; Shephard lists two crew, eight passengers, 6.2 m length, 2.52 m width, 2.6 m height, 10.8 t weight, 100 km/h road speed, and 500 km road range
REVA V APC
Larger 4x4 APC; DefenceWeb reports two front crew plus six to eight rear passengers, six-speed automatic transmission, just over 7 m length, and 16 t unladen weight
Protection
All-steel V-shaped monocoque hull with model-specific ballistic and mine/IED protection, including REVA V Level 4A/B mine/IED protection reporting
Mobility
Independent suspension, central tire inflation system, automatic transmission, and air conditioning for harsh environments up to 55 C on newer REVA V models
Utility variants
REVA-V 4x4 AUV and REVA-VI 6x6 AUV use flat-deck utility layouts for logistics, support, recovery, or weapon-system fits
Designation Structure

REVA is best treated as a family name rather than one fixed vehicle. Public sources separate the older REVA III 4x4 APC from the larger REVA V 4x4 APC and the newer V/VI utility-vehicle branch.

REVA III

Earlier 4x4 mine-protected APC line developed in 2004 for Iraq private-security requirements.

REVA V

Larger 4x4 APC and AUV branch, with the APC described as ICP's flagship protected personnel carrier.

REVA VI

6x6 utility/recovery branch using a flat-deck logistics layout rather than the older APC-only designation pattern.

Kasser II

Reported UAE-built REVA V-derived designation; useful as a variant note, but not linked to a separate public catalog record.

Sources: ARMOURED VEHICLES HANDBOOK - Shephard Media; Military Vehicles; More details emerge on ICP's new REVA armoured vehicles; Fake it till you make it: How an SA arms company built UAE armoured vehicles.

Variants

Public sources use REVA as a family name. REVA III identifies the older 4x4 mine-protected APC line; REVA V is the larger later 4x4 APC and utility platform; REVA VI identifies the newer 6x6 utility/recovery branch. Kasser II is reported as a UAE-built REVA V-derived designation rather than a separate South African catalog record.

VariantConfigurationDesignation notes
REVA III 4x4Older 4x4 mine-protected APC

Shephard describes the REVA III as developed in 2004 for private-security requirements in Iraq, with a simple V-hull layout, two crew, and eight passengers.

Sources: ARMOURED VEHICLES HANDBOOK - Shephard Media

REVA V 4x4 APCLarger 4x4 armored personnel carrier

DefenceWeb identifies the REVA V as ICP's flagship 4x4 APC, seating two front crew plus six to eight rear passengers, with a V-hull and Level 4A/B mine/IED protection claims.

Sources: More details emerge on ICP's new REVA armoured vehicles

REVA-V 4x4 AUVArmoured utility/logistics vehicle

ICP's military page describes the REVA-V 4x4 AUV as an MRAP armoured utility vehicle with a two-person crew space and a flat deck for logistics, support, or weapon-system fits.

Sources: Military Vehicles

REVA-VI 6x6 AUV6x6 armoured utility vehicle

ICP and DefenceWeb describe the REVA VI as the larger 6x6 AUV branch with a flat-deck utility layout; public sources differ on crew count, so the catalog avoids a numeric crew claim.

Sources: Military Vehicles, More details emerge on ICP's new REVA armoured vehicles

Kasser IIUAE-built REVA V derivative

DefenceWeb and Open Secrets report Kasser II as a UAE-built derivative of the 4x4 REVA V APC; Open Secrets cites a 2020 IGG-ICP contract for modified REVA V kits assembled in the UAE under the Kasser II name.

Sources: More details emerge on ICP's new REVA armoured vehicles, Fake it till you make it: How an SA arms company built UAE armoured vehicles

Timeline

REVA armored vehicle Key Events

  1. REVA III 4x4 line is developed

    Shephard says the REVA III 4x4 was developed by Integrated Convoy Protection for a private-security customer operating in Iraq that needed IED protection with urban and rough-terrain mobility.

    Sources: ARMOURED VEHICLES HANDBOOK - Shephard Media

  2. REVA prototypes are evaluated for Iraq convoy protection

    National Defense reported that U.S. Army officials purchased five REVA prototypes for evaluation while civilian contractors were already using REVA vehicles in Iraq.

    Sources: Army to Expand Array of Armored Vehicles in Iraq

  3. DefenceWeb summarizes the expanded REVA range

    DefenceWeb described REVA as growing from the original APC line into REVA III, Scout, REVA V, 4x2 protection, 6x6 recovery, and Fast Attack Vehicle branches.

    Sources: Reva promoting Fast Attack Vehicle for Special Forces

  4. New REVA V and REVA VI vehicles are unveiled at IDEX

    DefenceWeb reported that ICP formally unveiled the 4x4 REVA V AUV, 6x6 REVA VI AUV, and REVA V 4x4 APC at IDEX 2025 in the UAE.

    Sources: More details emerge on ICP's new REVA armoured vehicles
